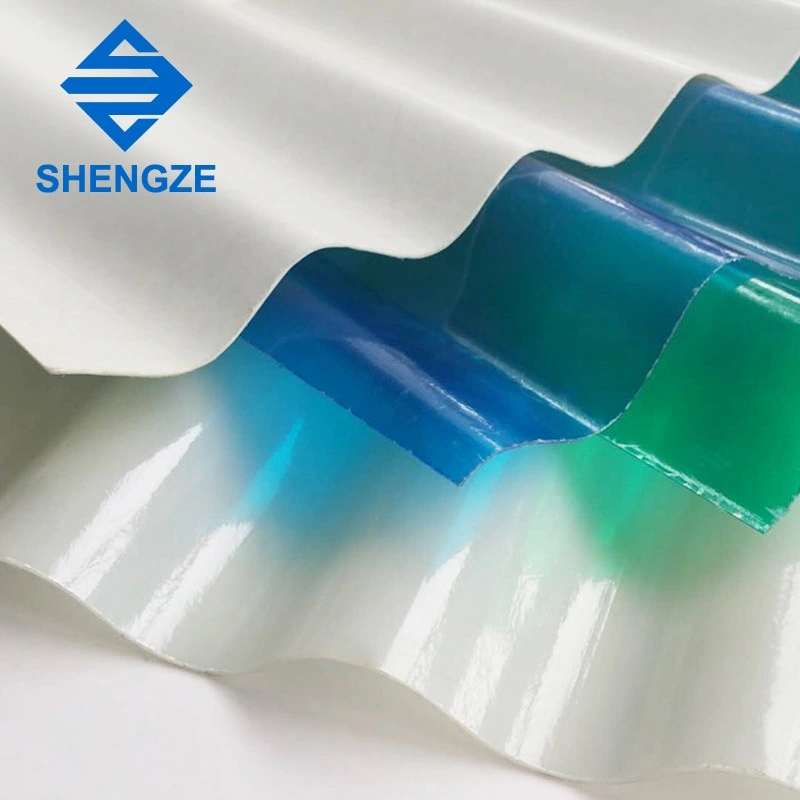

Fire Resistant Fiberglass Fiber Reinforced Plastic Panel Panels Sheet

Customization: Available
Material: FRP
Kind: FRP

Product Description

Basic Specifications
Model NO.
Fire resistant fiberglass fiber reinforced plastic
Water Absorption
0.076%
Contraction Percentage
<0.4%
Tensile Strength
81~130MPa
Use Temperature
-40~+130 Celsius
Glass Fiber Content
>30%
Light Transmittance
Blue/Green (75%), White (68%), Colorless (88%)
Production Capacity
50000m/Month
Product Description

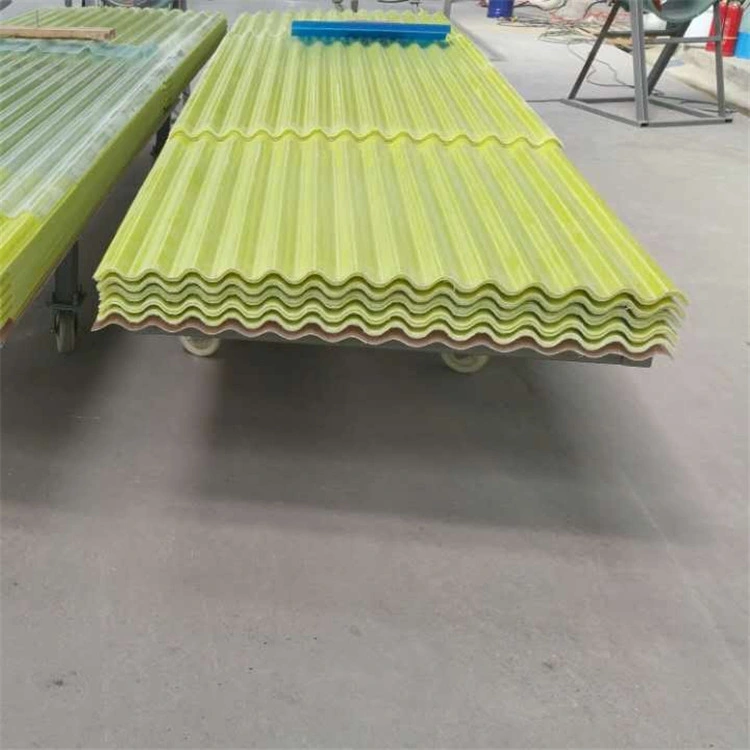

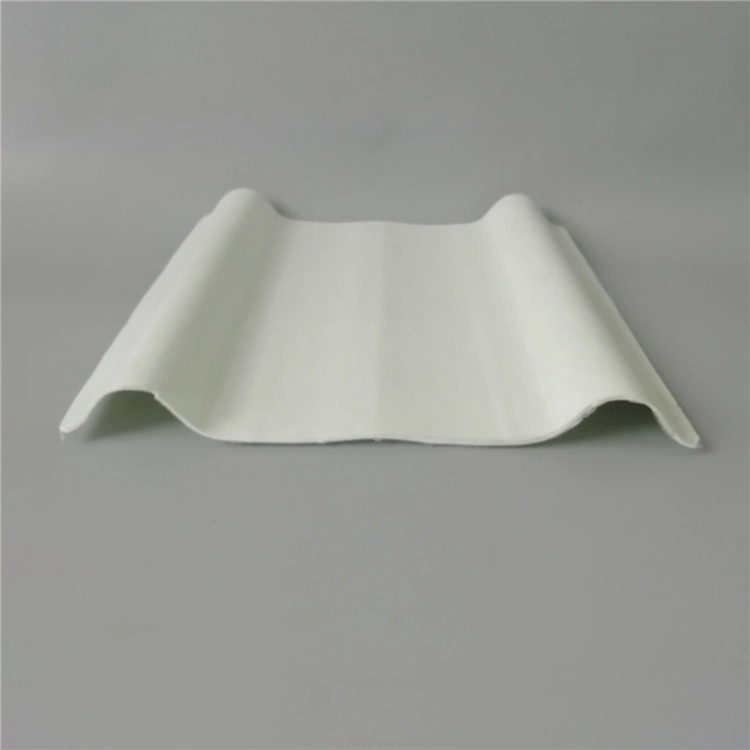

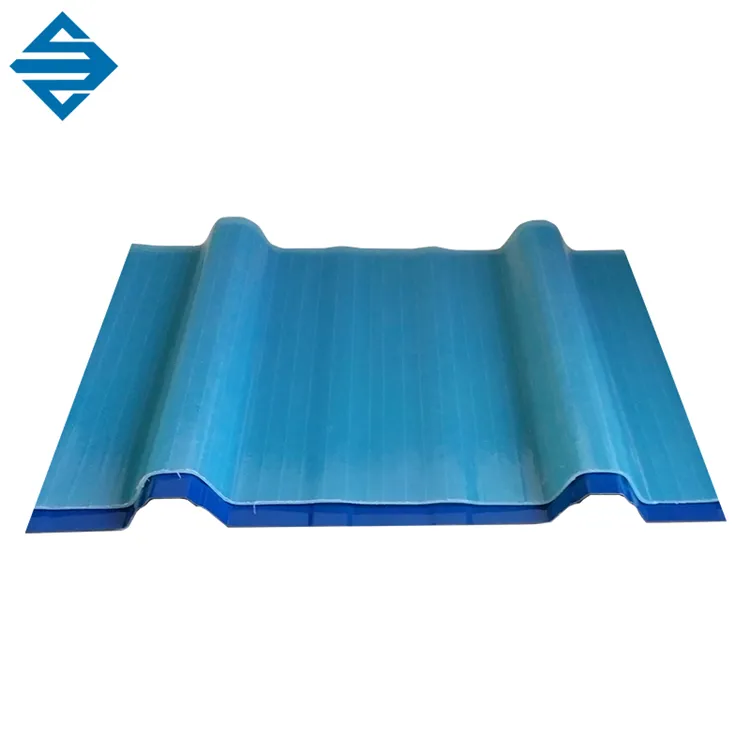

Fire resistant fiberglass fiber reinforced plastic panel panels sheet

Materials: fiberglass-reinforced plastic, continuous forming by machine.

Weather resistant and Self-clean ability
Excellent yellowness resistance
Strong impact resistant and low bending rate
High light transparency, Light weight and high strength
Aging resistant with specified F4 film
Corrosion and impact resistance, Anti-UV
Technical Specifications

Standard width: 1000, 1200, 1500mm

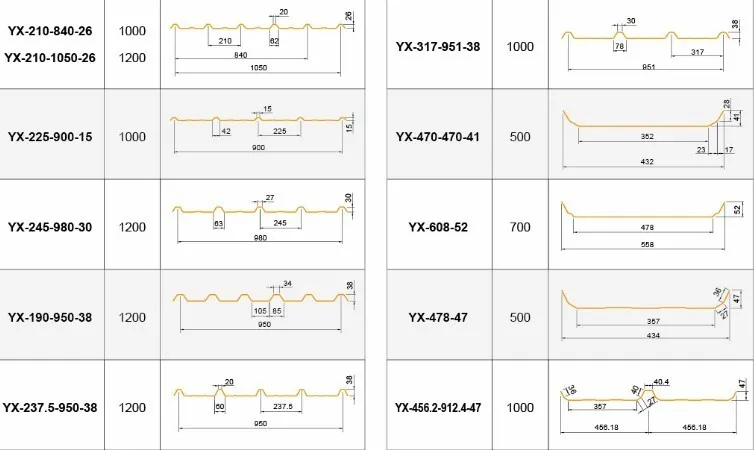

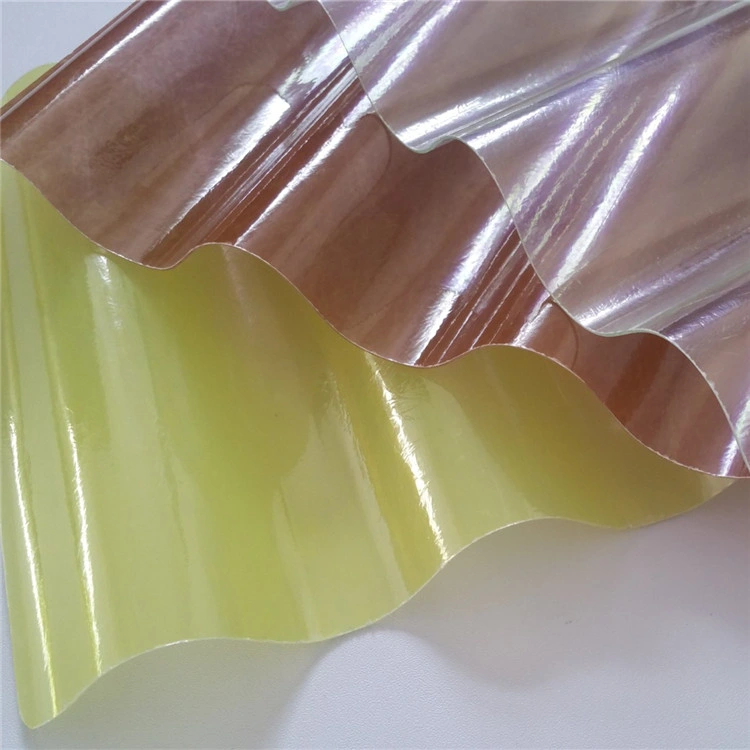

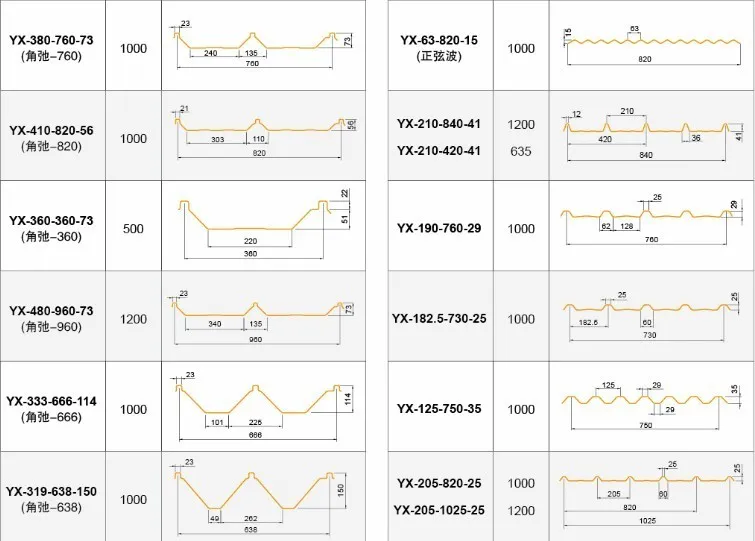

Corrugated sheet: Shape could be customized. Spread width ≤2500mm, Thickness: 0.8~4mm, Length: 0-12m.

Flat sheet: Spread width ≤2200mm, Thickness: 0.8~6mm, Length: 0-12m. (In roll, Thickness: 0.8~1.5, Length < 30m / roll)

Color: Grey, Blue, Green, White, Colorless; Transparent or non-transparent.

Types: Weathering resistance, Flame retardant (First-class/Secondary), Scatter-type, Heat insulation, Corrosion-resistant.

Processing & Advantages

Main Technic:

  • • Protruded Profile
  • • SMC Moulding
  • • Hand layup
  • • Vacuum sorption

Key Advantages:

  • • Professional Design Support
  • • Customized Large Sizes
  • • One-stop OEM/ODM Service
  • • High-grade E-Glass Raw Material
Frequently Asked Questions
Are you a trading company or manufacturer?
We are both a factory and a trade company, ensuring manufacturing quality and professional service.
How long is your delivery time?
Generally 5-10 days if in stock, or 15-20 days if not, depending on the order quantity.
Do you provide samples? Is it free?
Yes, we offer certain samples for free, though the cost of freight is not included.
What are your payment terms?
For orders under 3000USD, 100% in advance. For orders over 3000USD, 30% T/T in advance, balance before shipment.
What is the temperature resistance range of these panels?
The panels can withstand extreme temperatures ranging from -40 to +130 Celsius for prolonged periods.
What is the light transmittance of different colors?
Light transmittance varies by color: Blue/Green (75%), White (68%), and Colorless (88%).
