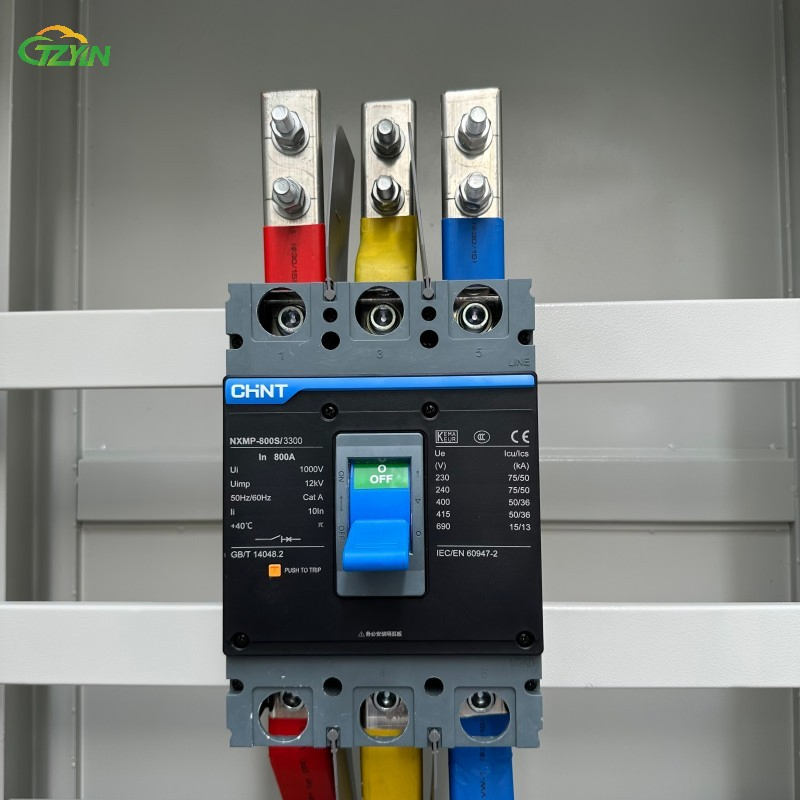

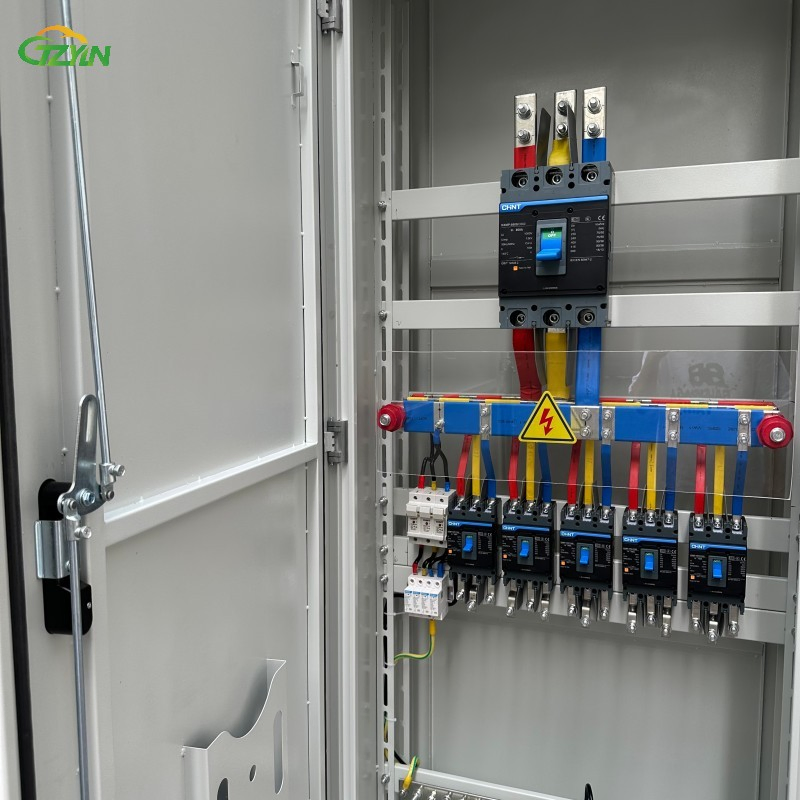

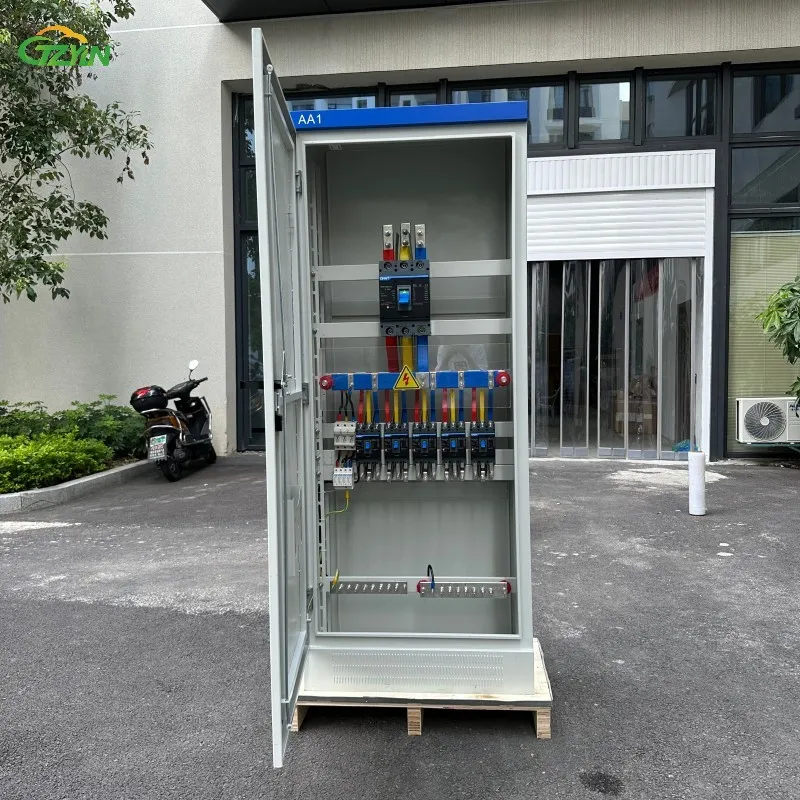

Working Principle: The direct current generated by solar panel arrays is controlled and protected by branch circuit breakers, then converged to the busbar, and finally output to inverters through the main circuit breaker. Fuses and surge protectors provide short-circuit protection and lightning protection respectively, ensuring the safe operation of the system.
Application Scenarios: Suitable for large-scale centralized and distributed photovoltaic power stations, it is used to collect current from multiple panel arrays, improve system reliability and maintainability, reduce cable costs, and facilitate the management and monitoring of photovoltaic systems.
| Product type | One control by one |
| Box/cabinet size | Customizable |
| Box/cabinet thickness | 0.8/1.2/1.5mm |
| Instal type | Wall mounting / Console mode |
| Component brand | Schneider, ABB, Omron, DELIXI, Eaton, Siemens |
| Shell material | Carbon steel, Stainless steel, Explosion-proof |
| Major component | Shell, circuit breaker, power input interface, distribution unit, protective device |
| Protection level | IP40, IP44, IP54, IP65 |
