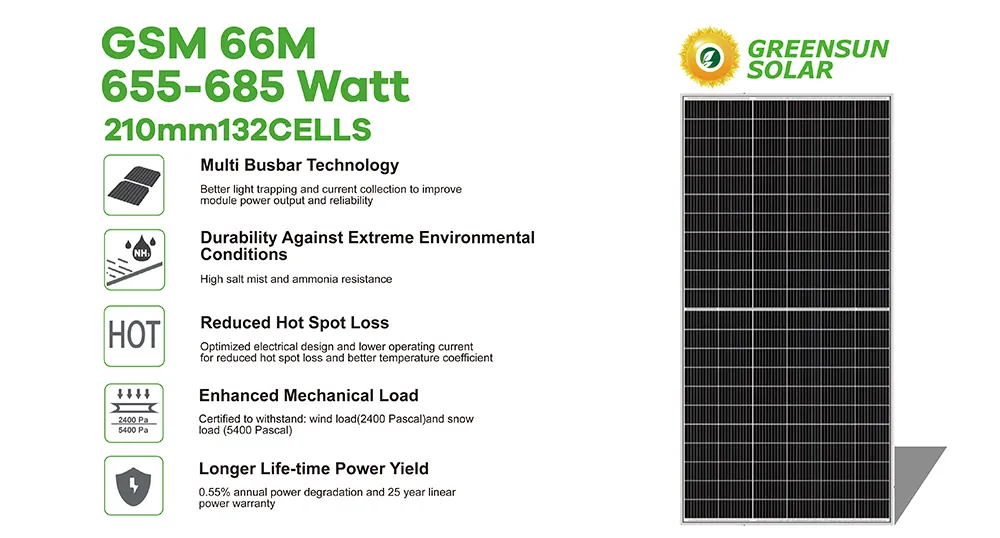

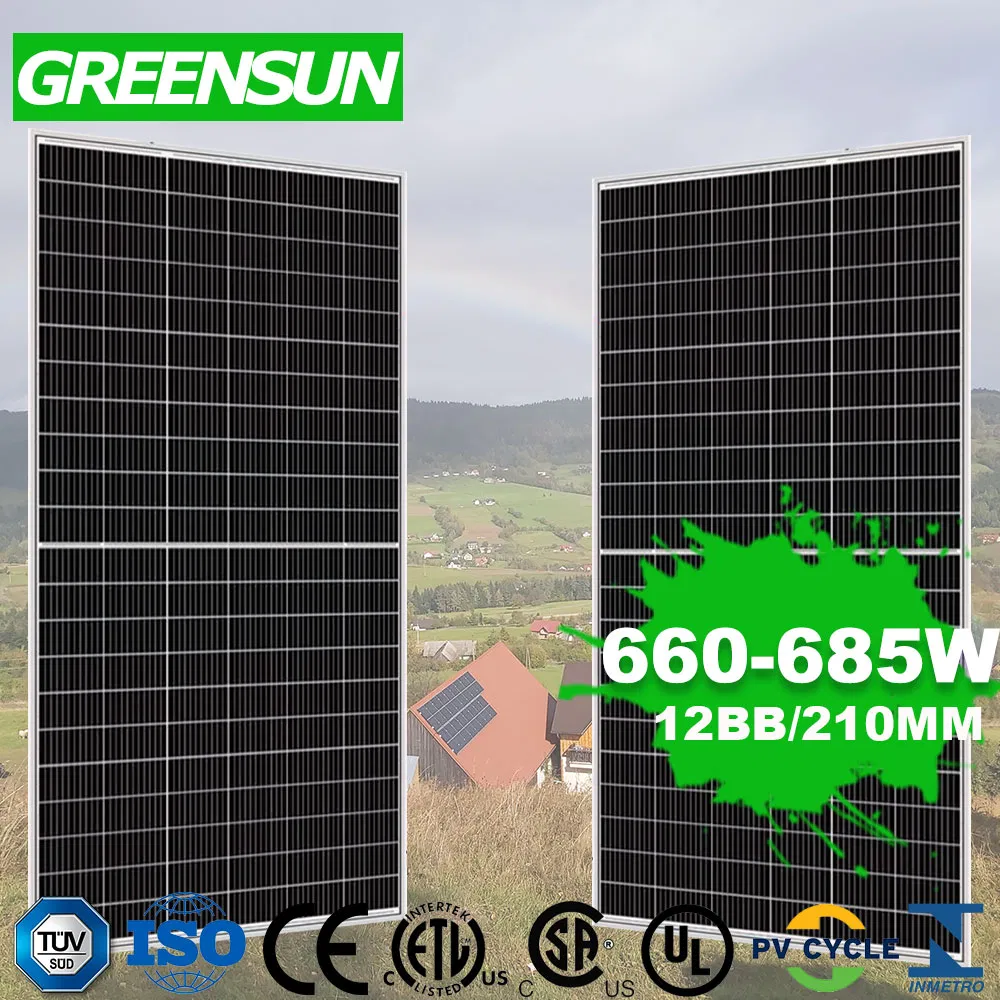

Commercial Home Bifacial Dual Glass 680W - 700W Photovoltaic Solar Panel Module
ELECTRICAL CHARACTERISTICS AT STC
| Nominal Power (Pmax) | 655W | 665W | 675W | 685W | 700W |
|---|---|---|---|---|---|
| Open Circuit Voltage (Voc) | 45.4V | 45.71V | 46.03V | 46.35V | 46.6V |
| Short Circuit Current (Isc) | 18.37A | 18.56A | 18.78A | 19.01A | 19.2A |
| Module Efficiency (%) | 20.95 | 21.3 | 21.7 | 22.0 | 22.5 |

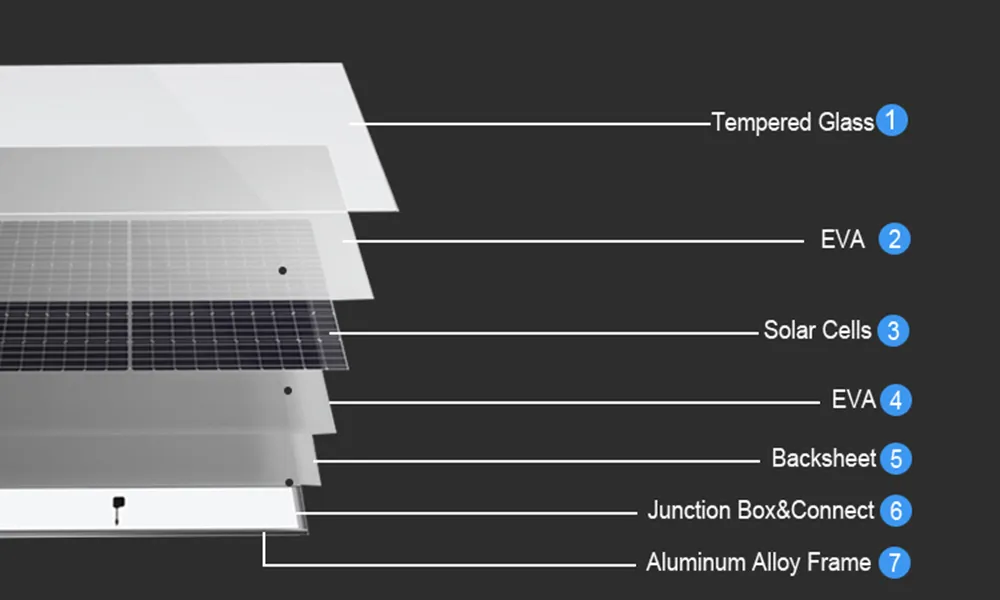

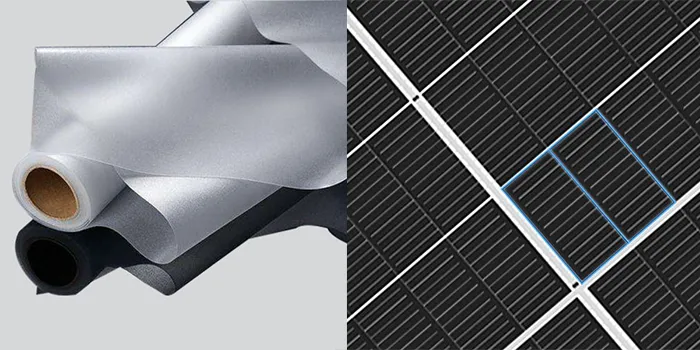

Higher GEL content ensuring durability against high temperature, moisture, and UV rays.

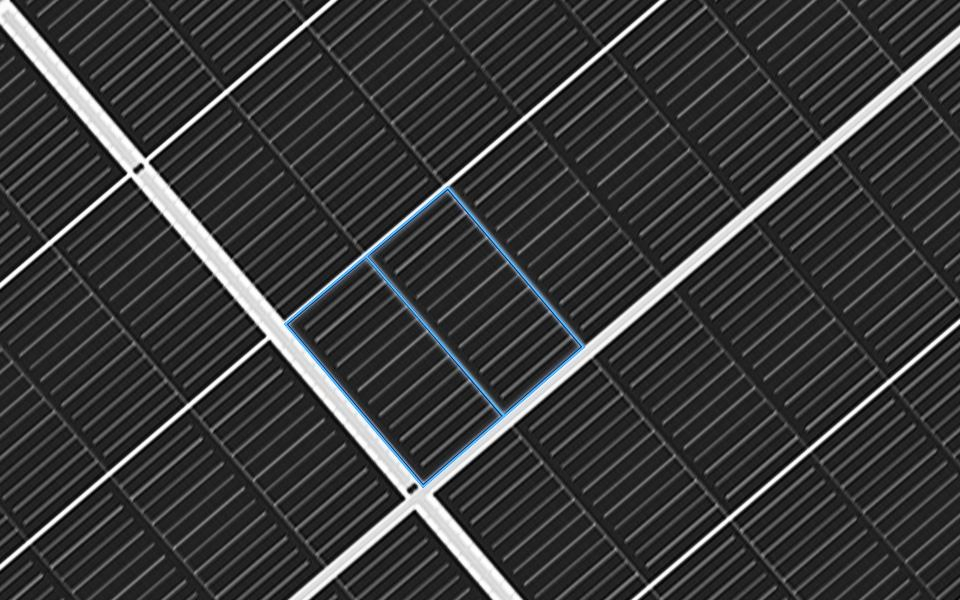

210mm x 210mm size with more than 22% efficiency and Anti-PID protection.
IP68 Waterproof, innovative full-glue-filled with outstanding sealability.

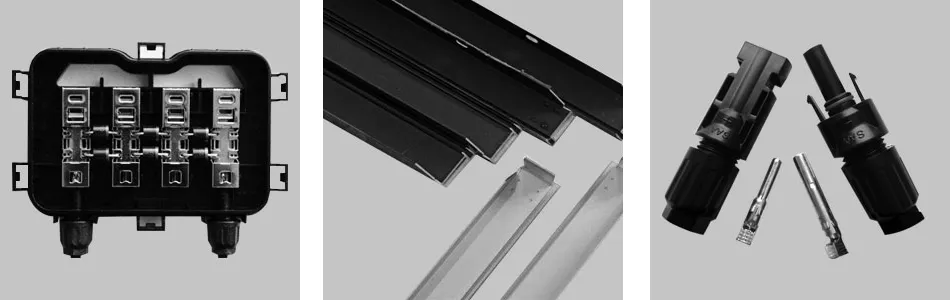

Aluminum Alloy frame (120N tensile) and 4mm² qualified cable with MC4 connectors.

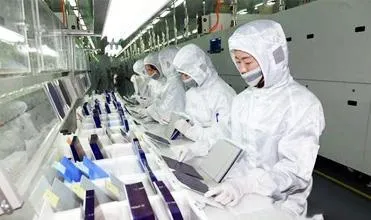

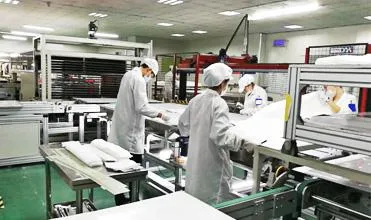

100% Cell Sorting
Middle Inspection

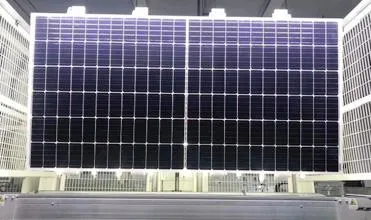

Appearance Check

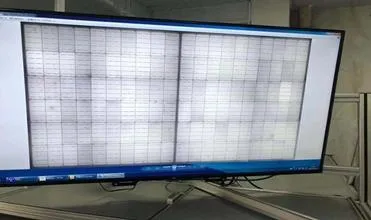

EL Testing

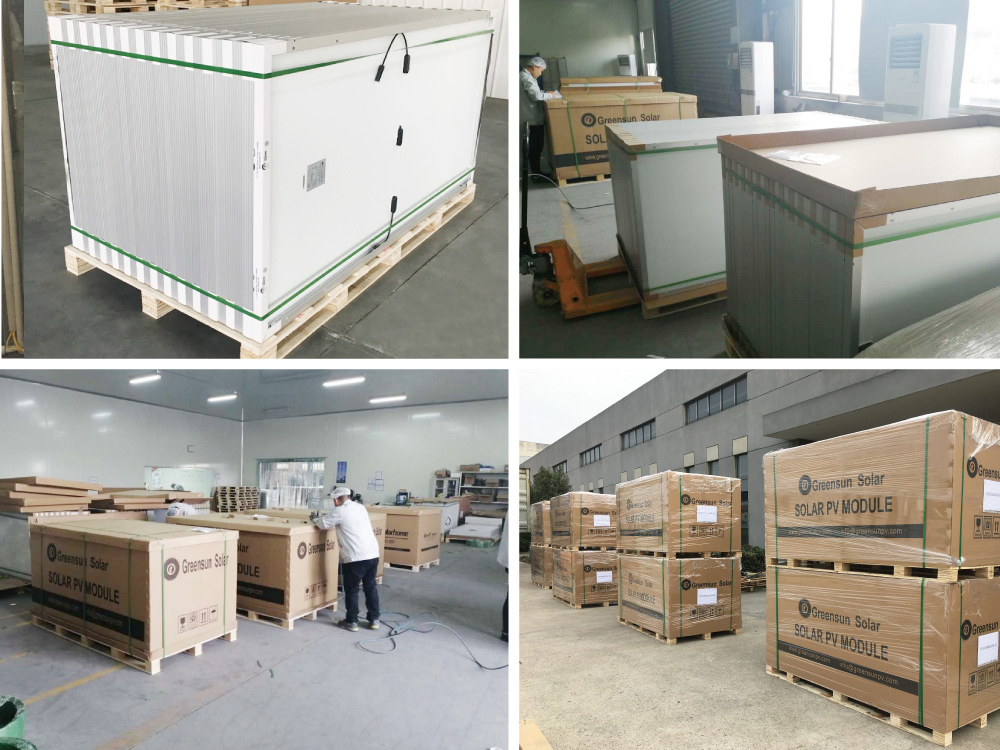

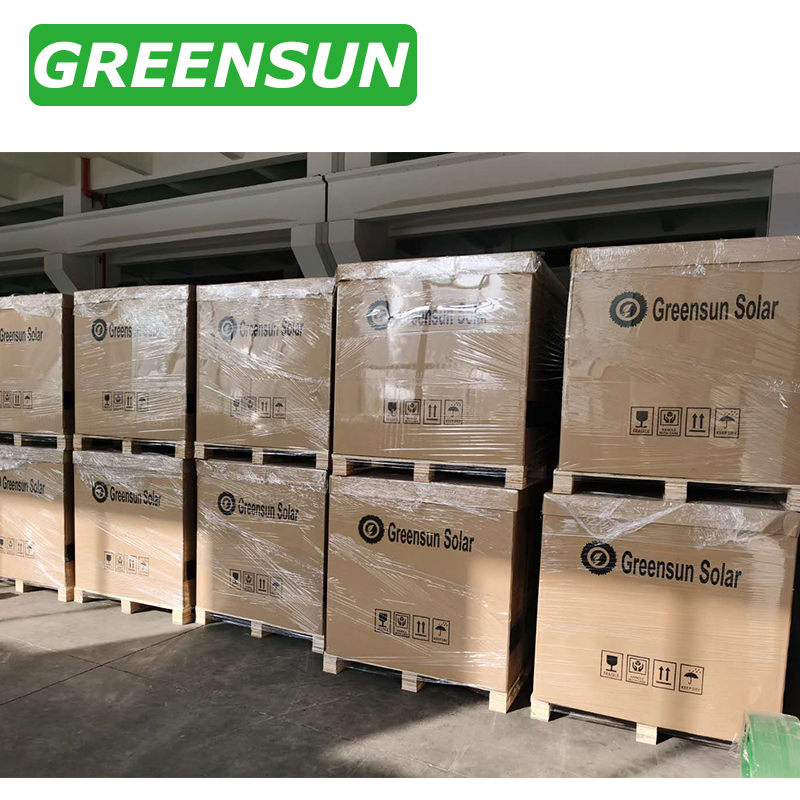

Customized Wooden & Carton with Pallet (100% Protection)
| Solar Panel Type | 20' GP Container | 40' GP Container | 40' HC Container |
|---|---|---|---|
| 72 Cells Pcs / Pallet | 31 | 31 | 31 |
| Total Pcs | 310 | 620 | 682 |
