Product Description

■

Basic Specifications

Model NO. Tiger Neo 72HL4-BDV
Number of Cells 144 cells
Application Solar System
Certification EST, ISO, CB, CE
Material Monocrystalline Silicon
Weight 31 Kg
Junction Box IP68 Rated
Trademark Jinko

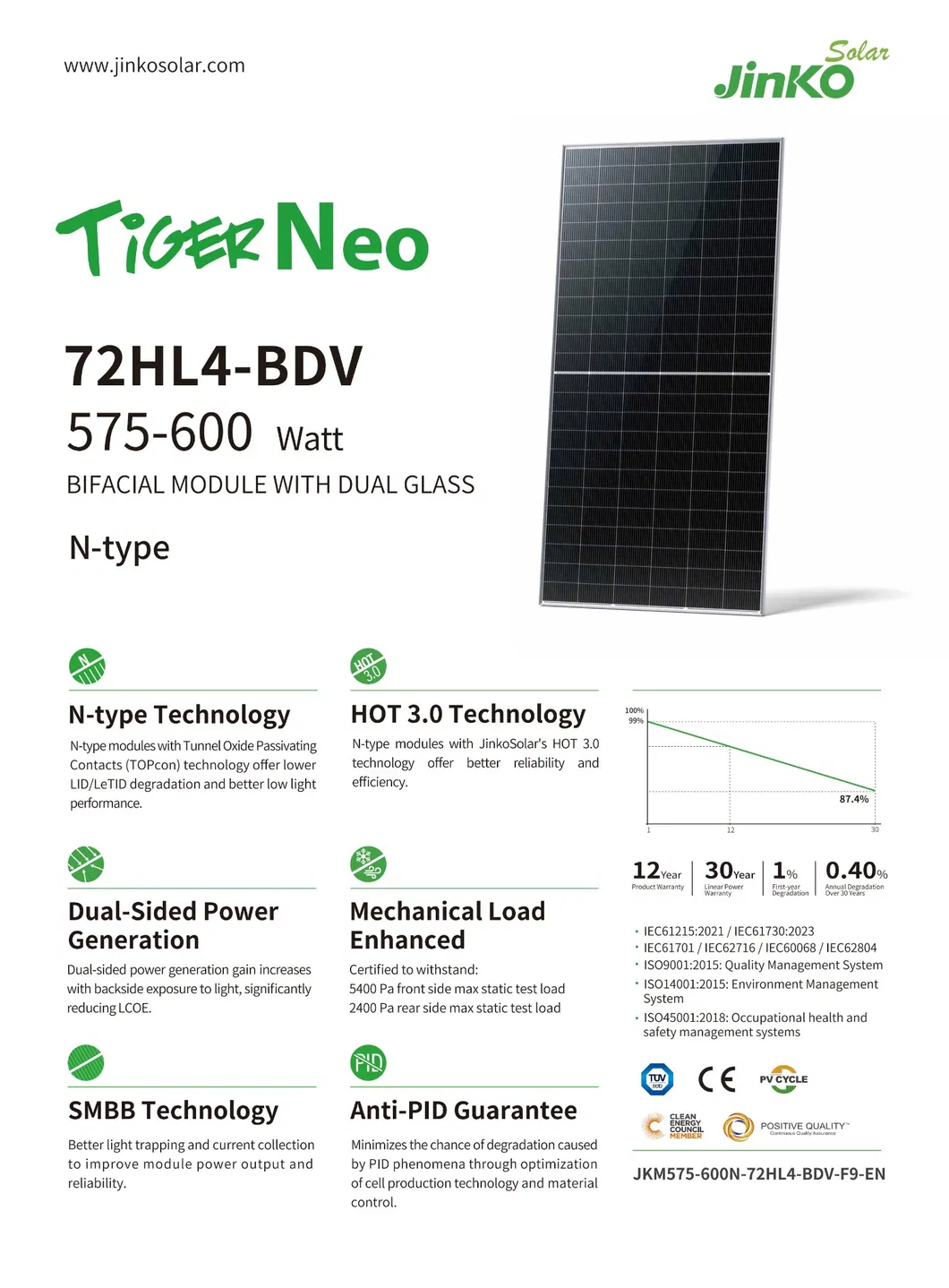

Product Display
Technical Layout
📊

Electrical Characteristics (STC)

Specifications 585Wp 590Wp 595Wp 600Wp
Maximum Power (Pmax) 585Wp 590Wp 595Wp 600Wp
Maximum Power Voltage (Vmp) 44.02 44.17 44.31 44.45
Maximum Power Current (Imp) 13.29 13.36 13.43 13.50
Open-circuit Voltage (Voc) 52.70 52.90 53.10 53.30
Short-circuit Current (Isc) 14.01 14.07 14.13 14.19
Module Efficiency STC (%) 22.65 22.84 23.03 23.23
Operating Conditions
Operating Temperature -40ºC ~ +70ºC
Maximum System Voltage 1500VDC (IEC)
Bifaciality Coefficient Pmax: 80±5%
⚙

Mechanical & Packaging

Cell Type N type Mono-crystalline
Dimensions 2278×1134×30mm
Front Glass 2.0mm, Anti-Reflection Coating
Frame Anodized Aluminium Alloy
Package Size 227.80cm * 113.40cm * 3.00cm
Loading Capacity 720pcs / 40'HQ Container
Feature 1
Feature 2
Feature 3
Feature 4
Feature 5

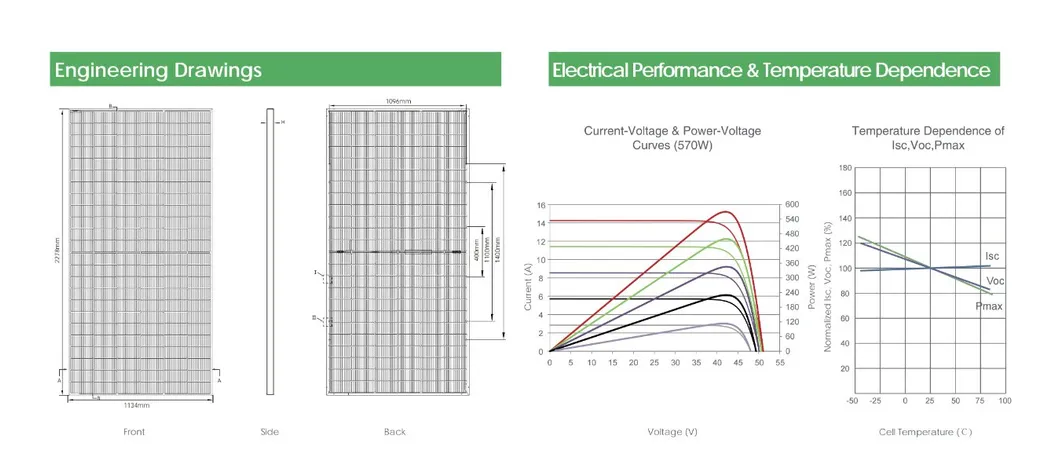

Technical Drawing
Divider Divider Divider Divider
?

Frequently Asked Questions

What is the cell technology used in the Tiger Neo series?
The Tiger Neo 72HL4-BDV uses N-type Mono-crystalline silicon cells, which offer higher efficiency and better performance over time compared to traditional P-type cells.
What is the maximum power output of these modules?
This series offers a power range from 585Wp up to 600Wp, with a maximum module efficiency reaching 23.23% under standard testing conditions.
How durable are the panels against environmental factors?
The modules feature an IP68-rated junction box and an anodized aluminum alloy frame, designed to operate in temperatures ranging from -40ºC to +70ºC.

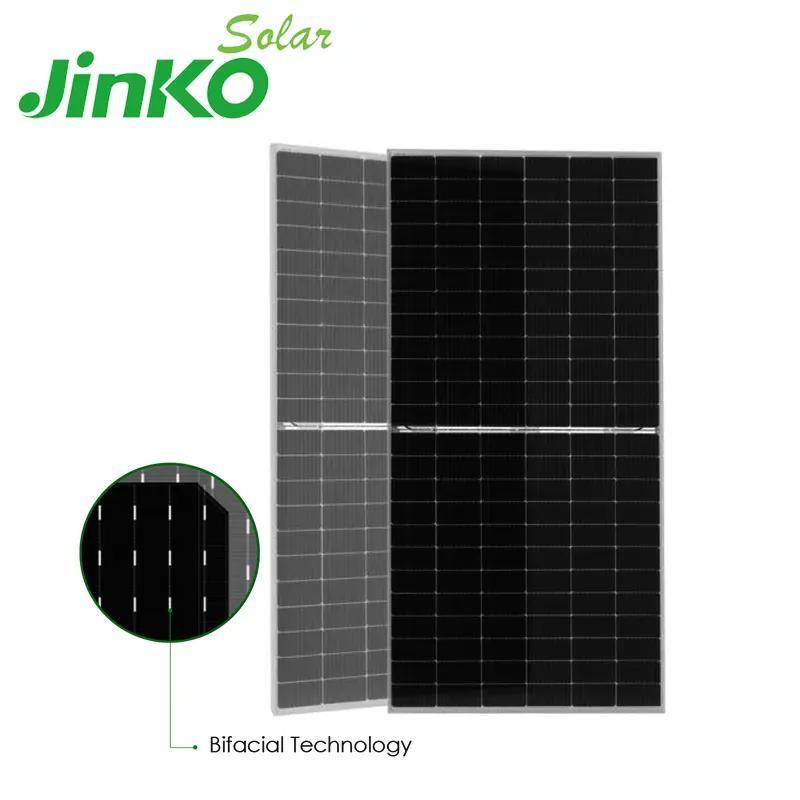

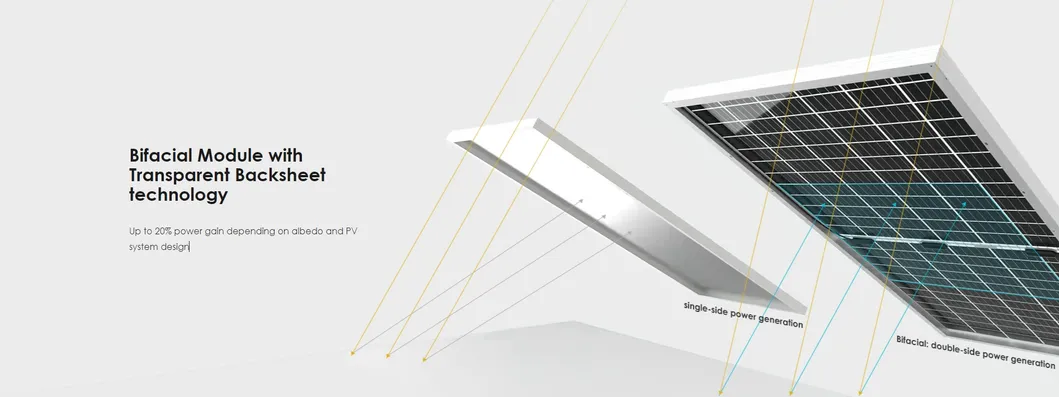

What are the bifacial advantages of this module?
With a bifaciality coefficient of 80±5% for Pmax, these dual-glass modules can capture sunlight from both sides, significantly increasing energy yield depending on the albedo of the ground.

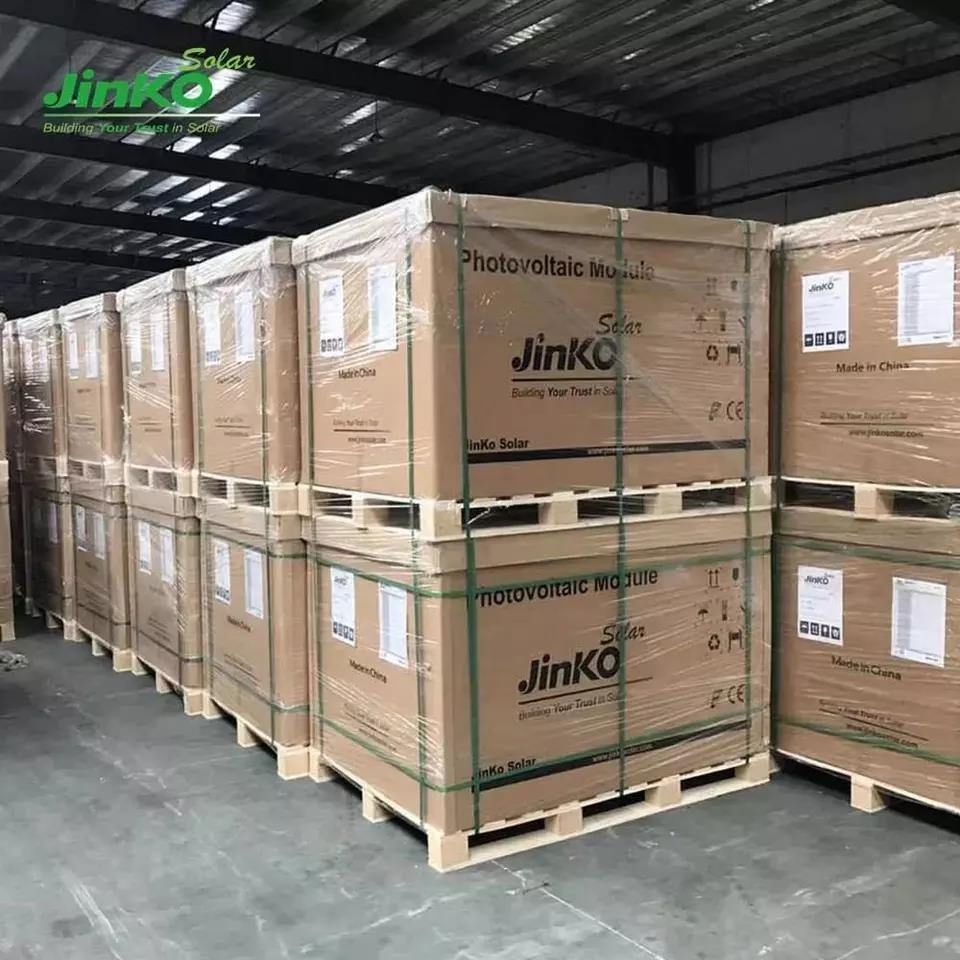

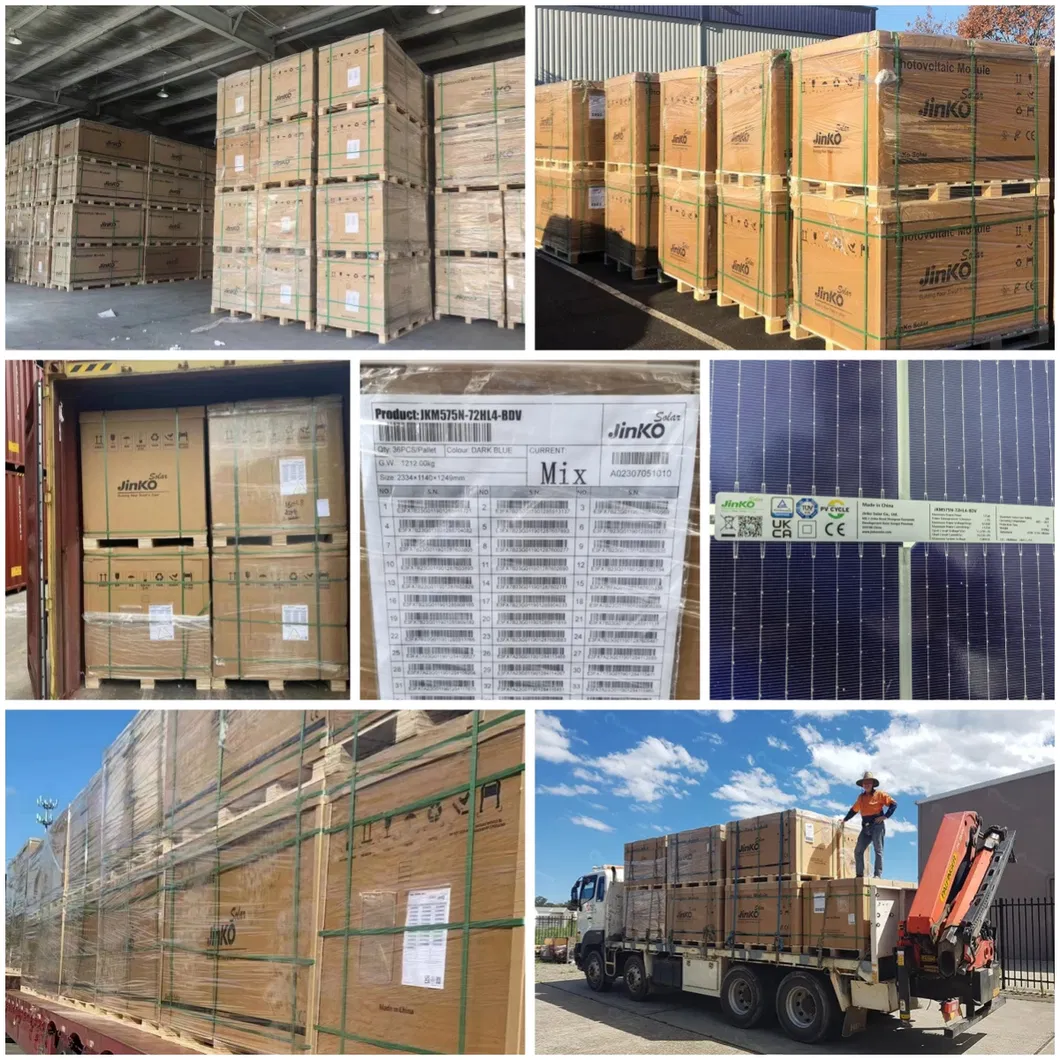

What is the standard packaging for shipping?
The panels are packed 36 pieces per pallet, with a 40'HQ container capable of holding up to 720 pieces (20 stacks).
Which certifications do these solar panels hold?
The products are fully certified with EST, ISO, CB, and CE standards, ensuring international quality and safety compliance for solar installations.
