📊 Basic Information
Cleaning Process

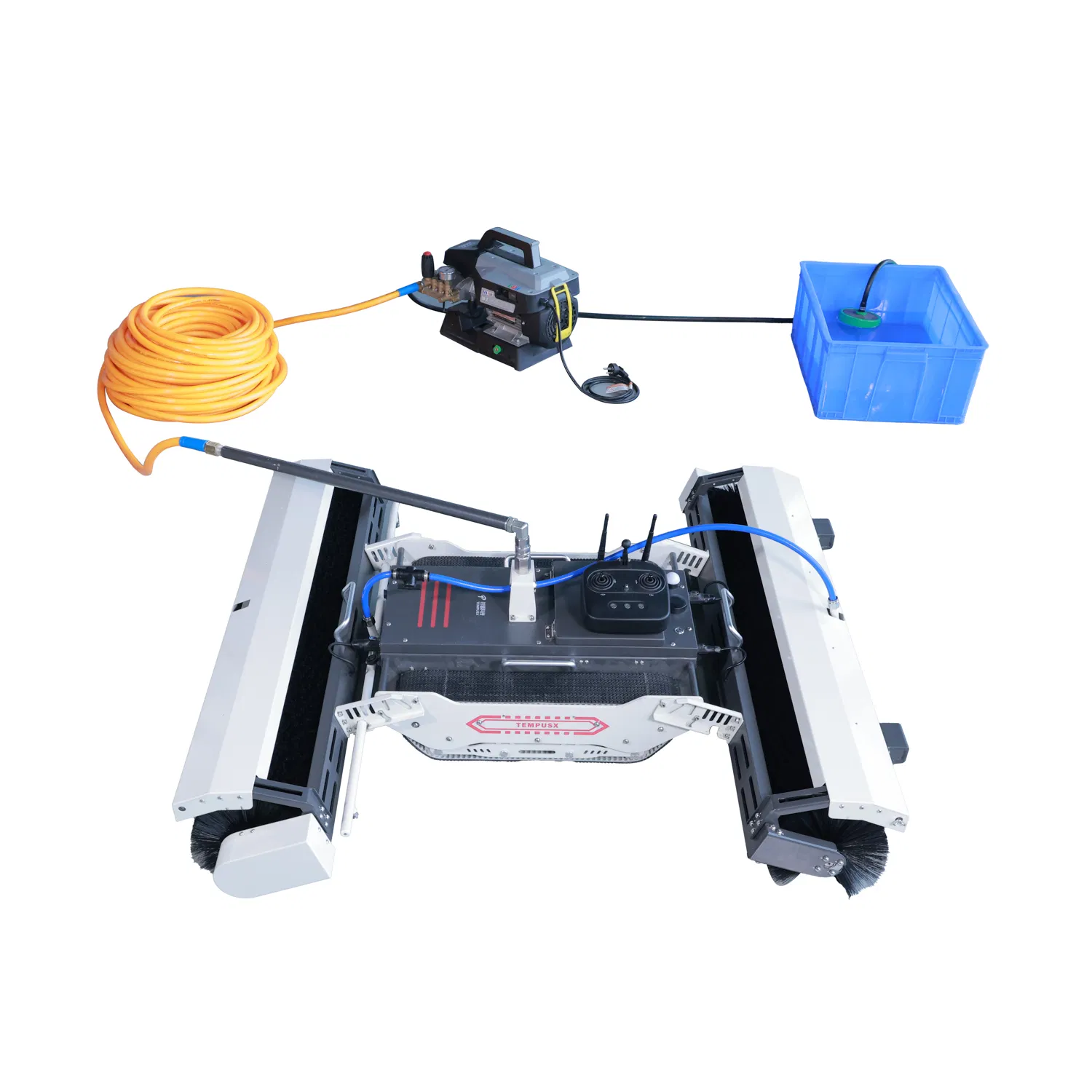

Dry Cleaning / Water Washing
Battery Capacity
36V / 15ah
🚀 Product Description

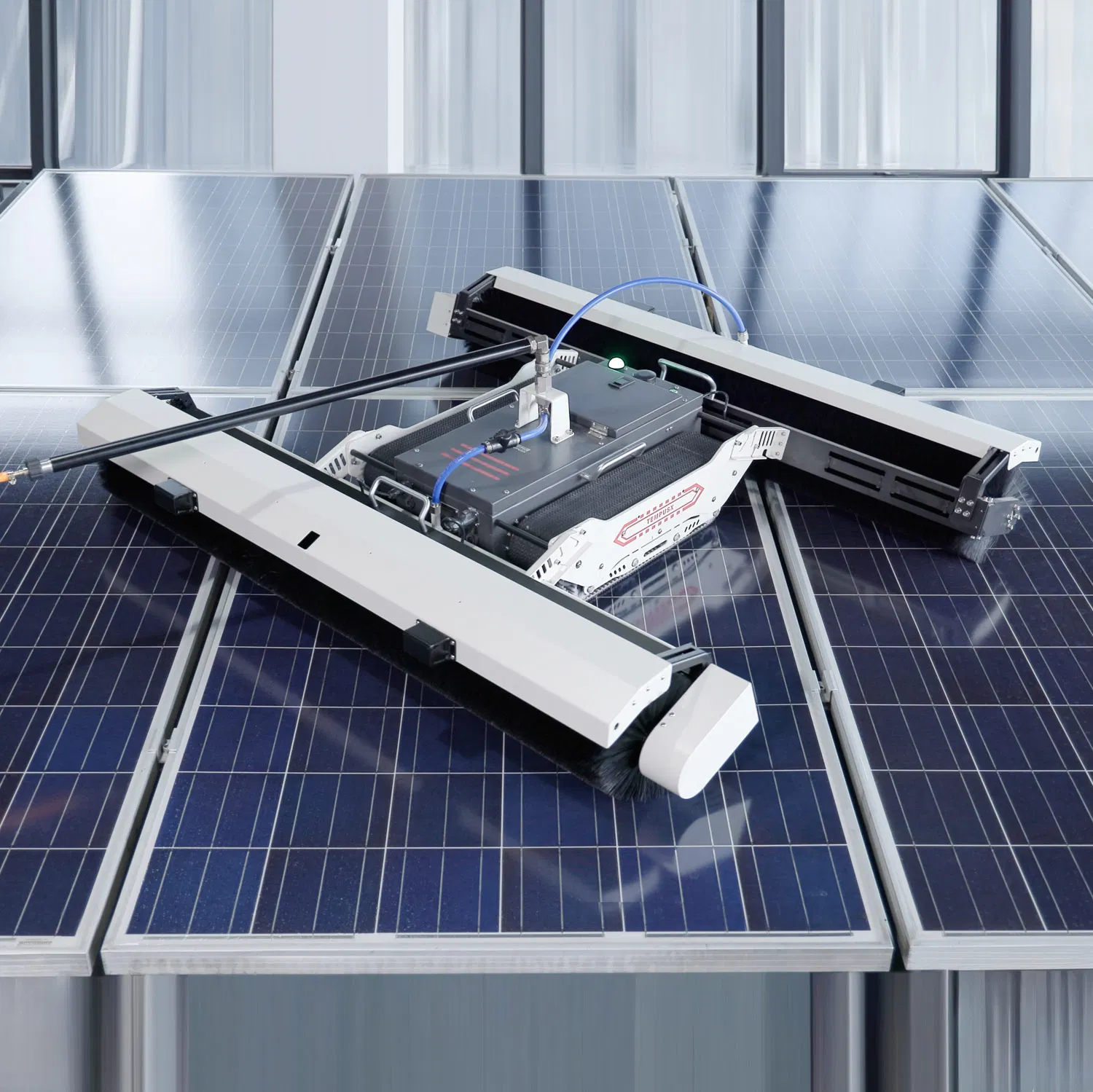

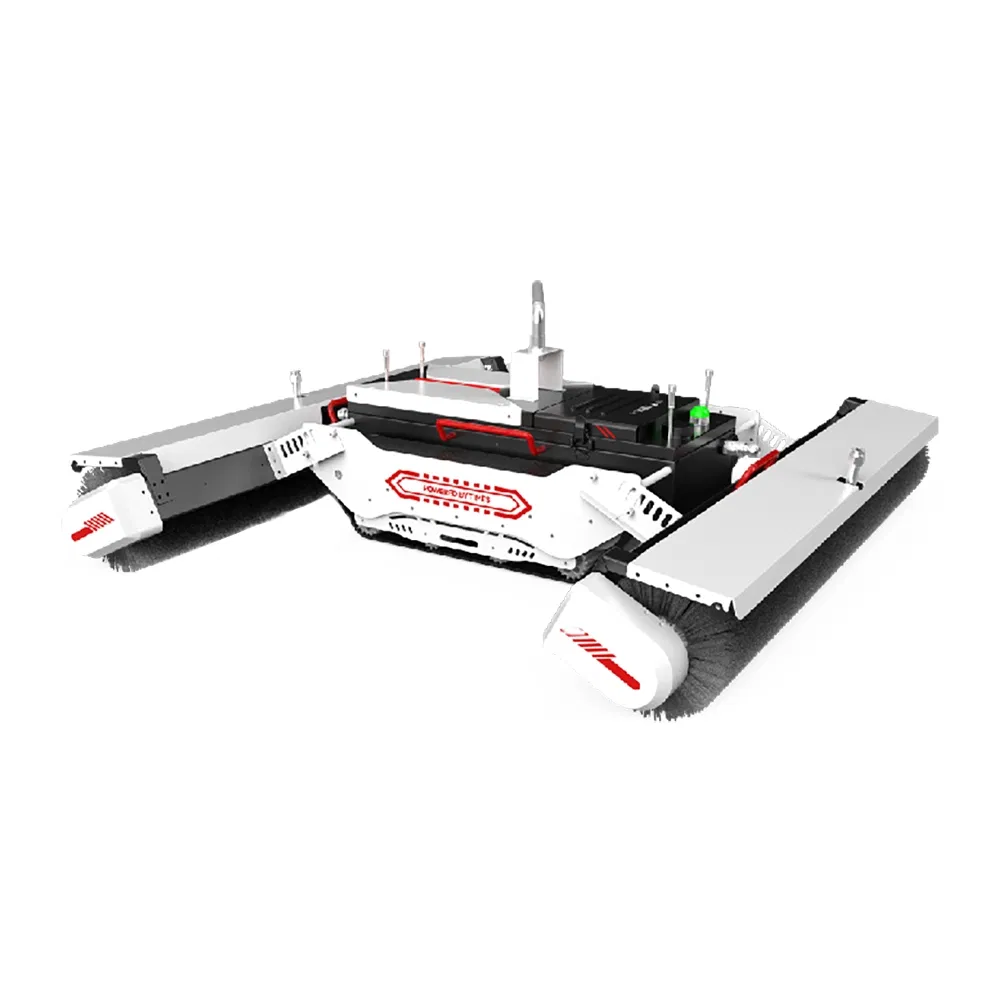

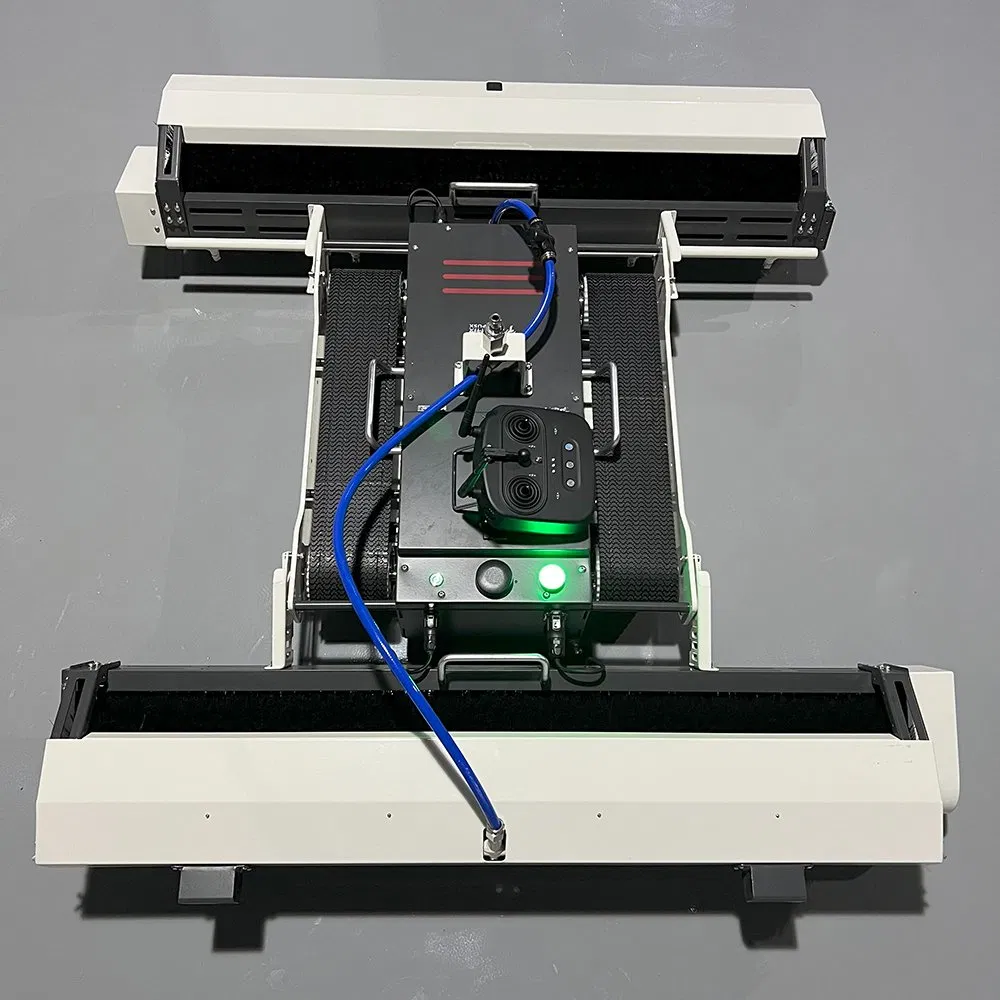

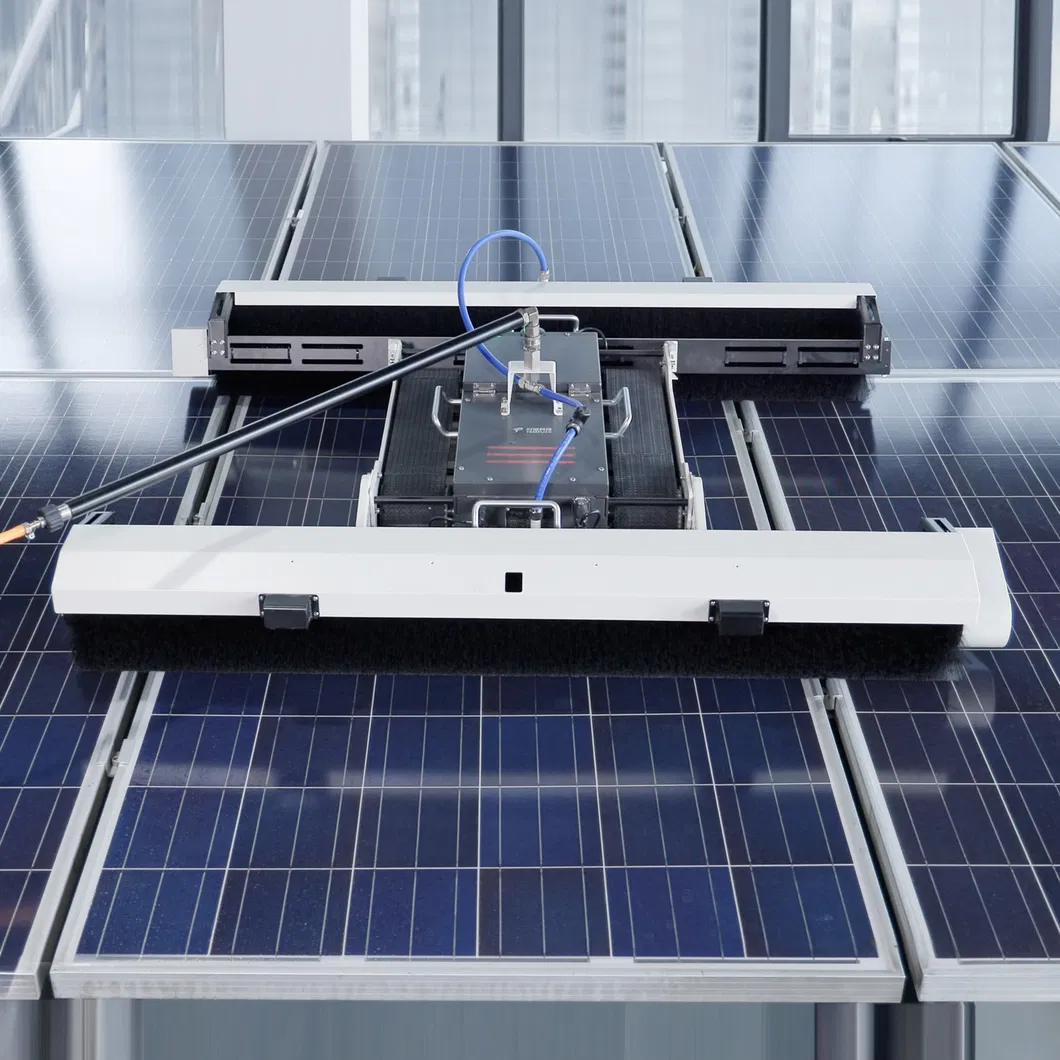

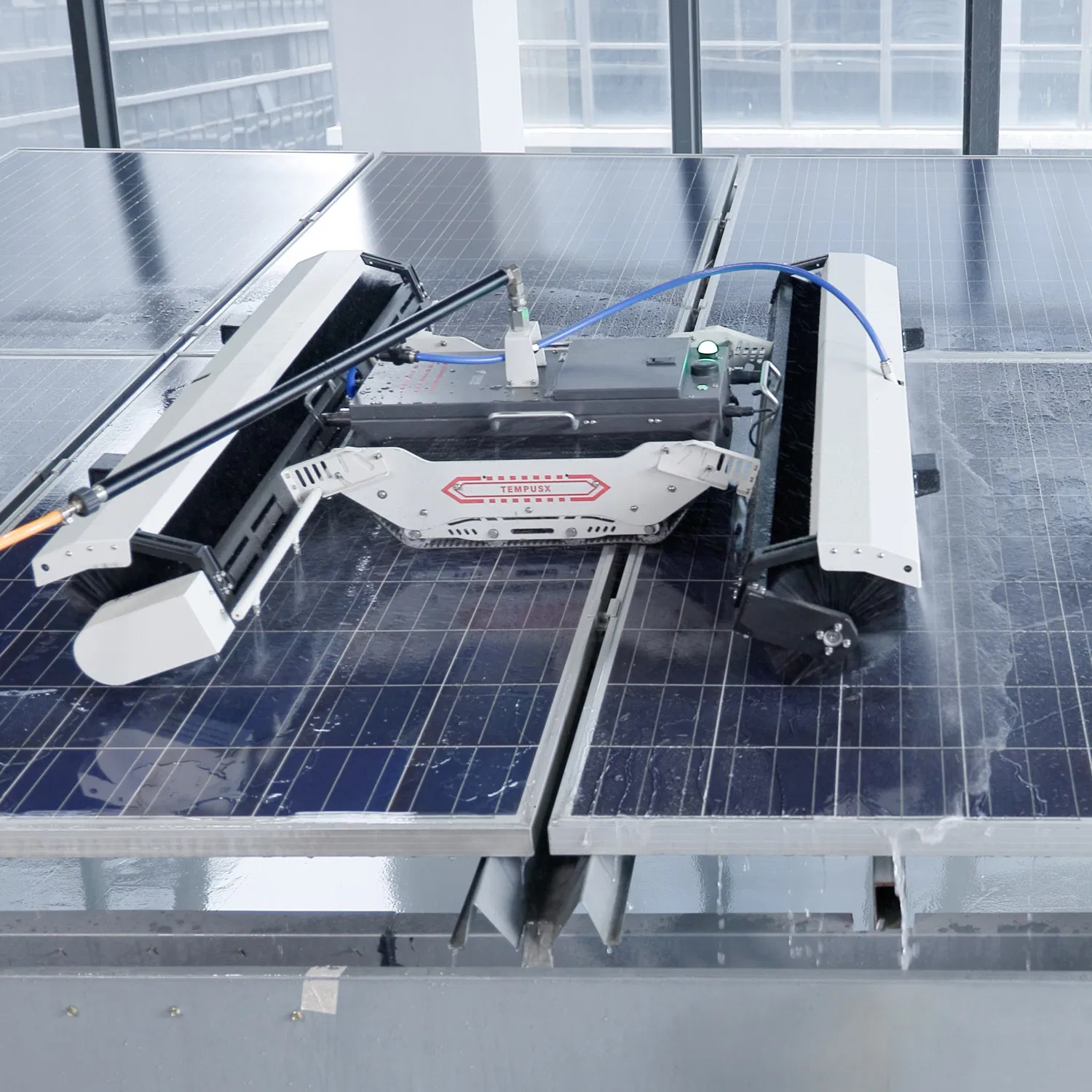

The D Series Track-Type Remote-Controlled Solar PV Panel Cleaning Robot is engineered for the high-efficiency operation and maintenance of industrial and commercial photovoltaic rooftops. Its multi-model matrix adapts flexibly to various architectural scenarios and specialized cleaning requirements.
1. High Quality Battery
Utilizes premium cells (36V / 15Ah) supporting up to 3000 charge cycles. Equipped with two batteries for a 6-hour total lifespan, ensuring continuous large-scale operations.
2. High Performance Motor
Integrated joint motor module (170W) with 14-bit dual encoders. Reaches chassis speeds of 1000mm/s and brush speeds of 330rpm for robust cleaning power.
3. High Efficiency Cleaning
Features a quadruple cleaning system with dual roller brushes and spray nozzles. Cleans twice in one pass, reaching a daily capacity of 1~2 MW.
4. Intelligent Safety
Equipped with a high-end remote control (200m range) and ultrasonic edge anti-fall protection for secure operation on rooftops.
5. Flexible Deployment
Made of aviation-grade aluminum. Lightweight, modular design allows for easy disassembly and operation on tilts up to 10°.
6. IP65 Protection
Superior sealing isolates dust and rainwater, ensuring reliable performance in harsh outdoor environments.
🛠️ Technical Diagrams

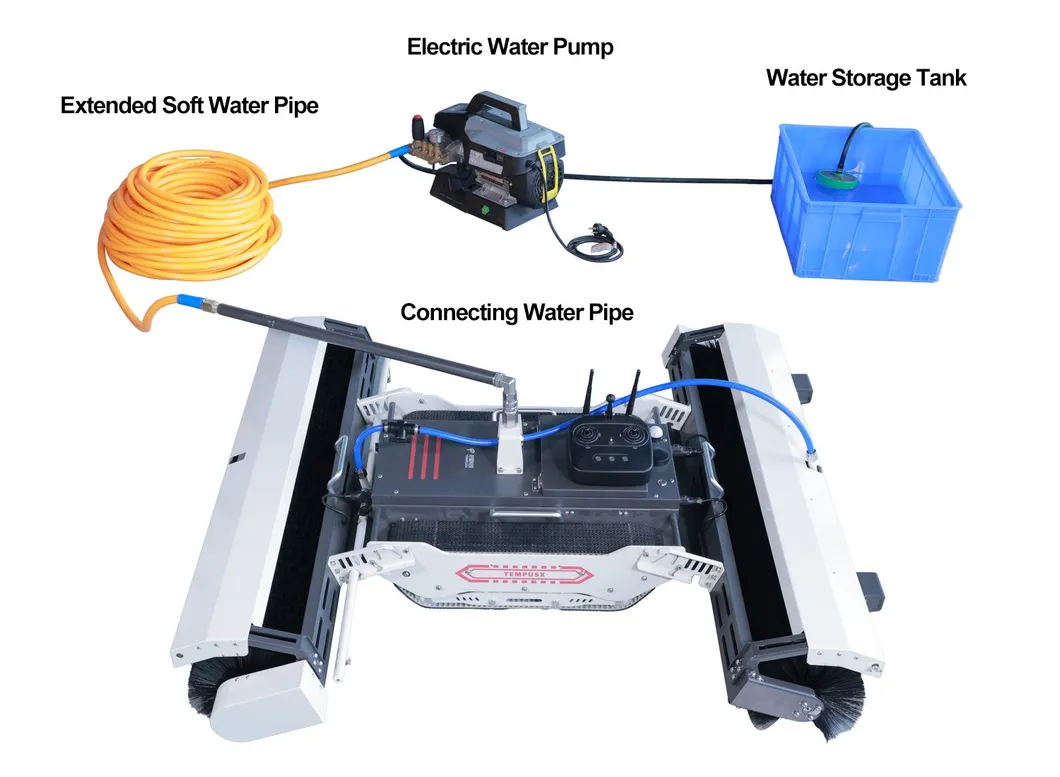

Detailed configuration and installation visual guides.

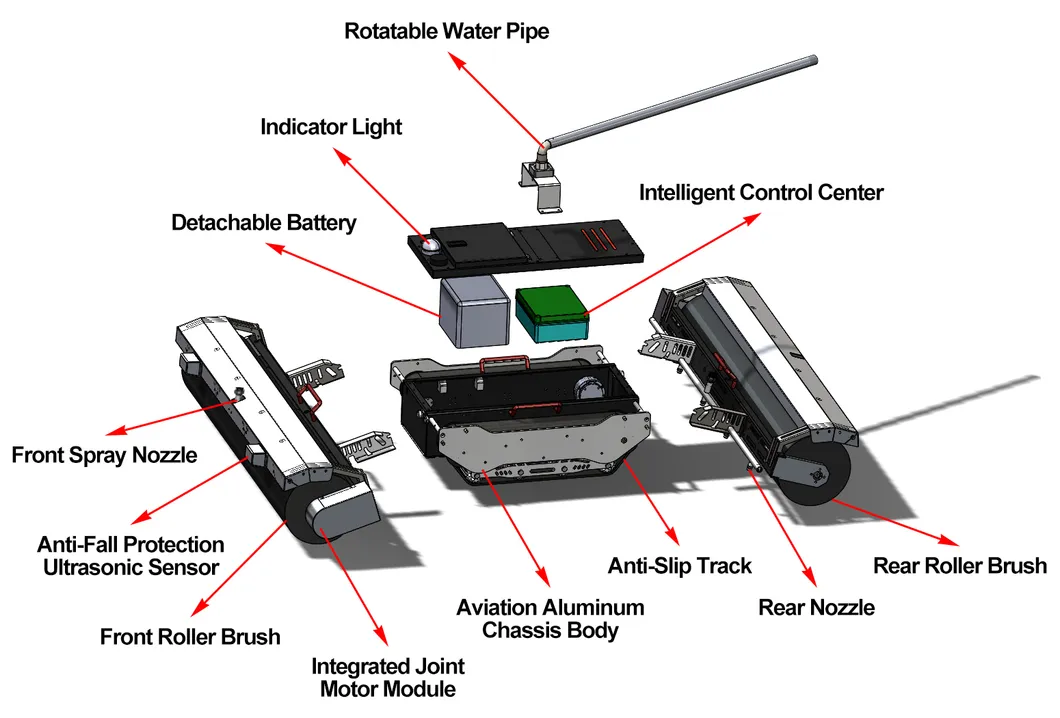

D1300 Exploded Diagram
📋 Product Parameters Comparison
| Model |
D1000 |
D1000Pro |
D1300 |
D1300Pro |
| Body Size (mm) | 600×490×220 | 600×530×220 | 600×490×220 | 600×530×220 |
| Brush Component (mm) | 1132 | 1132 | 1420 | 1420 |
| Brush Size (mm) | 1000 | 1000 | 1300 | 1300 |
| Body Weight (incl. battery) | 20kg | 22kg | 20kg | 22kg |
| Total Weight | 38kg | 40kg | 40kg | 42kg |
| Battery Config | 1 piece | 1 piece | 2 pieces | 2 pieces |
| Battery Life | 4h | 4h | 6h | 6h |
| Tilt Angle | ≤10° | ≤20° | ≤10° | ≤20° |
| Heading Hold | No | Yes | No | Yes |
| Protection Class | IP65 | IP65 | IP65 | IP65 |

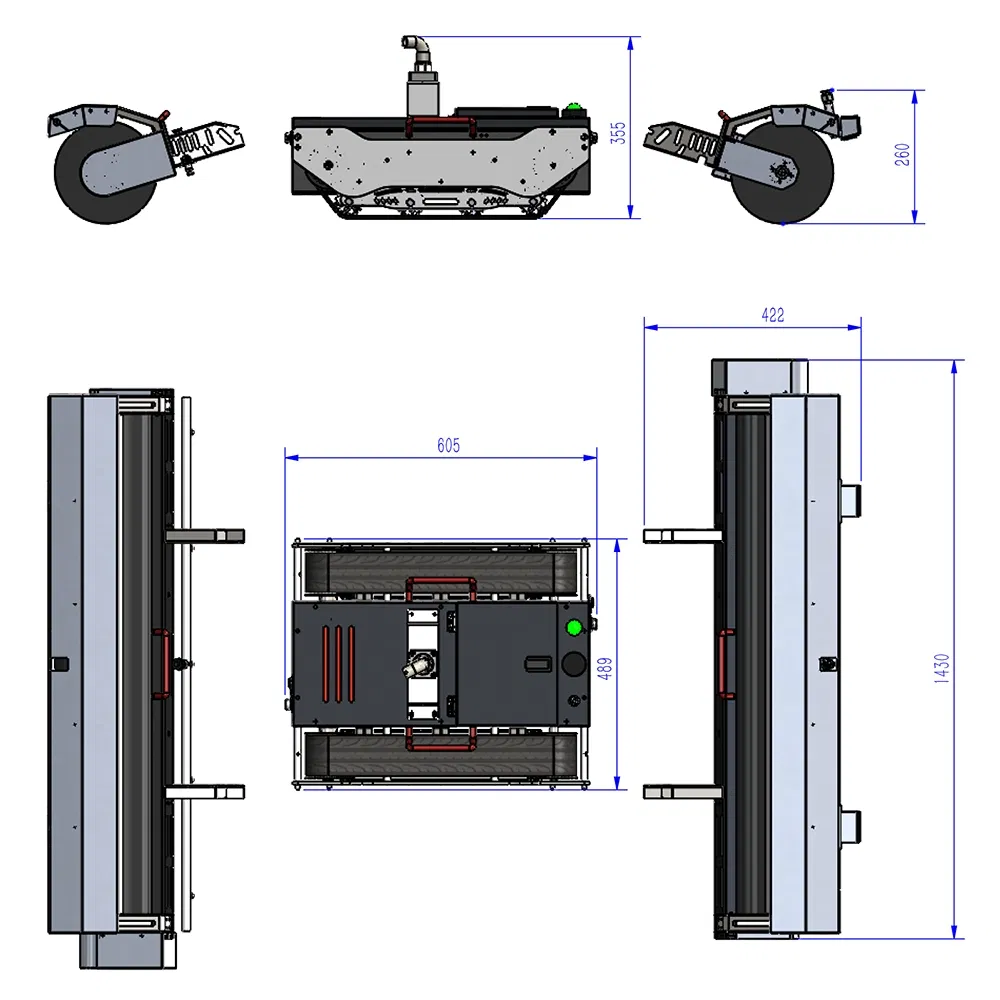

Dimension Drawing

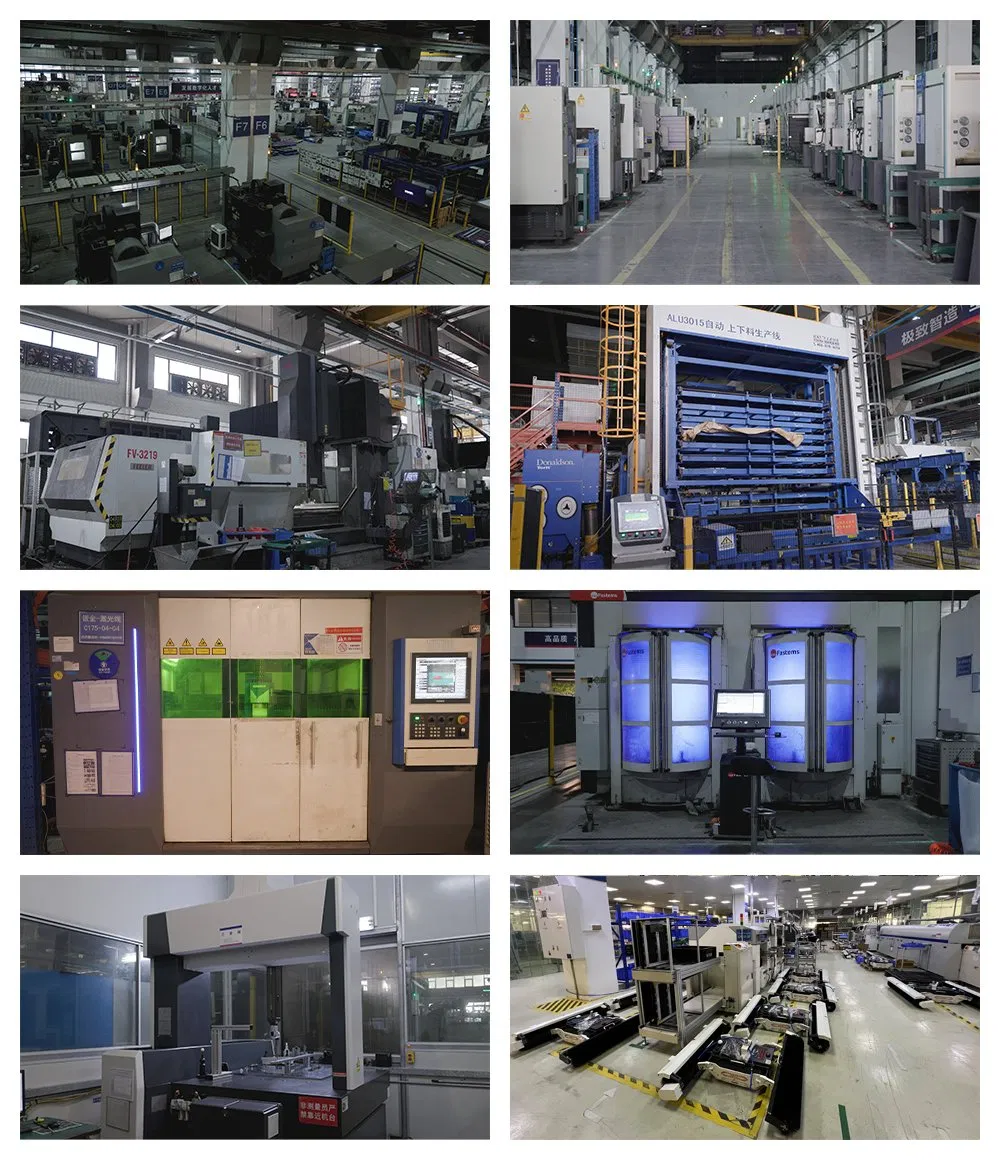

🏭 Manufacturing & Quality
❓ Frequently Asked Questions
How long is the warranty period for the robot?
The standard warranty period is 1 year from the date of purchase.
Can the robot be customized with our own logo?
Yes, we provide full OEM and ODM services to meet specific branding requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set, making it accessible for both small trials and large projects.
What are the available payment terms?
We accept various payment methods including T/T, Western Union, and PayPal.
What is the typical lead time for an order?
Generally, the lead time is between 20-30 days, depending on the total order quantity.
How is the product packaged for international shipping?
We use export-standard wooden cases or specialized packaging as per customer requirements to ensure safety during transit.
