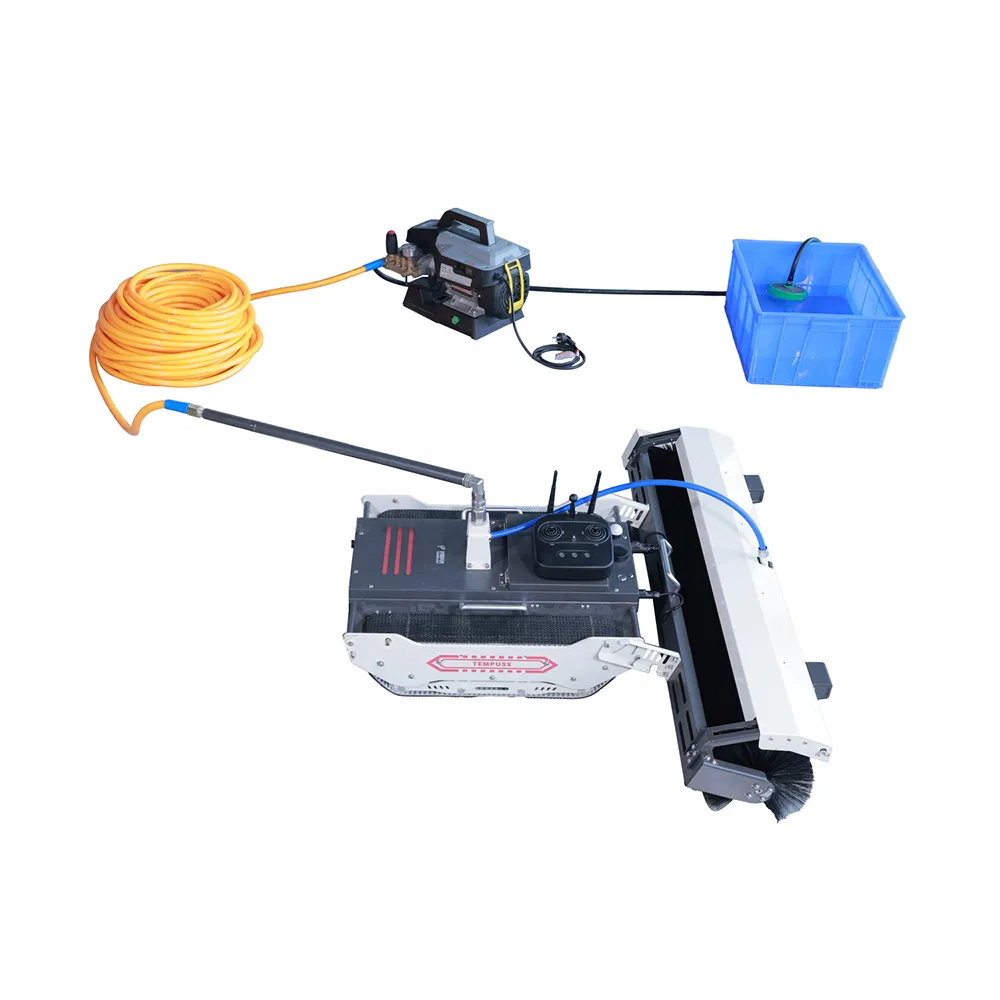

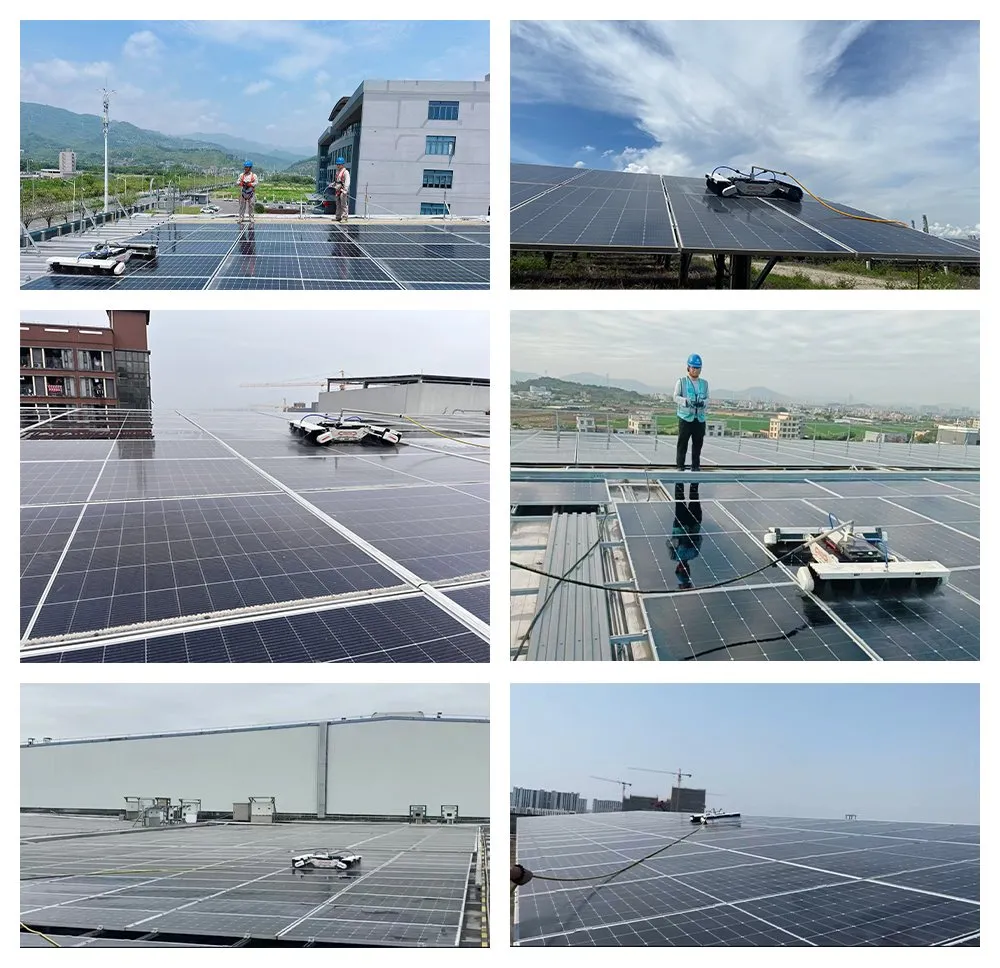

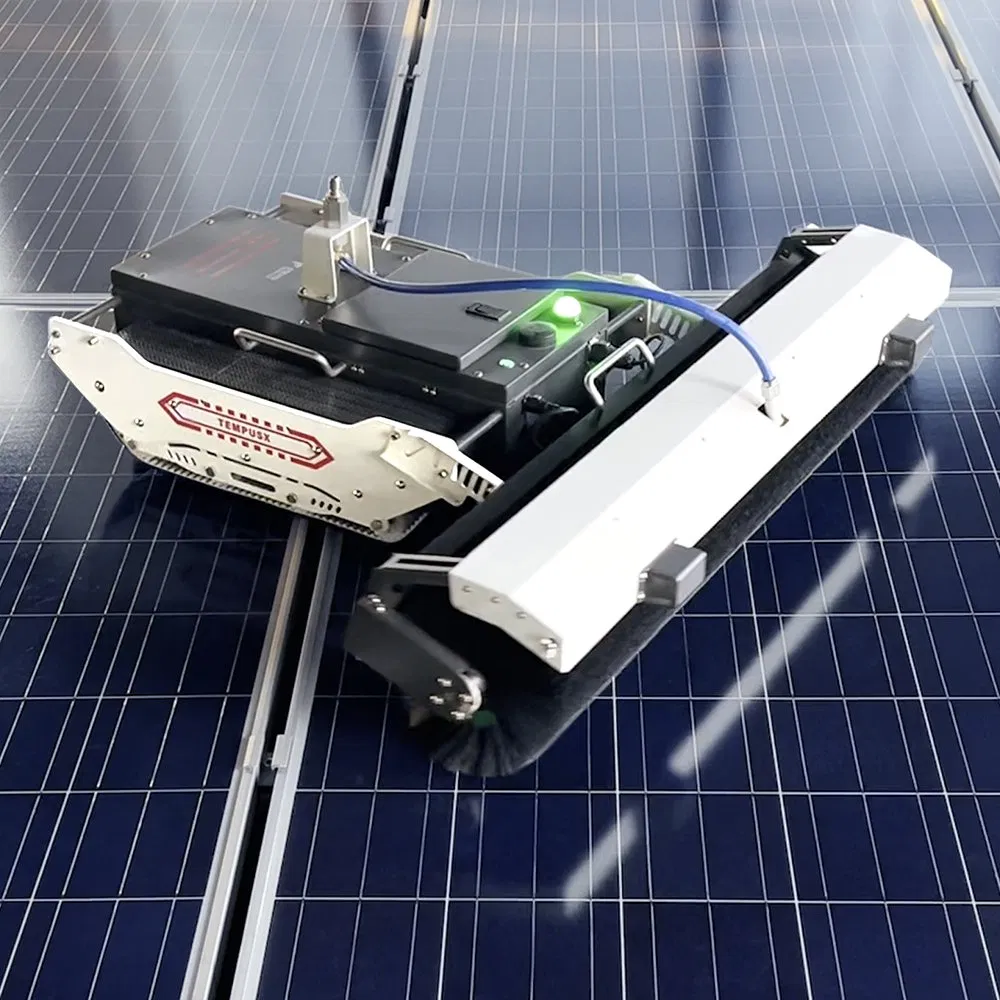

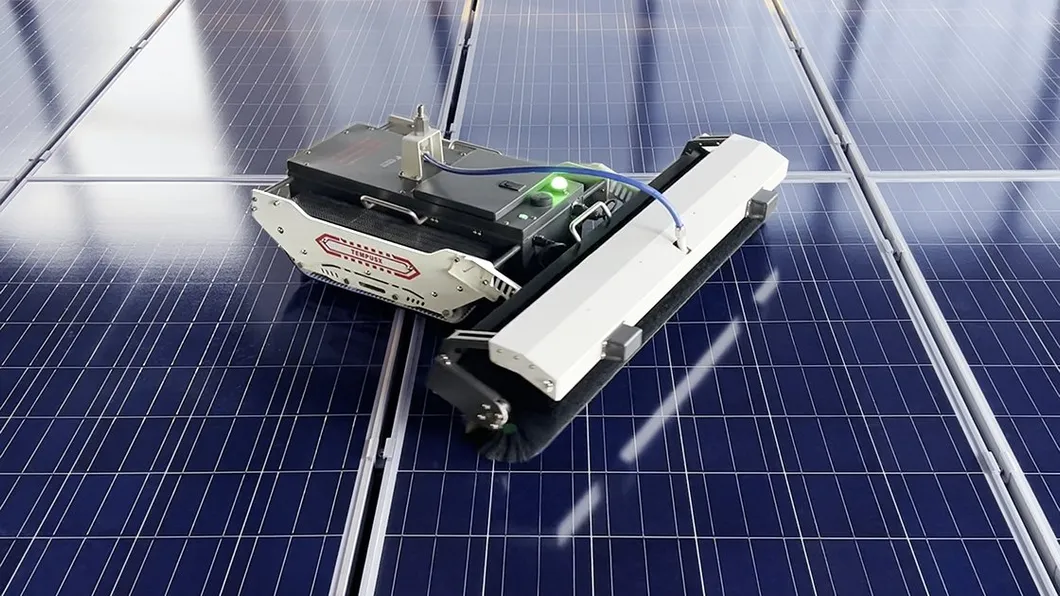

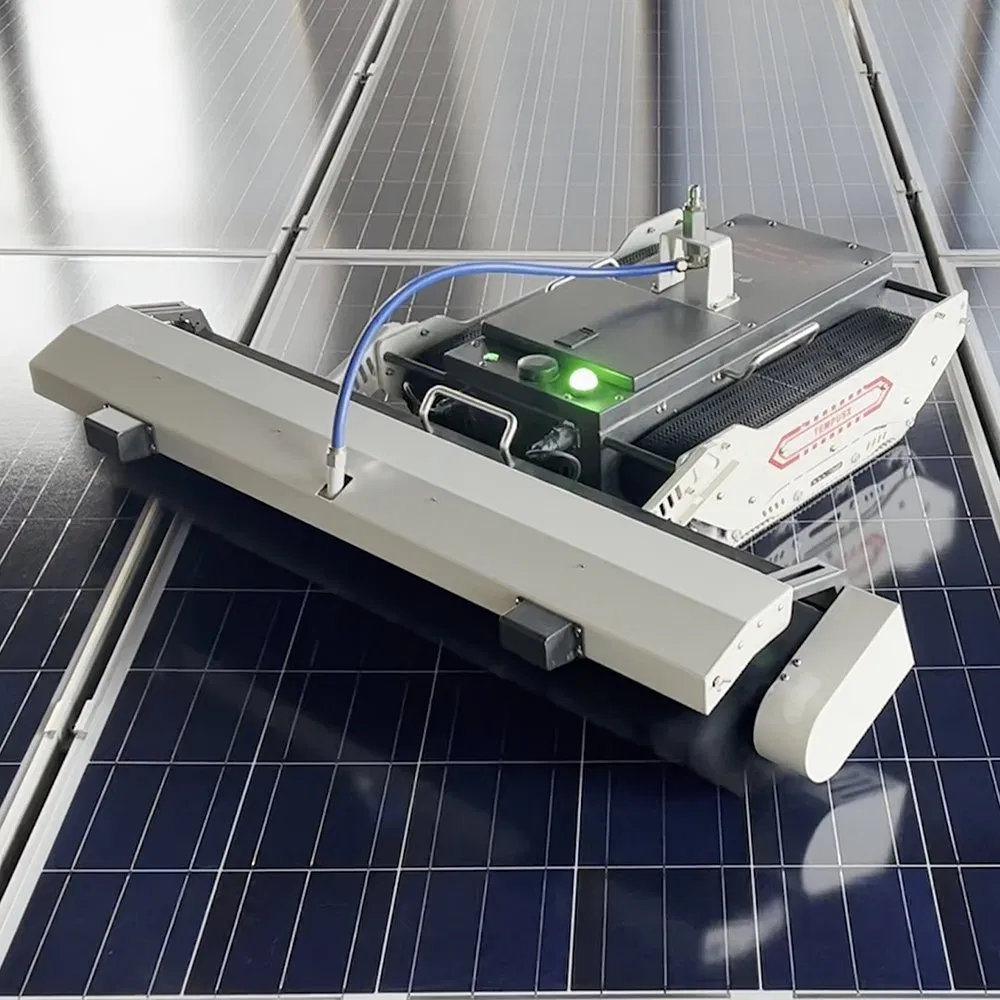

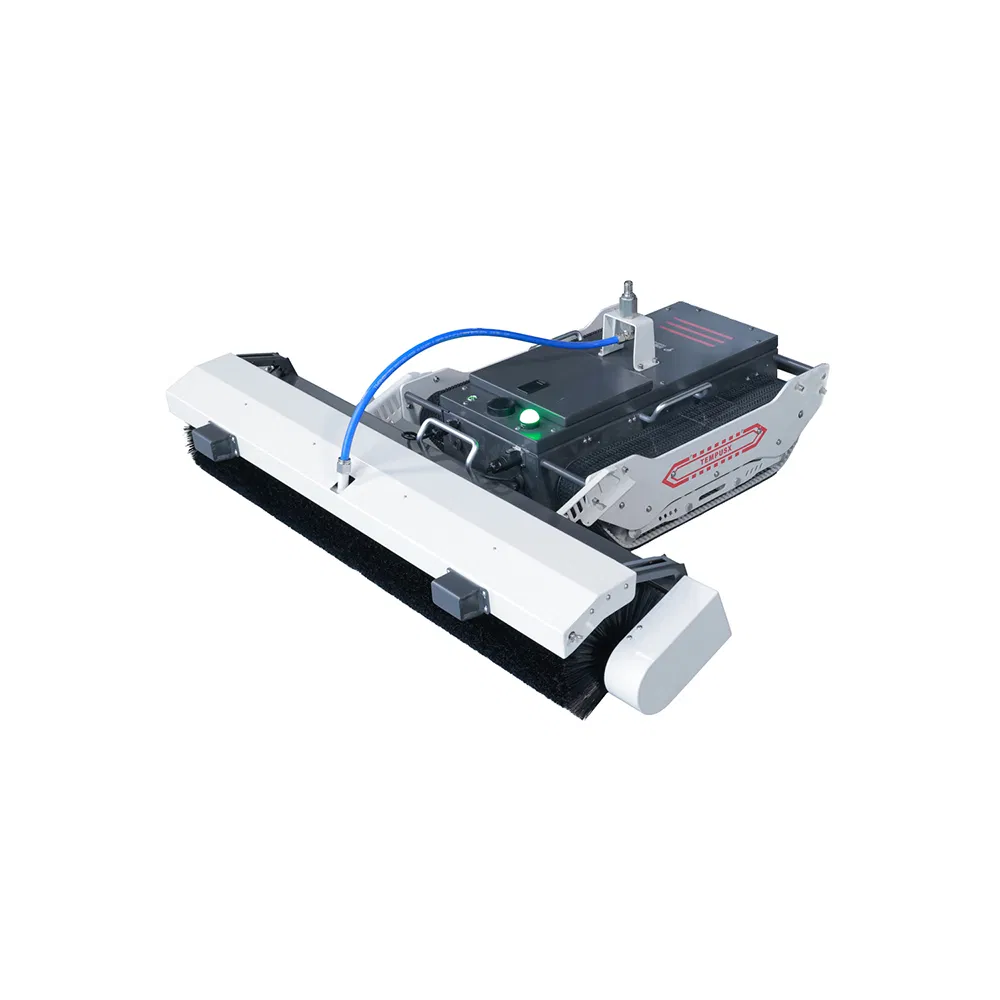

The F-D1000 Track-Type Remote Control Solar Photovoltaic Panel Cleaning Robot is designed for efficient operation and maintenance of industrial and commercial photovoltaic roofs. With a multi-model matrix, it flexibly adapts to various industrial and commercial roof scenarios and needs.

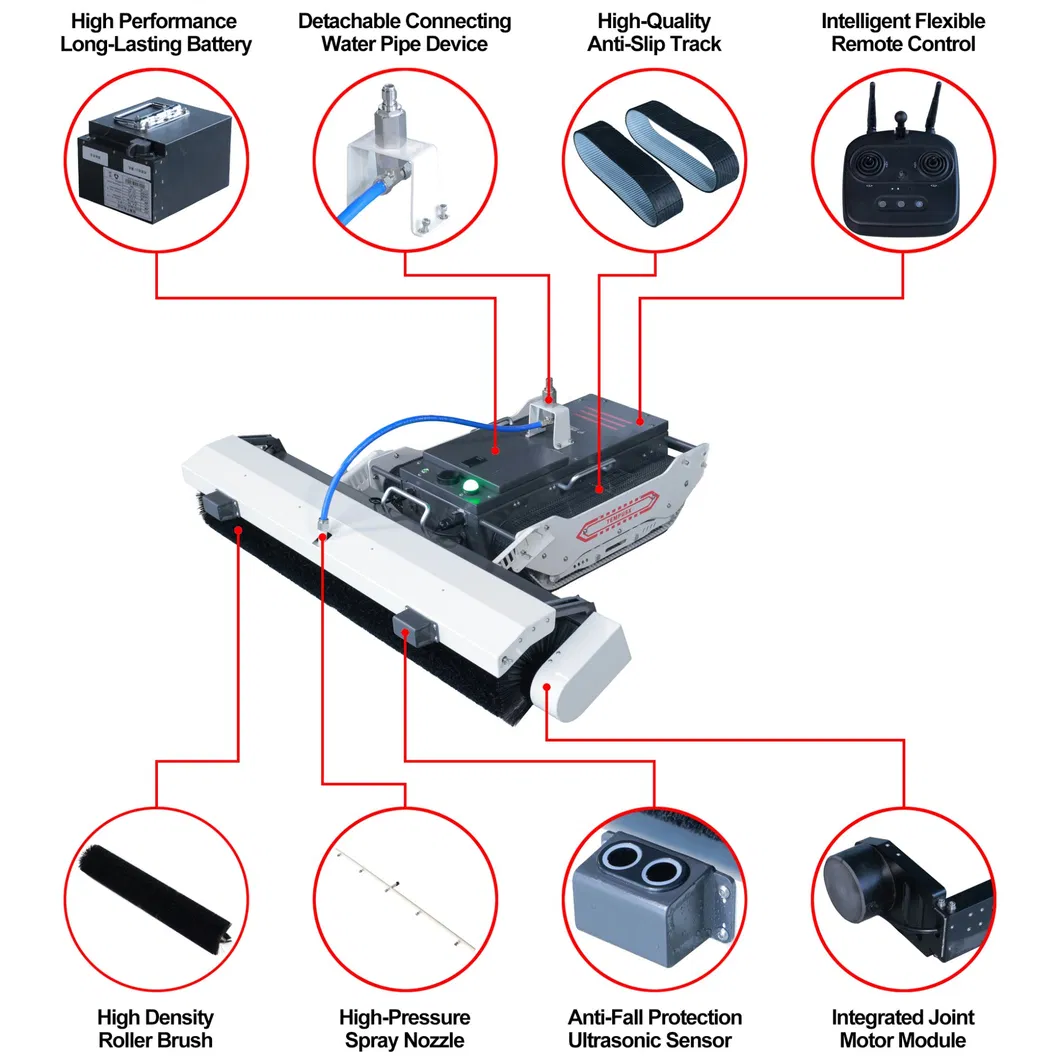

Uses high-quality cells (38.4V/15Ah), supporting up to 3000 charge cycles. 6 hours of use with only 2 hours of charging.
Integrated joint motor module (170W) with 17Nm peak torque. Chassis speeds up to 1000mm/s and brush speeds up to 330rpm.

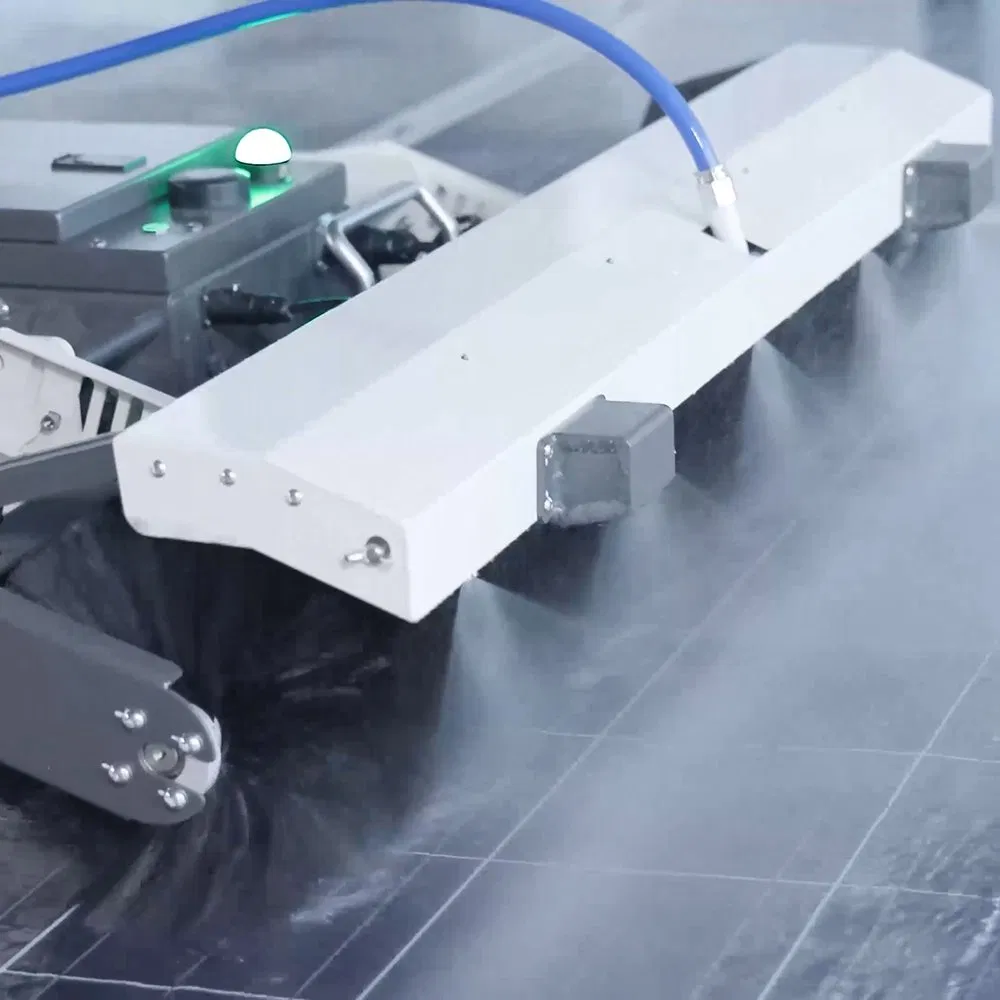

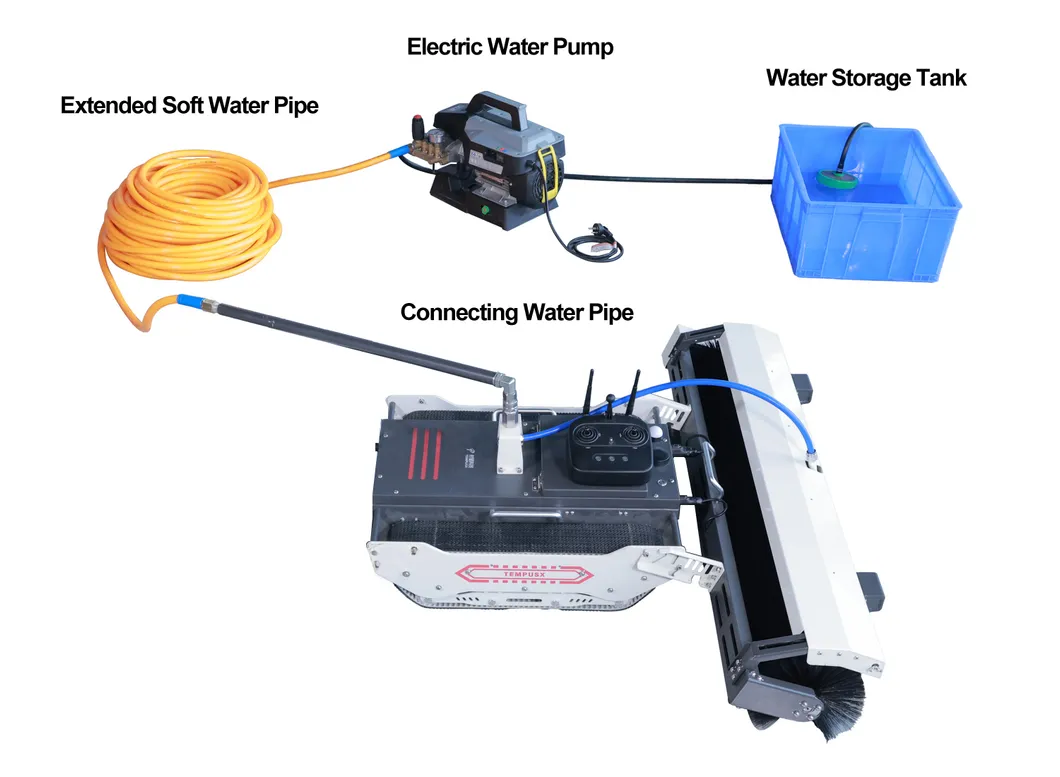

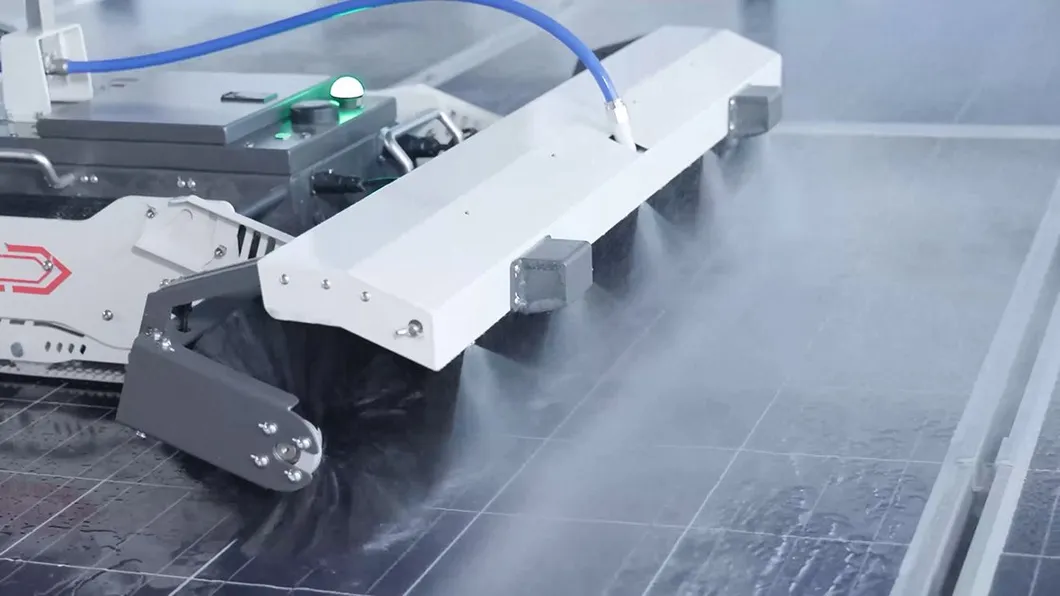

Equipped with front roller brush and high-pressure atomized water nozzles. Daily capacity can reach 1~2 MW.
200m remote control range with intelligent algorithms and edge anti-fall protection sensors.

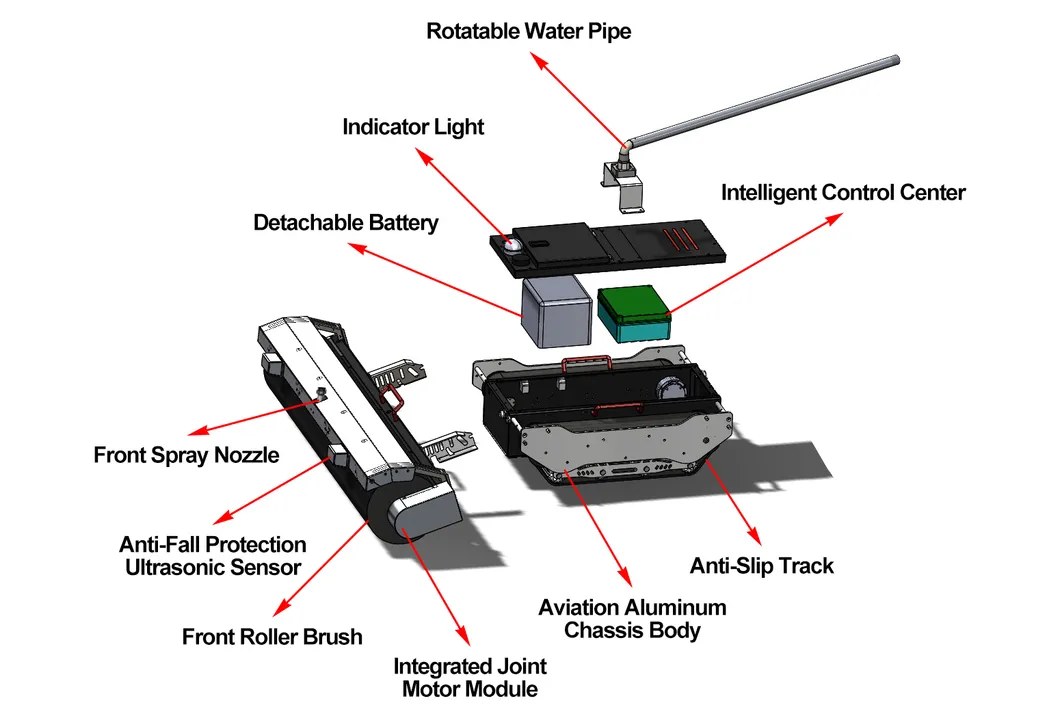

Made of aviation aluminum. Modular design is easy to disassemble. Climbs slopes up to 10°.
IP65 protection class effectively isolates dust and rainwater for operation in complex environments.
| Model | F-D1000 | F-D1000Pro | F-D1300Pro |
|---|---|---|---|

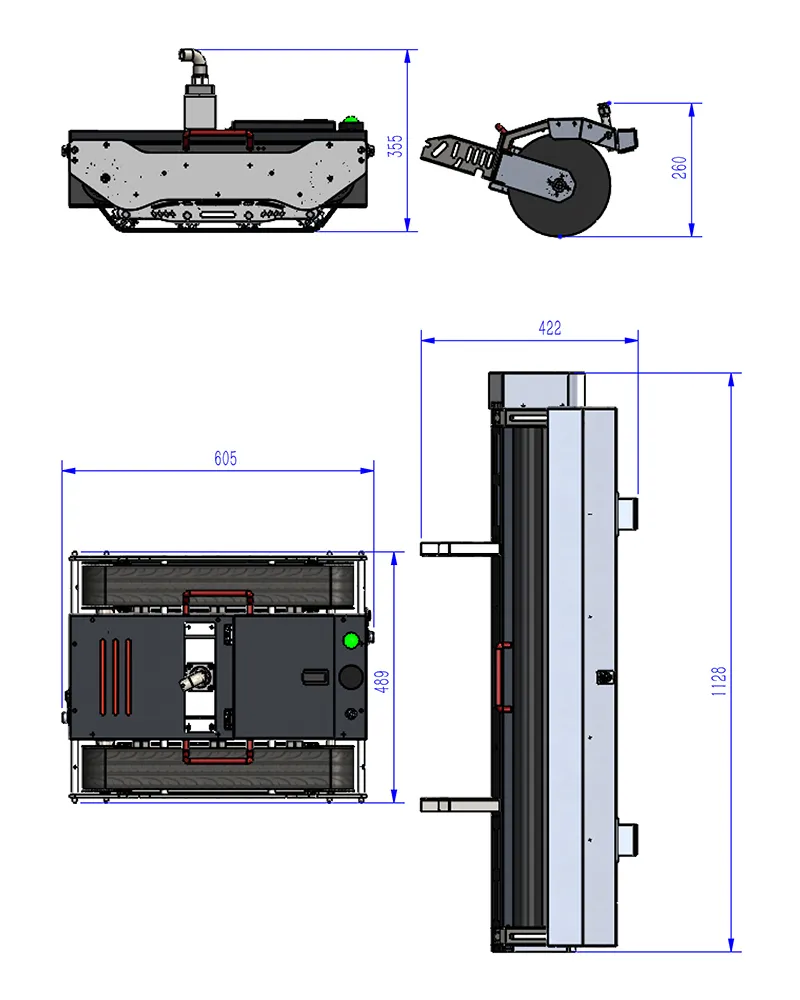

| Body Size | 600×490×220mm | 600×530×220mm | 600×530×220mm |
| Track Width | 80mm | 100mm | 100mm |
| Brush Size | 1000mm | 1000mm | 1300mm |
| Total Weight | 30.5kg | 40kg | 42kg |
| Battery Capacity | 38.4V / 15Ah | 38.4V / 15Ah | 38.4V / 15Ah |
| Battery Life | 6h | 4h | 6h |
| Tilt Angle | ≤10° | ≤20° | ≤20° |
| Protection Class | IP65 | IP65 | IP65 |
