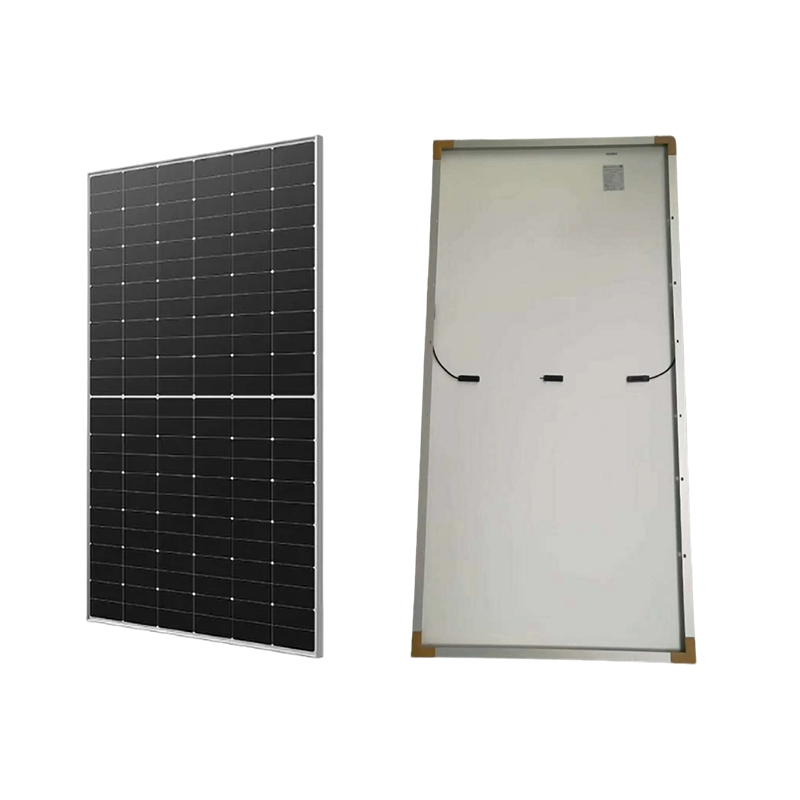

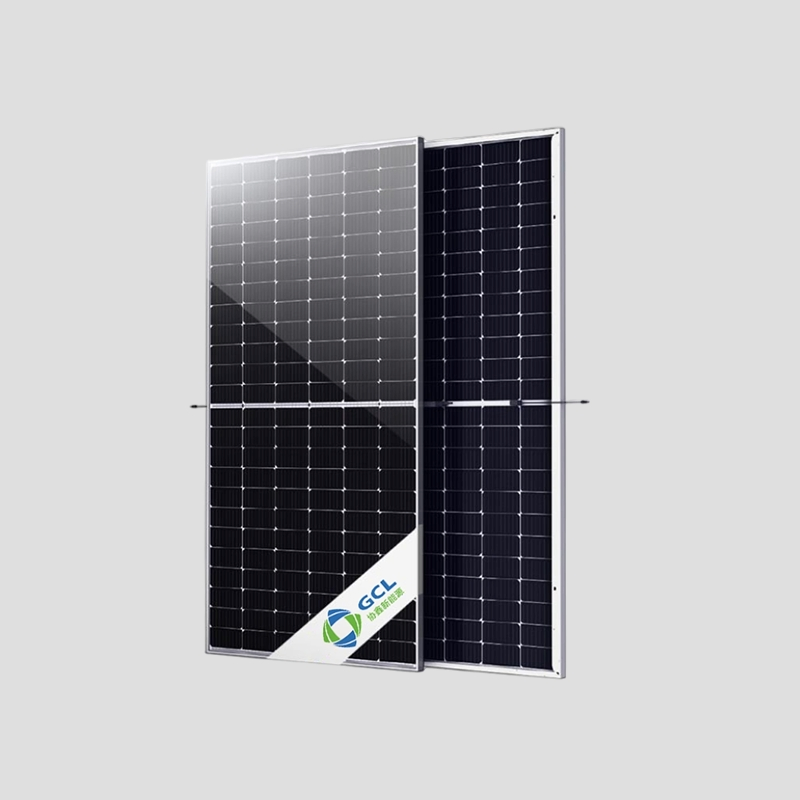

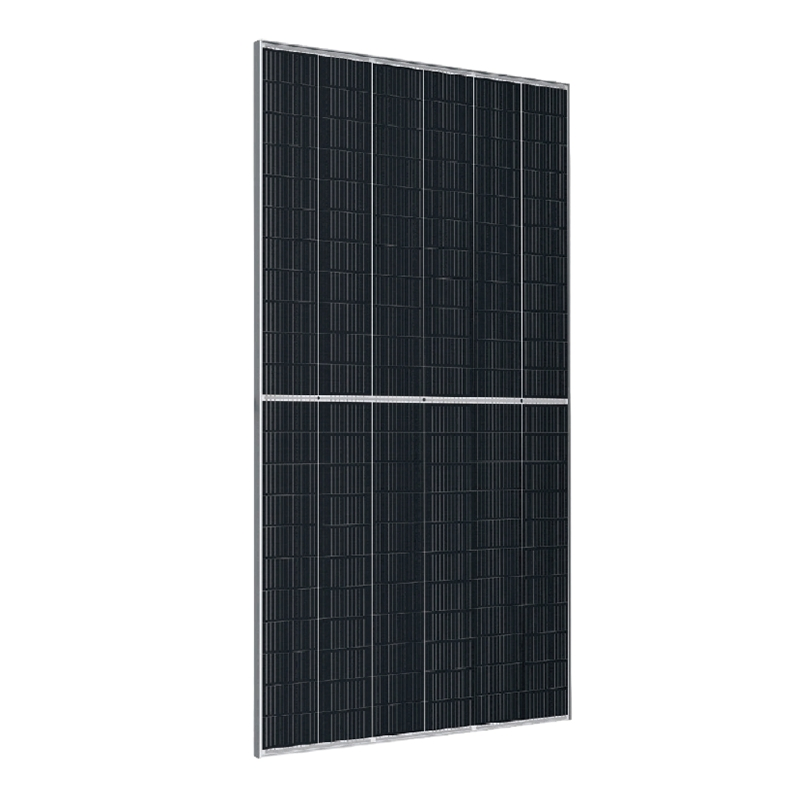

Gcl 605W Solar Panel -Bifacial Dual Glass Monocrystalline - Module Incorporating State - of - The - Art N Type

Material: Crystalline Silicon
Form of Expression: Component Type
Application: Photovoltaic Venues

Product Description

📊

Technical Overview

Model NO.
GCL-NT12R/66GDF
Number of Cells
132 Cells(6X22)
Dimensions
2382×1134×30mm
Weight
38.3 Kg
Front Glass
2.0mm Heat Strengthened
Back Glass
2.0mm Heat Strengthened
Frame
Anodized Aluminium Alloy
Maximum Power
653.5W
Bifaciality [%]
85
Wind/Snow Load
2400PA/ 5400PA
HS Code
8541420000
Origin
China
📦

Packaging & Logistics

Package Size
242.00cm * 134.00cm * 128.00cm
Gross Weight
1273.900kg
Transport
Sea Transportation
☀️

Product Highlights

Module Details 1
Module Details 2
Technology Analysis
Efficiency Chart
📋

Product Parameters

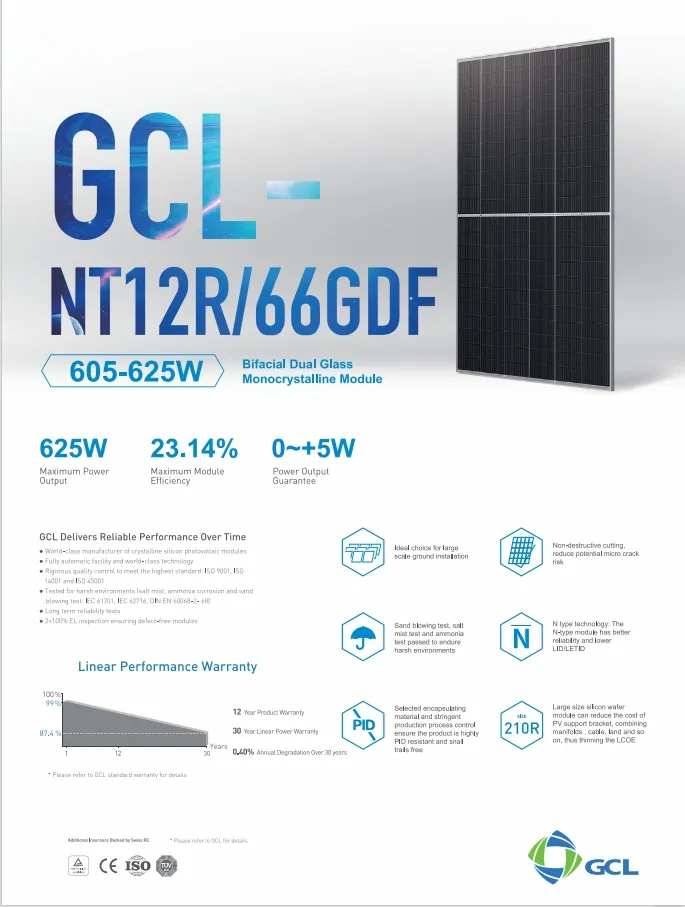

Parameter Sheet 1

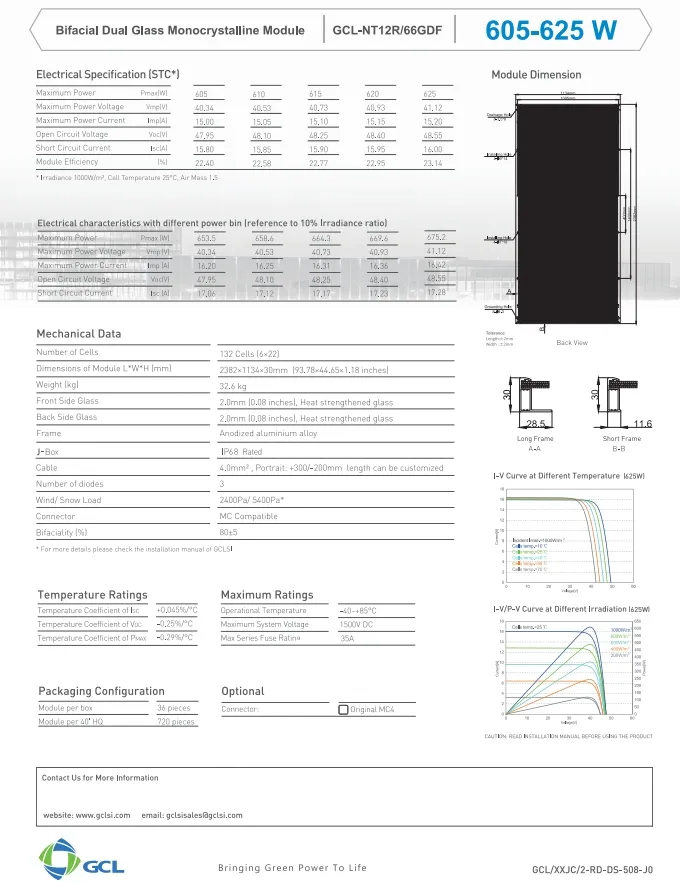

Parameter Sheet 2

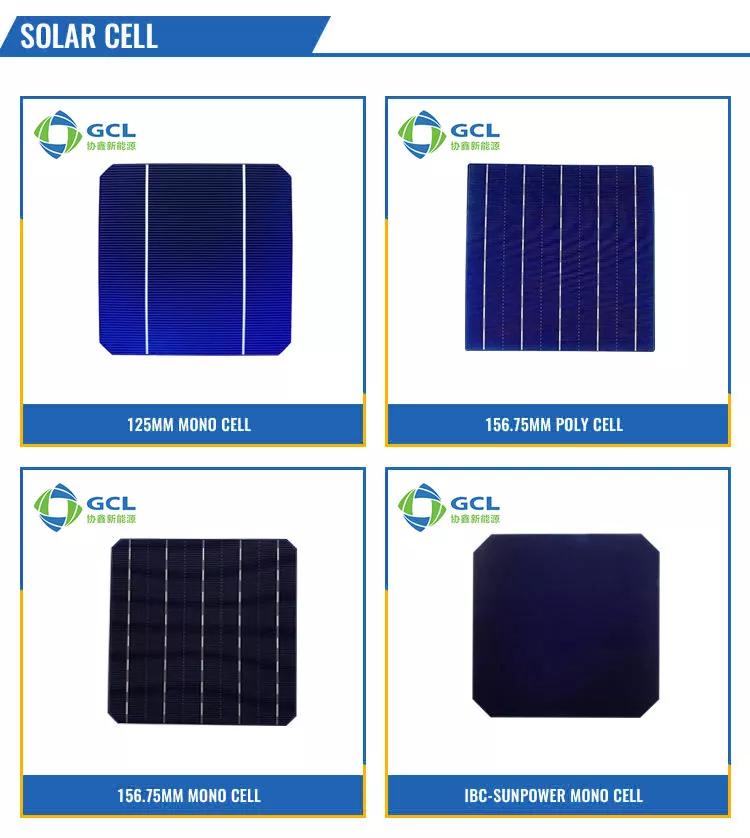

Technical Specifications
🏆

Quality Certifications

Certification Seal
Certification Of TUV, CE
Quality Standard 1
Quality Standard 2
Quality Standard 3
Quality Standard 4

Frequently Asked Questions

What is the bifaciality of this solar module?
The module offers a high bifaciality of up to 85%, allowing it to generate power from both the front and rear sides for maximum energy yield.
What type of glass is used in this dual-glass module?
It utilizes 2.0mm heat-strengthened glass on both the front and back side, providing superior durability and resistance to environmental stress.
Is this solar panel compatible with standard connectors?
Yes, the module is MC compatible, ensuring easy integration with most standard solar installation components and systems.
What kind of mechanical load can these panels withstand?
These panels are designed to handle a wind load of up to 2400PA and a snow load of up to 5400PA, making them suitable for harsh weather conditions.
What are the dimensions and weight of a single module?
Each module measures approximately 2382×1134×30mm and weighs about 38.3 Kg, optimized for large-scale utility projects.
What certifications do these panels hold?
The modules are fully certified by TUV and CE, meeting international standards for safety and performance efficiency.
