● Technical Details
✔Maximum Power Pmax: 550W
✔Voltage Vmp: 40.90V
✔Current Imp: 13.45A
✔Open Circuit Voltage Voc: 49.62V
✔Short Circuit Current Isc: 14.03A
✔Module Efficiency: 21.4%
✔Number Of Cells: 144 Cells (6*24)
✔Dimensions: 2279*1134*35mm
✔Weight: 29.4kg

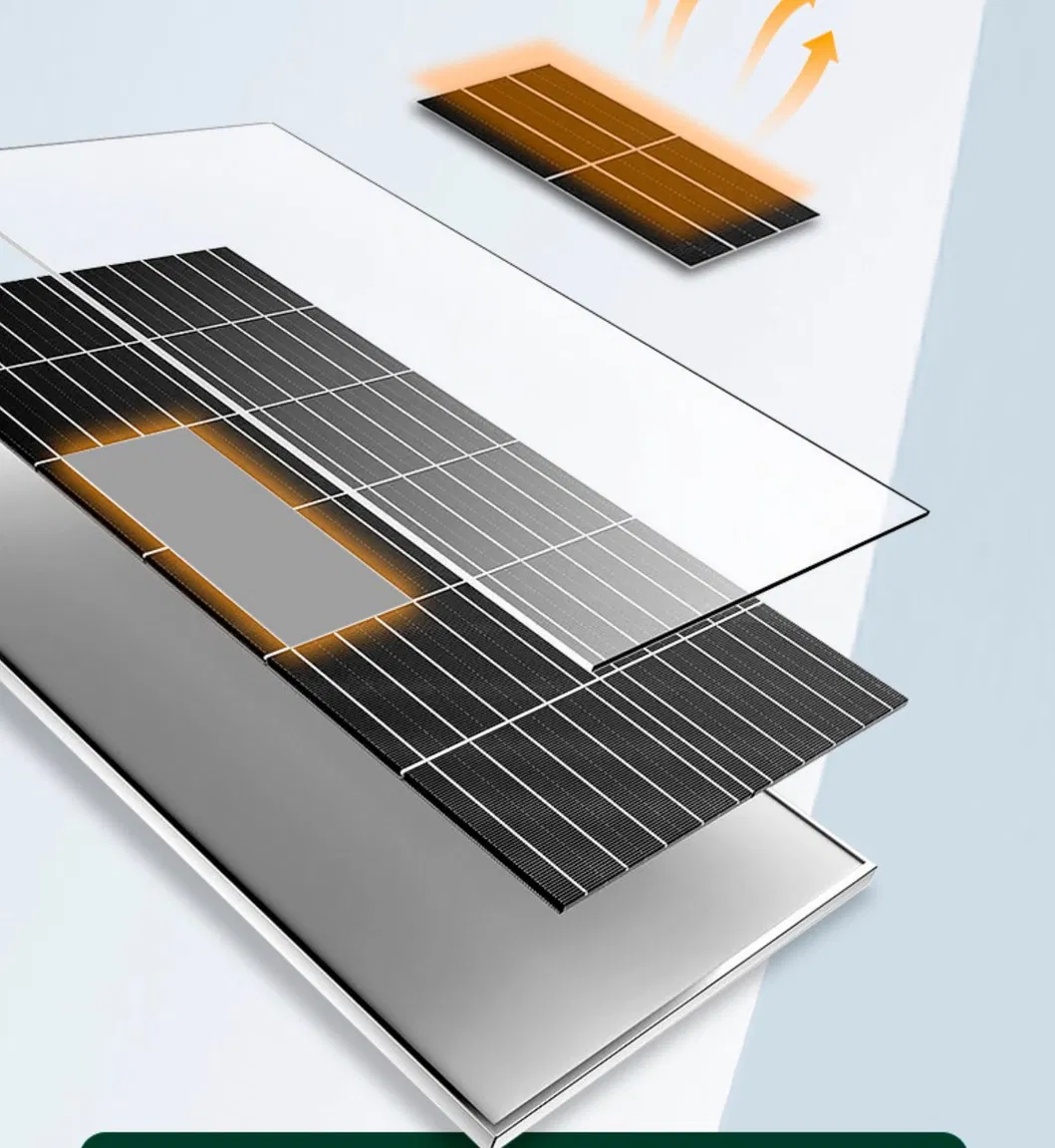

✔Glass: High transparency solar glass 3.2mm
✔Frame: Sliver, anodized aluminium alloy

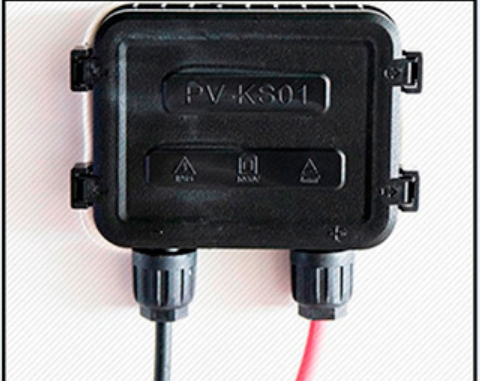

✔J-Box: IP68 Rated

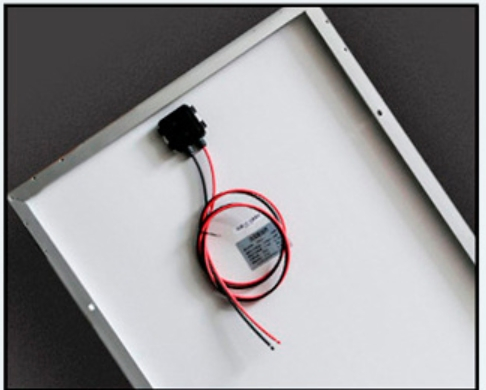

✔Cable & Connector: 4.0mm², MC4 Compatible
✔Power Output Tolerance: 0 ~ +5 W
● Packaging & Delivery
Package Size
227.90cm * 113.40cm * 3.50cm
Transport Package
Carton Pallet Packaging
Production Capacity
50000 pieces/Year
● Frequently Asked Questions
1. What is the efficiency rating of this 550W solar module?
This monocrystalline solar module features a high efficiency of 21.4%, ensuring optimal power conversion even in limited spaces.
2. What are the dimensions and weight for installation planning?
The module measures 2279x1134x35mm and weighs approximately 29.4kg, designed with an anodized aluminium alloy frame for structural integrity.
3. Can this solar panel withstand extreme weather conditions?
Yes, it is built to operate in temperatures ranging from -40℃ to +85℃ and features IP68 rated junction boxes for superior water and dust resistance.
4. What type of glass and frame materials are used?
The module uses 3.2mm high transparency solar glass and a silver anodized aluminium alloy frame for long-term durability and corrosion resistance.
5. Is the module compatible with standard MC4 connectors?
Absolutely. It comes equipped with 4.0mm² cables and is fully compatible with MC4 connectors for easy integration into existing systems.
6. What certifications does this product hold?
The product is CE certified, meeting the essential health, safety, and environmental protection standards for the European Economic Area.
