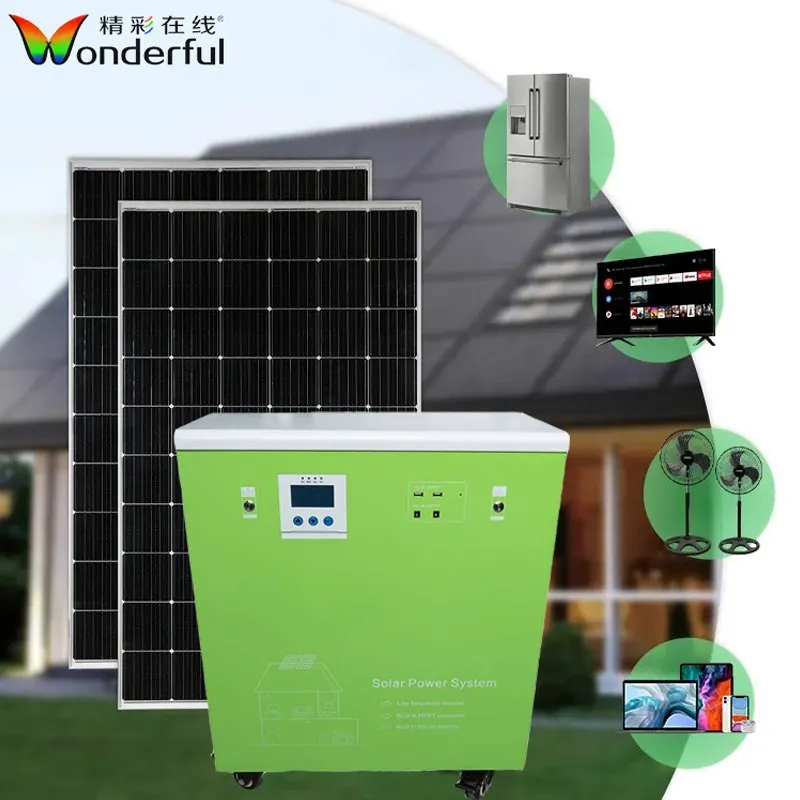

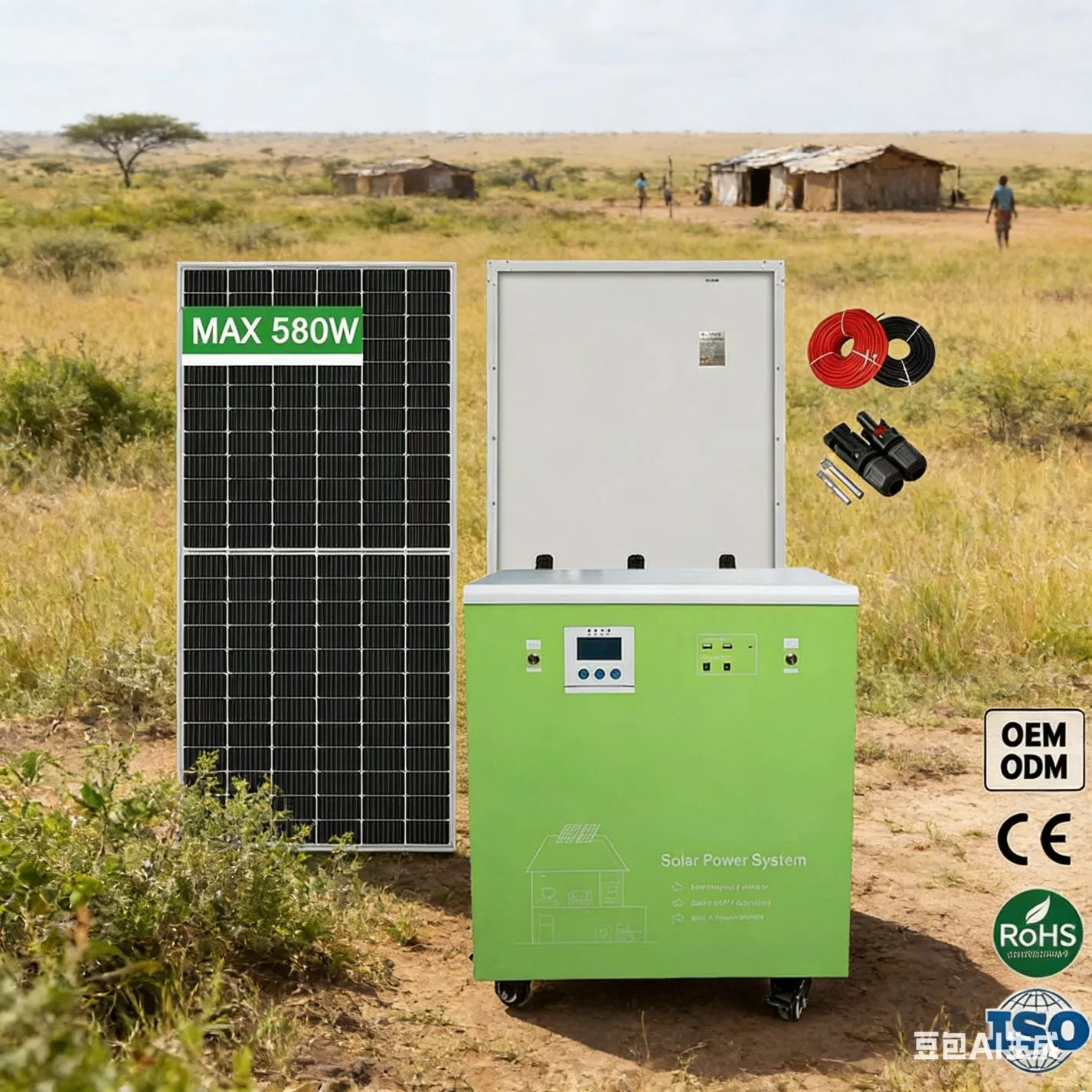

Integrated Intelligent MPPT Tracking All in One Design Solar Power System

Basic Information

Model NO.

WON-SPS-01

Certification

ISO, CB, CE, RoHS

Application

Home, Industrial, Commercial

Rated Power

500W/1.5kw/3kw/6kw

Battery Type

Lead Acid /Lithium/Iron Lithium

Charging Mode

MPPT

Transfer Time

<=4ms

Efficiency

>85%

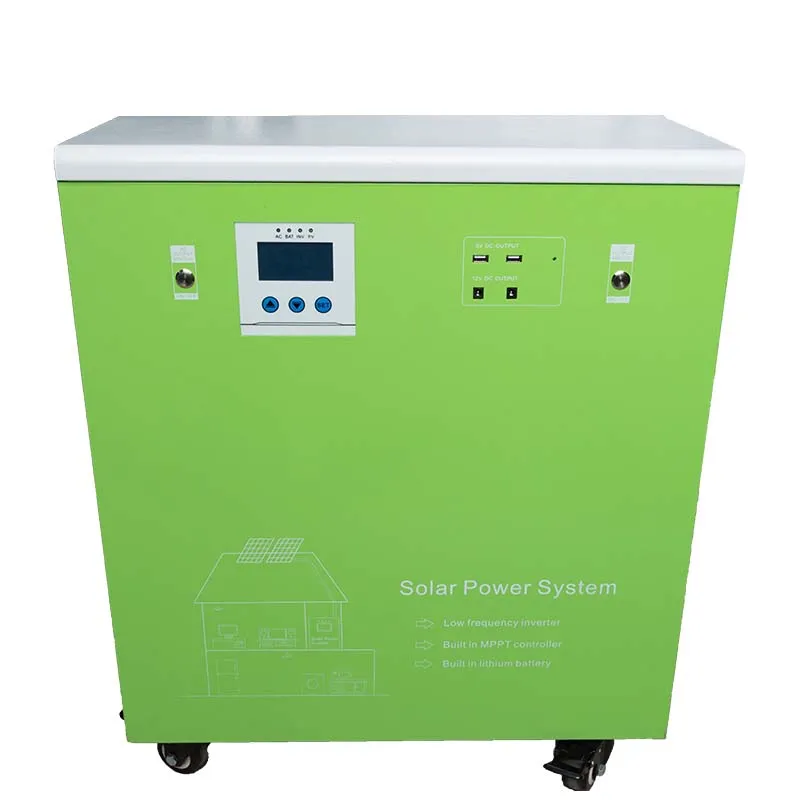

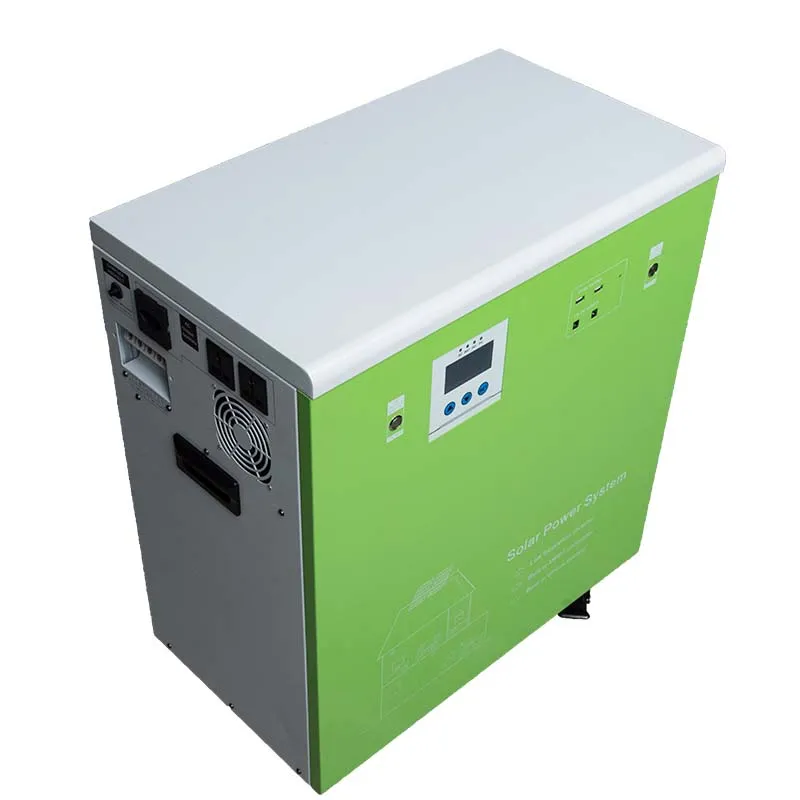

Product Features

All in one design: Inverter, controller and battery all built-in, easy to use and install.
Stable Power: Continuous stable pure sine wave with no loss to load.
Hybrid mode: Can be charged by solar as well as grid (charging time 2-3 hours).
Long Lifespan: LiFePO4 battery with up to 10 years lifespan.
Multiple outputs: 220V/110V AC, USB DC, 12V DC.
Full Protection: Overload, overvoltage, lowvoltage, high temperature protection.

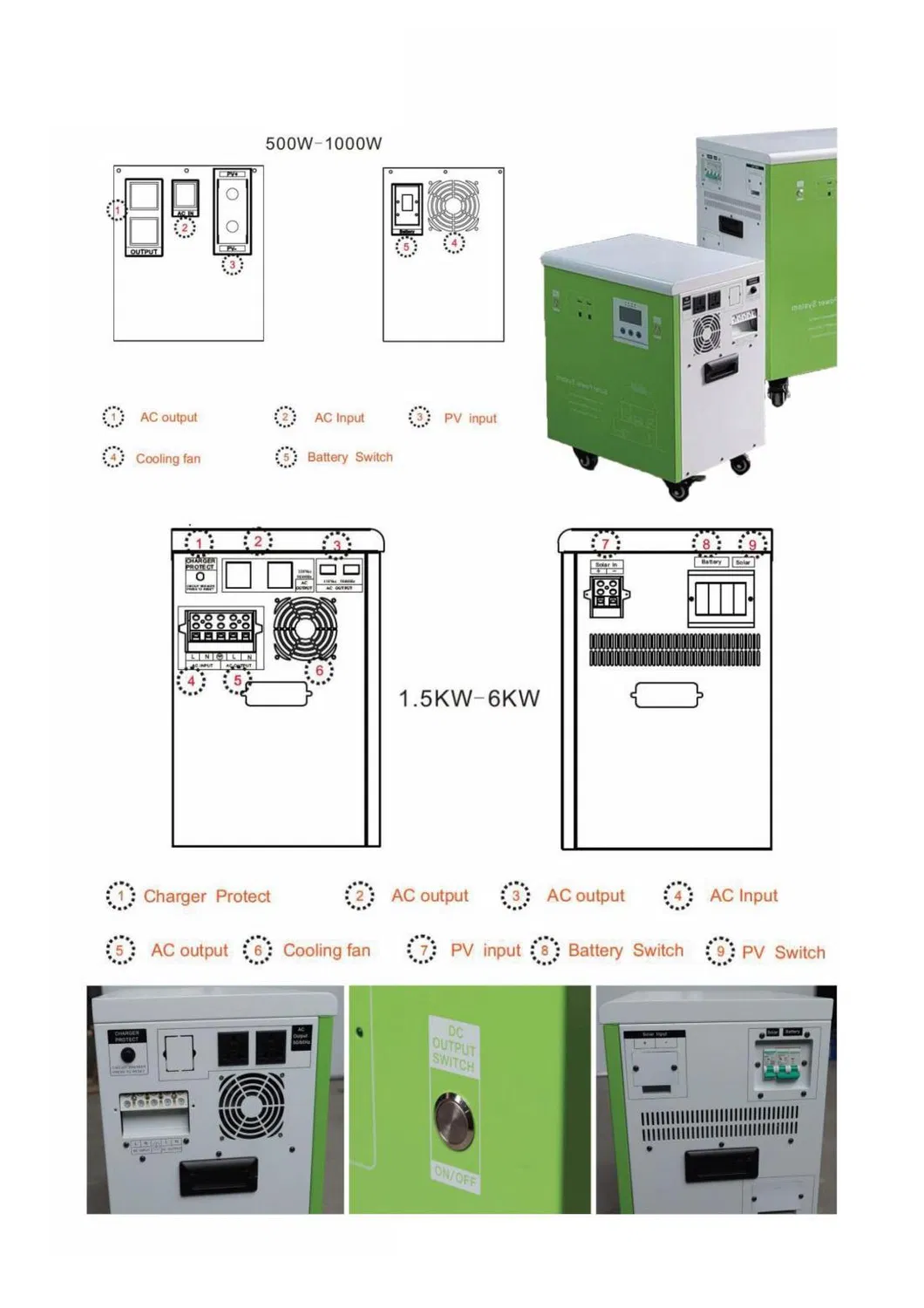

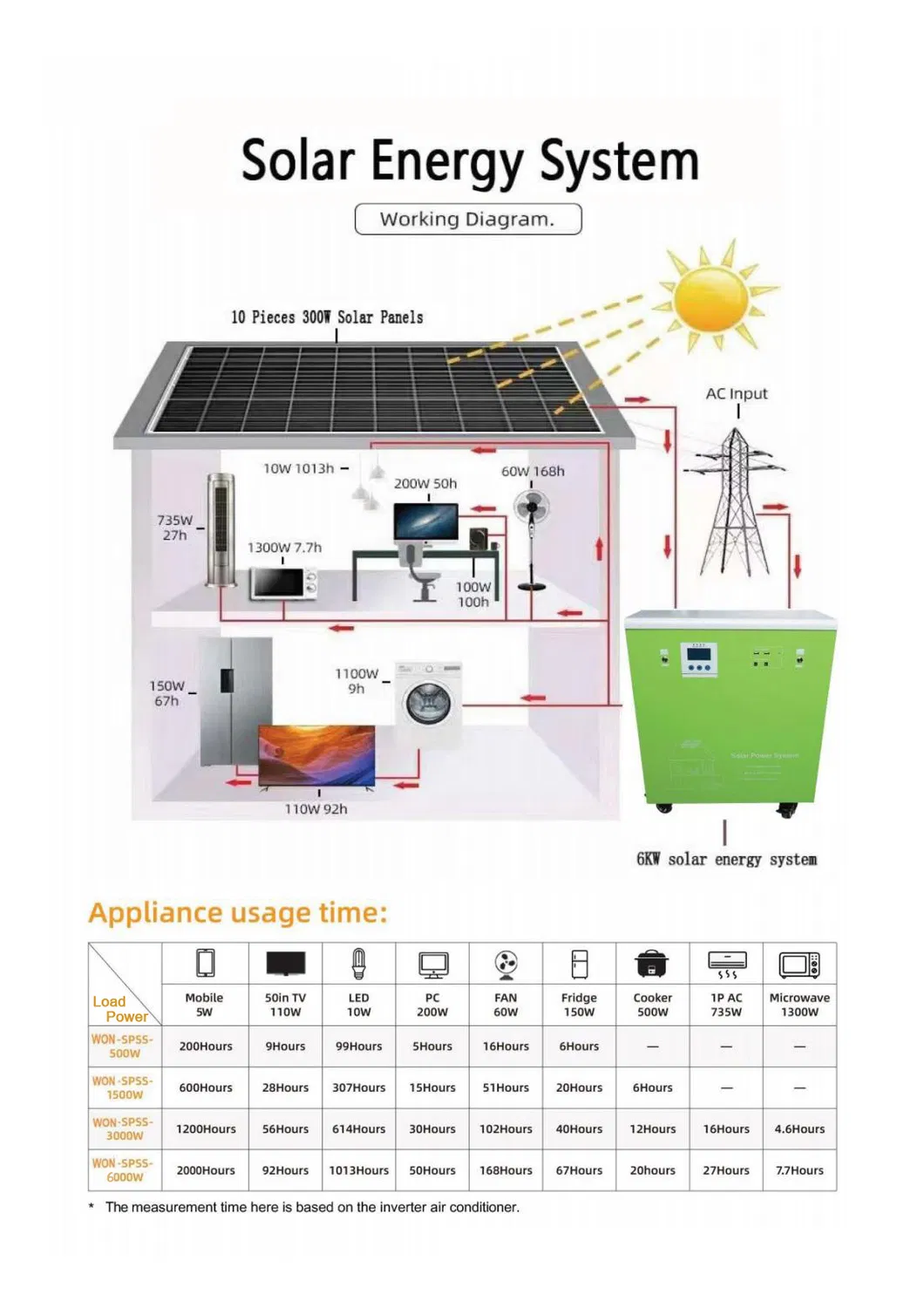

Wiring Diagram & Details

System Connection

Internal Structure

Technical Specifications

Model		WON-SESS-AP500W	WON-SESS-AP1500W	WON-SESS-AP3000W	WON-SESS-AP6000W
Solar Panel	Optional Panel	100W18V*2pcs	250W36V*3pcs	300W36V*4pcs	300W36V*8pcs
	Charging Mode	PWM	MPPT	MPPT	MPPT
	Generation	~700WH/day	~2600WH/day	~4200WH/day	~8400WH/day
System Unit	Battery Capacity	640WH	2176WH	4352WH	8704WH
	Rated Power	500W	1500W	3000W	6000W
	Product Size	430235300mm	585310505mm	585310505mm	680315732mm
	Net Weight	22KG	40KG	55KG	98KG

Key Components

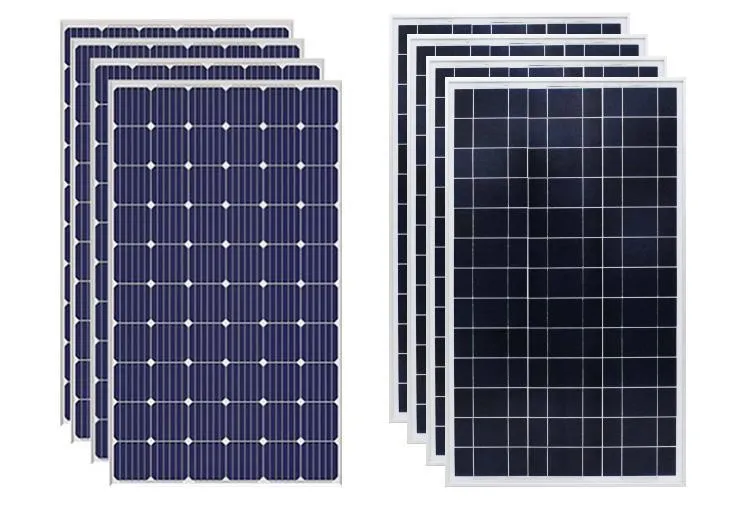

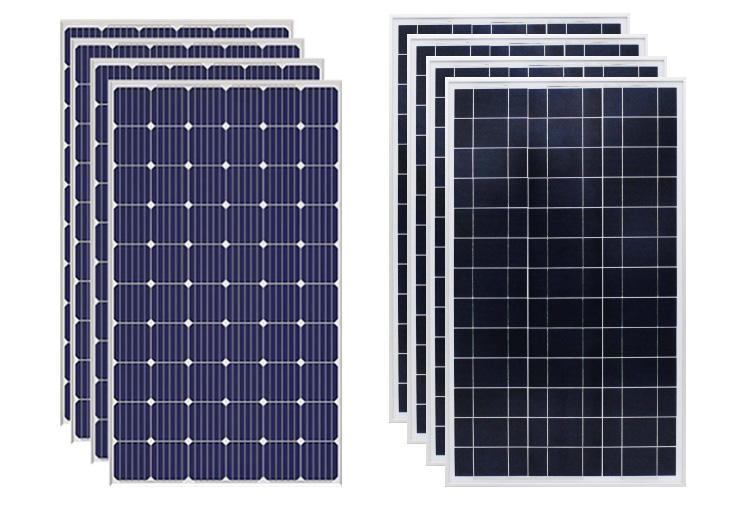

Solar Panels

High efficiency A Grade mono cells (21% efficiency) with anti-reflection tempered glass and MC4 junction box.

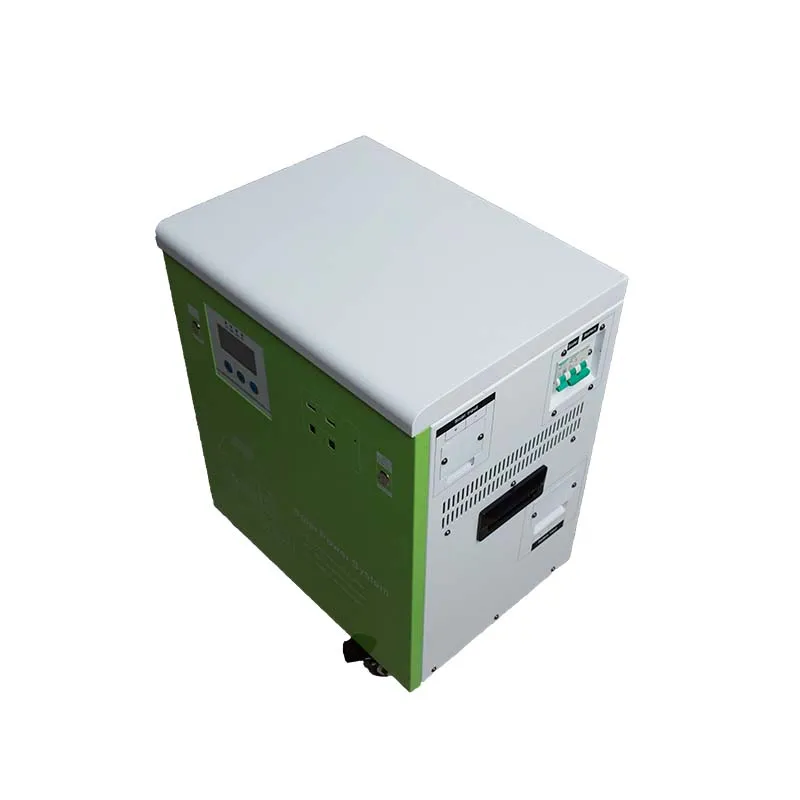

Power Generator

MCU intelligent control with LCD display. Pure sine wave output and automatic alarm/protection systems.

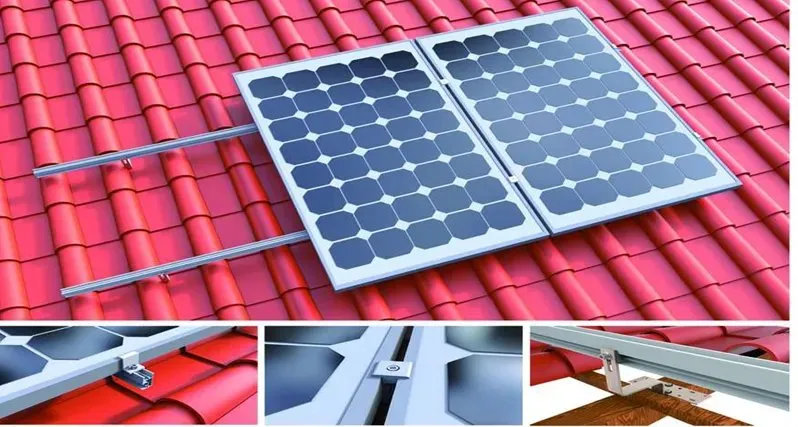

Mounting Structure

Anodized Aluminum for Pitched, Flat, or Tin roofs. High wind (130mph) and snow load resistance.

Accessories

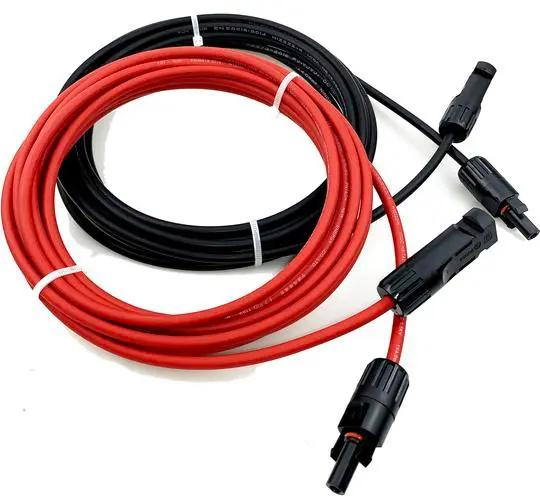

Standard 15m Photovoltaic cable and 10m AC plug included with every system.

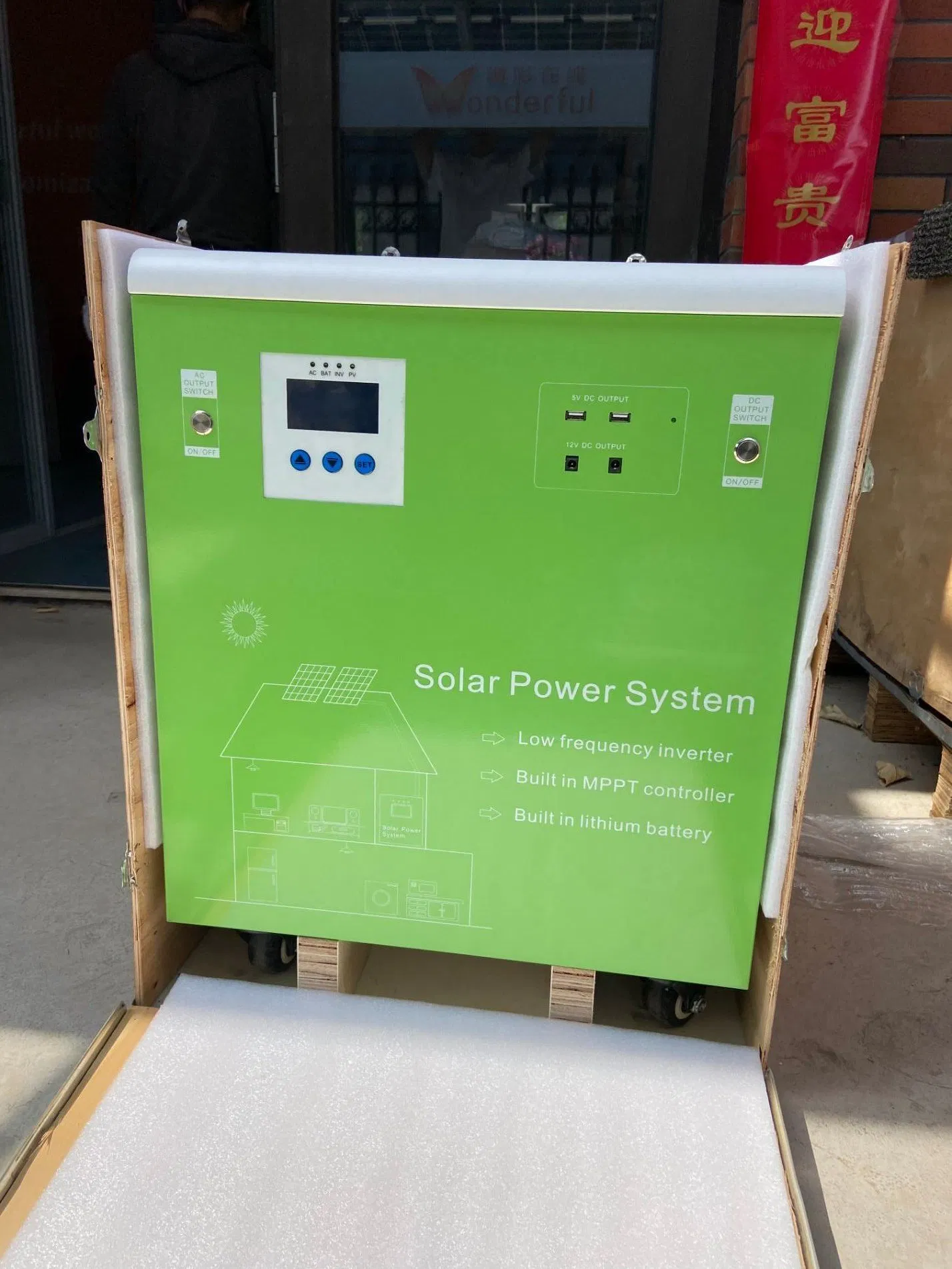

Packing & Shipping

Frequently Asked Questions

1. How is the quality of the solar system guaranteed?

We provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure the highest quality standards.

2. What main products can I purchase for a complete setup?

You can find comprehensive solutions including Solar Energy Systems, Inverters, Wind Turbines, and Wind-Solar Hybrid Power Systems.

3. Why choose your system over other suppliers?

With over ten years of R&D experience in LED lighting and alternative energy generators, we integrate premium resources to provide the most cost-effective energy-saving products.

4. What delivery terms are supported for international shipping?

We accept various delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, and Express Delivery.

5. What payment methods and currencies are accepted?

Payments can be made via T/T, L/C, Credit Card, PayPal, or Western Union. We accept major currencies such as USD, EUR, JPY, CAD, AUD, GBP, and CNY.

6. Which languages does your support team speak?

Our team provides services in multiple languages including English, Chinese, Spanish, Japanese, Portuguese, German, French, and Russian.
