| Model NO. | WTT-2P |
|---|---|
| Certification | ISO, CE |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Ground Bracket |
| Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait |
| Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years |
| Transport Package | Carton or Iron Frame |
| Production Capacity | 1gw/Years |

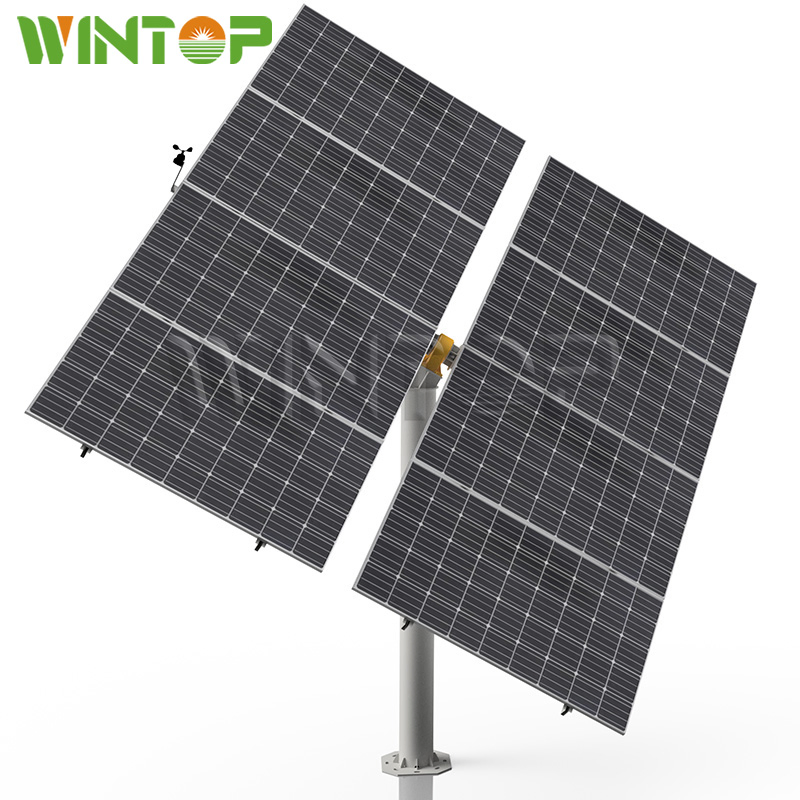

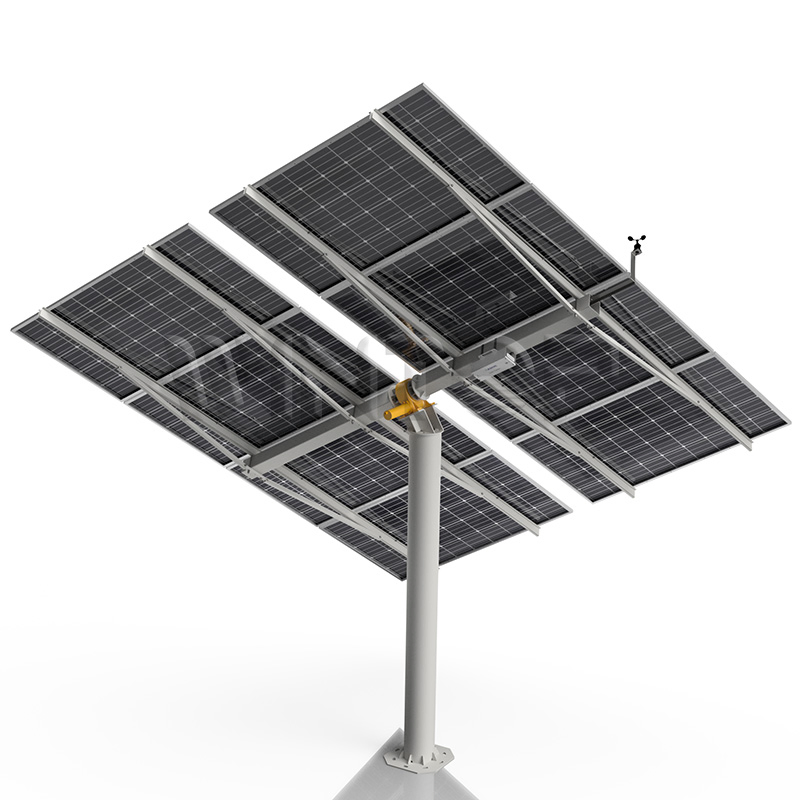

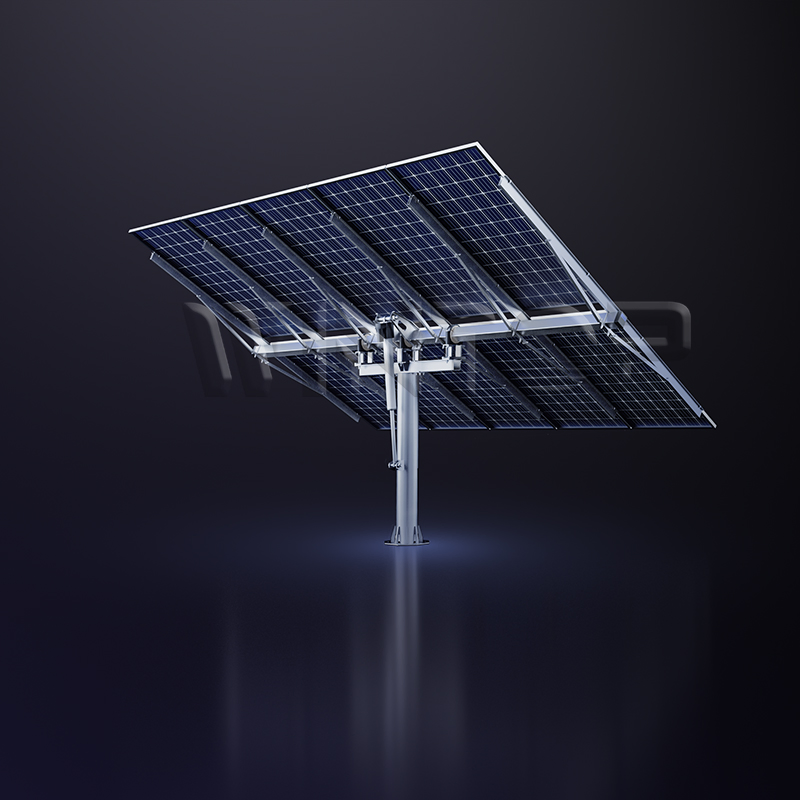

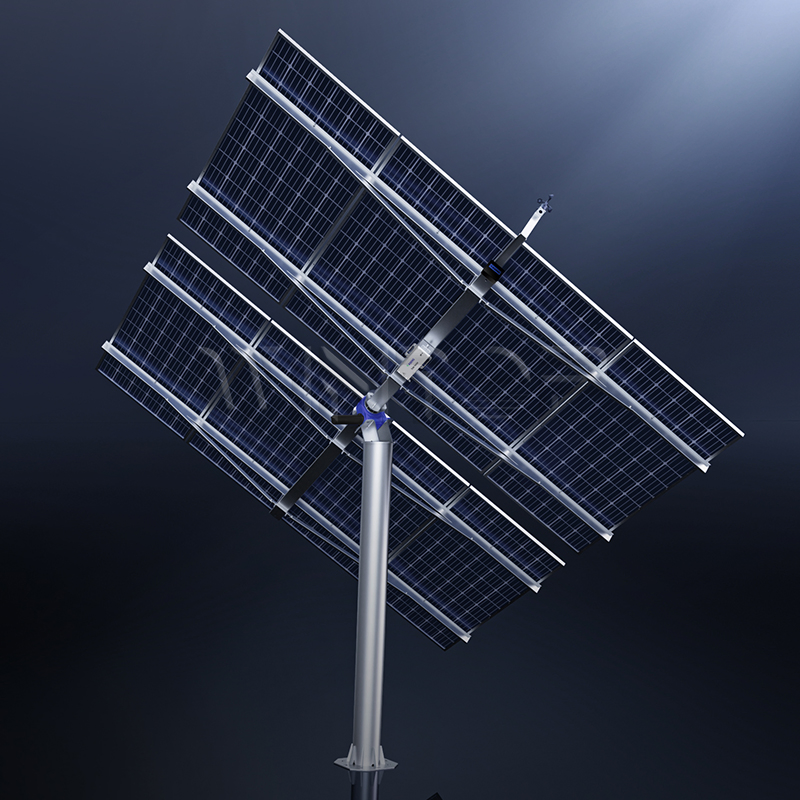

Single Axis Solar Tracker with Slew Drive
The solar tracking system is a solution that optimizes the use of sunlight during the process of solar thermal and photovoltaic power generation to improve the efficiency of photoelectric conversion. The Multi-drive double portrait horizontal single-axis solar tracker adopts a multi-actuator drive mode. This system is quick and easy to install and operate, offering a stable and reliable solution suitable for a variety of large-scale solar power stations.
| PV-Modules | |
| PV- Modules supported | Fully fit for 210 module |
| Structure | |
| System type | One portrait horizontal single-axis tracker |
| Maximum capacity per row | 72kWp (Estimated with 600W PV-Modules) |
| Tracking Range | ±60° (Customized) |
| Tracking accuracy | ±1° |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |
| Electrical | |
| Solar tracking method | Astronomical algorithm + closed-loop control (AI) |
| Drive method | Slew Drive |
| Motor Type | 24V DC Motor |
| Environment | |
| Operating temperature | -30°C ~ +60°C |
| Slope tolerance | North-south 10%~20%, East-west no limits |

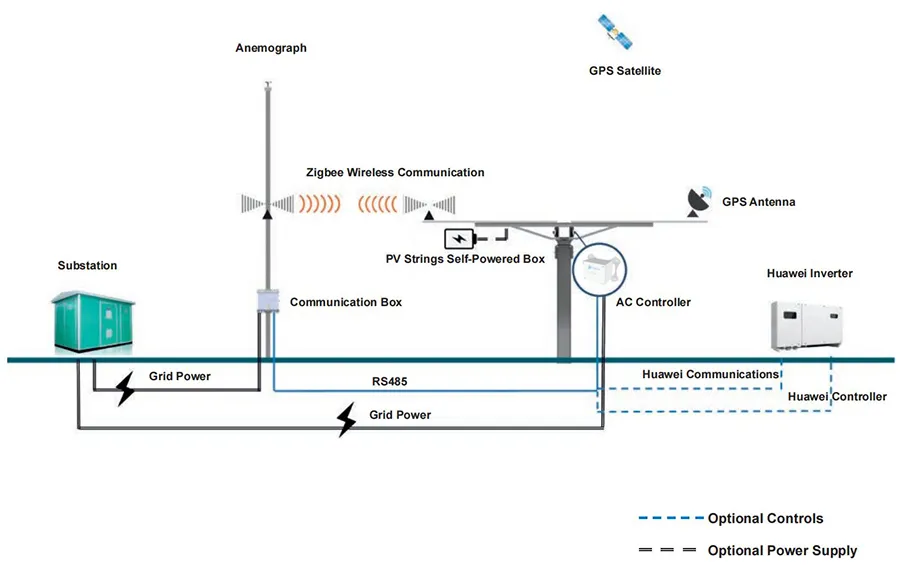

Electrical Principle

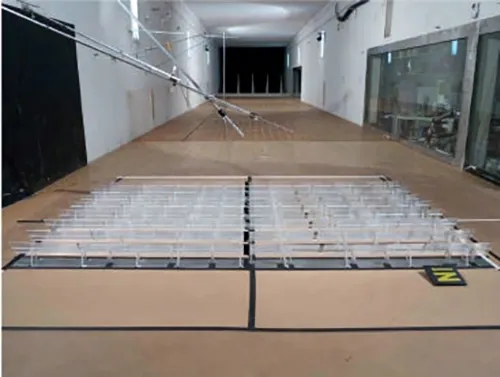

Advanced wind tunnel testing has been conducted to ensure system stability. By analyzing resonance, flutter, gallop, and torsional divergence caused by aerodynamics, the system is optimized for extreme conditions.

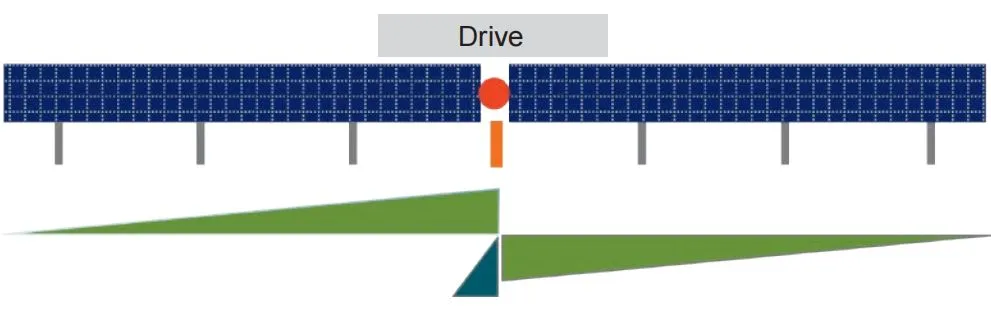

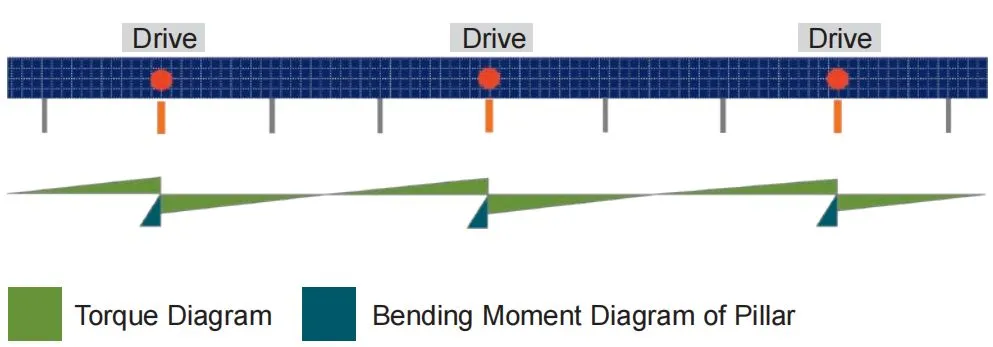

Multi-drive Tracker Advantages:

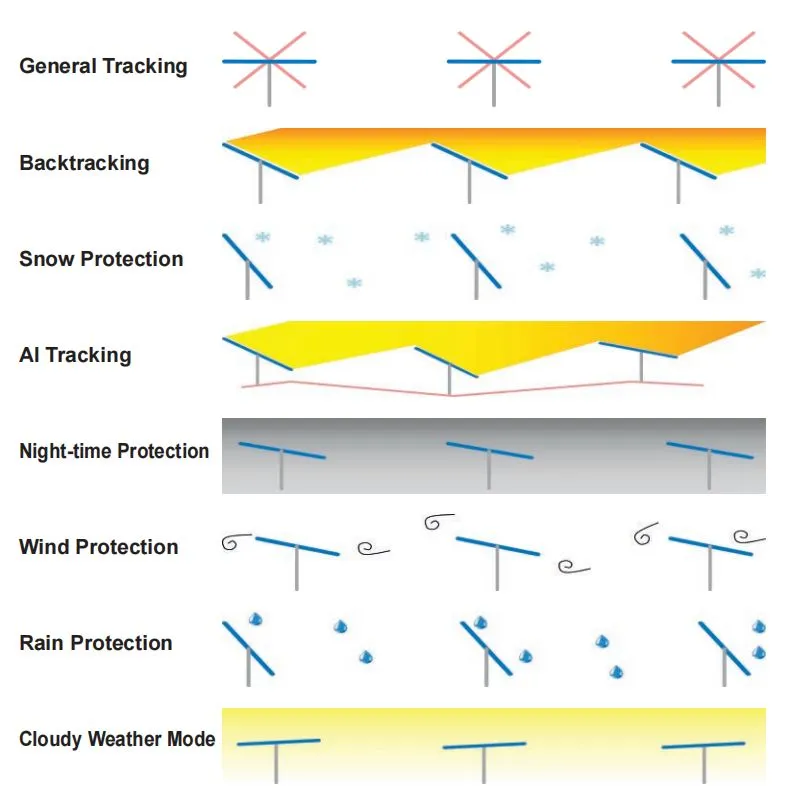

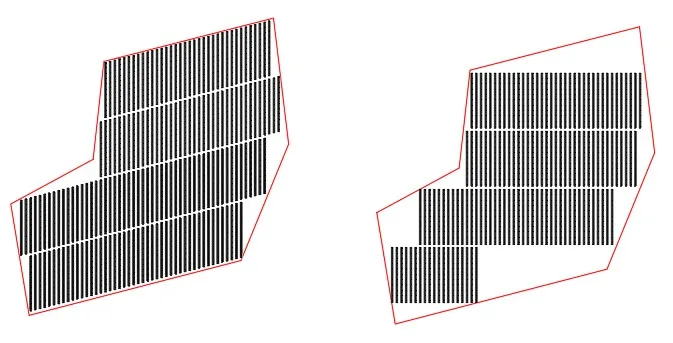

Operating Mode & Terrain Adaption:

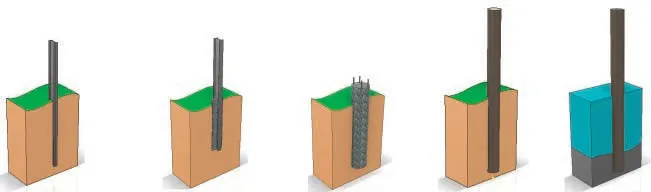

Flexible layout allows for full utilization of irregular land. Compatible with steel piles, concrete piles, and PHC piles for agriculture or fishery PV integration.
