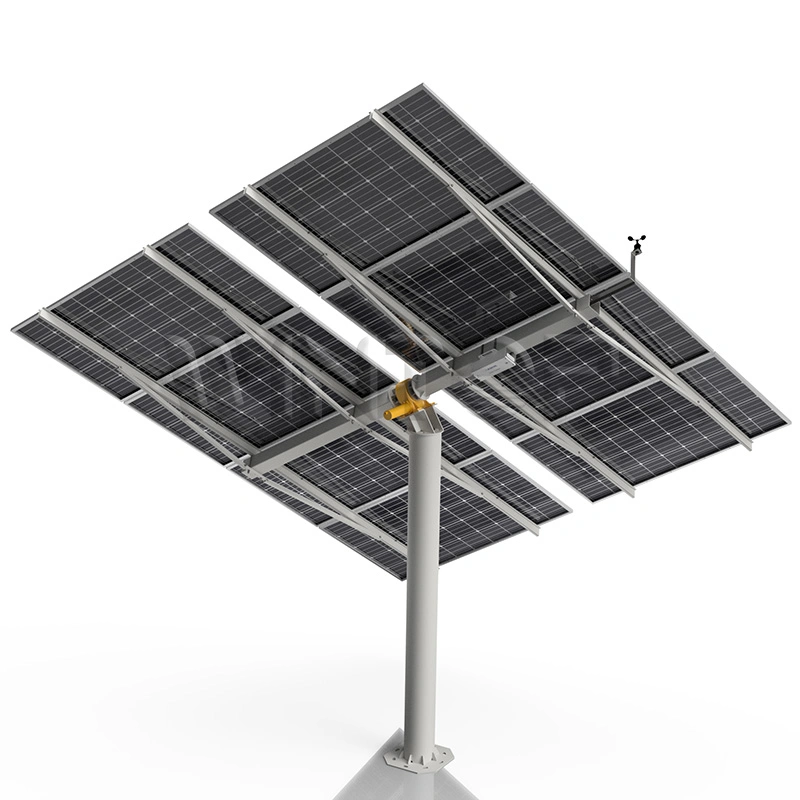

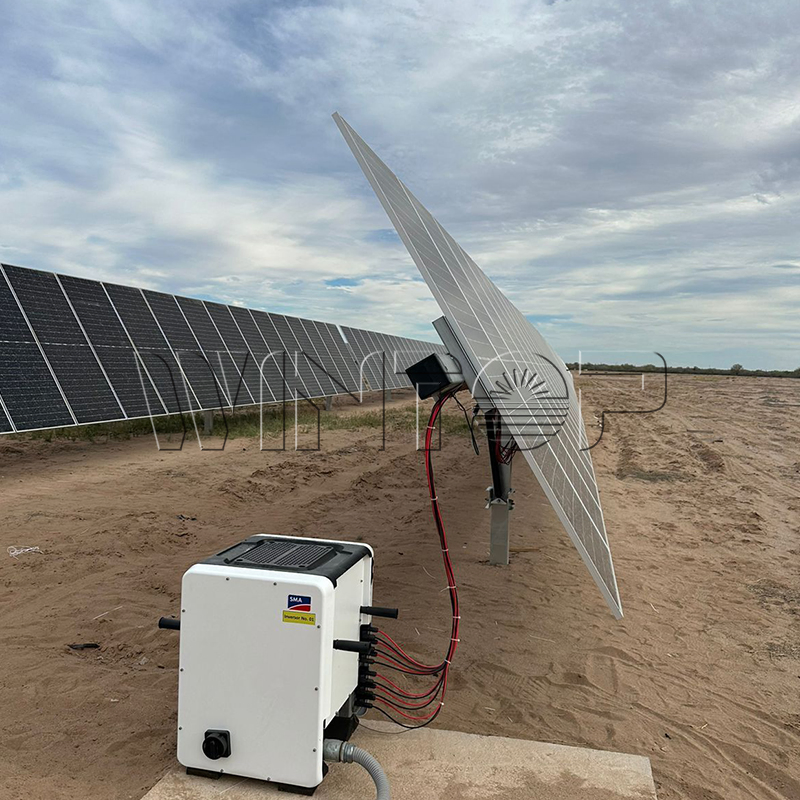

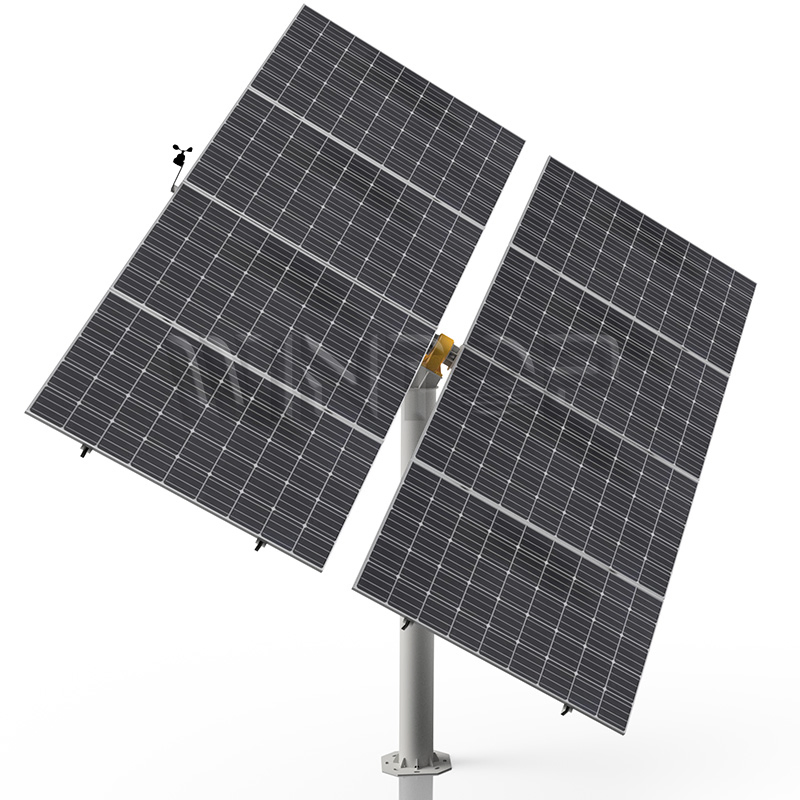

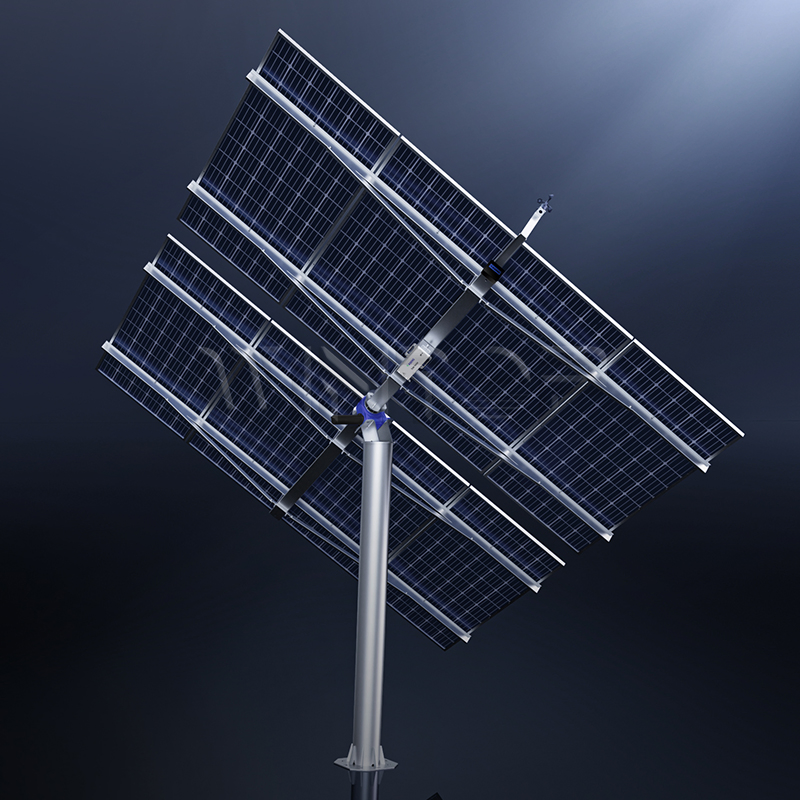

The single post solar tracking system is fully compatible with 210 silicon wafer modules. It is a double-row small solar tracker supported by only one column. It features a built-in inclination sensor and intelligent wind speed protection function; it supports both AC power supply or self-power supply options depending on the project requirements.
| PV-Modules & Structure | |
|---|---|
| PV-Modules supported | Fully fit for 210 module |
| System type | Single post tracking system |
| Maximum capacity per set | 4.8kWp (Estimated with 600W Modules) |
| PV-Module quantity per set | 8 PCS |
| Tracking Range / Accuracy | ±45°(E-W) / ±0.5° |
| Tilt angle | 25°- 40°(S-N) (Project specific) |
| Structural Materials | HDG Steel, Al-Mg-Zn Coating Steel |
| Electrical & Protection | |
| Solar tracking method | Astronomical algorithm + closed-loop control (AI) |

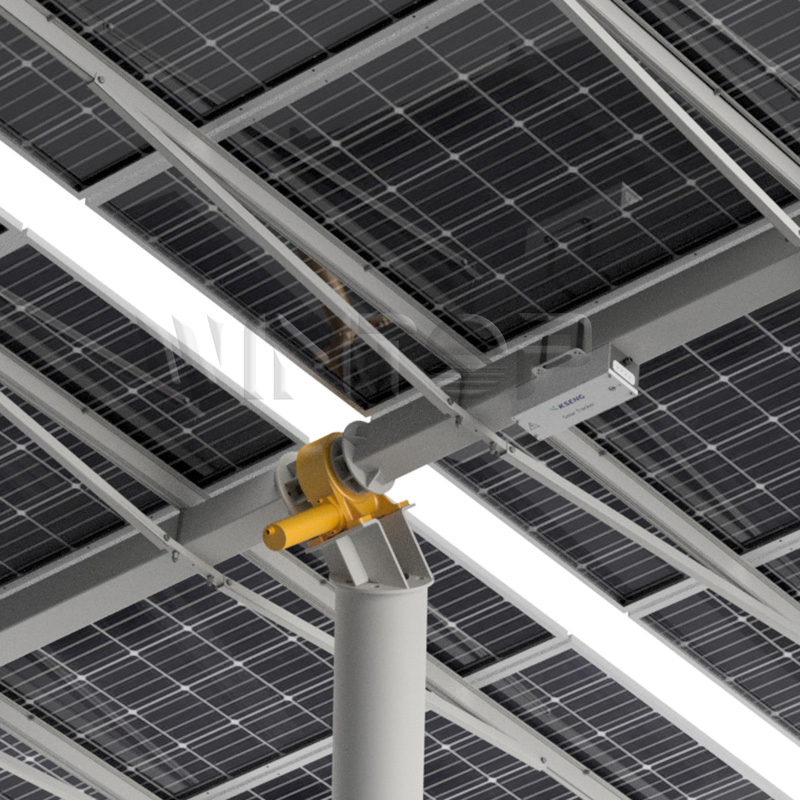

| Control system / Drive | MCU / Slew Drive |
| Motor Type | 24V DC Motor |
| Power supply | AC-powered or self-powered |
| Wind protection | ≥18m/s (Windy area) |
| Night stow / Overheat mode | Yes / Yes |

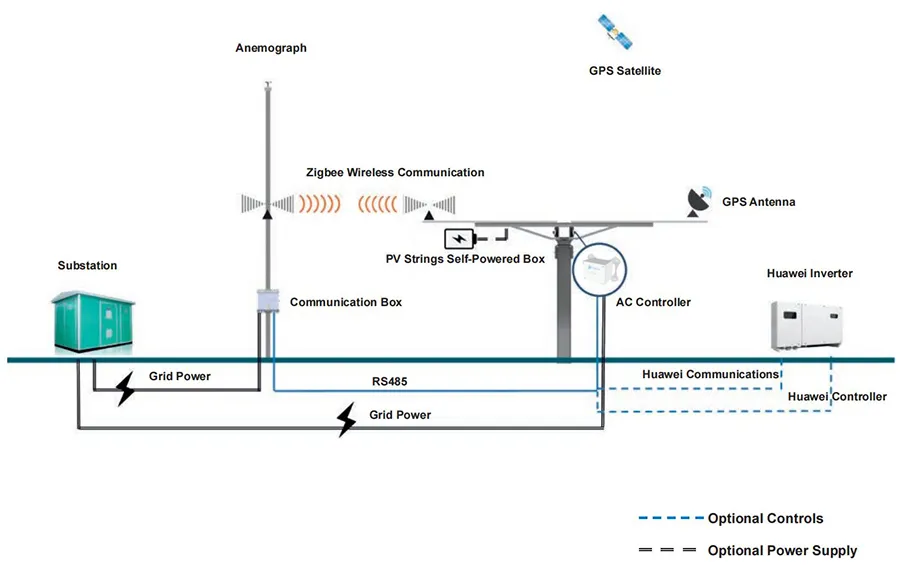

Electrical Principle Diagram:

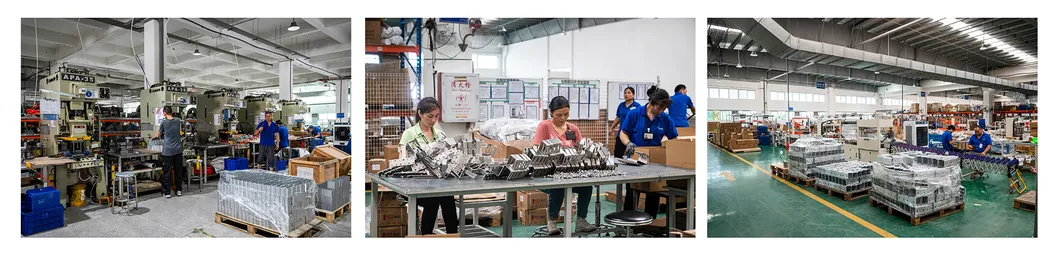

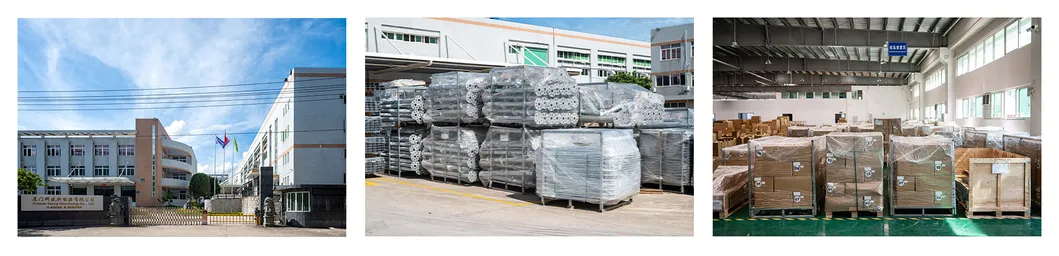

Established in 2016, our manufacturing partner is a high-tech enterprise that integrates R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers worldwide.
