📝 Product Description

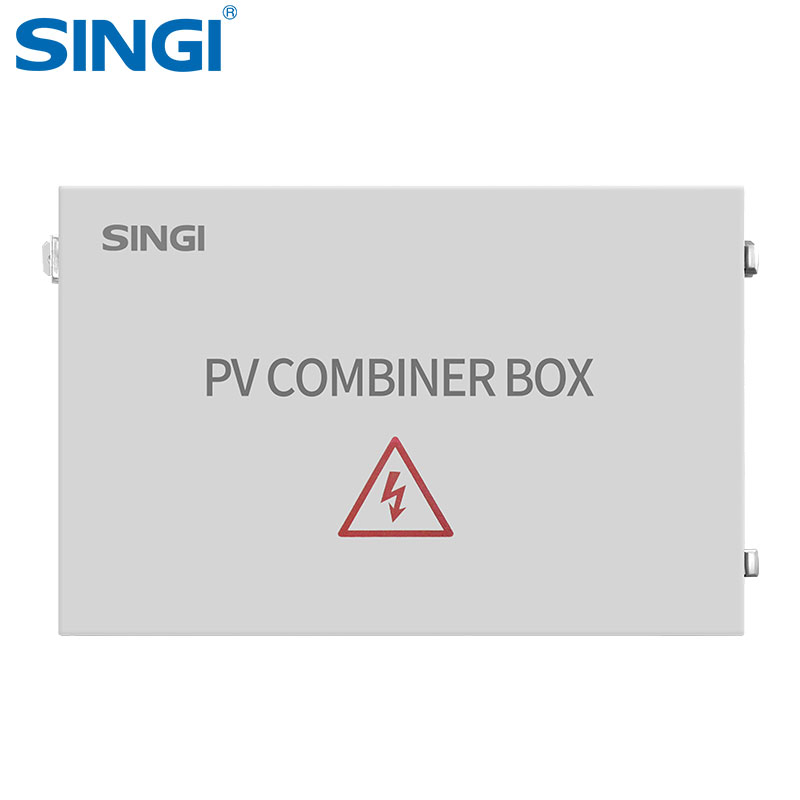

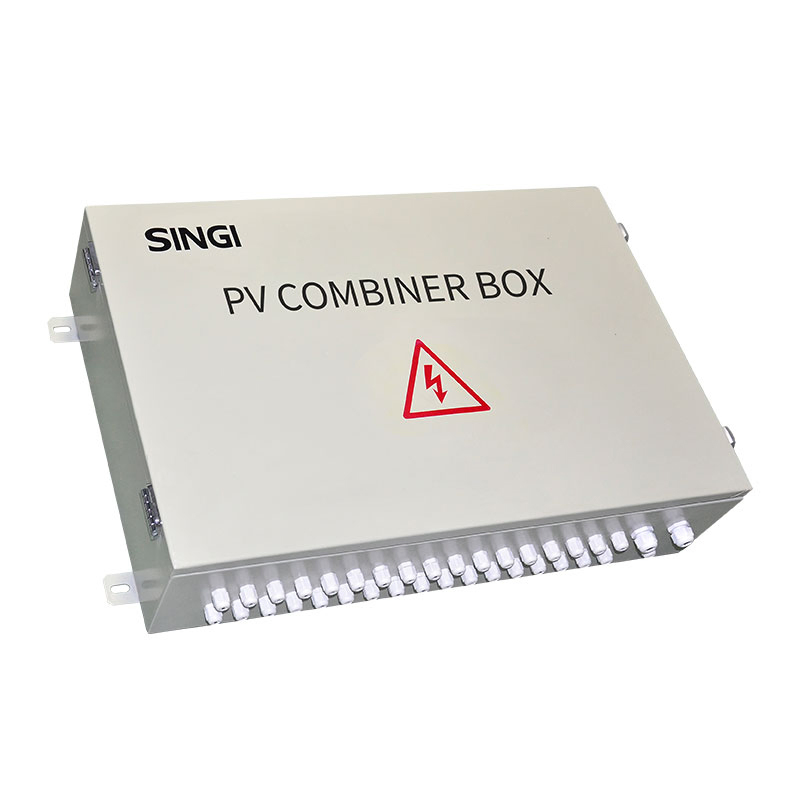

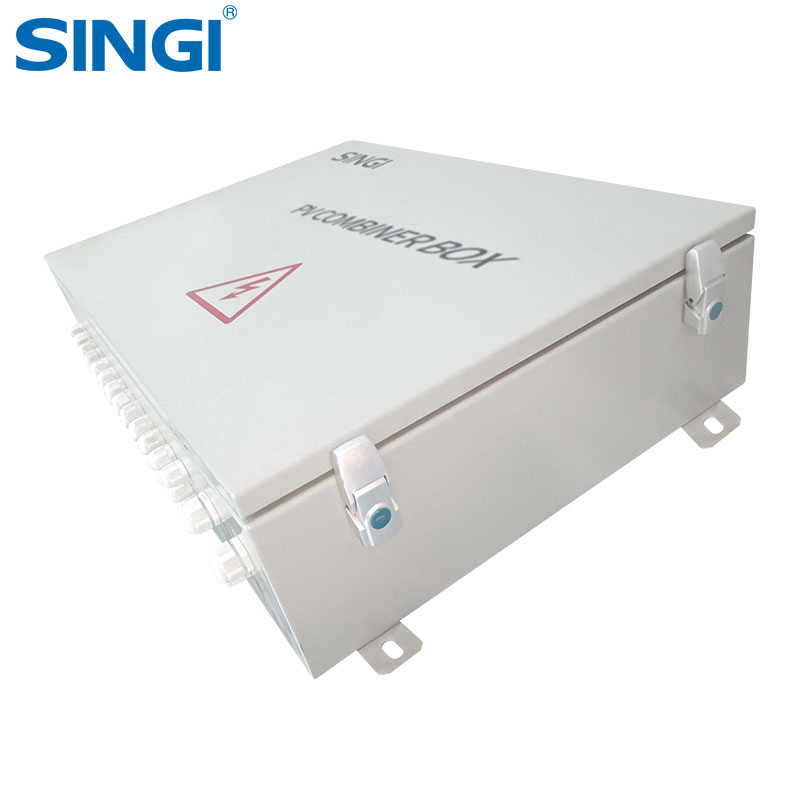

The PV combiner box is suitable for grid-connected and off-grid power generation. The main function is to sink the input of PV cell array at one level, and to provide fast cut-off short-circuit fault protection and lightning protection to avoid damage to PV panels and inverters in case of failure.
It is also used to reduce the connection of photovoltaic arrays to the inverter, optimize the system structure, improve reliability and maintainability, and optimize power generation efficiency. The parallel mode has anti-backflow and anti-reverse access functions.

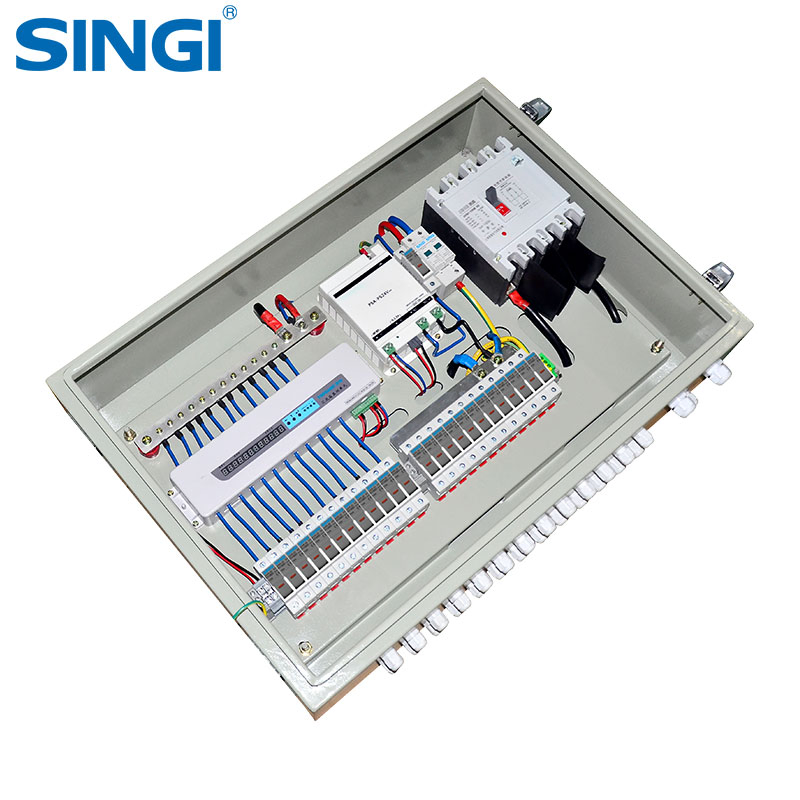

Our solution accommodates overcurrent protection devices, disconnectors, and surge protective devices (SPDs) in one solar combiner box. Depending on the application, combiners are equipped with monitoring devices to measure current, voltage, and temperature to ensure the availability of the strings and to maximize generation.
❓ Frequently Asked Questions
What is the main purpose of a PV Combiner Box?
The primary purpose is to consolidate multiple PV string inputs into a single output, providing overcurrent and surge protection to safeguard the inverter and solar panels.
Is this combiner box waterproof for outdoor use?

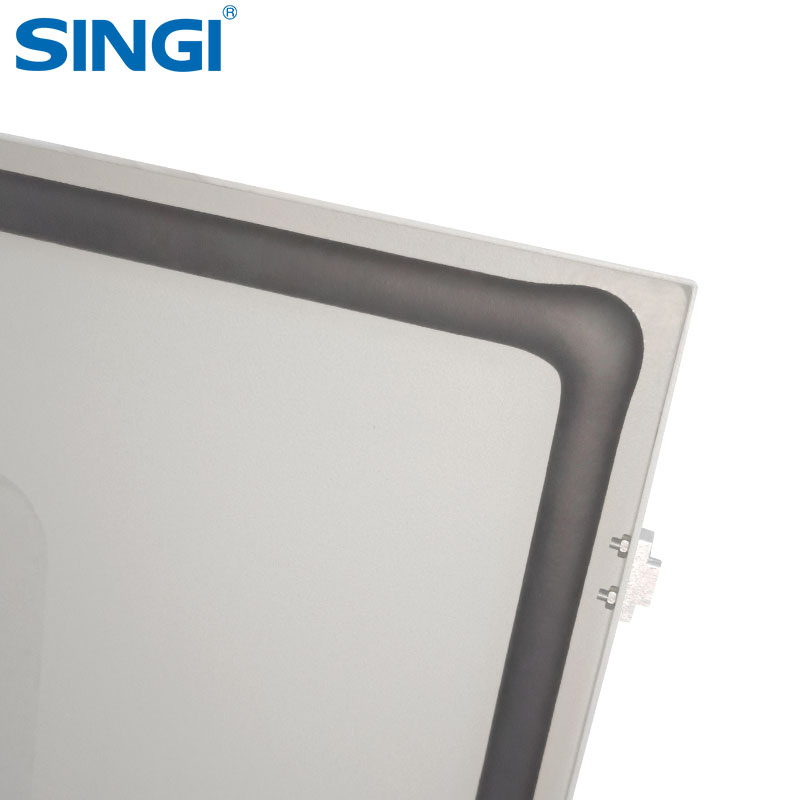

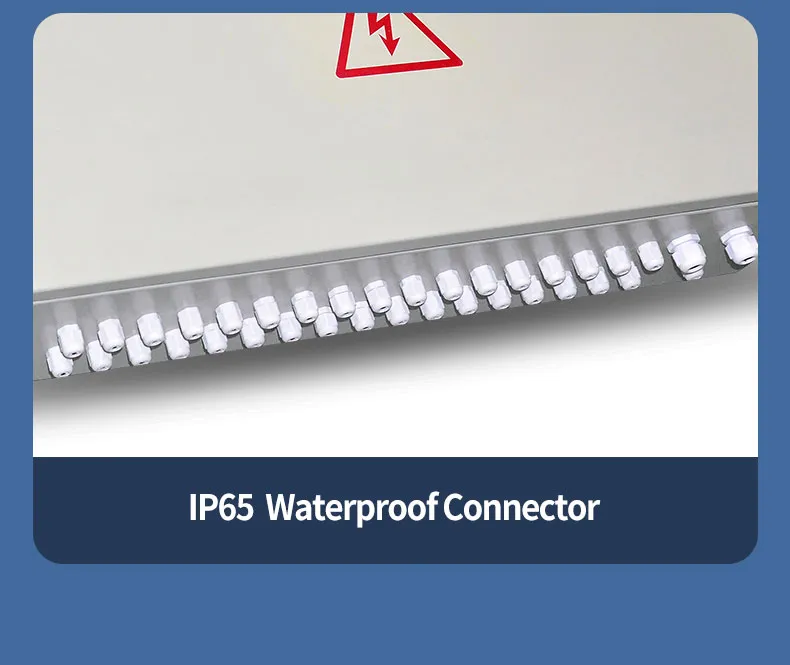

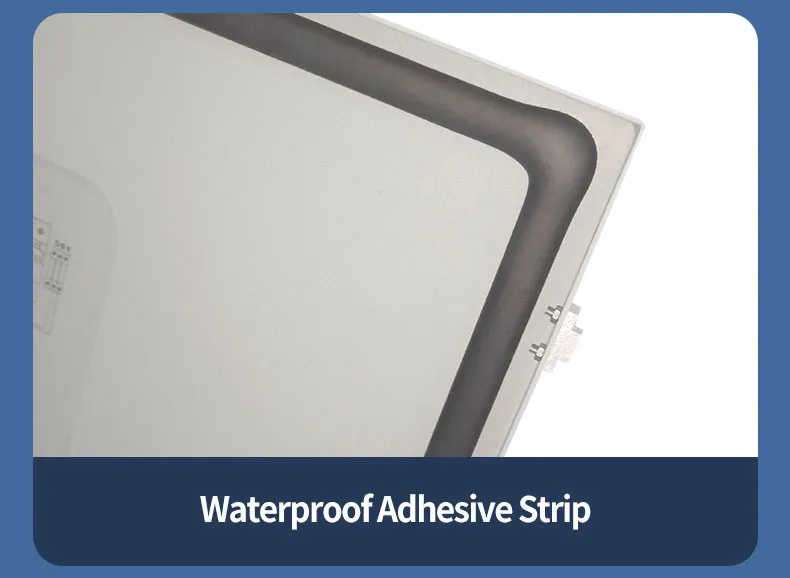

Yes, the box features an IP65 protection grade and is made of stainless steel, making it highly resistant to water and dust for outdoor installations.
What is the maximum voltage support for this system?
This series supports a maximum input voltage of DC 1000V, making it compatible with most high-voltage solar power systems.
Does it include lightning protection?
Yes, the combiner box is equipped with Surge Protective Devices (SPD) specifically designed to provide lightning protection.
How many input channels are available?
Depending on the model (SWHX-8 to SWHX-24), the box can support from 8 up to 24 input channels.
Does it support monitoring?
The boxes can be equipped with monitoring devices to measure current, voltage, and temperature to ensure system efficiency.
