✨ Basic Info
Material
Monocrystalline Silicon
Package Way
36PCS in One Pallet
Transport Package
Wooden Package
Specification
2278*1134*30mm

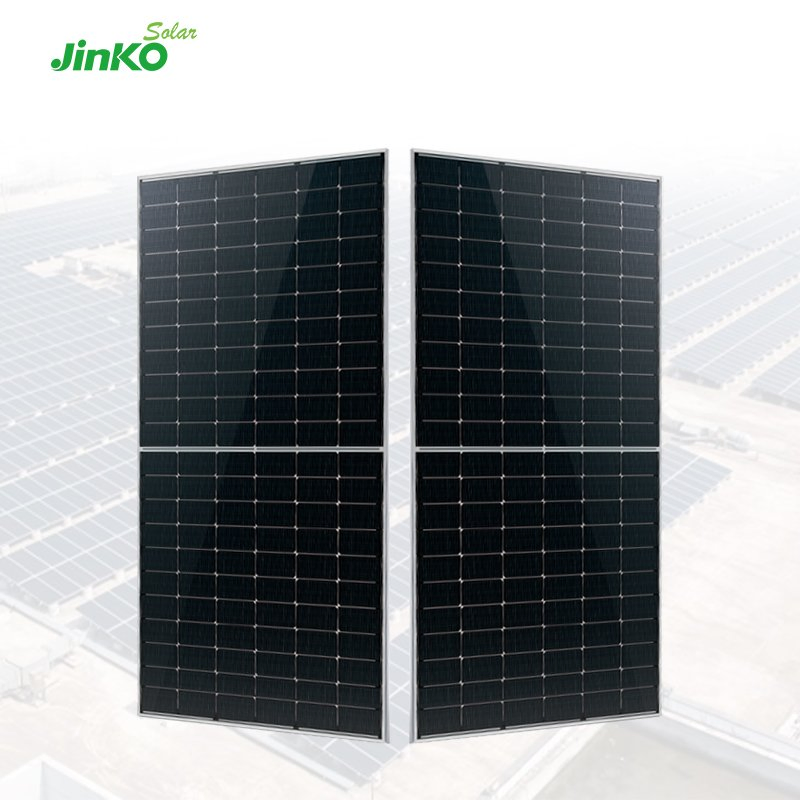

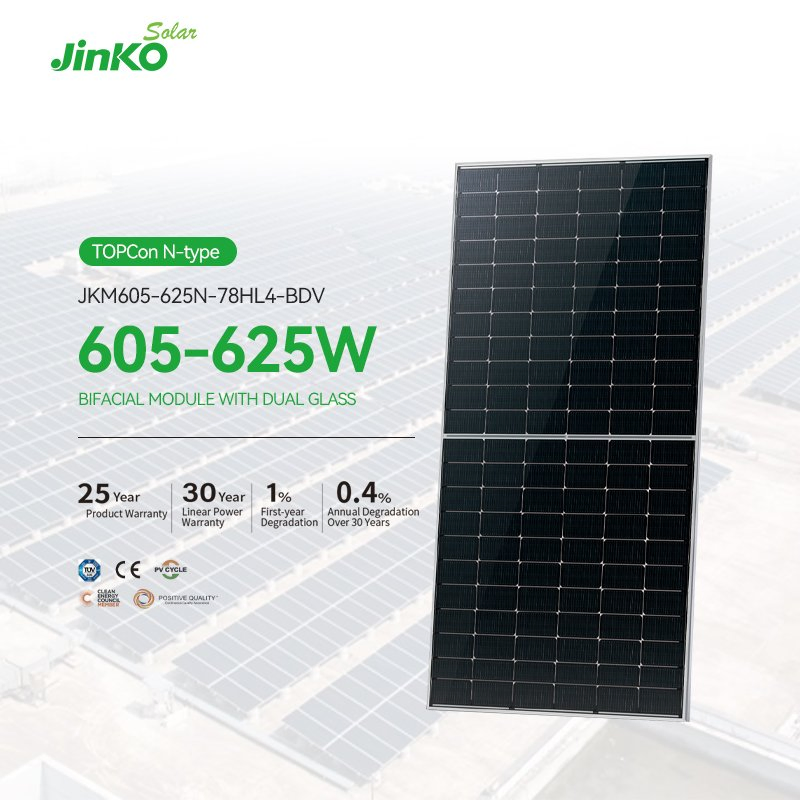

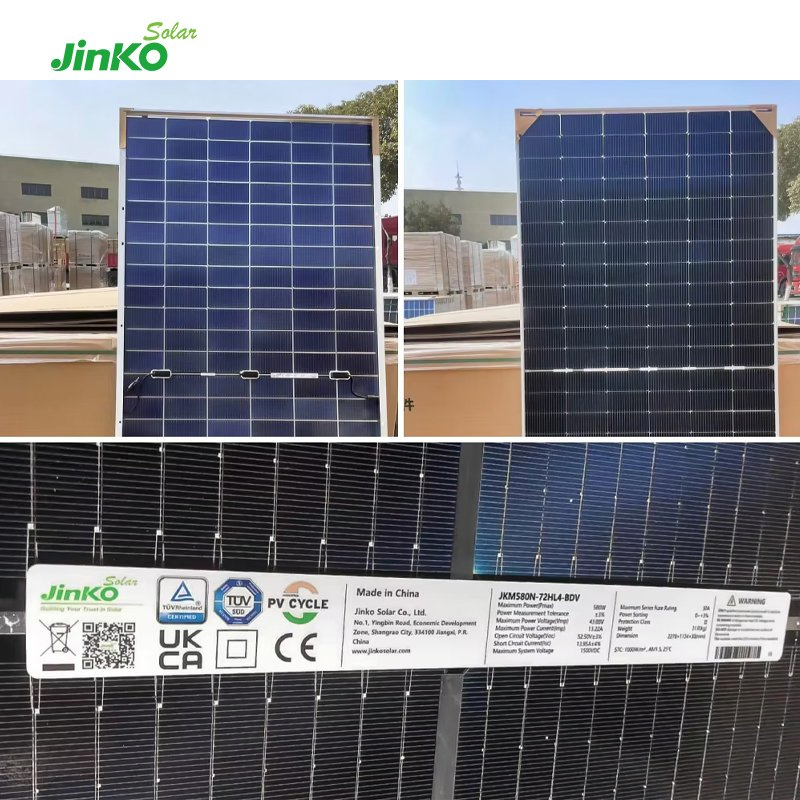

📋 Product Description
📊 Product Parameters
| Maximum Power (Pmax) |
600W | 605W | 610W | 615W | 620W |
| Max Power Voltage (Vmp) |
40.16V | 40.31V | 40.46V | 40.60V | 40.74V |
| Max Power Current (Imp) |
14.94A | 15.01A | 15.08A | 15.15A | 15.22A |
| Open-circuit Voltage (Voc) |
48.28V | 48.48V | 48.68V | 48.88V | 49.08V |
| Short-circuit Current (Isc) |
15.84A | 15.90A | 15.961A | 16.02A | 16.08A |
| Module Efficiency STC (%) |
22.21% | 22.40% | 22.58% | 22.77% | 22.95% |
| Operating Temp (ºC) |
-40ºC ~ +85ºC |
| Max System Voltage |
1500VDC(IEC) |
| Max Series Fuse Rating |
35A |
📜 Certifications

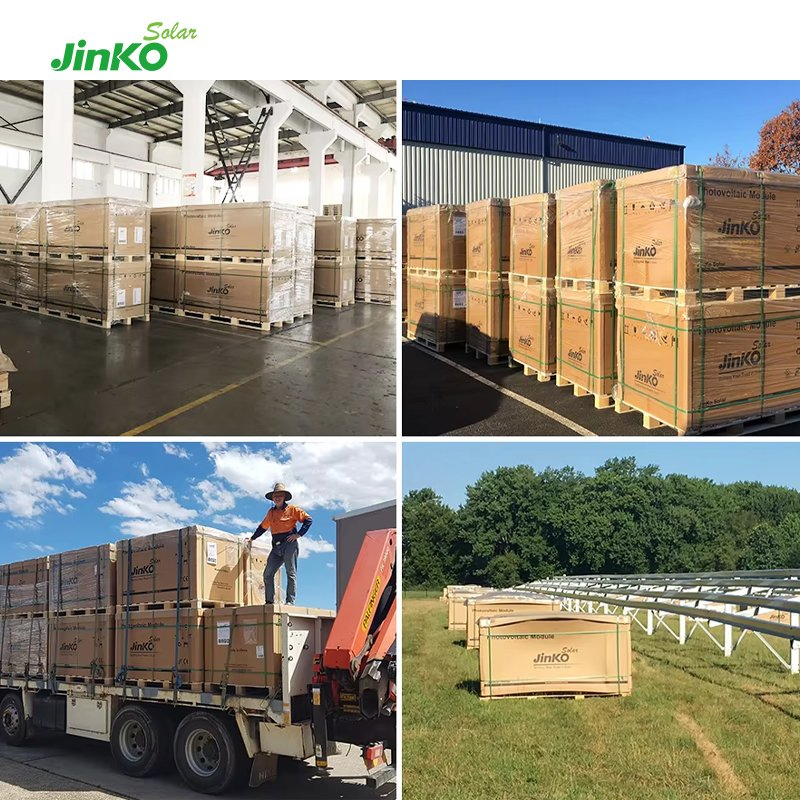

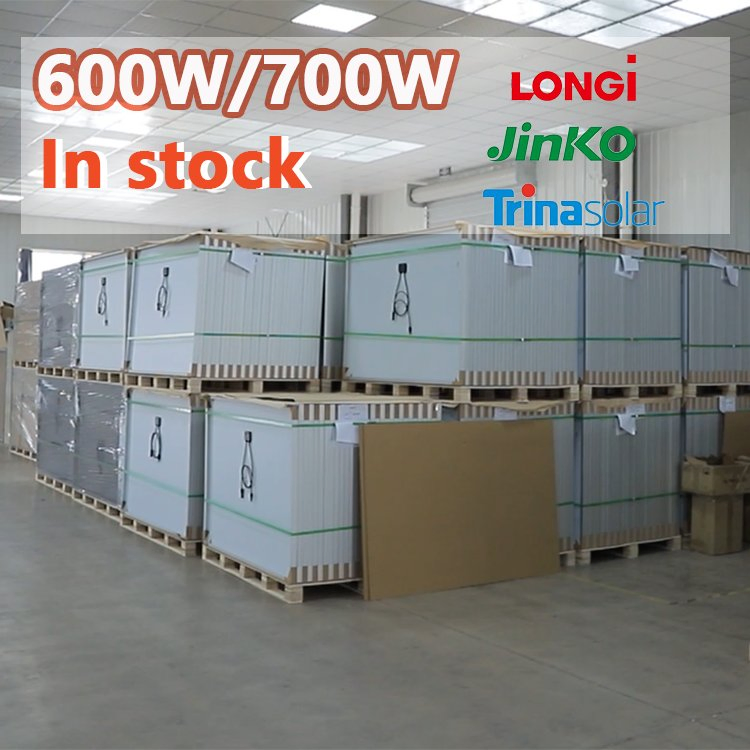

📦 Product Packaging
| SUN570-590 DE21M(18) |
36PCS |
720PCS |

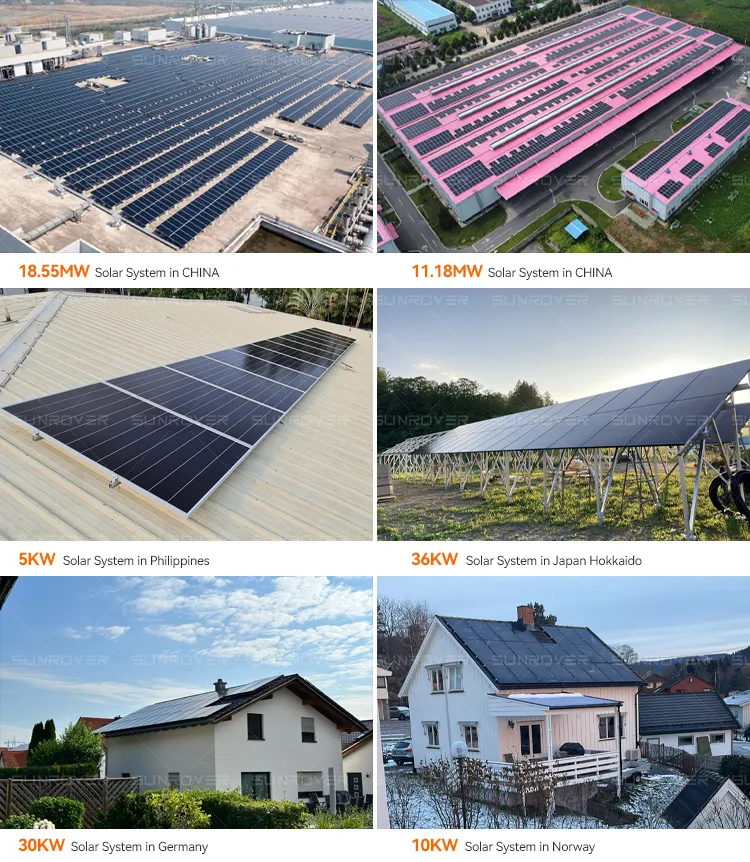

🏗 Our Projects

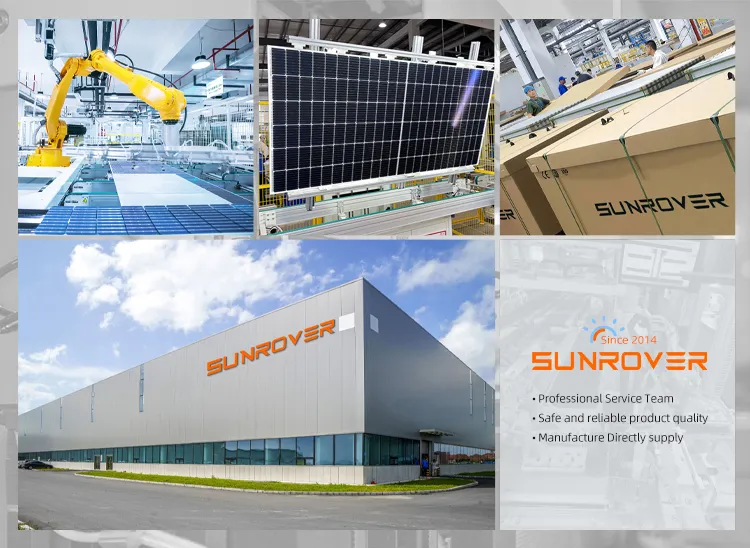

🏭 Production Base
❓ Frequently Asked Questions
Q1: What is the maximum efficiency of these solar modules?
A1: These monocrystalline solar modules achieve a high efficiency of up to 22.95% under standard testing conditions (STC).
Q2: Are these panels suitable for industrial applications?
A2: Yes, they are specifically designed for industrial and large-scale utility applications, featuring 72 high-performance cells.
Q3: What certifications do the solar panels hold?
A3: The panels are CE certified and manufactured to meet international quality and safety standards for global distribution.
Q4: How are the solar modules protected during transport?
A4: We use professional wooden packaging and pallets (36PCS per pallet) to ensure the safety and integrity of the modules during shipping.
Q5: What is the operating temperature range for these modules?
A5: The modules are designed to operate reliably in extreme environments, with a temperature range from -40ºC to +85ºC.
Q6: What is the maximum system voltage supported?
A6: These modules support a maximum system voltage of 1500VDC (IEC), allowing for more efficient system designs and reduced BOS costs.
