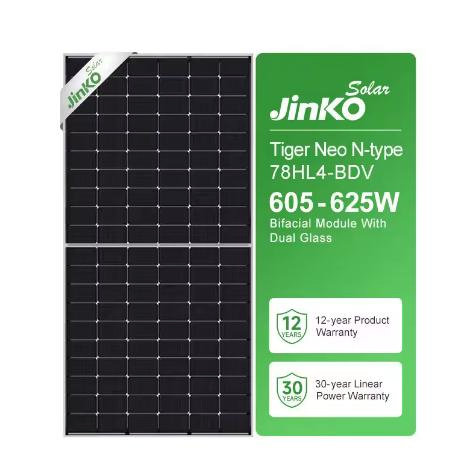

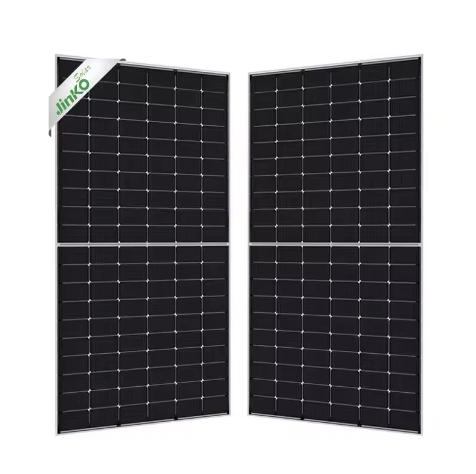

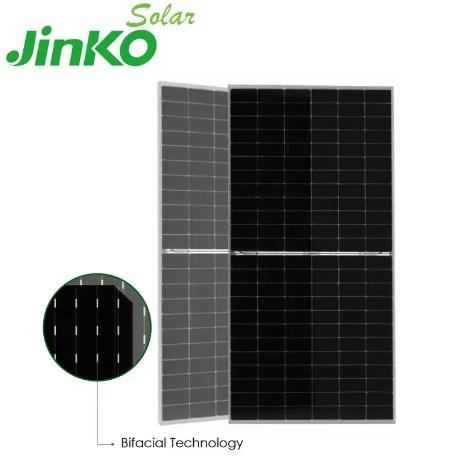

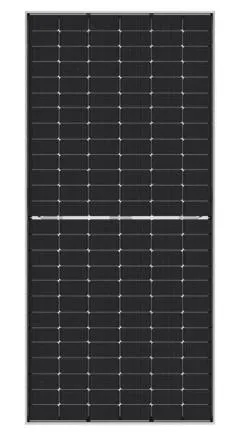

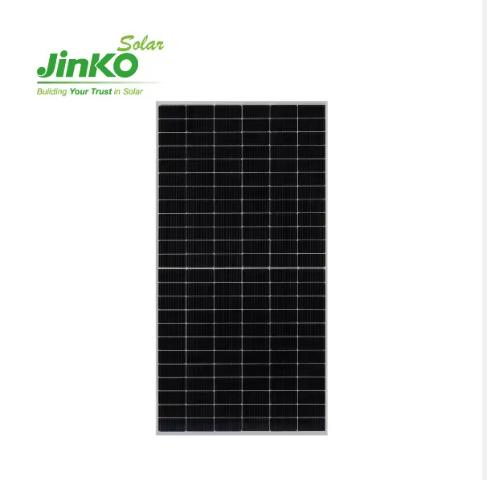

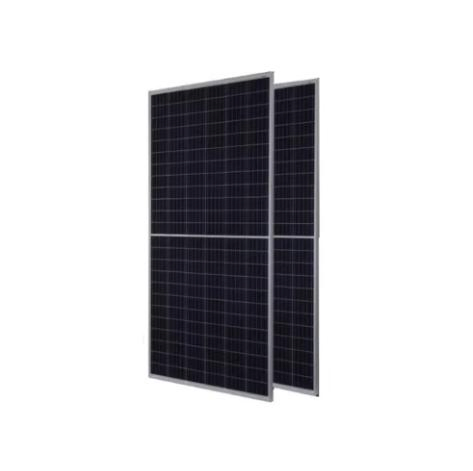

Jinko N-Type Bifacial PV Module 78hl4-Bdv 615W 620W 625W Tiger Neo Dual Glass Solar Panel

1 / 5

Jinko N-Type Bifacial PV Module 78hl4-Bdv 615W 620W 625W Tiger Neo Dual Glass Solar Panel

Customization:	Available
After-sales Service:	Yes
Warranty:	30 Years

Send Inquiry

Product Description

📋Basic Specifications

Model NO.

78HL4-BDV

Number of Cells

156 cells (2×78)

Material

Monocrystalline Silicon

Cell Type

N Type Mono-Crystalline

Dimensions

2465×1134×30mm

Weight

34.6kg

Front Glass

2.0mm, Anti-Reflection Coating

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Rated

Certification

EST, ISO, CB, CE, TUV

⚡Product Features

SMBB Technology Better light trapping and current collection to improve module power output and reliability.

PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Higher Power Output Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.

Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

📊Technical Parameters

Module Type	JKM605N-78HL4-BDV		JKM610N-78HL4-BDV		JKM615N-78HL4-BDV		JKM620N-78HL4-BDV		JKM625N-78HL4-BDV
Conditions	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	605Wp	455Wp	610Wp	459Wp	615Wp	462Wp	620Wp	466Wp	625Wp	470Wp
Power Voltage (Vmp)	45.42V	42.23V	45.60V	42.35V	45.77V	42.46V	45.93V	42.57V	46.10V	42.68V
Power Current (Imp)	13.32A	10.77A	13.38A	10.83A	13.44A	10.89A	13.50A	10.95A	13.56A	11.01A
Module Efficiency (%)	21.64%		21.82%		22.00%		22.18%		22.36%

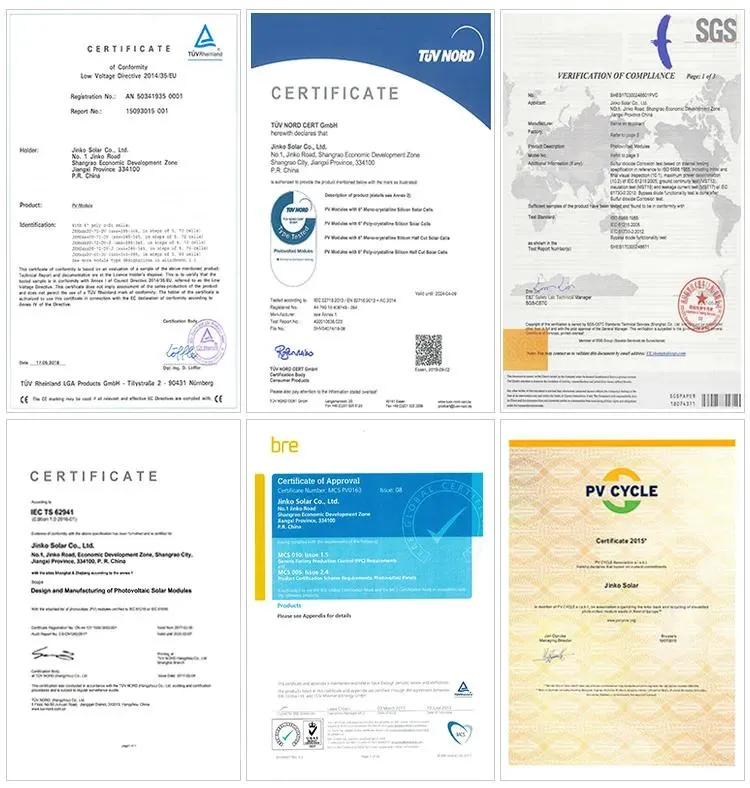

📜Certifications

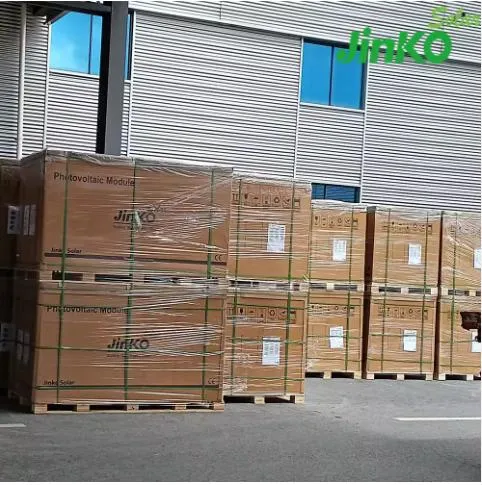

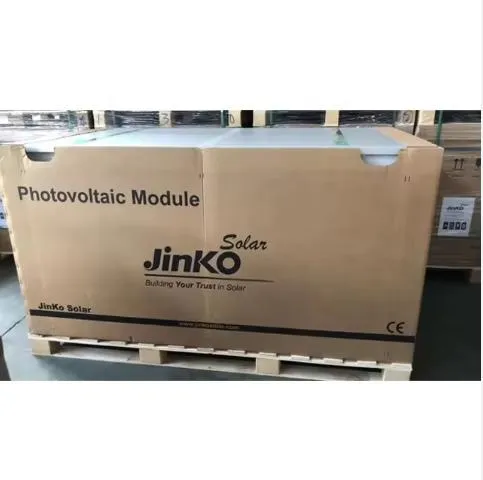

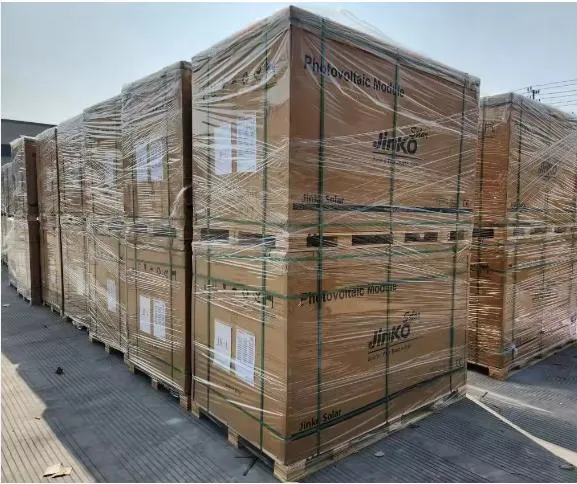

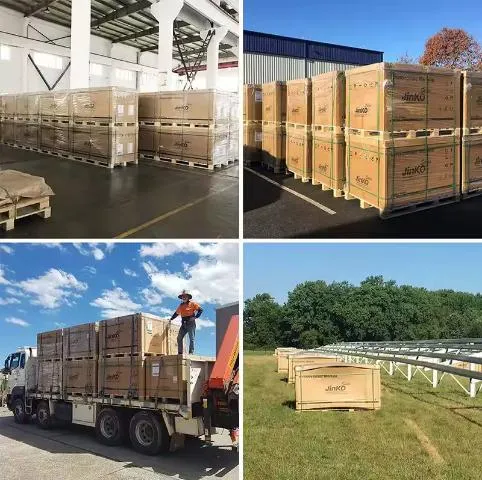

📦Packaging & Shipping

🏭Manufacturing Facility

❓Frequently Asked Questions

What brands of PV solar panels do you supply?

We provide major tier-1 brands including Jinko Solar, Longi Solar, JA Solar, Trina Solar, Canadian Solar, and Risen Solar. We also maintain our own manufacturing facility for specialized requirements.

What is the warranty for these solar panels?

We offer a 12-year warranty for product defects in materials and workmanship, and a 25-year linear power output warranty for the solar panel array.

Can you provide a full set of solar systems for home installation?

Yes, we provide a one-stop service including all necessary components. This integration saves significant time and reduces overall transportation costs.

What other solar accessories are available?

Beyond panels, we supply solar inverters, charge controllers, solar batteries (energy storage systems), mounting brackets, and specialized solar cables.

How long is the lead time for production?

Samples generally take 5-7 days. For mass production, the delivery time depends on the specific order quantity and current production schedule.

What payment terms do you accept?

We currently accept payment via T/T (Telegraphic Transfer), L/C (Letter of Credit), Western Union, and Trade Assurance.
