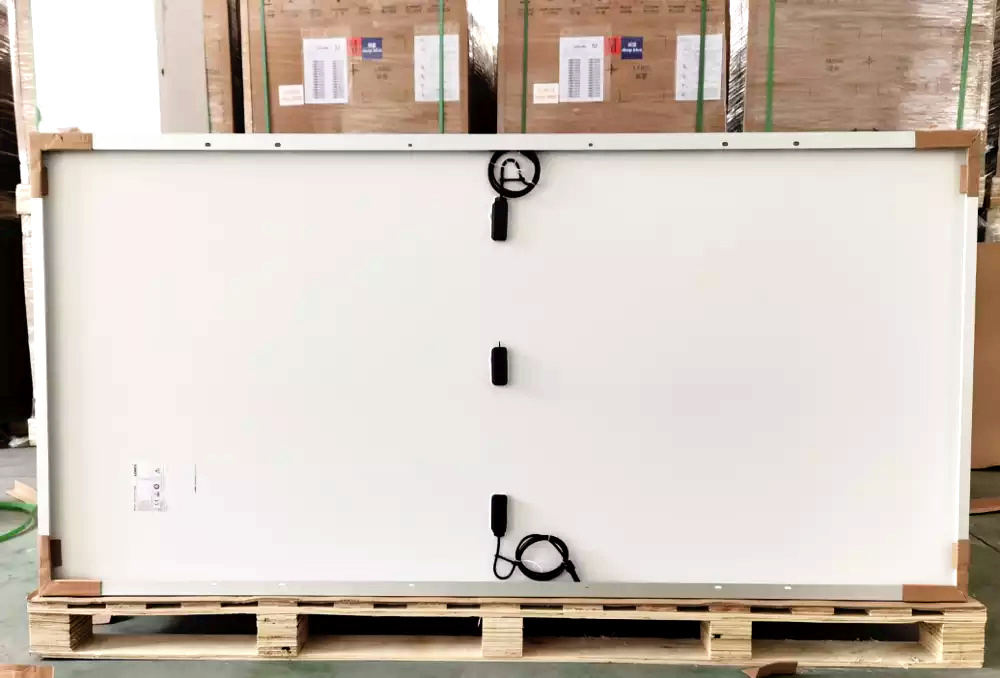

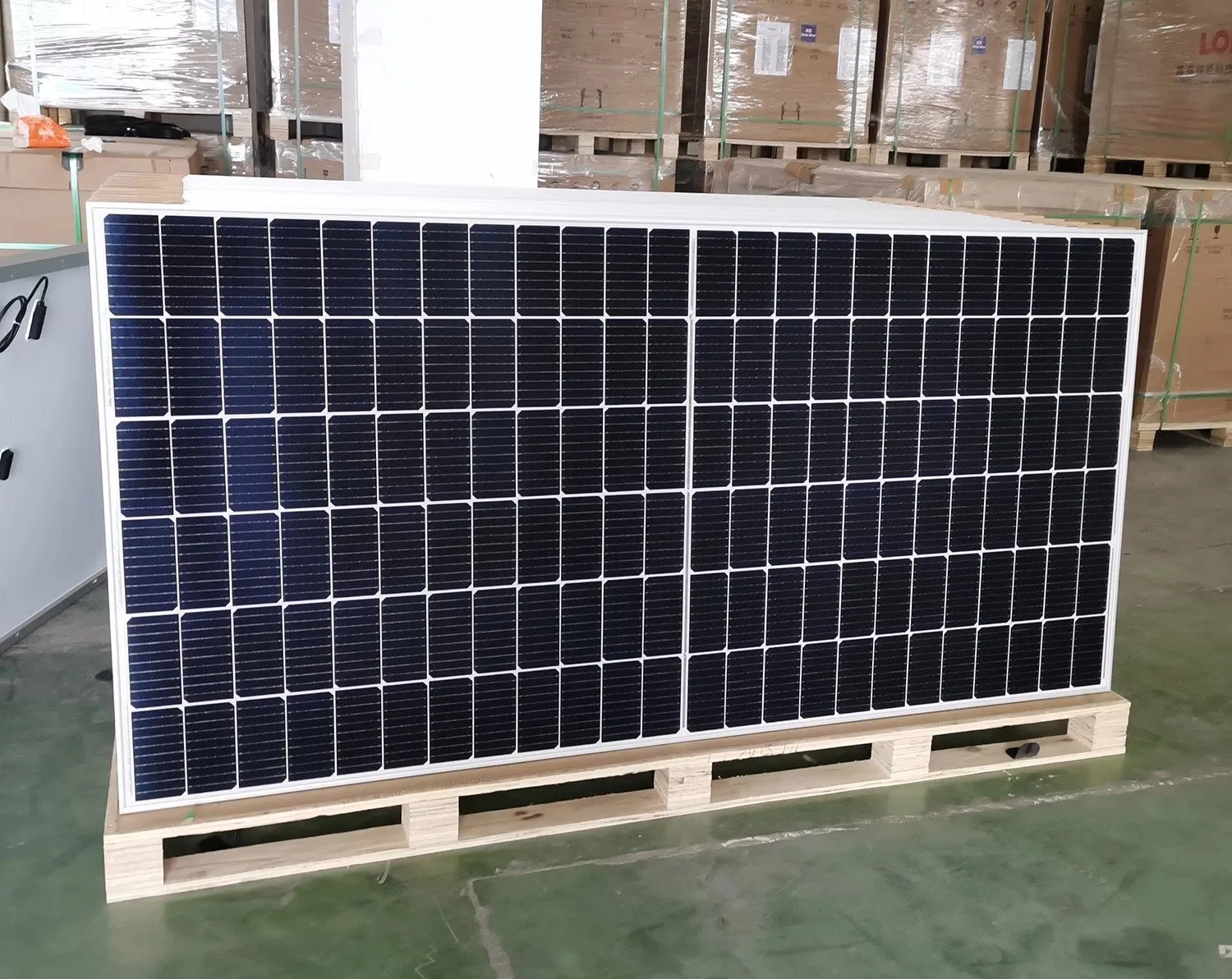

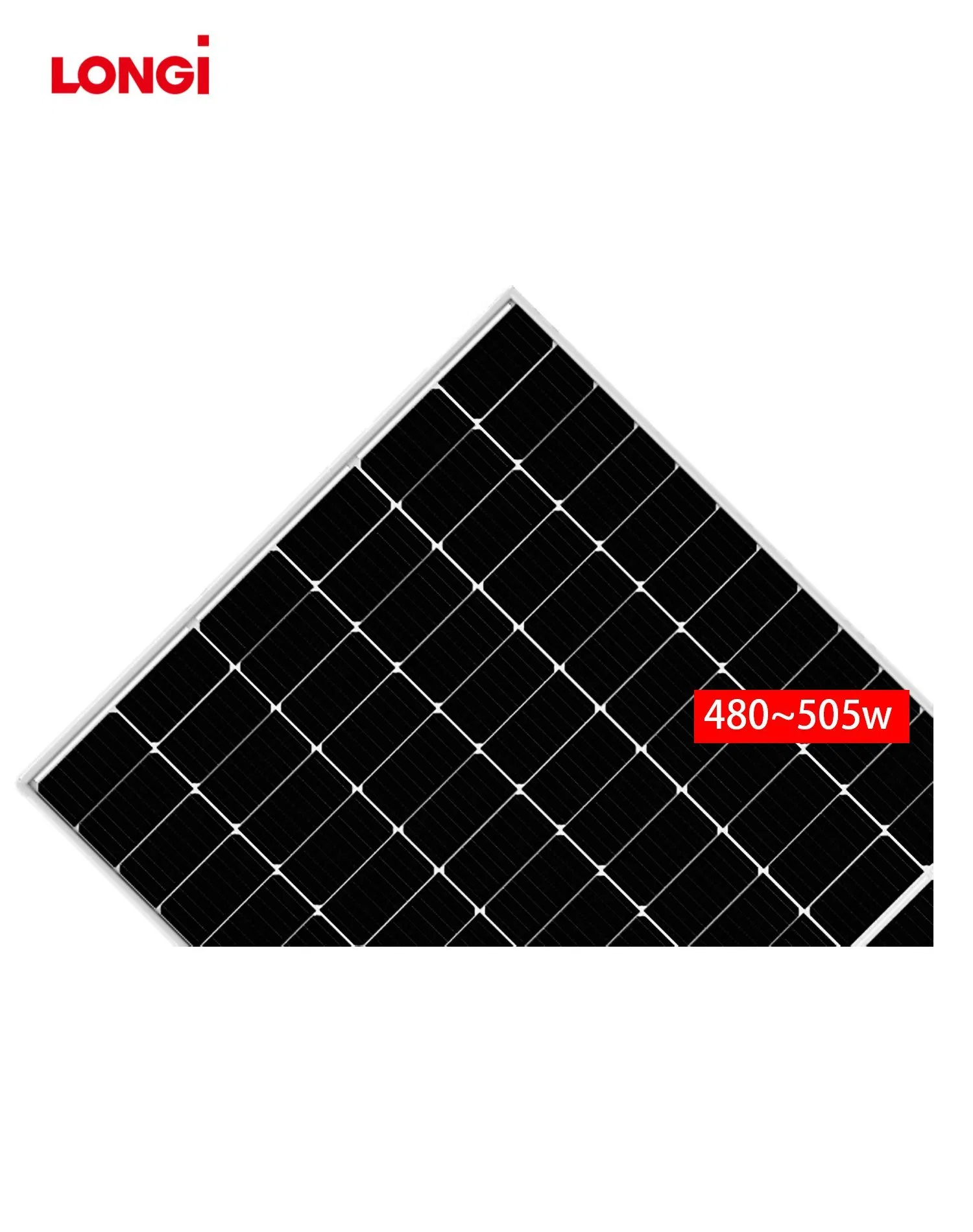

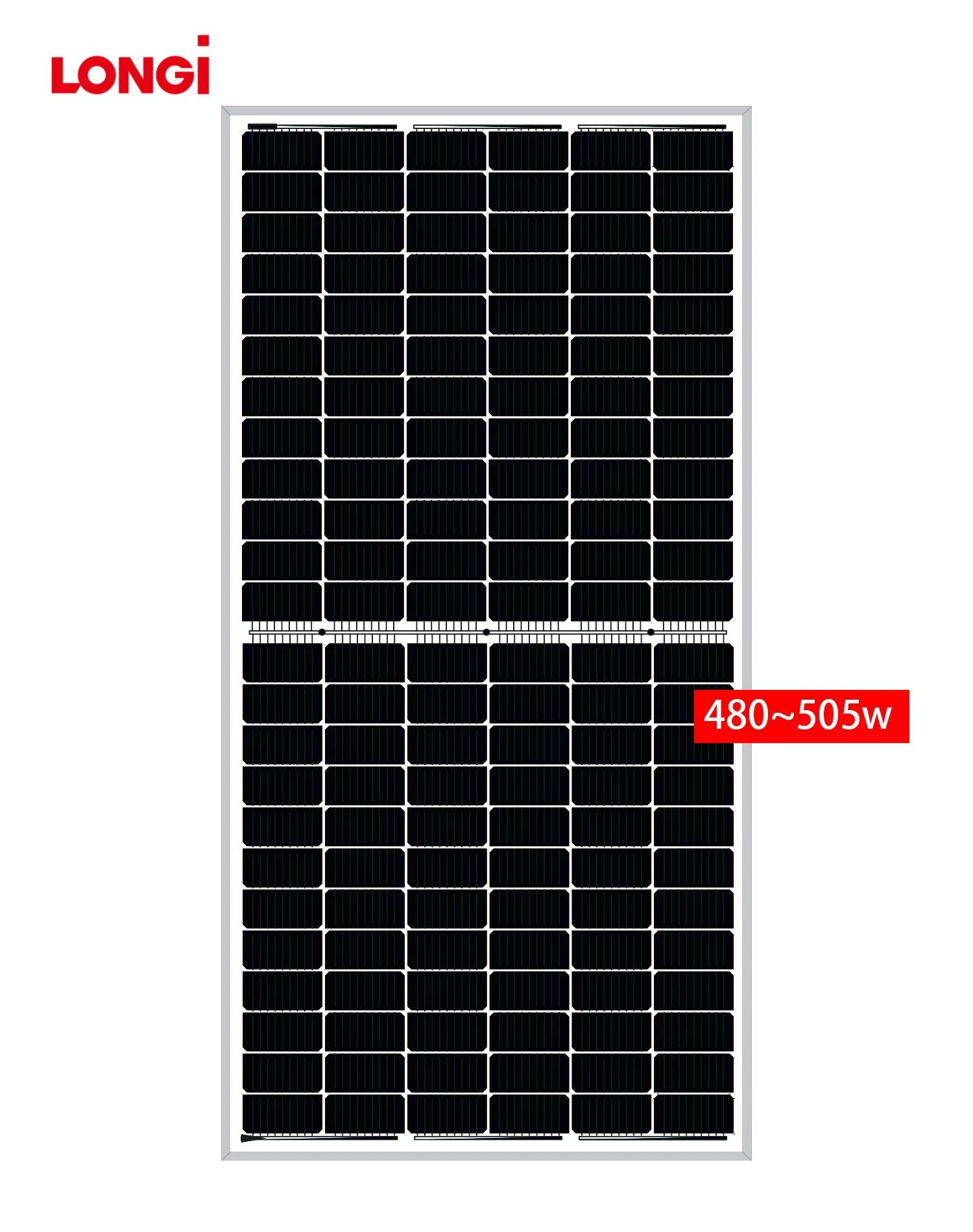

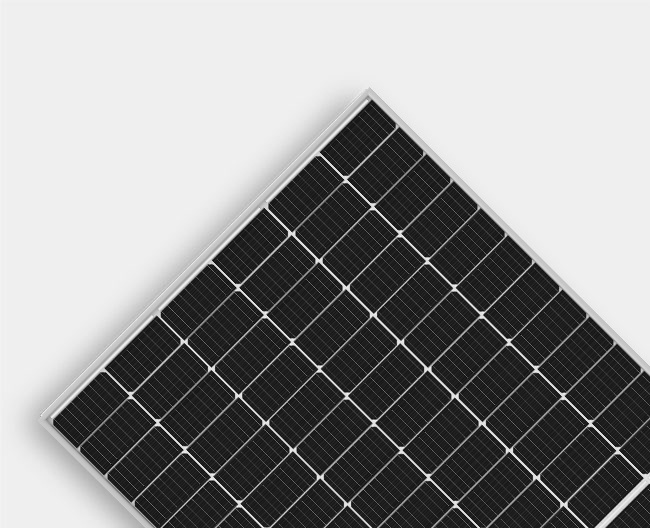

1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1 / 5
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module
1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module

1480 Longi Jinko Perc Monocrystalline Panneau Solaire 470W 480W 500W 505W Solar Panel Module

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

➲ Basic Information
Model NO.
LONGI-Hi-MO5m
Application
Multi-Field
Condition
New
Certification
EST, ISO, CE, TUV
Material
Monocrystalline Silicon
Panel Efficiency
21.5%
Weight
25.1kg
Frame
Anodized Aluminium Alloy
Connectors
Mc 4 Compatible IP68
Junction Box
IP68 Rated (3 by Pass Diodes)
Max. System Voltage
1500V
Front Glass
3.2 mm Heat Strengthened Glass
Specification
2073*1133*35mm
Capacity
50 Gw/Year
➲ Product Description

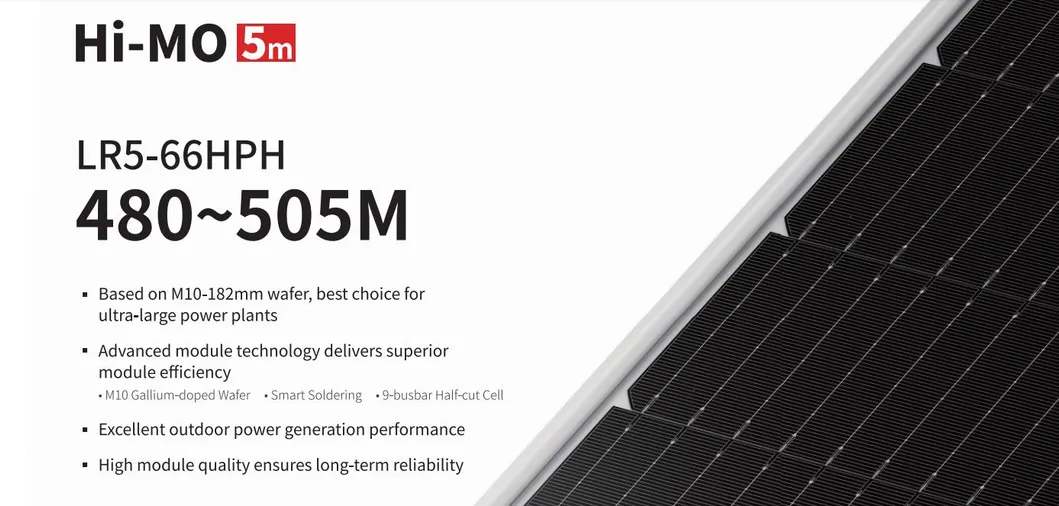

Solar Panel Module Overview

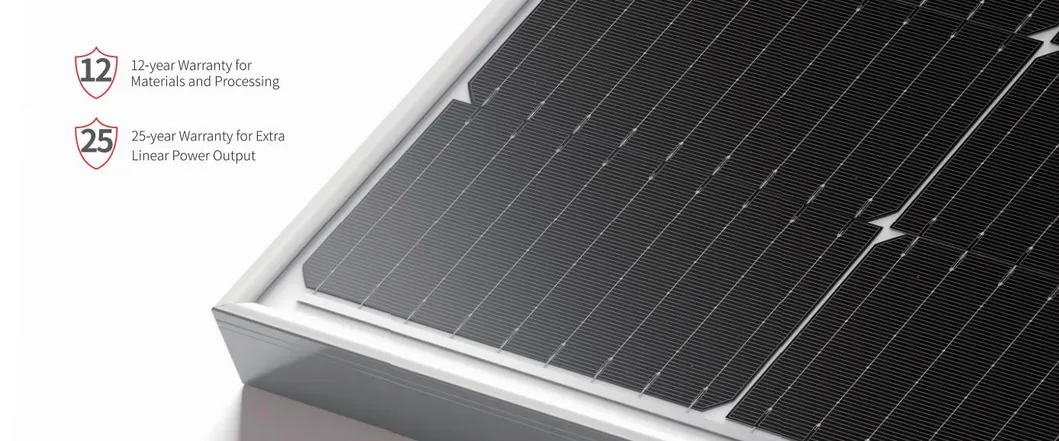

Solar Panel Detail 1
Solar Panel Detail 2
➲ Features at a Glance

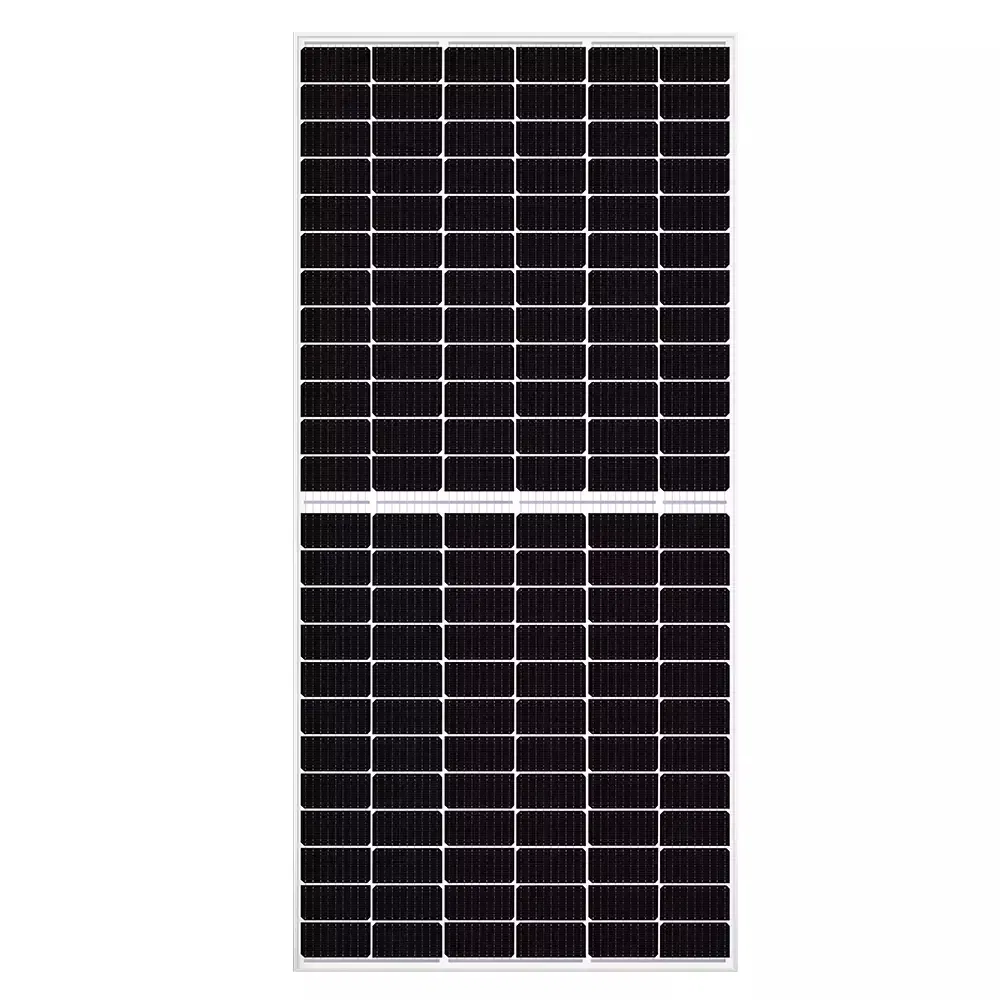

Module Technology

High Efficiency Module

  • Monofacial module exceeding 480-505 W
  • 132 cell + mono Hi-MO 4m technology
  • Low power loss in cell connection
  • LID + LeTID less than 2.0%
  • Better shading tolerance & lower hot spot temperature

Cell & Frame Specs

  • Increased area exposed to light for higher power
  • 3.2 mm heat strengthened glass front side
  • 35 mm anodized aluminium alloy robust protection
  • Reserved mounting holes for easy installation
  • Reduced BOS cost and 25-year performance warranty

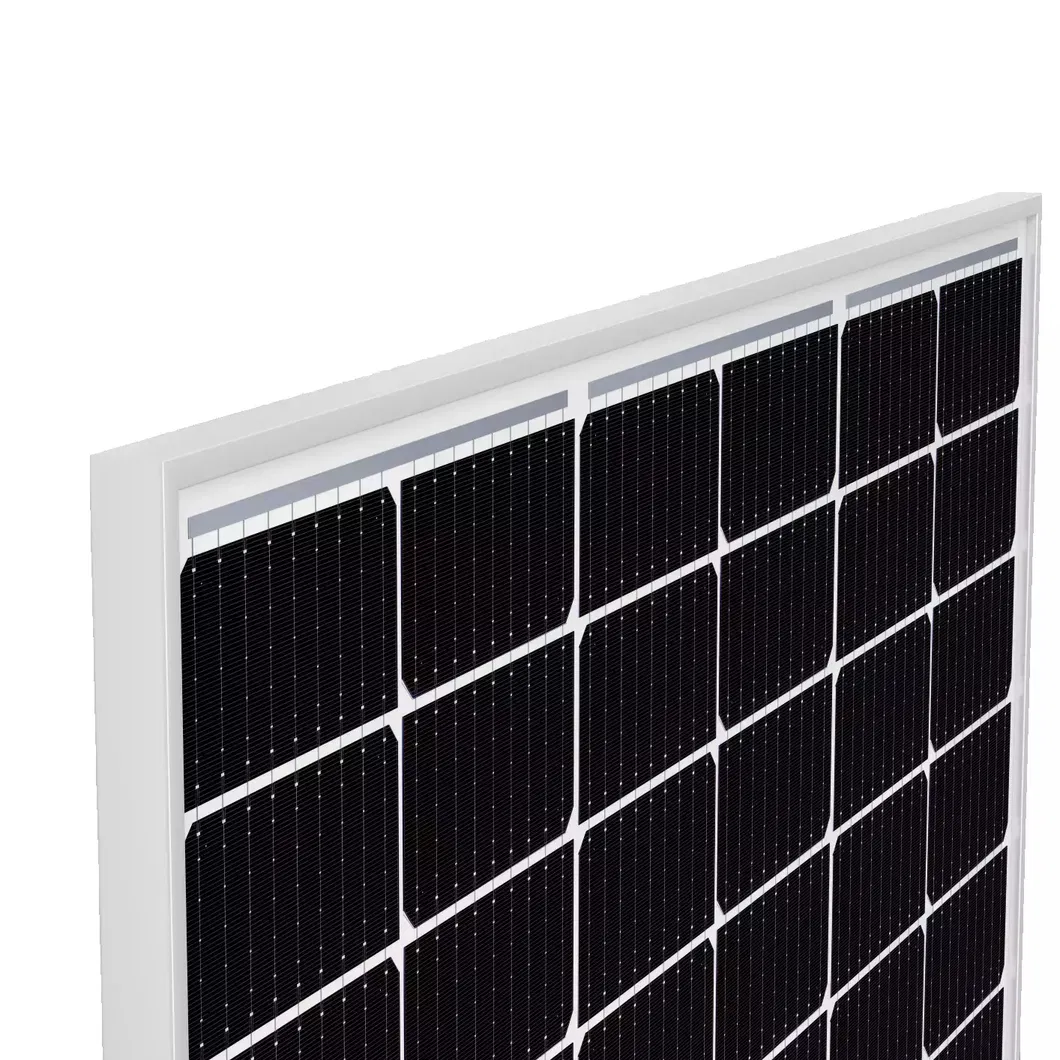

Cell and Frame

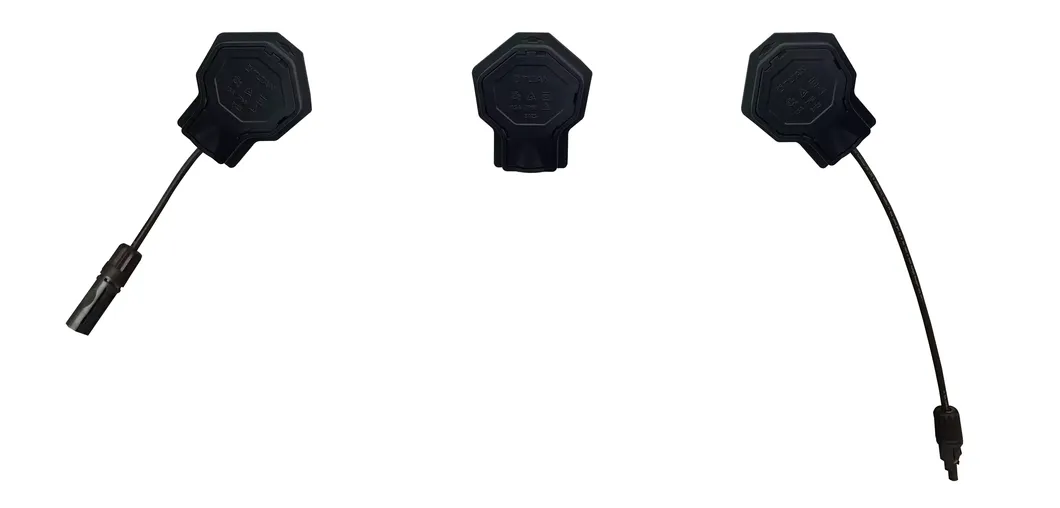

Junction Box

Junction Box & Connectivity

  • IP68 split junction boxes for higher safety
  • Better heat dissipation design
  • Smaller size: No shading on cells
  • Optimised cable length to reduce energy loss
  • Simplified wire fix for efficient installation
➲ Product Specifications
MECHANICAL DATA ELECTRICAL DATA
Cell Type Mono-crystalline Operating Temp -40°C ~ +85°C
Cell Arrangement 132 [6*22] Max System Voltage 1500 V (IEC/UL)
Dimensions 2073*1133*35 mm Fire Performance Class C / Type 3
Weight 25.1kg Series Fuse Rating 20 A
Front Glass 3.2mm Tempered Power Tolerance 0 ~ + 5 W
J-Box IP68, 3 Diodes Power Bifaciality 70%
Connector MC4 Compatible Temp Coeff (Pmax) -0.35 % / °C
Production Facility 1
Production Facility 2
Production Facility 3
➲ Projects Shown

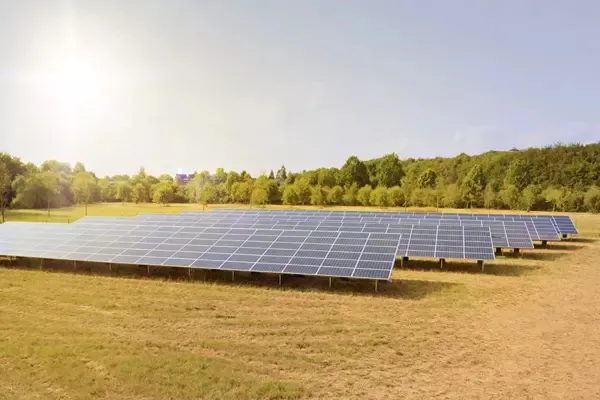

Project Germany

Eni project in Germany

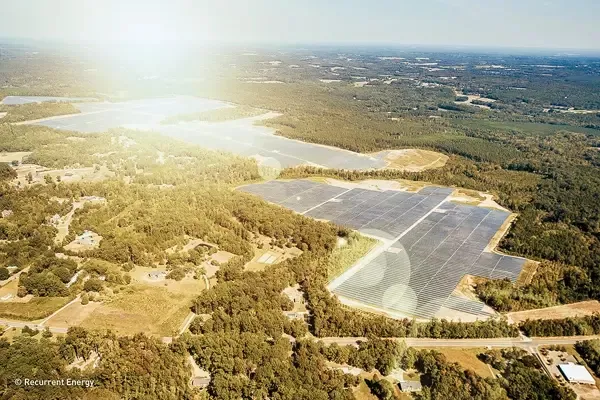

Project USA

NC 102 Solar Plant in USA

Project China

Utility solar plant in China

➲ FAQ
Q1: What is the maximum power output of these solar panels?
A: The power range for these monocrystalline modules is between 480W and 505W, depending on the specific model configuration.
Q2: Are these panels suitable for high-voltage systems?
A: Yes, they are designed for a maximum system voltage of 1500V (IEC/UL), making them ideal for large-scale utility projects.
Q3: How do these panels perform in terms of durability?
A: They feature 3.2mm heat-strengthened glass and an anodized aluminum alloy frame, providing robust protection and a Class C fire performance rating.
Q4: What type of connectors are used?
A: The modules come with MC4 compatible connectors and an IP68 rated junction box for maximum weather resistance and safety.
Q5: What is the efficiency rating of the LONGI-Hi-MO5m?
A: These panels offer a high module efficiency of approximately 21.5% due to advanced monocrystalline technology.
