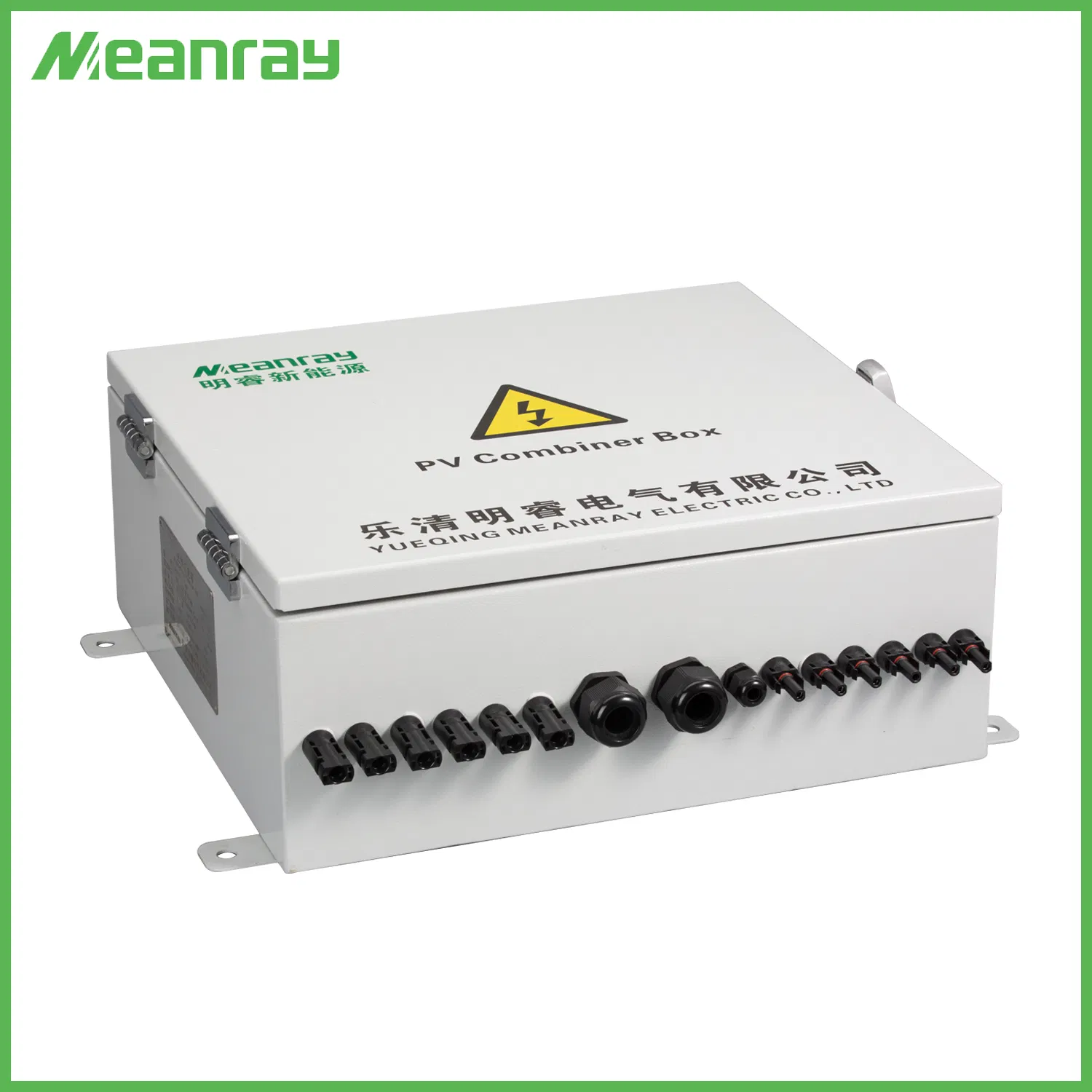

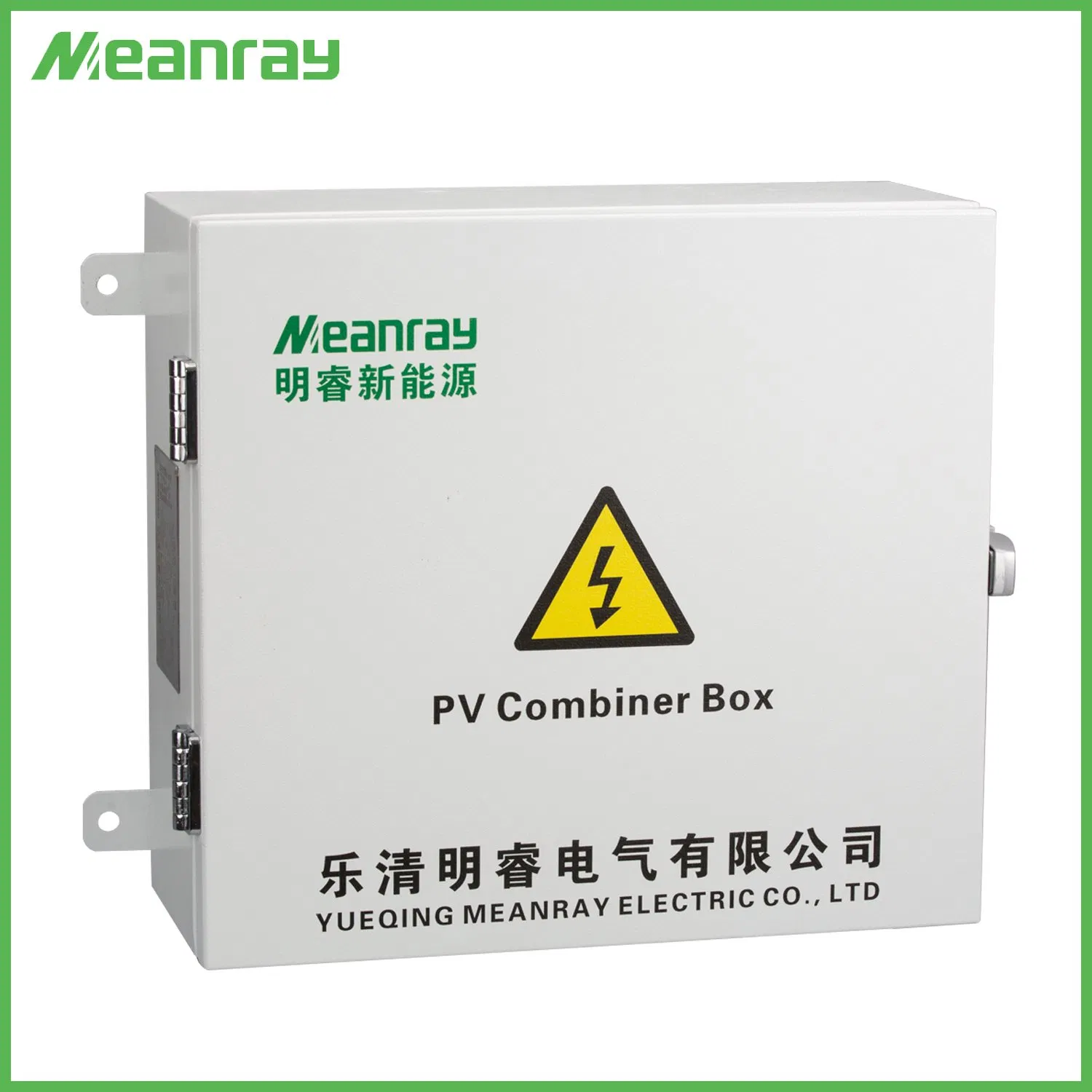

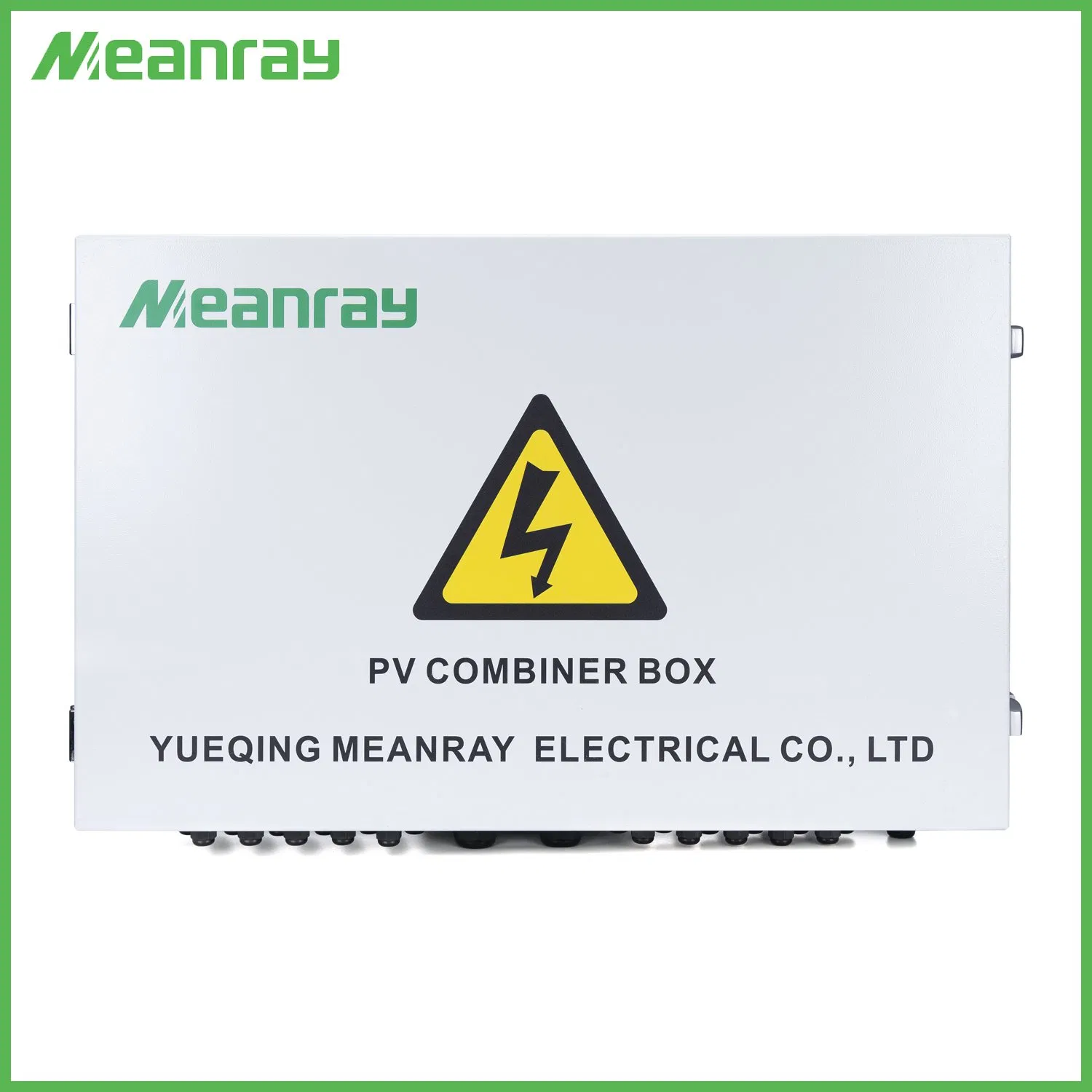

Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
1 / 5
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse
Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse

Solar System DC PV Combiner Box 6 Strings Input 1 Output IP65 Ccombiner Box with SPD and Fuse

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
MSPV/6-1
Application
Home, Industrial, Commercial
Specification
Normal, 440*400*180
Products Name
Solar DC Combiner Box with SPD and Fuse
Protection
IP65
Operation Voltage
DC 1000V
Installation
Fixed
Structure
4/6/8/10/12/16/18/24 Arrays
Material
Cold Rolled Steel Enclosure
HS Code
8537109090
Product Description

Solar System DC PV Combiner Box 6 strings input & 1 output IP65 Combiner box

The MSPV/6-1 solar combiner box is suitable for inverters with a maximum input voltage of DC 1000V. It features 8 PV input channels and 2 output channels, perfect for double MPPT inverters. The box body is constructed from high-quality materials, tested for fire retardancy, temperature rise, impact resistance, and anti-ultraviolet properties. Designed strictly according to CGC/GF 037:2014 technical specifications, it provides a safe and efficient solution for photovoltaic systems.

✔
High Reliability: Equipped with DC Fuse, DC Surge Protection Device (SPD), and DC Circuit Breaker or Isolator Switch.
✔
Strong Adaptability: IP65 waterproof and dustproof design; strictly tested for extreme high and low temperatures.
✔
Flexible Configuration: Compatible with single crystal silicon, polycrystalline silicon, and thin film modules.

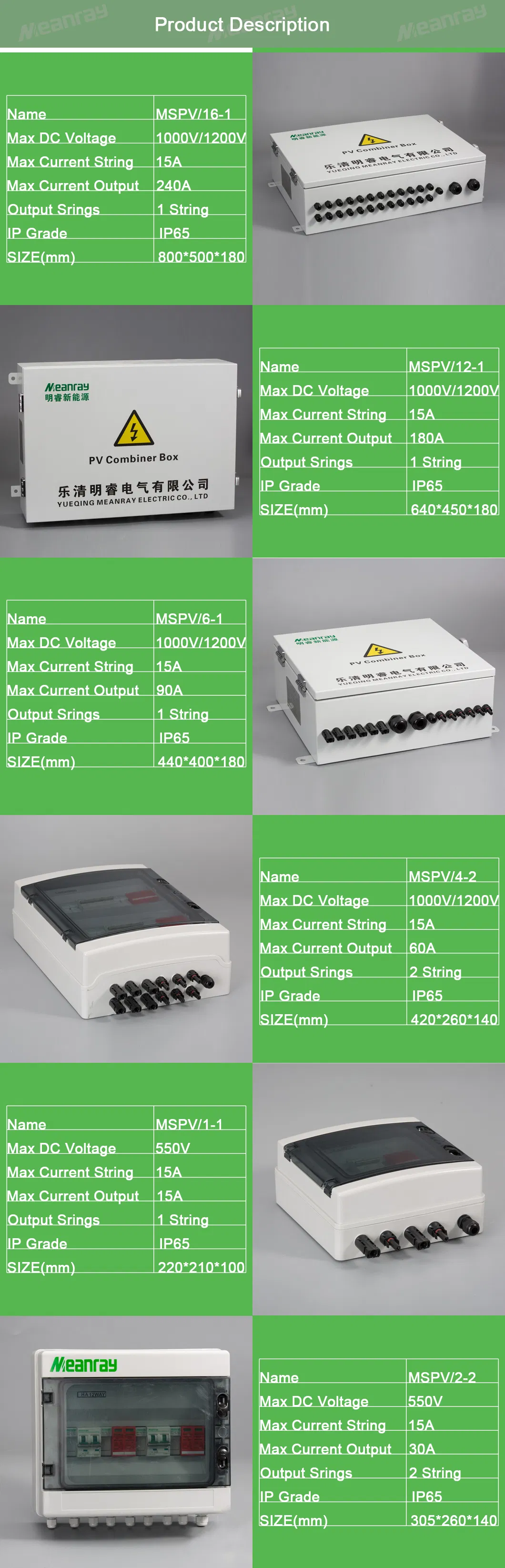

Solar System DC PV Combiner Box Features

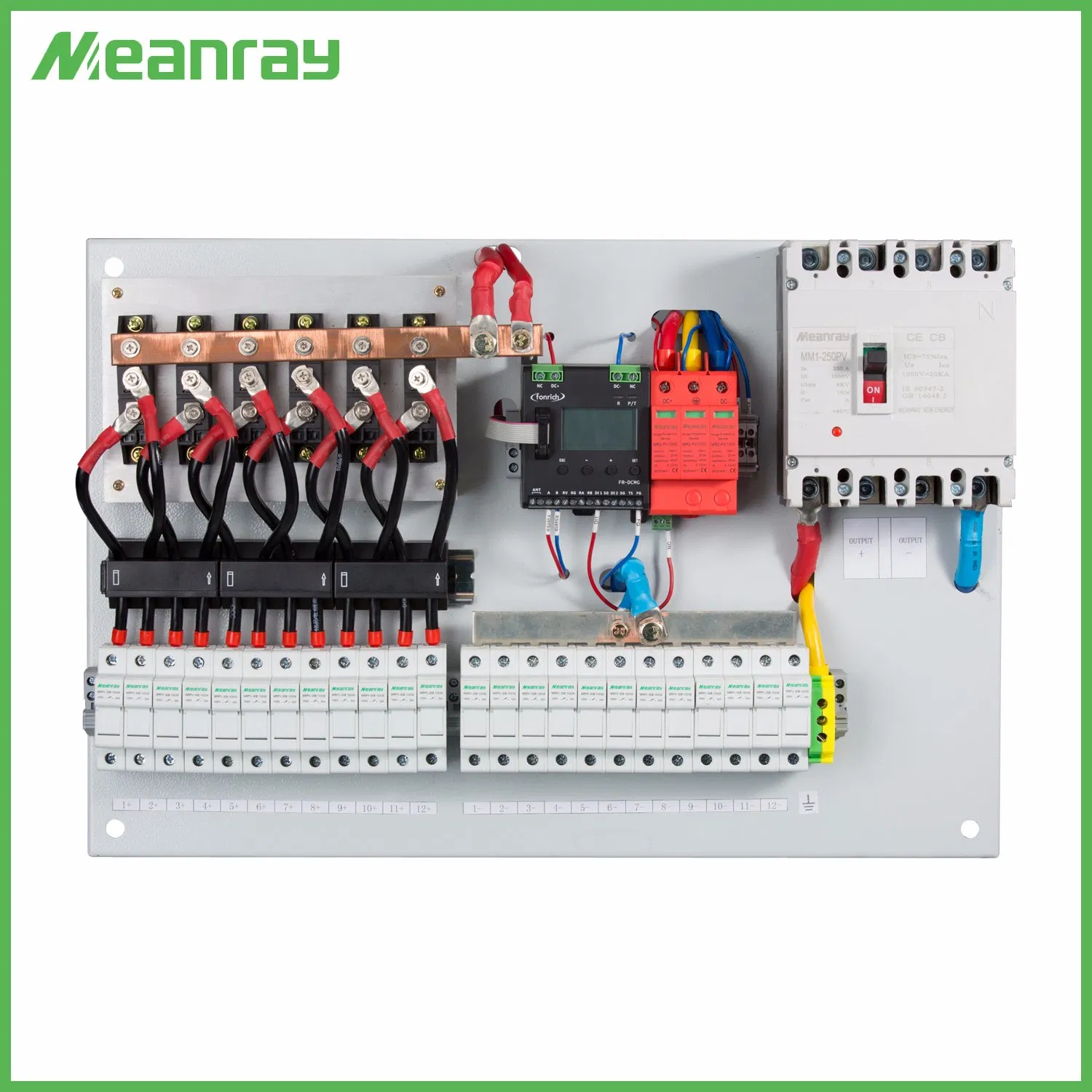

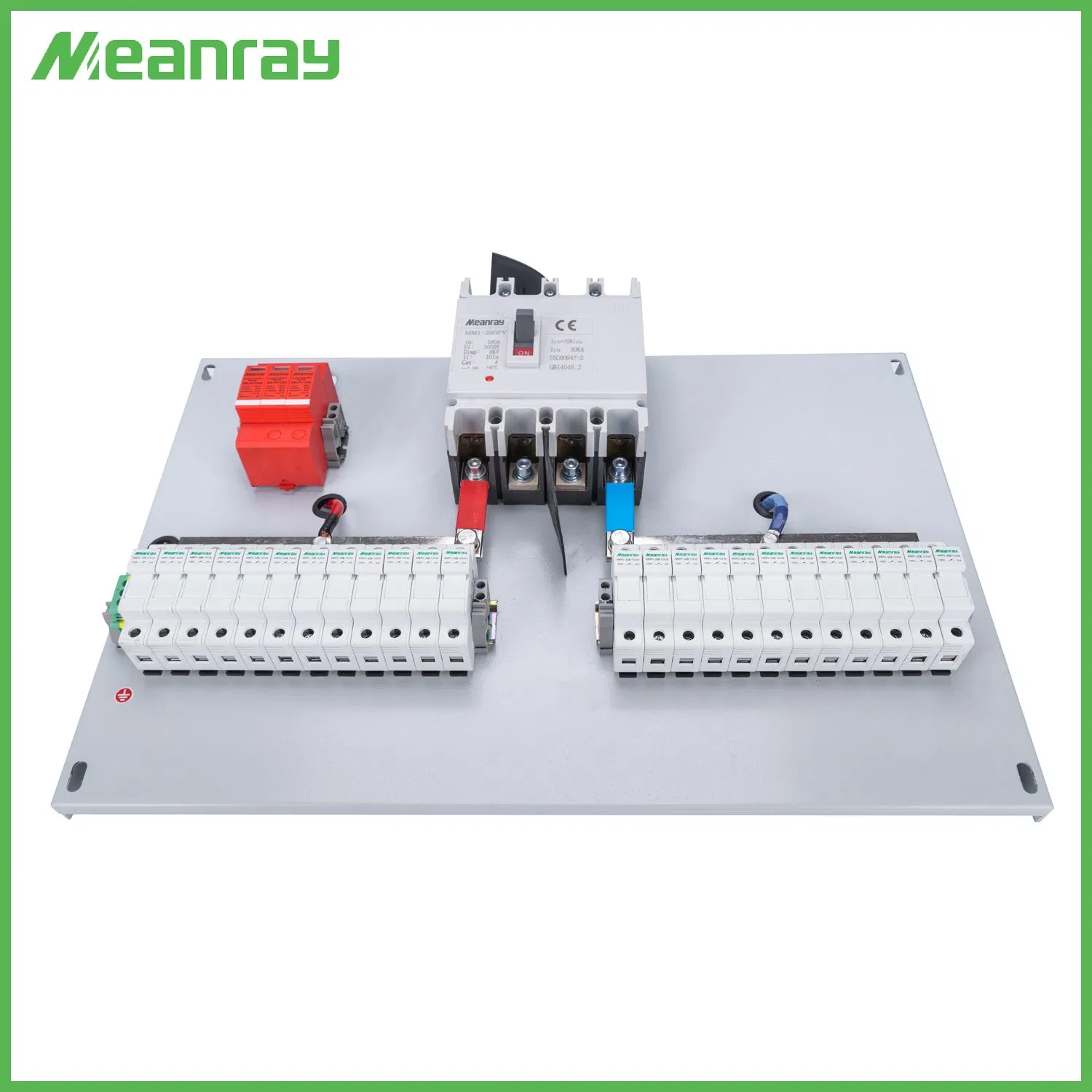

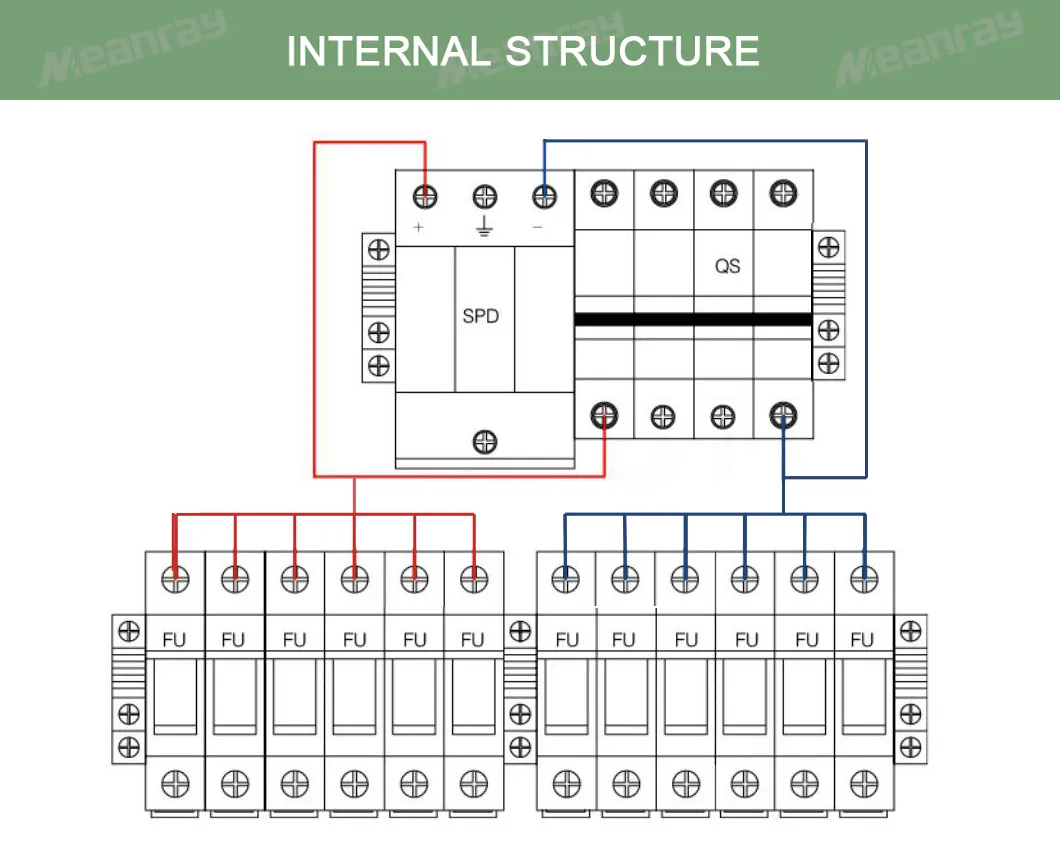

Solar DC Combiner Box Components
Technical Parameters
Parameter Item Specifications
System Maximum DC Voltage1000/1200V
Maximum Input Current for Each String15A
Maximum Inputs Strings6
Maximum Output Switch Current90A
Nominal Discharge Current20kA
Maximum Discharge Current40kA
Voltage Protection Level3.8kV
Protection GradeIP65
Output SwitchDC Isolator Switch / Circuit Breaker
Operating Temperature-25ºC to +55ºC
Dimensions (W*H*D)440mm*400mm*180mm
Production & Quality

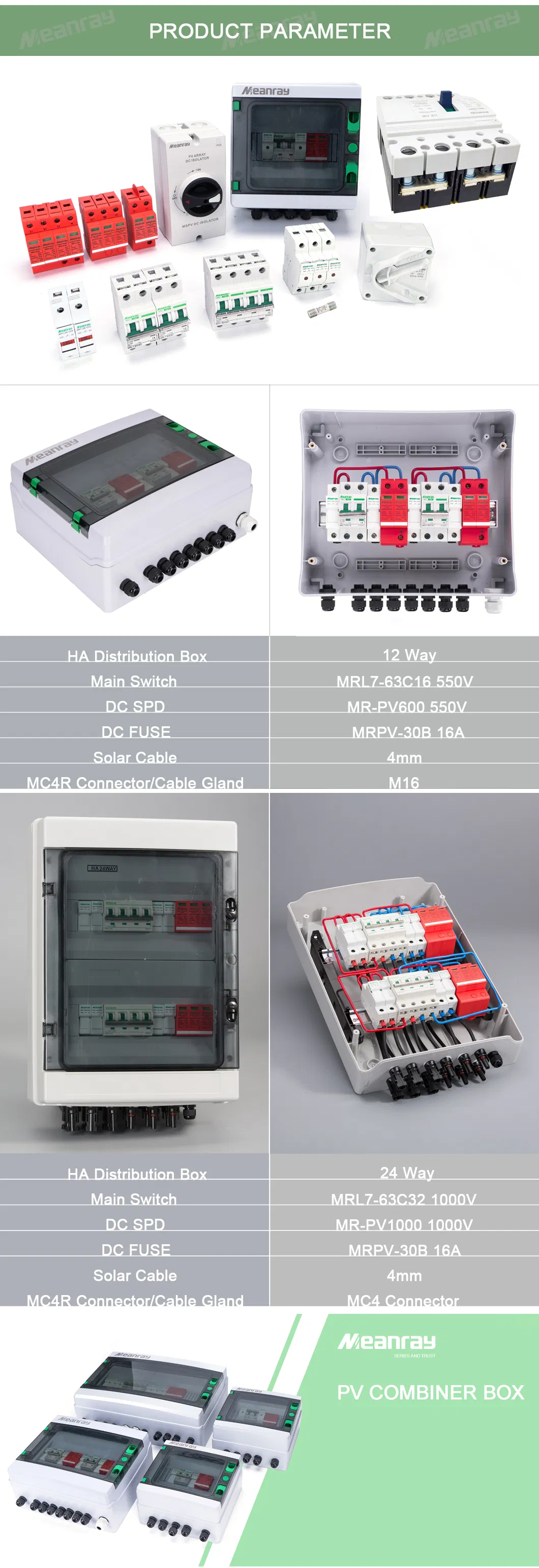

Detailed Technical Drawing

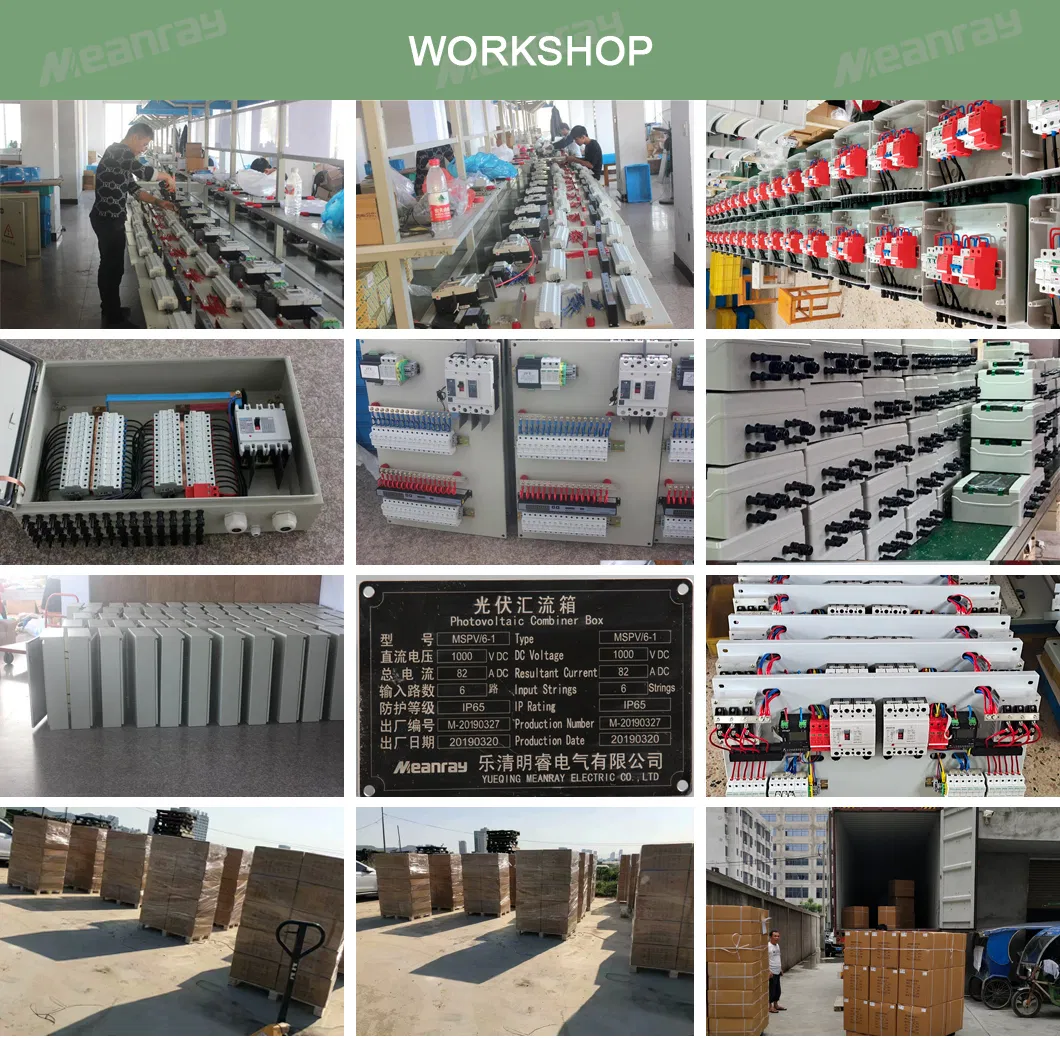

Solar DC Combiner Box Workshop
Frequently Asked Questions
Q: When can I receive a quotation after sending an inquiry?
All enquiries will be replied to within 8 hours.
Q: What is the difference between your combiner box and cheaper alternatives?
Our boxes are specifically designed for solar systems with high-quality customized components. Quality and safety are our priorities for DC systems.
Q: Can I get a sample before placing a bulk order?
Yes, sample orders are available to help build trust and verify the quality of our products.
Q: What is the delivery time for orders?
Sample orders typically take 3-7 days, while regular bulk orders are promised within 15 days.
Q: What is the warranty period for the DC Combiner Box?
We offer a two-year warranty for all our customers.
Q: Is the enclosure suitable for outdoor installation?
Yes, with an IP65 protection grade and anti-ultraviolet materials, it is designed for reliable outdoor use.
