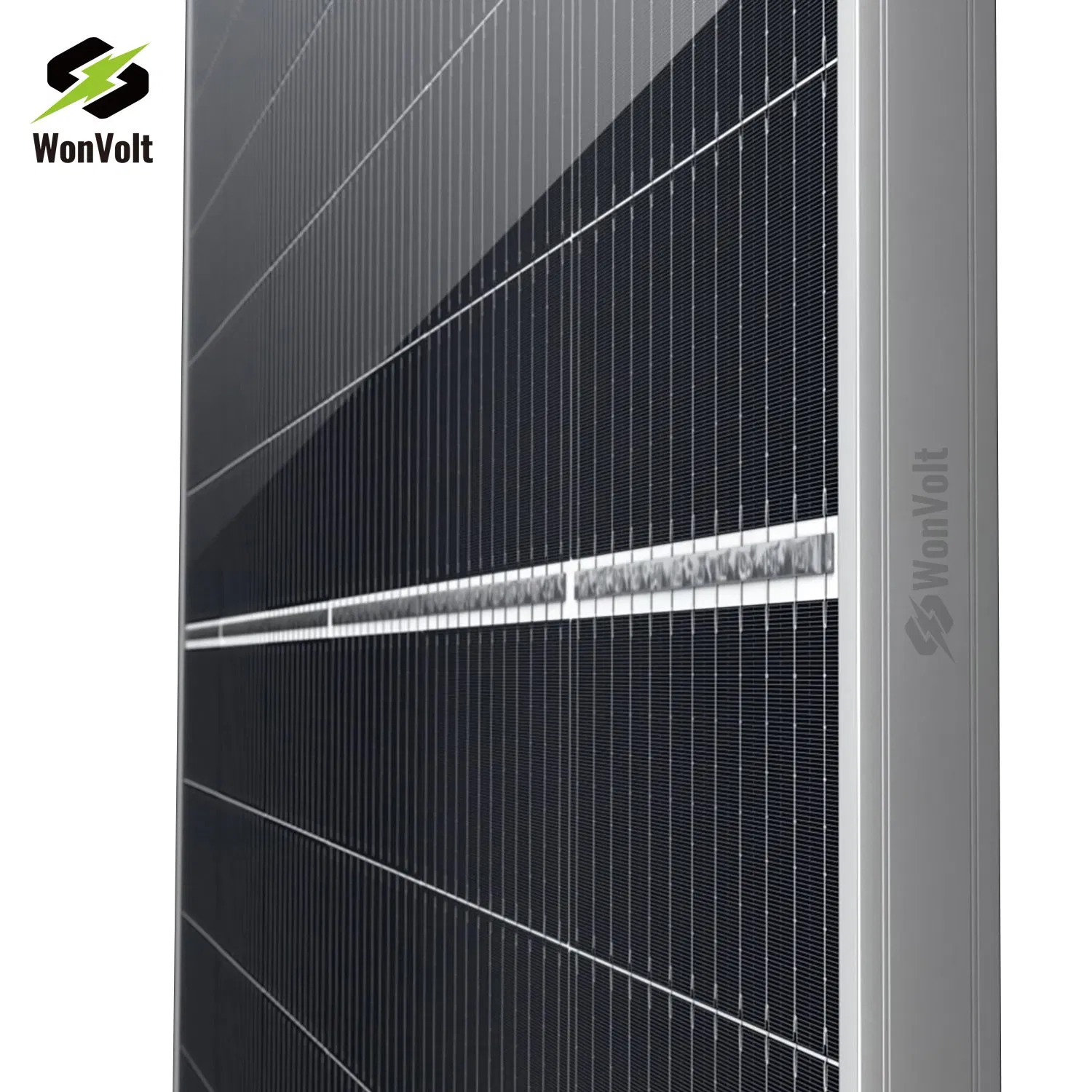

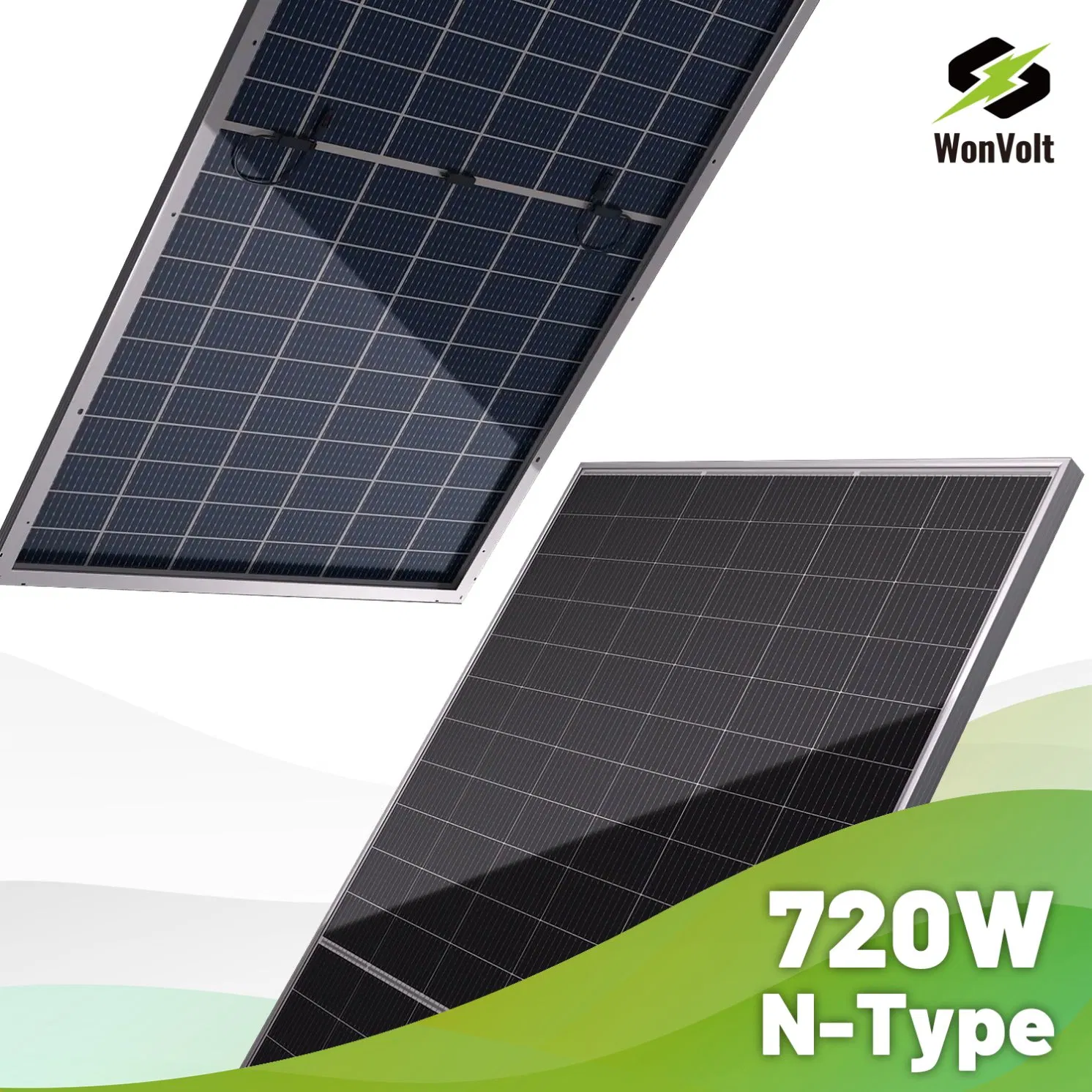

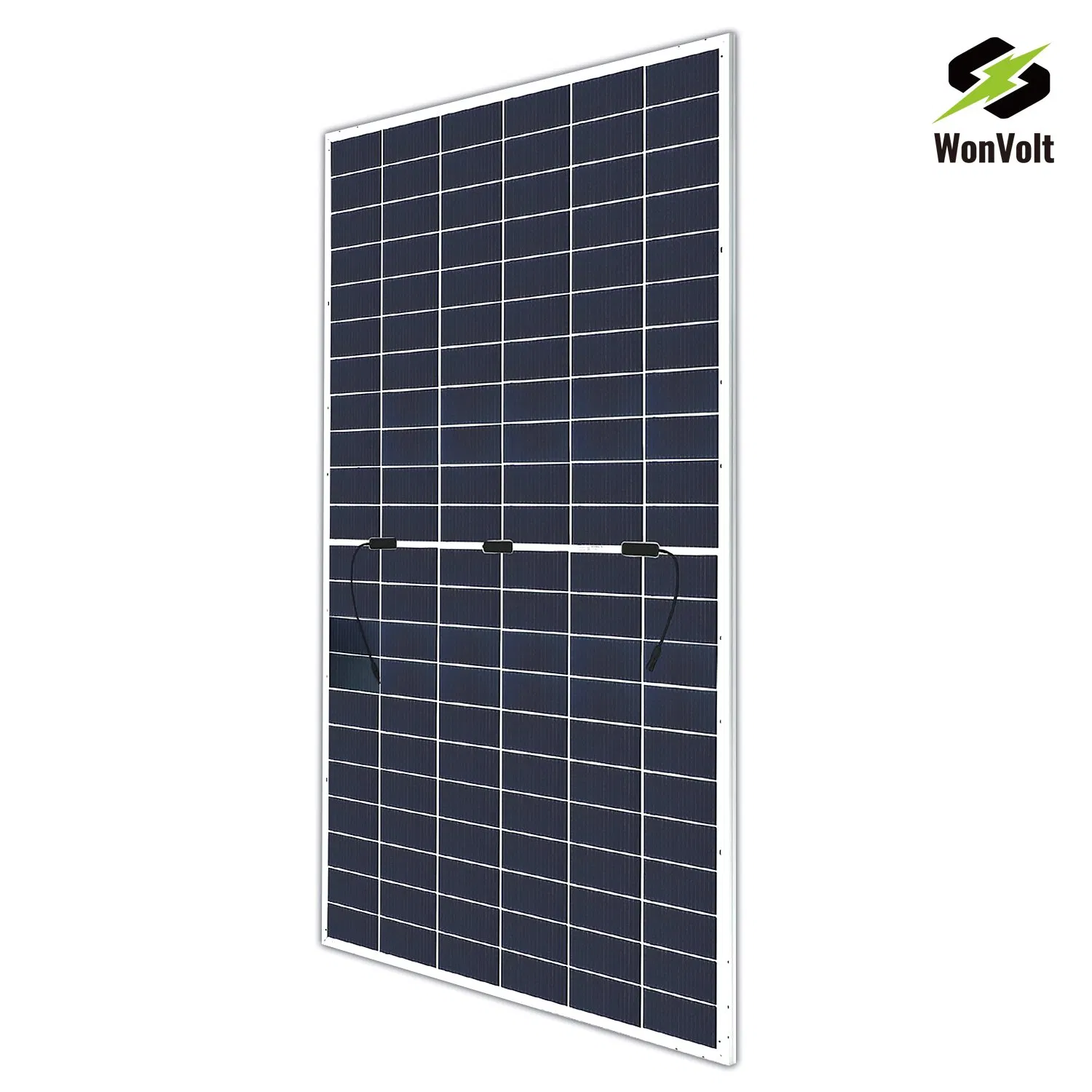

Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
1 / 5
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price
Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price

Wonvolt Monocrystalline Solar Module 670W 680W 690W 700W 710W PV Module Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚡ Basic Info
Model NO.
WV-66KUN-730H12NS
Number of Cells
132PCS
Application
Industrial
Certification
ISO, CE
Material
Monocrystalline Silicon
Panel Efficiency
23.2%
Solar Panel Cell
N Type Topcon
Junction Box
IP68 Rated Waterproof
Glass
2.0mm+2.0mm
Solar Power
700W - 720W
Specification
2384*1303*33/35mm
Production Capacity
2gw/Year
📋 Product Description

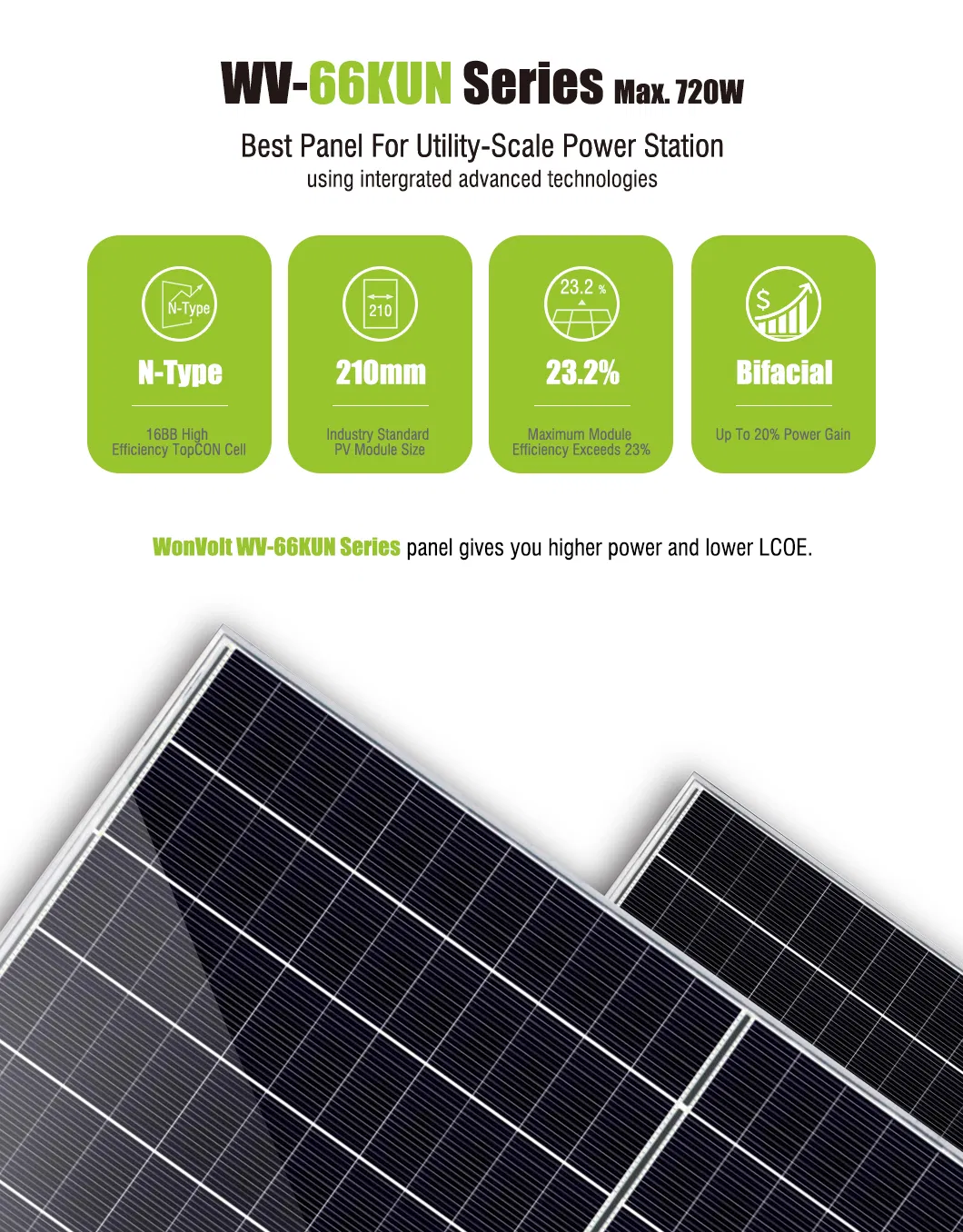

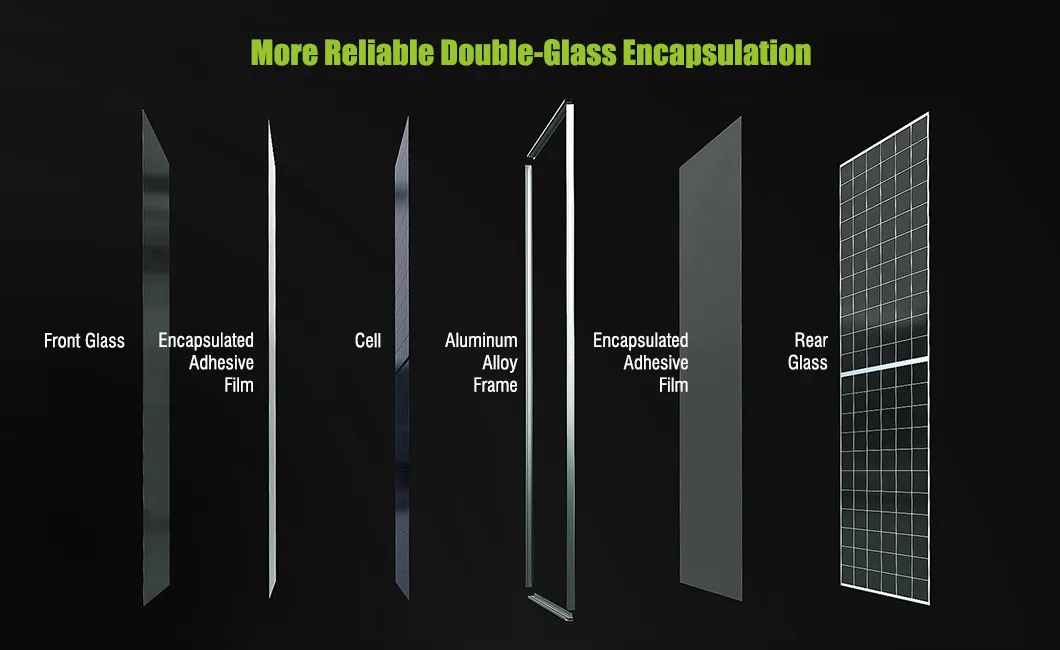

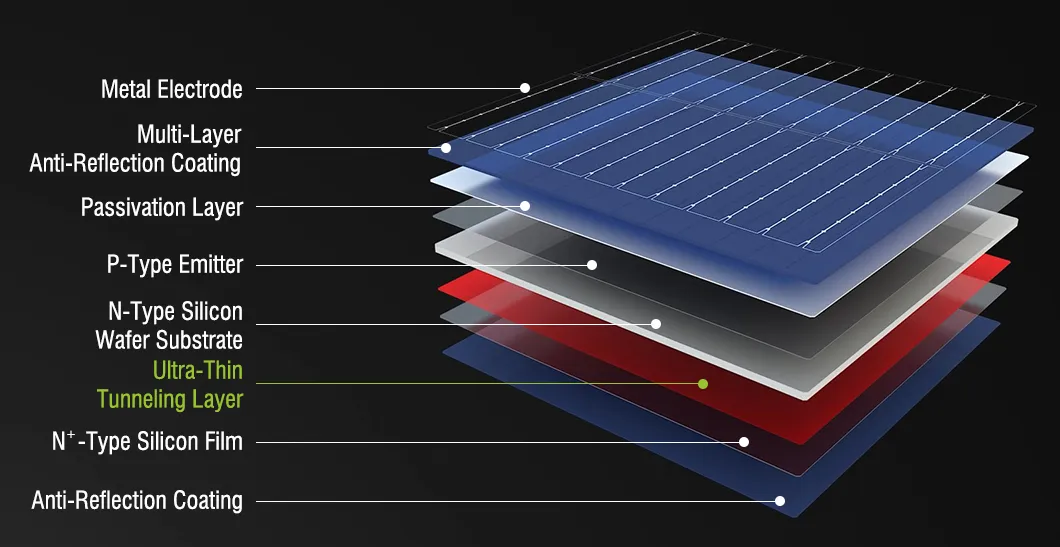

Monocrystalline Solar Module Module Specifications Solar Features
🏆 Core Advantages

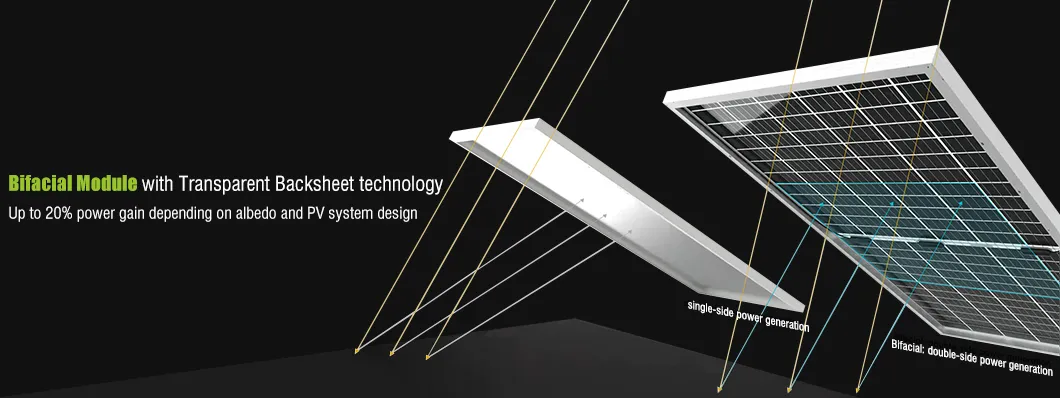

Advantages Overview

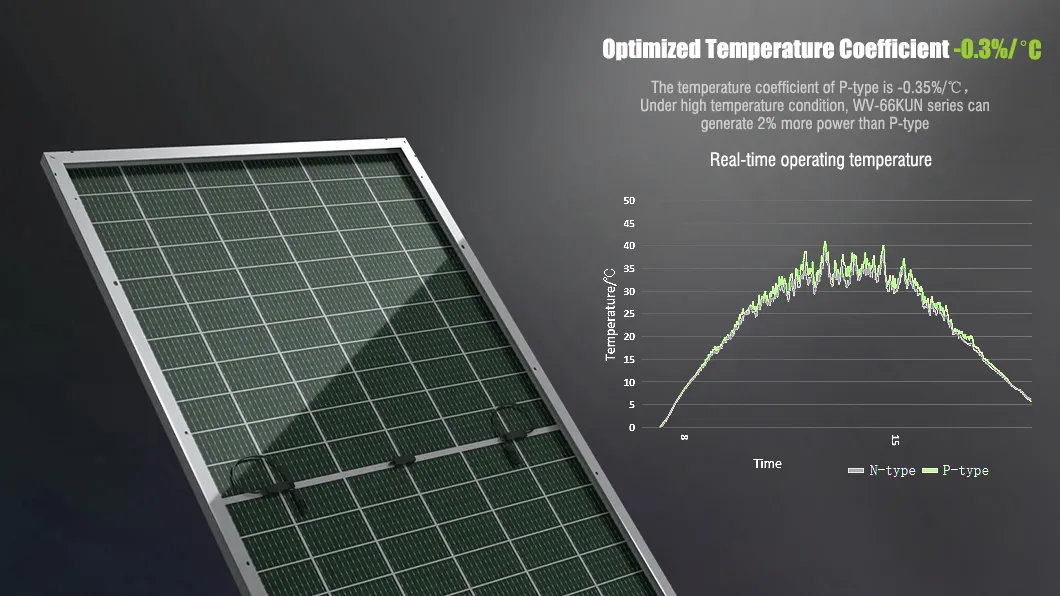

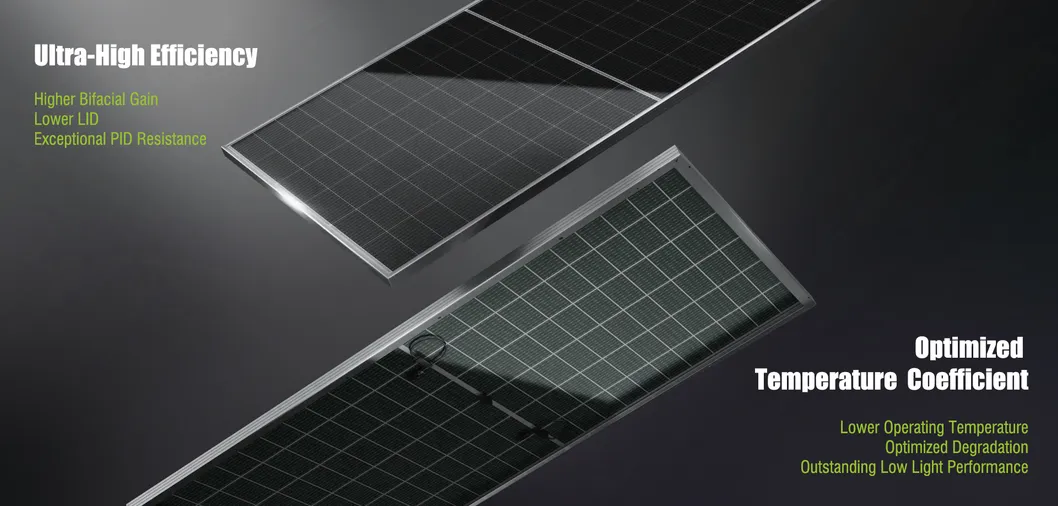

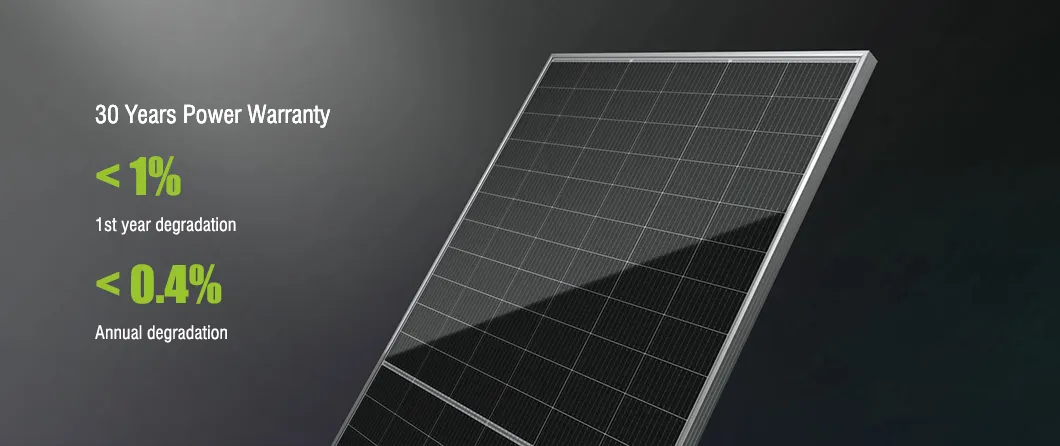

Efficiency Advantage Durability Advantage Technology Advantage
📊 Technical Parameters
Model WV-66KUN730-H12NS WV-66KUN735-H12NS WV-66KUN740-H12NS
Power (STC)730Wp735Wp740Wp
Vmp/V42.0342.2242.32
Imp/A17.2517.4117.49
Voc/V50.4650.5450.62
Isc/A18.2818.3718.47
Efficiency23.50%23.70%23.80%
Dimensions2384*1303*33/35mm
Weight37.9Kg
🏭 Manufacturing & Support

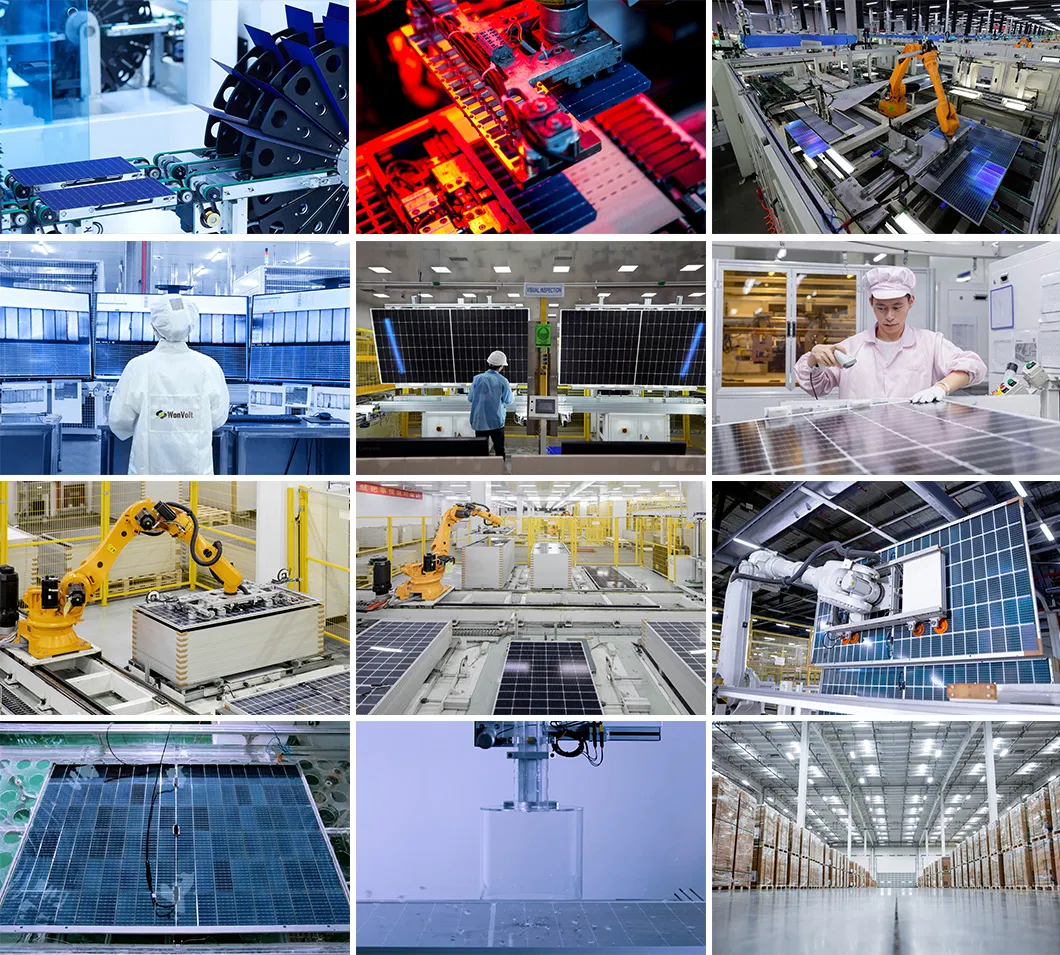

Production Line Quality Control
🛠️ Technical Support

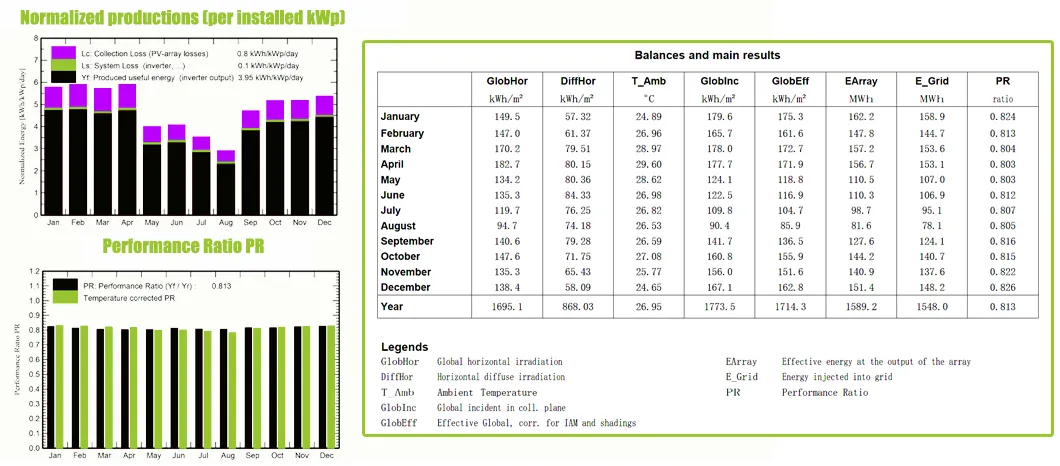

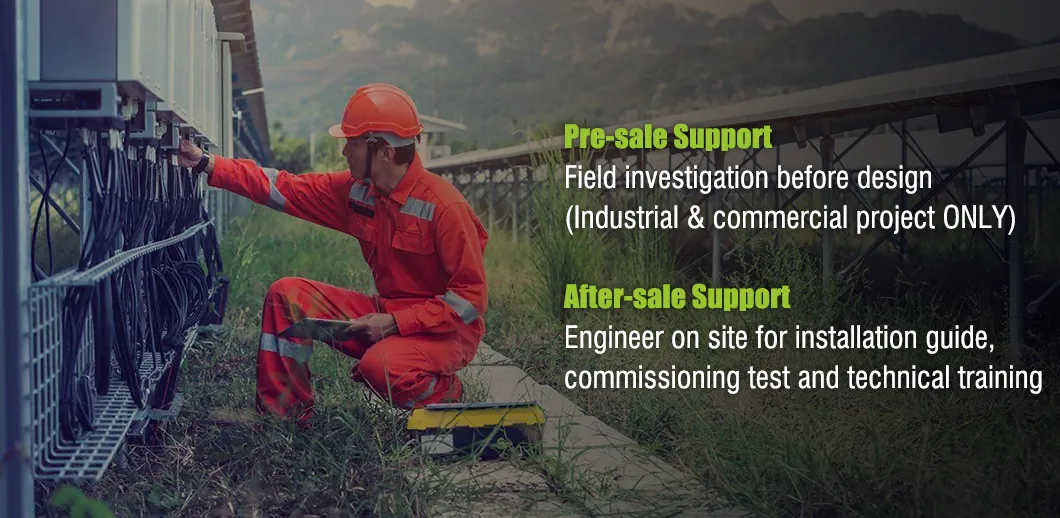

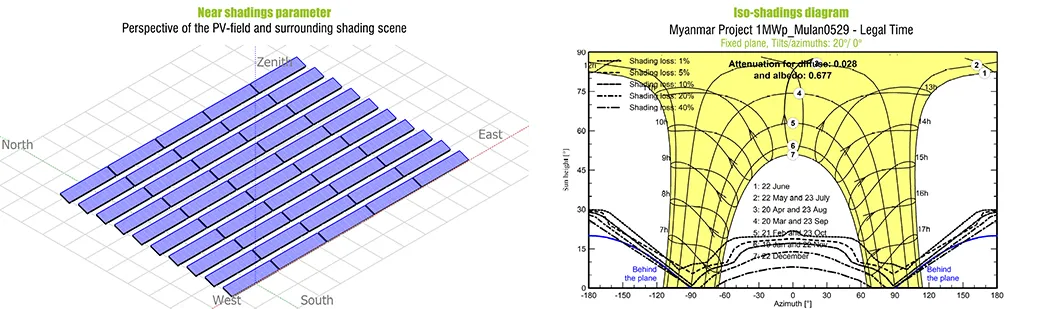

Technical Service Service Standards Installation Guide
🌍 Reference Projects
Solar Project Cases
Frequently Asked Questions
What is the maximum efficiency of these solar modules?
The N-Type Topcon monocrystalline modules achieve a high panel efficiency of up to 23.8%, ensuring maximum energy conversion from sunlight.
Are these panels suitable for industrial applications?
Yes, these modules are specifically designed for industrial and commercial solar energy systems, ranging from 150kw to large-scale 1.5MW power plants.
What kind of protection do the modules have against weather?
The panels come with an IP68 rated waterproof junction box and 2.0mm+2.0mm dual glass construction, providing excellent durability against harsh environmental conditions.
What are the dimensions and weight of the 730W module?
The module measures 2384*1303*33/35mm and weighs approximately 37.9kg.
What certifications do these solar products hold?
Our solar modules are manufactured under strict quality standards and hold both ISO and CE certifications.
Do you offer technical support for installation?
Yes, we provide comprehensive technical support, including installation guidance and system configuration to ensure optimal performance of your solar project.
