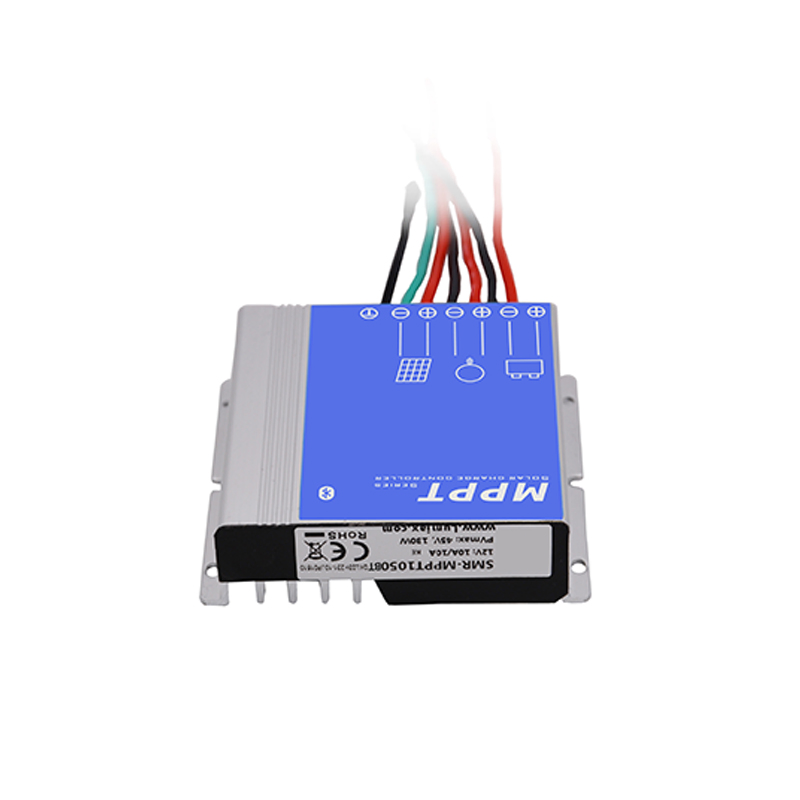

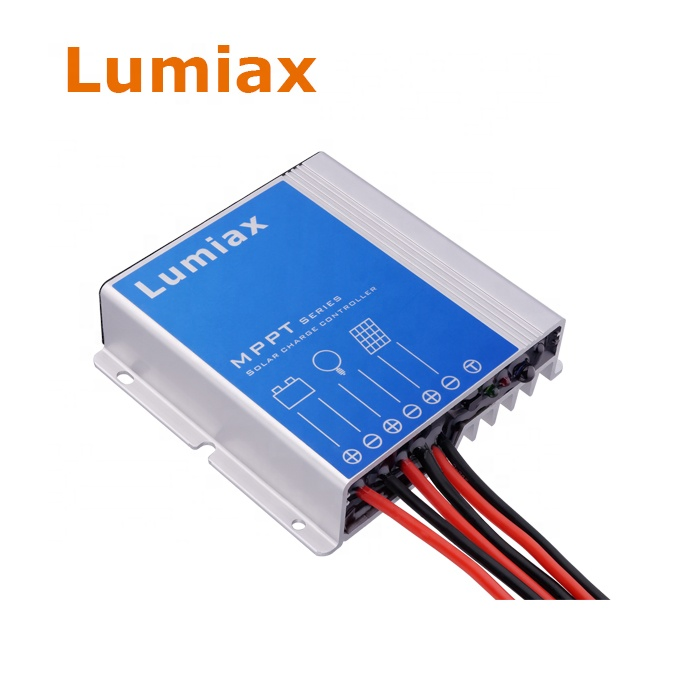

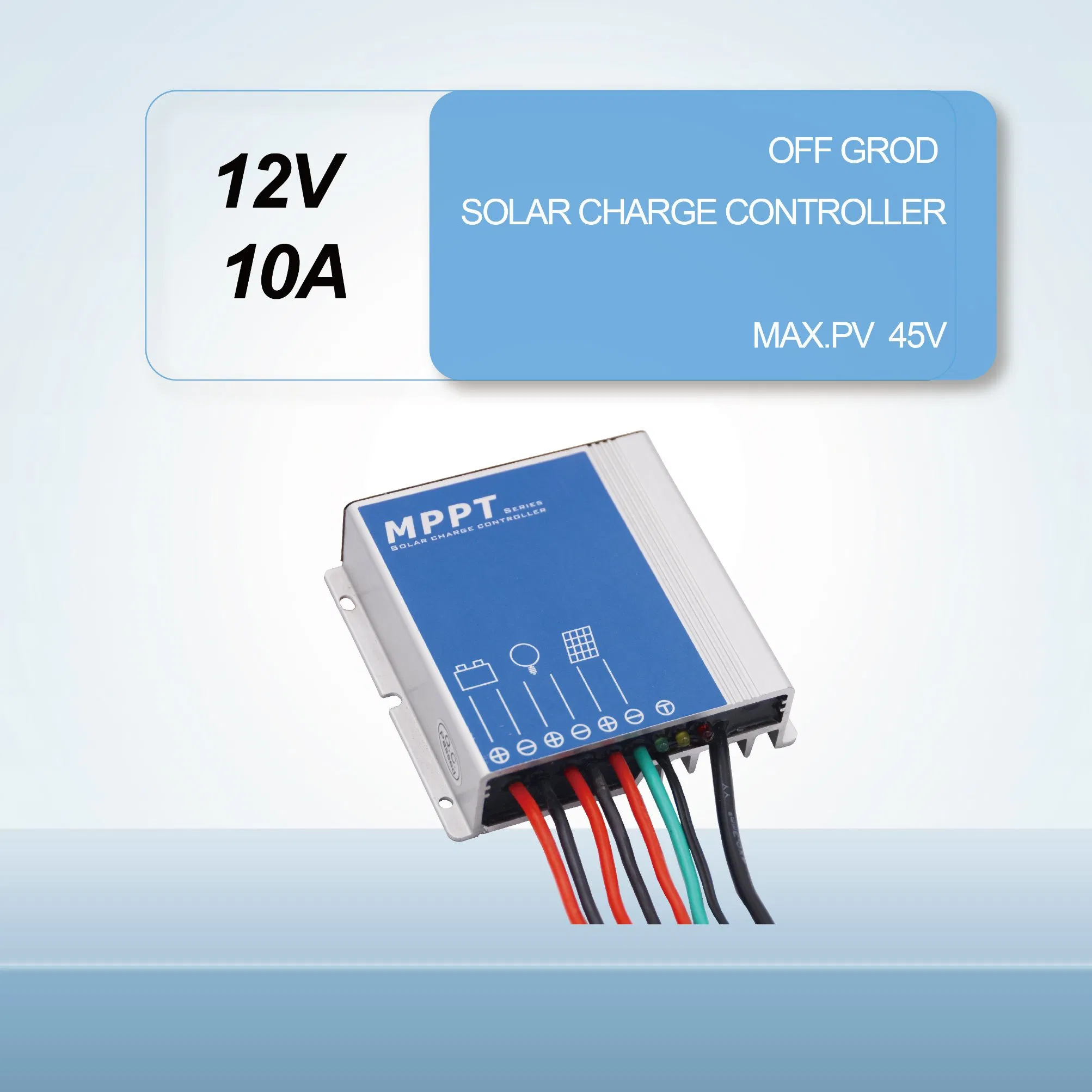

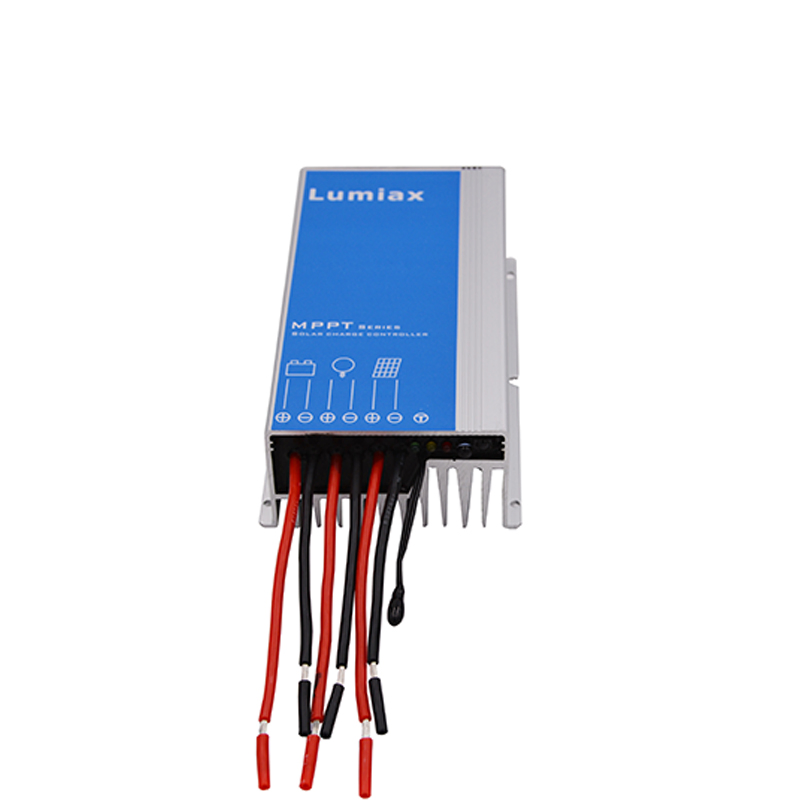

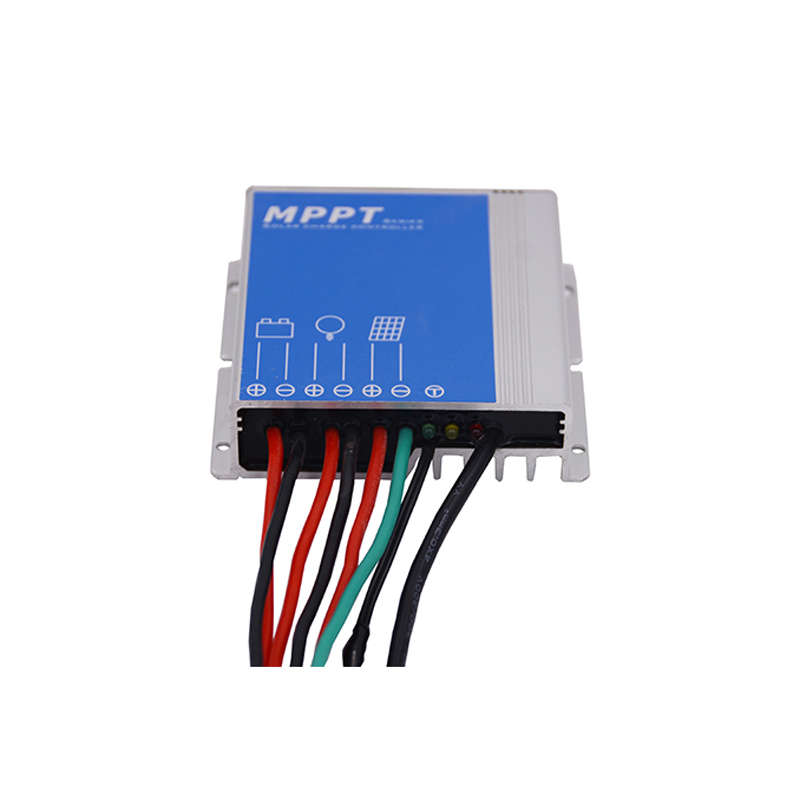

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
1 / 5
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

📊 Overview
Model NO.
SMR-MPPT Serise
Condition
New
Certification
ISO, CE, RoHS, FCC
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Max Charge Conversion
96.5%/97.5%
Protection Degree
IP67
Battery Type
Lithium, Liquid, Gel, AGM
HS Code
9032899099

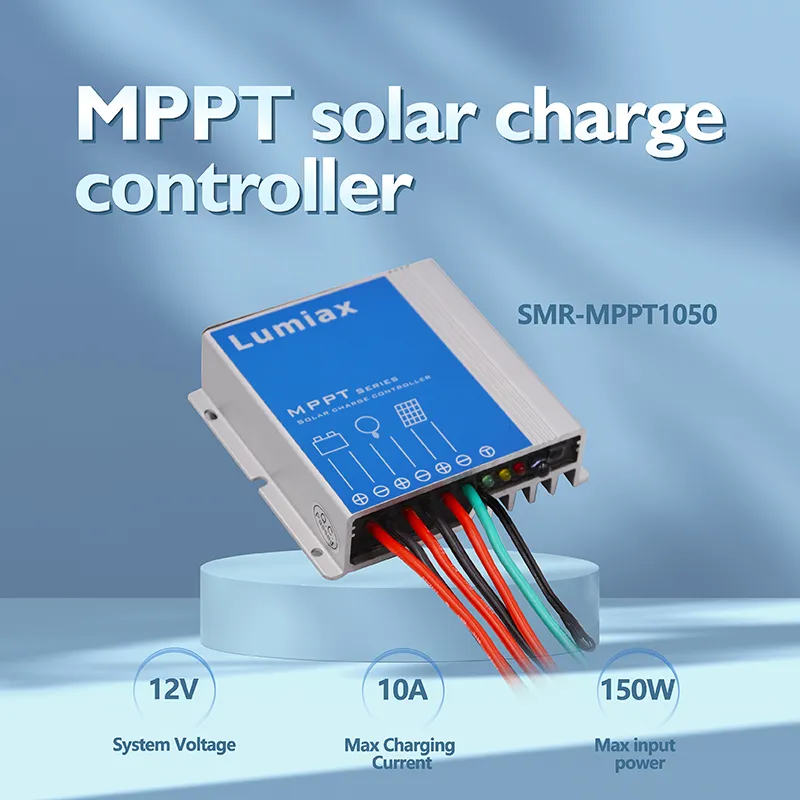

MPPT Controller 1

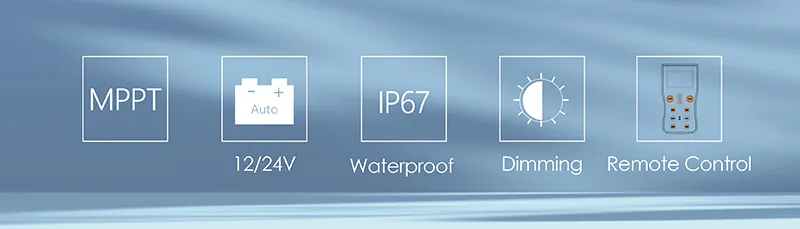

MPPT Controller 2
⚙️ Product Parameters
Item SMR-MPPT1050/RS485 SMR-MPPT1575/RS485 SMR-MPPT2075/RS485
Max Charging Current 10A 15A 20A
System Voltage 12V 12V/24V automatical recognization
Max input power 130W 200W/400W 260W/520W
Battery Type Lithium, Liquid, Gel, AGM (Programmable, default: Gel)
Boost Voltage 14.0~14.8V/28.0~29.6V (Programmable)
Equalization Voltage 14.0~15.0V/28.0~30.0V (Programmable)
Max tracking efficiency >99.9%
Max charge conversion 96.5% 97.5%
Protection degree IP67

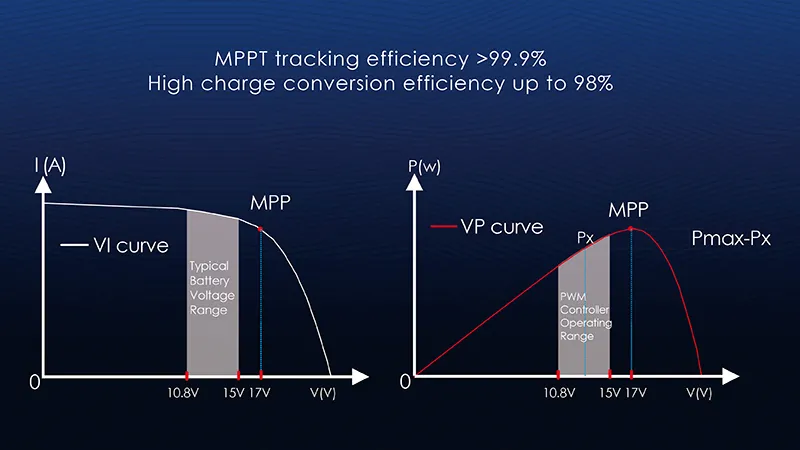

Diagram
📝 Product Description

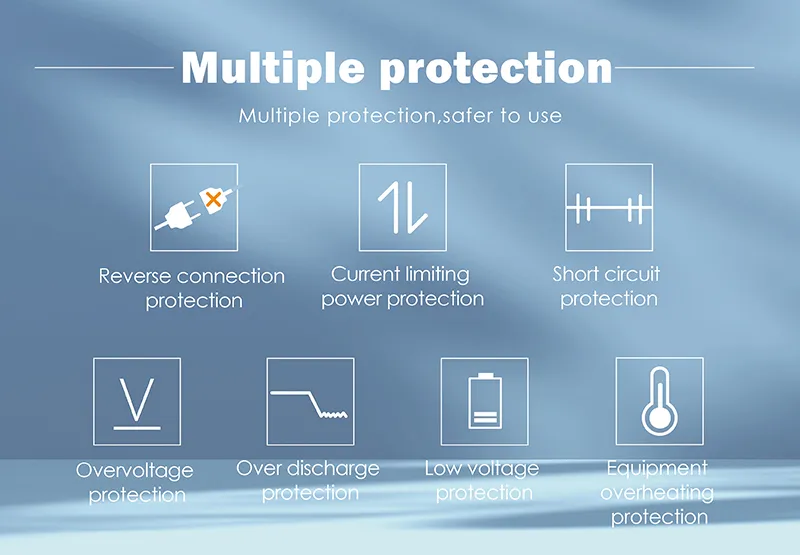

Desc 1
Desc 2

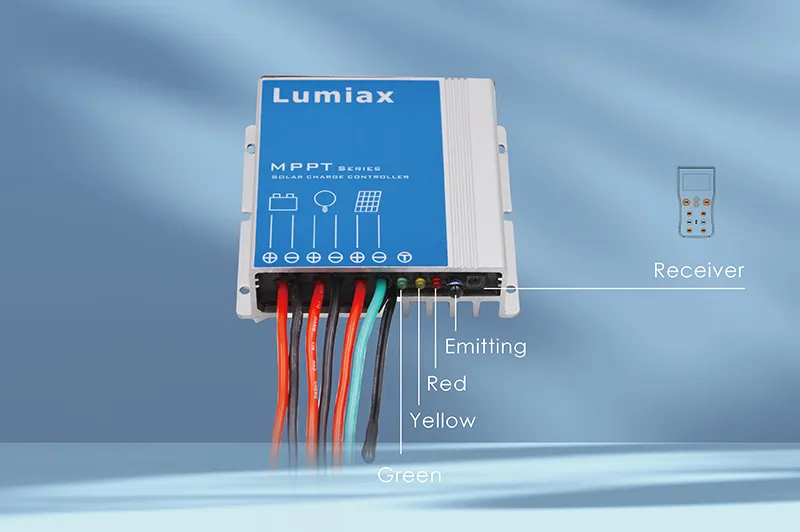

Desc 3

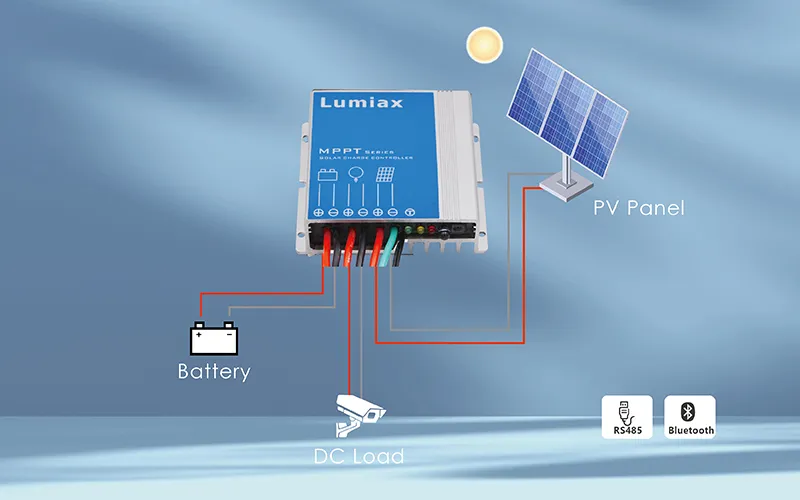

Desc 4
Desc 5
✅ Our Advantages
Advantage 1

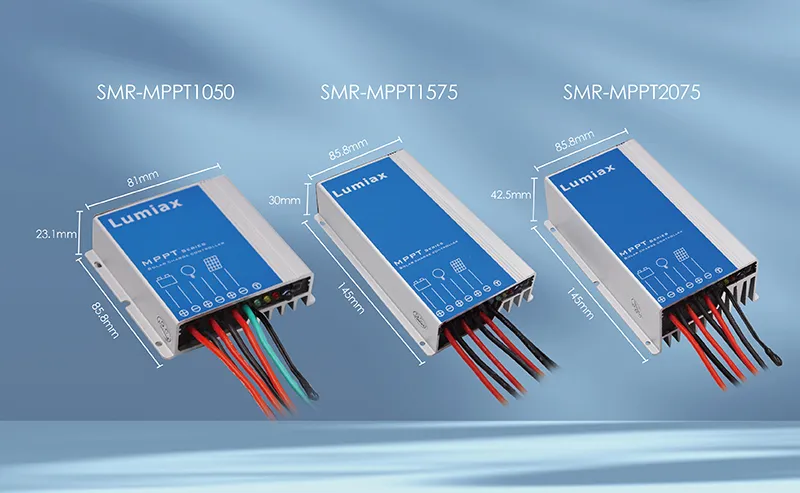

Advantage 2
🏆 Certifications
Certificates
🏭 Production Gallery
Gallery 1

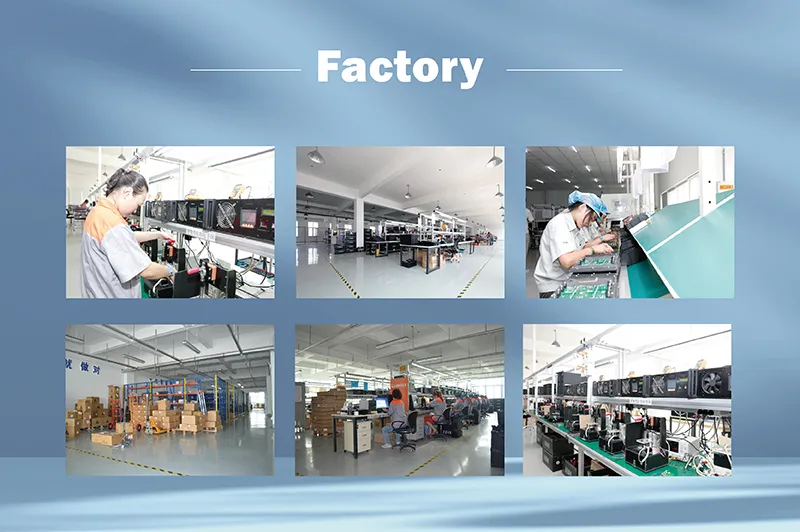

Gallery 2
Gallery 3
Gallery 4

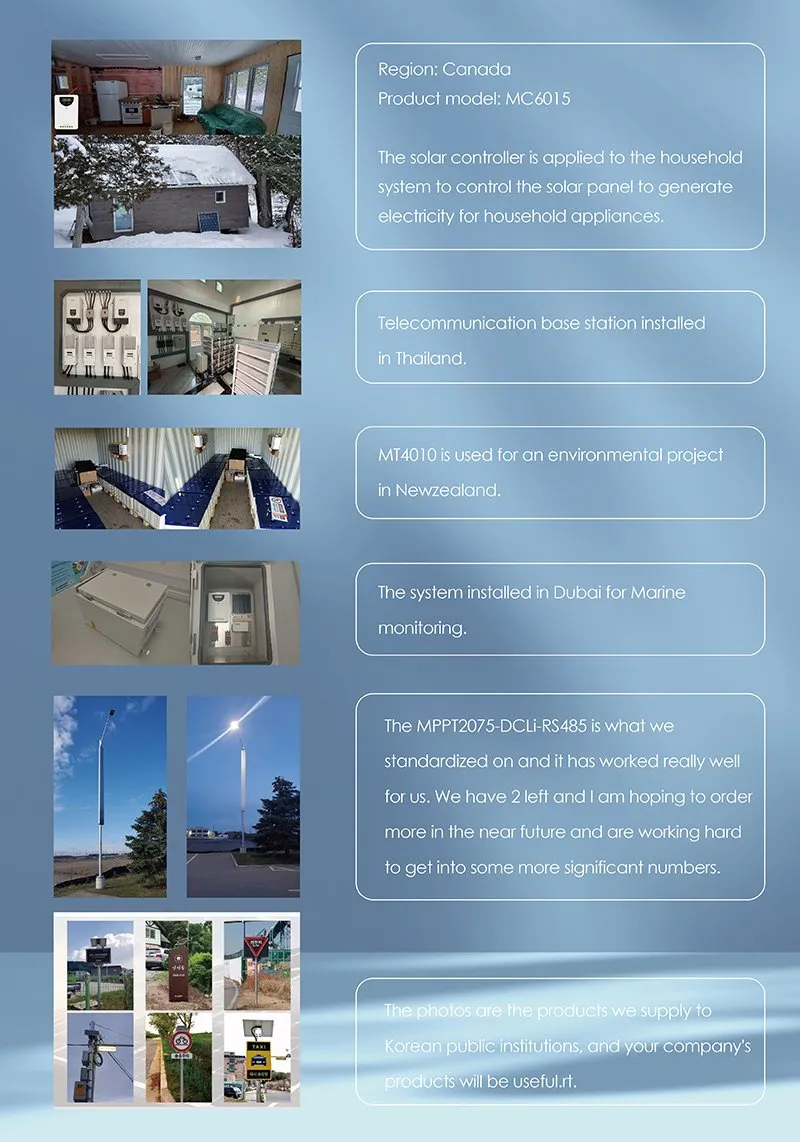

Gallery 5
❓ Frequently Asked Questions
What is the maximum tracking efficiency of this MPPT controller?
The controller features an advanced MPPT algorithm with a tracking efficiency of over 99.9%.
Is this solar charge controller waterproof?
Yes, it has an IP67 protection degree, which means it is completely protected against dust and can withstand temporary immersion in water.

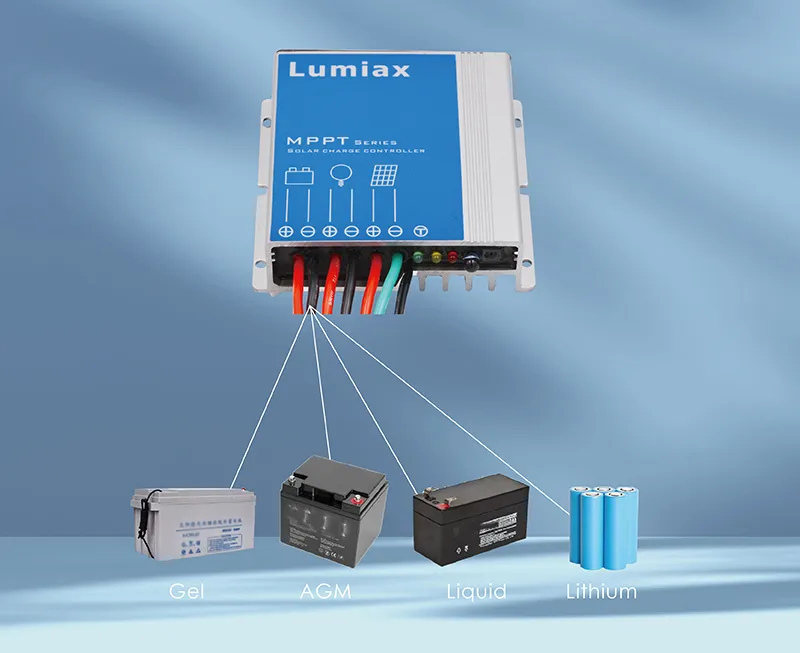

Which types of batteries are compatible?
The controller supports Lithium, Liquid, Gel, and AGM batteries. Most parameters are programmable to suit specific battery requirements.
Does it support 24V systems?
Yes, the SMR-MPPT1575 and 2075 models support 12V/24V automatic system voltage recognition.
What is the operating temperature range?
The device is designed to operate reliably in ambient temperatures ranging from -35ºC to +60ºC.
Can I program the charging voltages?
Yes, parameters such as Boost, Equalization, and Float voltages are programmable via Infrared, RS485, or Bluetooth depending on the specific model configuration.
