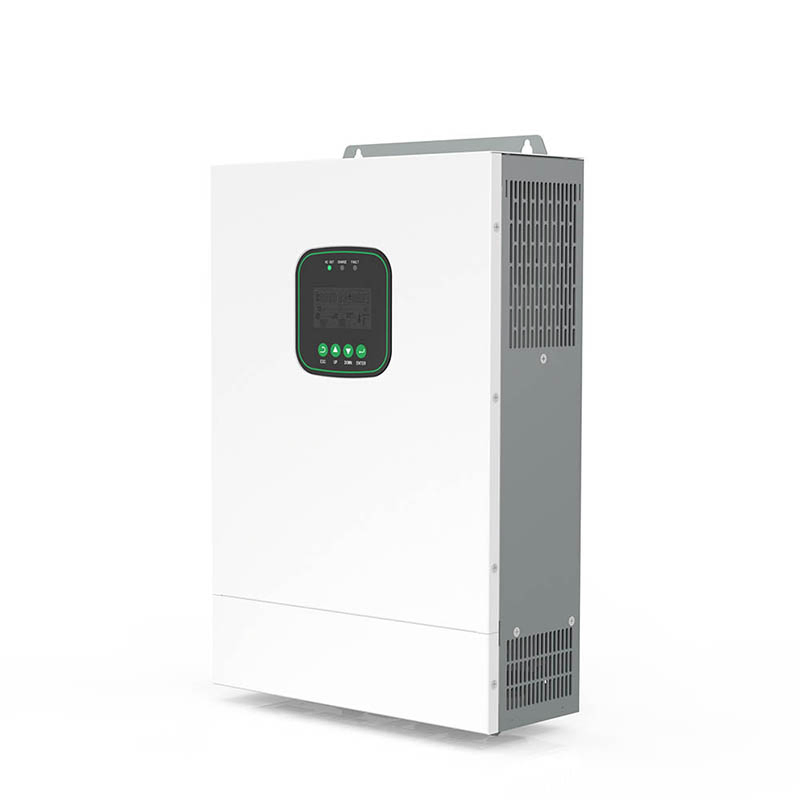

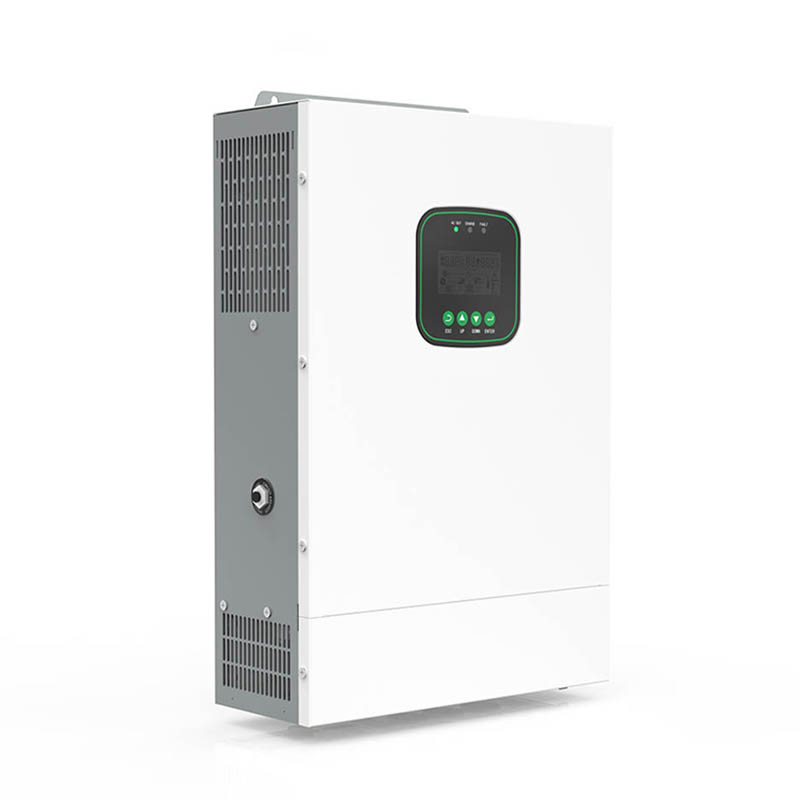

High Efficiency 110VAC 48VDC Us Gauge 3.6kw Single-Phase off-Grid Hybrid Solar String Inverter
❮
❯
1
/
5

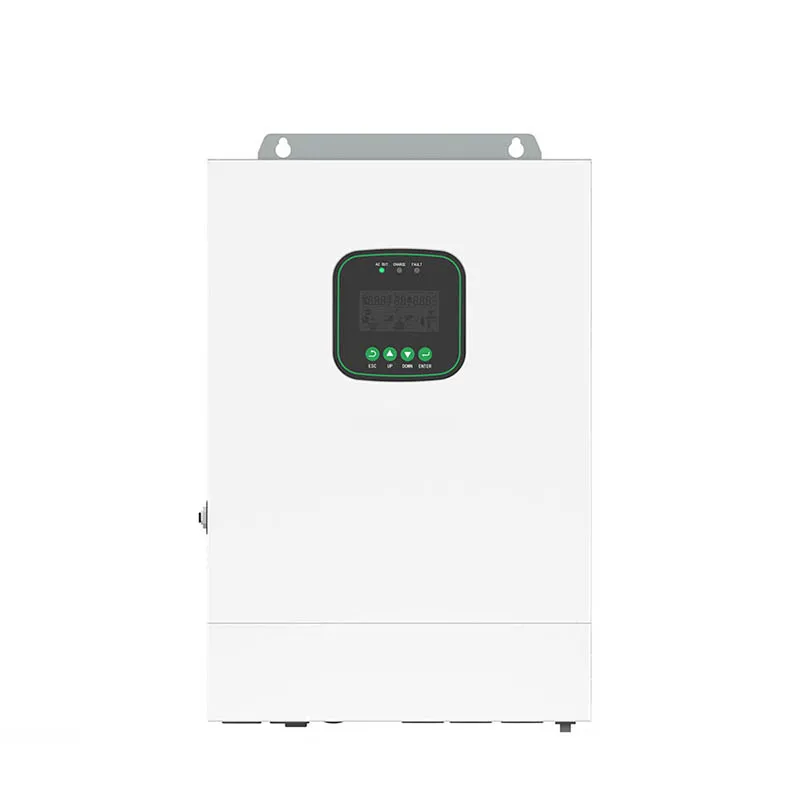

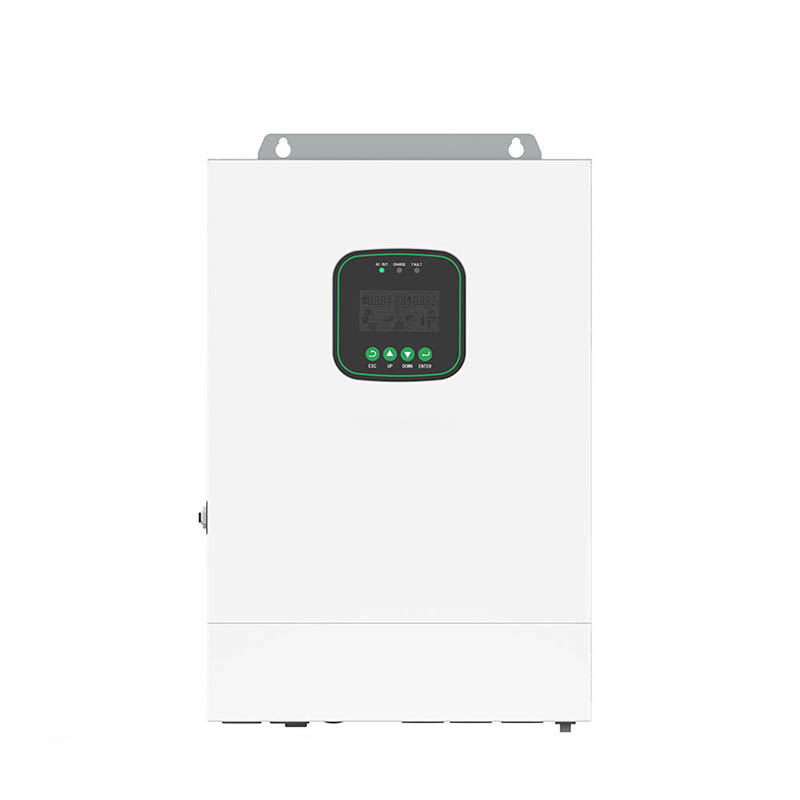

High Efficiency 110VAC 48VDC Us Gauge 3.6kw Single-Phase off-Grid Hybrid Solar String Inverter
Customization:
Available
After-sales Service:
Yes
Warranty:
1 Years
Send Inquiry
Product Description
High Efficiency 110VAC 48VDC US Gauge 3.6kW Single-Phase Off-Grid Hybrid Solar String Inverter
Basic Information
Model NO.
SGR-3.6KW-U
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ISO9001, CCC
Rated Output Power
3.6kw
Input Voltage
110/120VAC
Max. Efficiency
91%
Circuit Topologies
Push-pull Type
Application
Solar Power System Home
Key Features
★

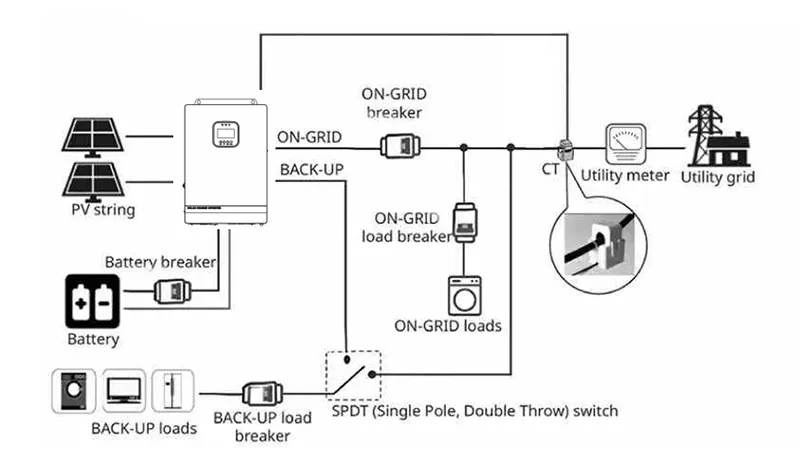

CT Zero export to grid.
★
Inverter and Grid hybrid Power supply capable.
★
27A PV input, compatible with all residential modules.
★
125% EPS peak output in 5s.
★
Up to 6 inverters in parallel or split/three phase system.
★
UPS-Level Switching time down to 10ms.
★
Support diesel generator input.
★
Supports use without battery.
★
Remote diagnostics & OTA update.

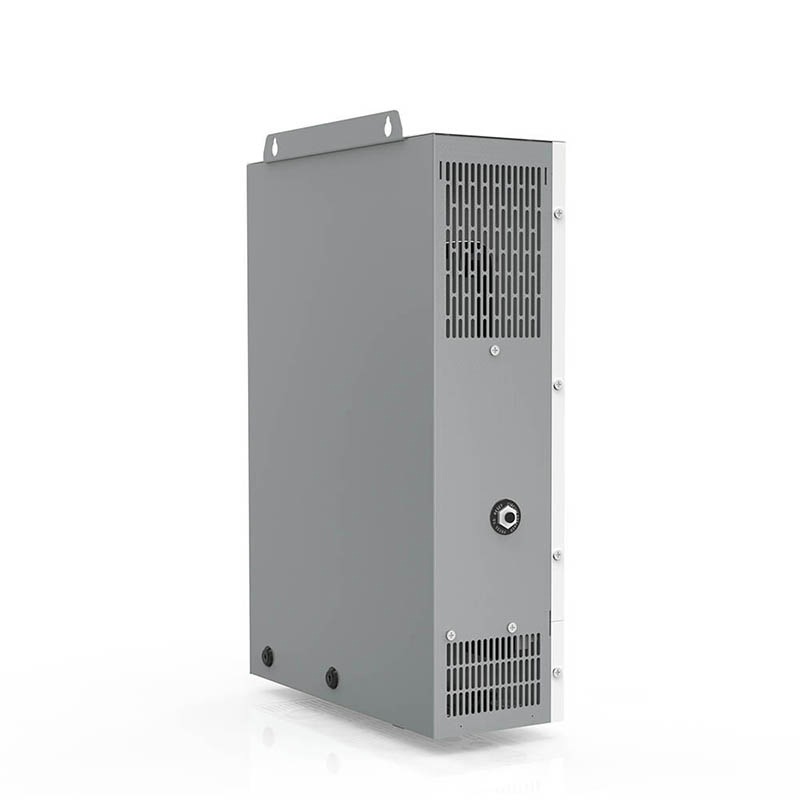

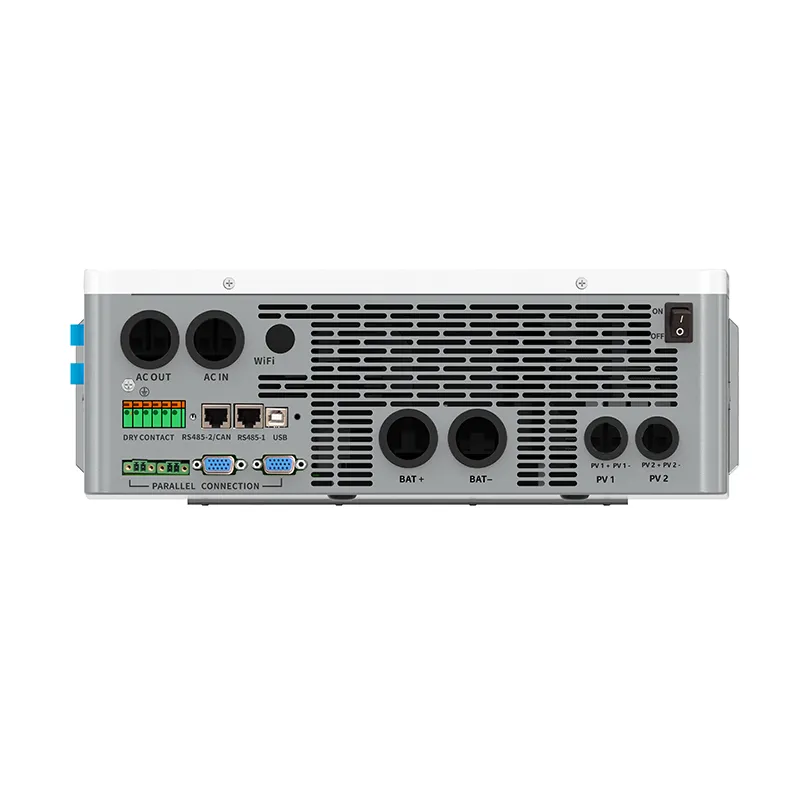

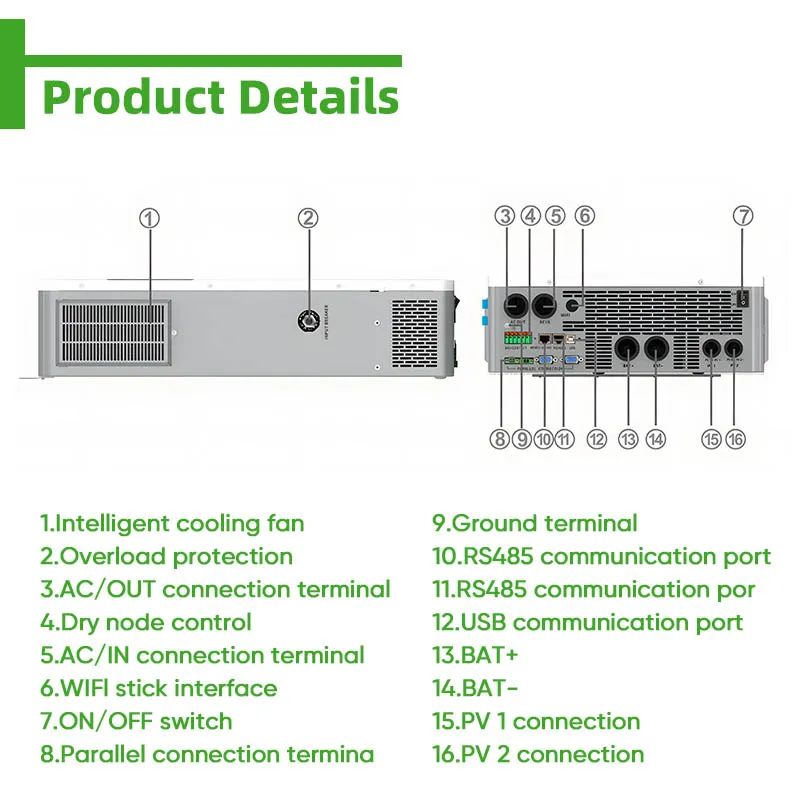

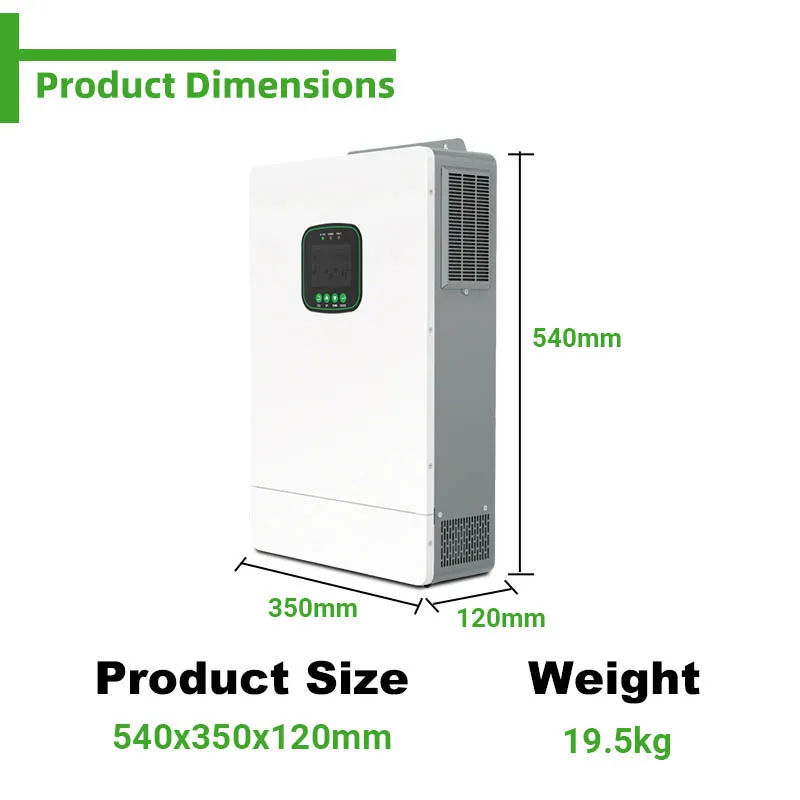

Detailed Photos

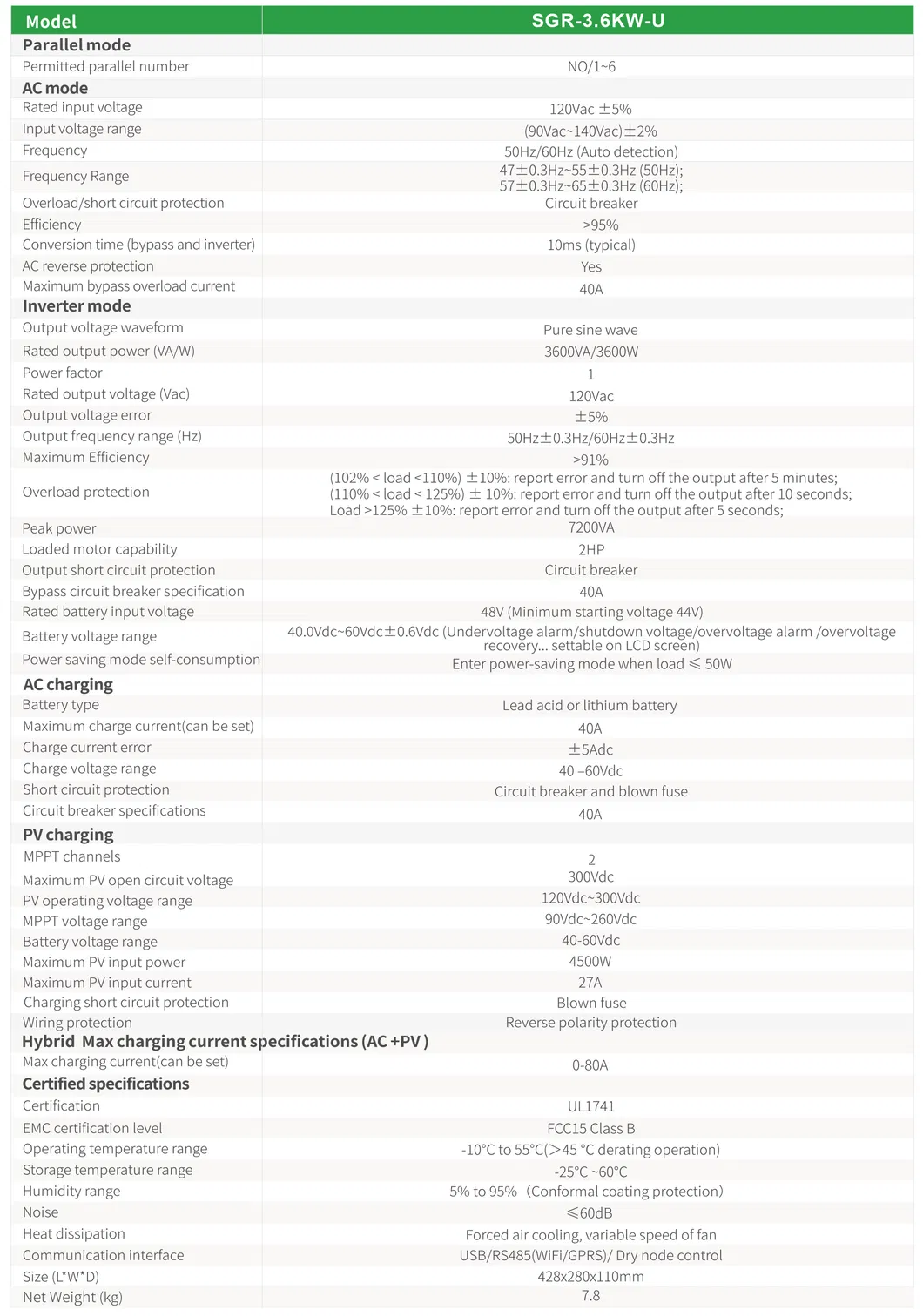

Technical Specifications

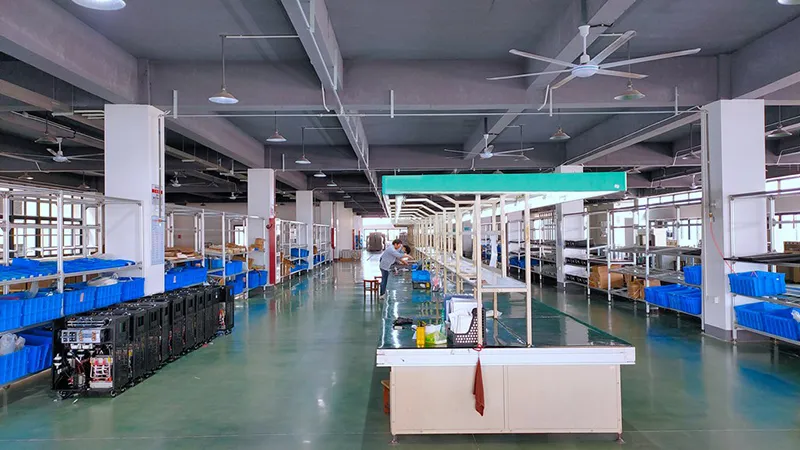

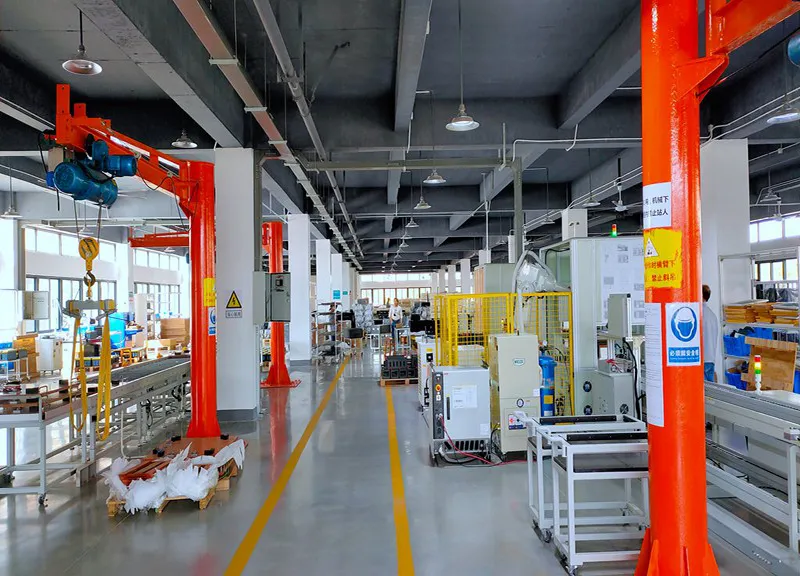

Production Facility
Certifications
Frequently Asked Questions
Can this inverter operate without a battery?
Yes, the system is designed to support use without a battery. Both PV and grid can supply power to the load simultaneously.
What is the peak power output of this 3.6kW model?
It supports up to 125% EPS peak output for a duration of 5 seconds to handle impact loads.
How many units can be connected in parallel?
You can connect up to 6 inverters in parallel to expand capacity or build split-phase/three-phase systems.
What is the switching time between grid and battery power?
It offers UPS-level switching with a transition time down to 10ms.
Is it compatible with high-current solar panels?
Yes, with a 27A PV input, it is compatible with all modern residential solar modules and flexible arrays.
Does it support remote monitoring?
Yes, it supports remote diagnostics and OTA (Over-the-Air) updates via an intuitive interface.
