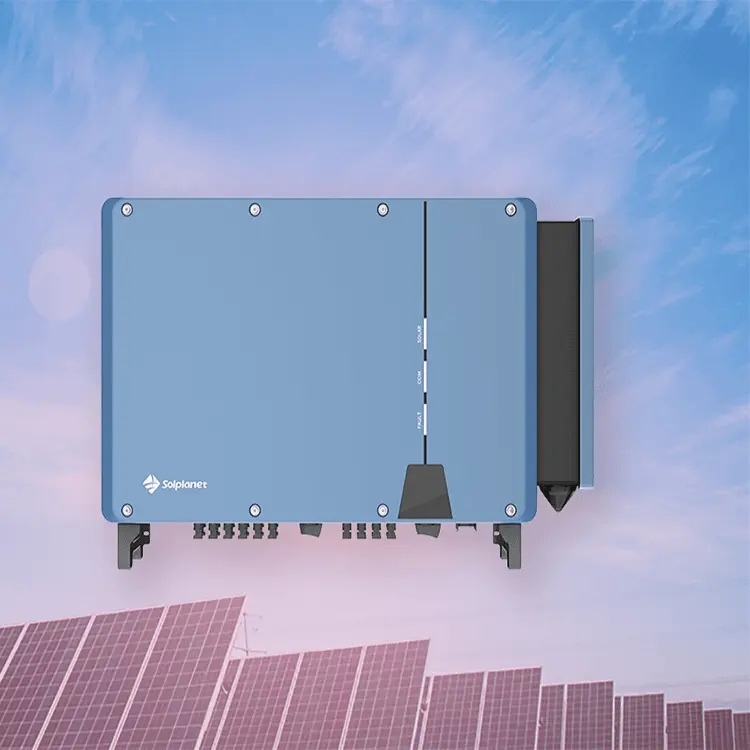

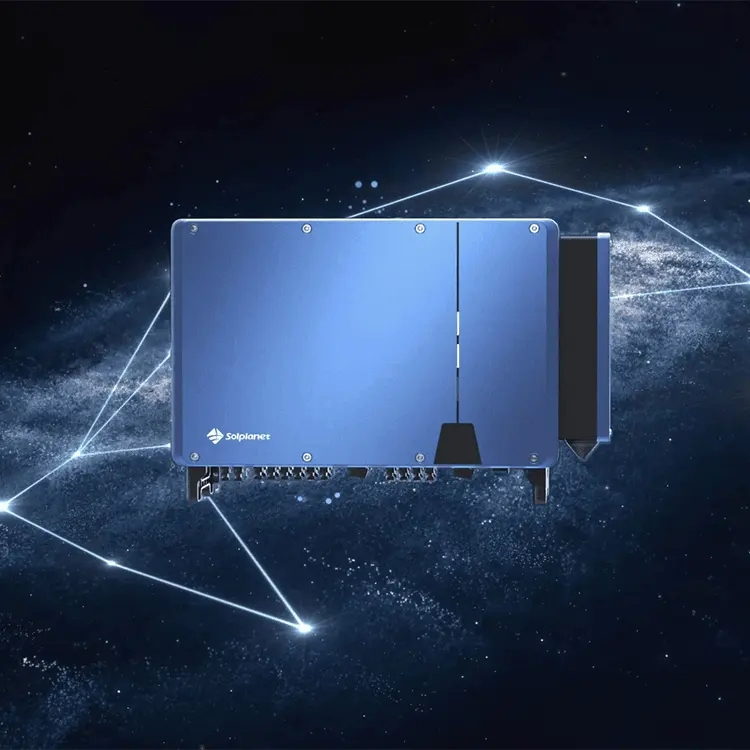

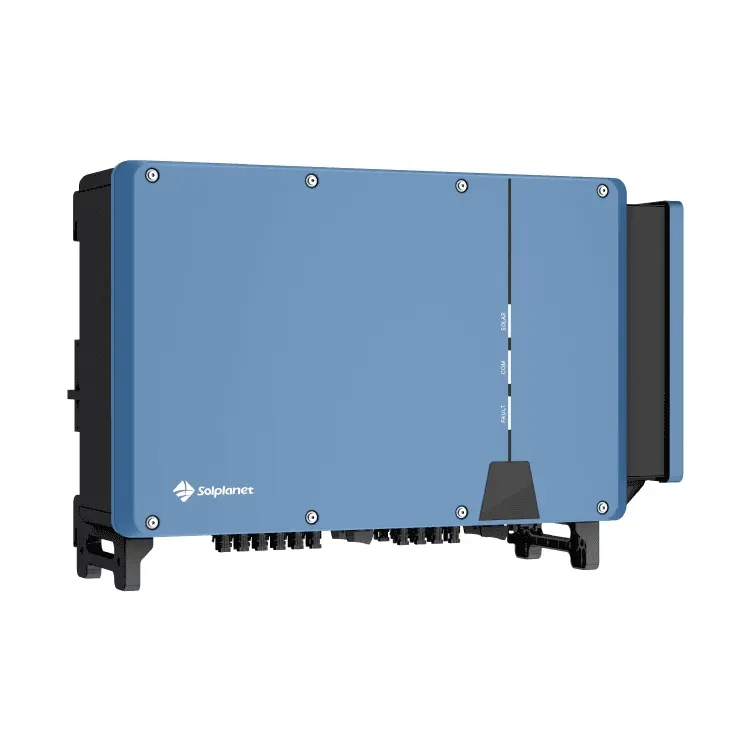

IP66 Rated Solar Power Inverter
Outdoor Use 75KW - 110KW String-level Management Solution
Basic Specifications
Certification
SAA, CE, ROHS, ISO9001, CCC
Circuit Topologies
Push-pull Type
Nature of Wave
Sine Wave Inverter
Product Overview
Output Voltage
180 V to 295 V
Output Frequency
45 Hz to 65 Hz
Warranty
5 years + 5 years
Product Features
🛡️
Safety Standards: Designed in accordance with international quality and safety standards. The IP66 rated design can withstand a wide range of environmental conditions.
⚡
Advanced Protection: Featuring 0-export limitation, DC reverse polarity protection, and AC sensitive residual-current monitoring. Optional AFCI function for enhanced installation protection.
📈
High Yield: Dual independent MPP tracker and wide MPP voltage range ensure optimal energy generation. Up to 150% oversizing of the PV array for high flexibility.
🔌
Easy Installation: Equipped with Phoenix Contact DC connectors for fast setup. Easy commissioning via specialized Apps.
📱

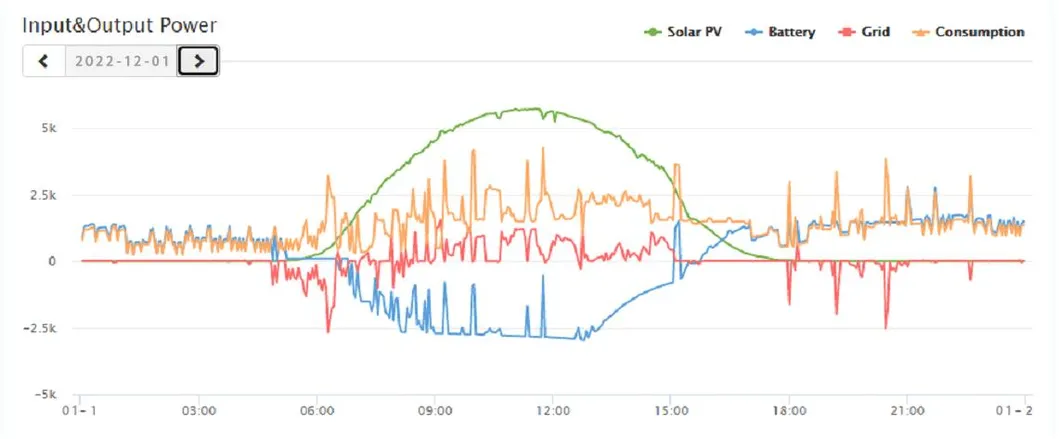

Smart Monitoring: Plug and play Wi-Fi and 4G sticks allow 24/7 monitoring of power data for up to five inverters.

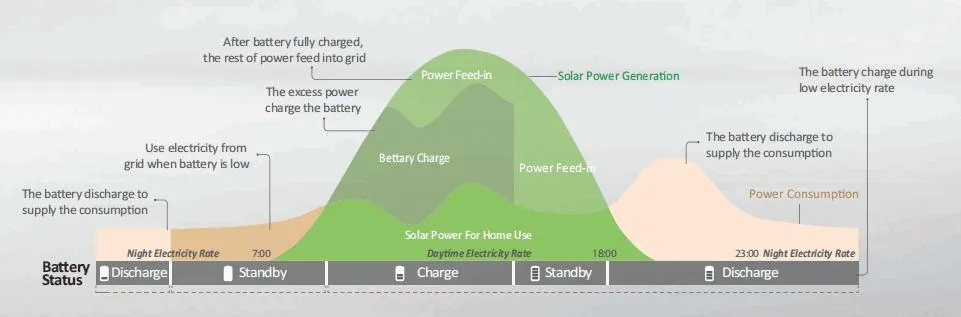

Visual Presentation
Technical Datasheet
| Technical Data |
ASW3000-S-G2 |
ASW3680-S-G2 |
ASW4000-S-G2 |
ASW5000-S-G2 |
ASW6000-S-G2 |
| Max. PV array power |
4500 Wp STC |
5520 Wp STC |
6000 Wp STC |
7500 Wp STC |
9000 Wp STC |
| Max. input voltage |
600V |
| MPP voltage range |
60V-560V |
| Rated active power |
3000 W |
3680 W |
4000 W |
5000 W |
6000 W |
| Max. output current |
15 A |
16 A |
20 A |
25 A |
30 A |
| Max. efficiency |
97.8% |
| Dimensions (W/H/D) |
368 * 325 * 145 mm |
| Weight |
9.5 kg |
Frequently Asked Questions
What is the environmental protection rating of this inverter?
This series features an IP66 rated design, making it highly resistant to dust and high-pressure water jets, suitable for various outdoor environmental conditions.
How many MPPT trackers does the unit have?
The inverter is equipped with Dual independent MPP trackers and a wide MPP voltage range to ensure optimal energy generation for high yields.
What are the available communication options?
The system supports Wi-Fi, 4G, and RS485 communication interfaces as optional sticks for easy monitoring and data management.
Does the inverter support PV array oversizing?
Yes, it supports up to 150% oversizing of the PV array, providing high flexibility for residential rooftop solar system designs.
What is the standard warranty period?
The product comes with a comprehensive warranty of 5 years plus an additional 5 years (5+5), ensuring long-term reliability.
What safety features are included for installers?
It includes DC reverse polarity protection, AC short circuit protection, and all-pole-sensitive residual-current monitoring to ensure safety for both installers and end-users.
