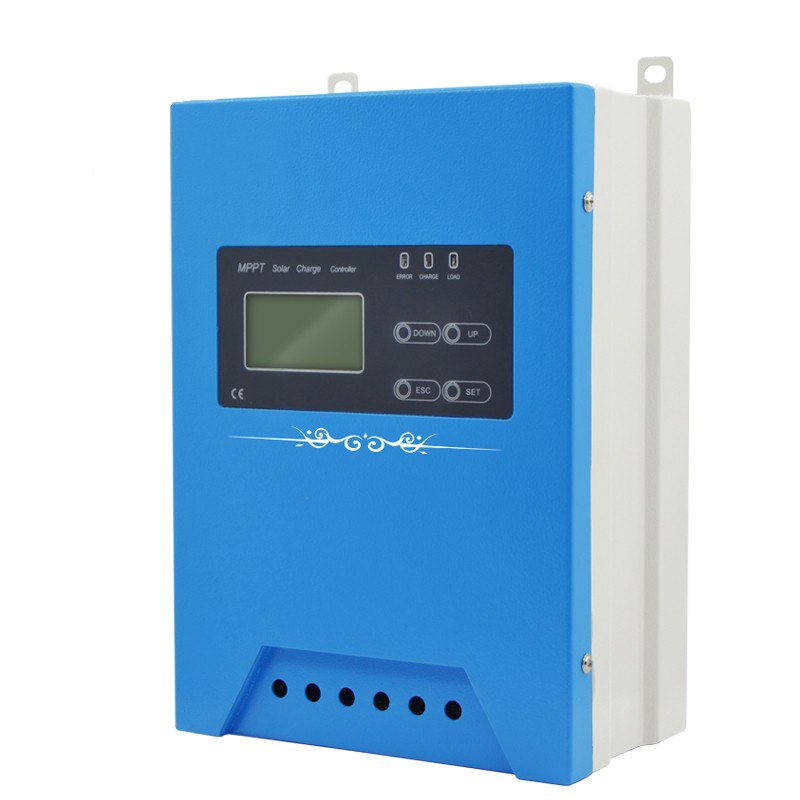

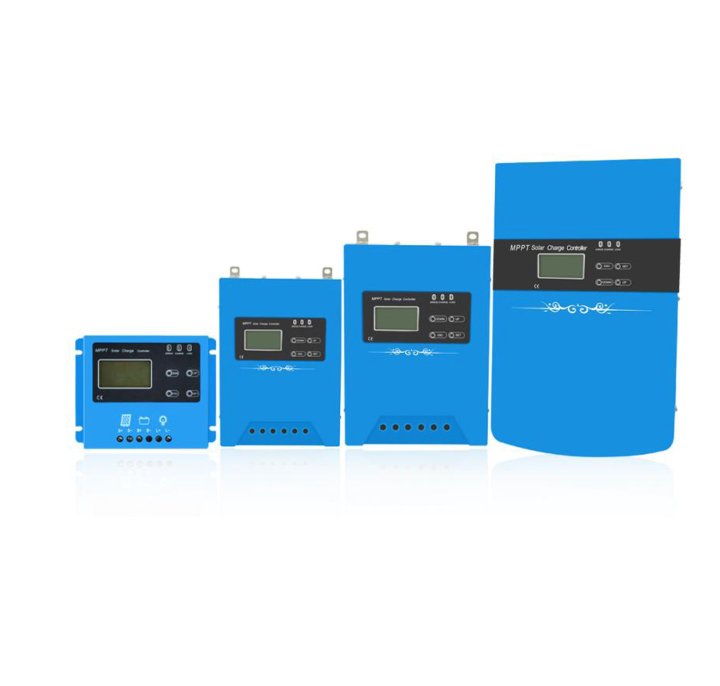

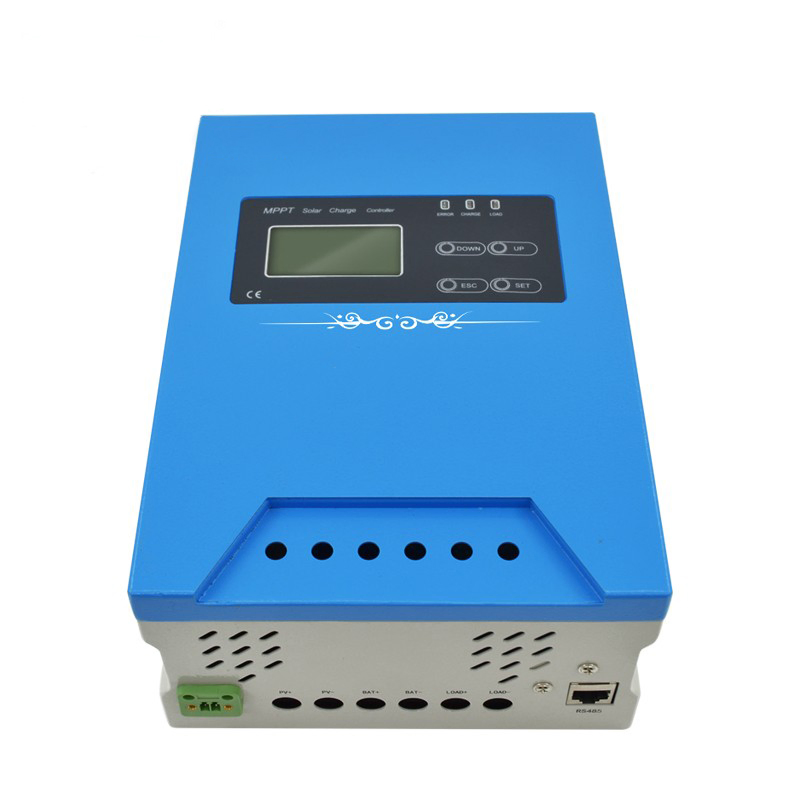

10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
1 / 5
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver
10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver

10A 12V 24V 48V MPPT Solar Panel Power Charge Charging Controller with LED Driver

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO.
MY-MPPT-MINI
Condition
New
Certification
ISO, CE
Application
Solar System Controller
Rated Voltage
12V 24V
MPPT Efficiency
>99.5%
Conversion Efficiency
>98%
Operating Mode
Household Mode 24h
Working Temperature
-20°C~50°C
Degree of Protection
IP30

Product Description

30A 12V 24V MPPT Solar Panel Power Charge Charging Controller With Led Driver

MPPT Controller Banner

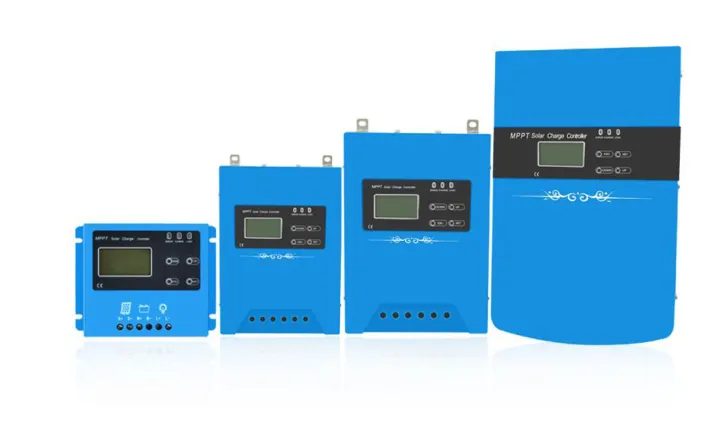

MPPT Controller Display

Product Features

  • Advanced multi-phase synchronous rectification technology, ensuring high conversion efficiency even in low power charging environments.
  • Ultra-wide operating voltage range for photovoltaic arrays.
  • Common negative circuit design for enhanced system stability and reliability.
  • Advanced MPPT maximum power point tracking technology with efficiency ≥99.5%, increasing efficiency by 15-20% compared to PWM algorithms.
  • High-quality imported components and advanced power conversion circuits; maximum conversion efficiency reaches 98%.
  • Three-stage charging method: MPPT, boost charging, and floating charging.
  • Automatic identification for 12V/24V/48V battery systems.
  • Comprehensive protection: overcharge, overdischarge, overtemperature, overload, and reverse connection.
  • Compatible with lead-acid, ternary lithium, and lithium iron phosphate batteries.
  • Photovoltaic activation function: supports direct charging for severely depleted batteries.

Technical Parameters

System Parameters
Model MY-MPPT-MINI MY-MPPT-AL MY-MPPT-BL MY-MPPT-CL
Current Level (A) 102010203040503040506070506080100120
PV Max Input (12V) 120W240W120W240W360W480W600W360W480W600W720W840W600W720W960W1200W1440W
PV Max Input (24V) 240W480W240W480W720W960W1200W720W960W1200W1440W1680W1200W1440W1920W2400W2880W
MPPT Efficiency >99.5%
Conversion Efficiency >98%
Protection Degree IP30

Product Showcase

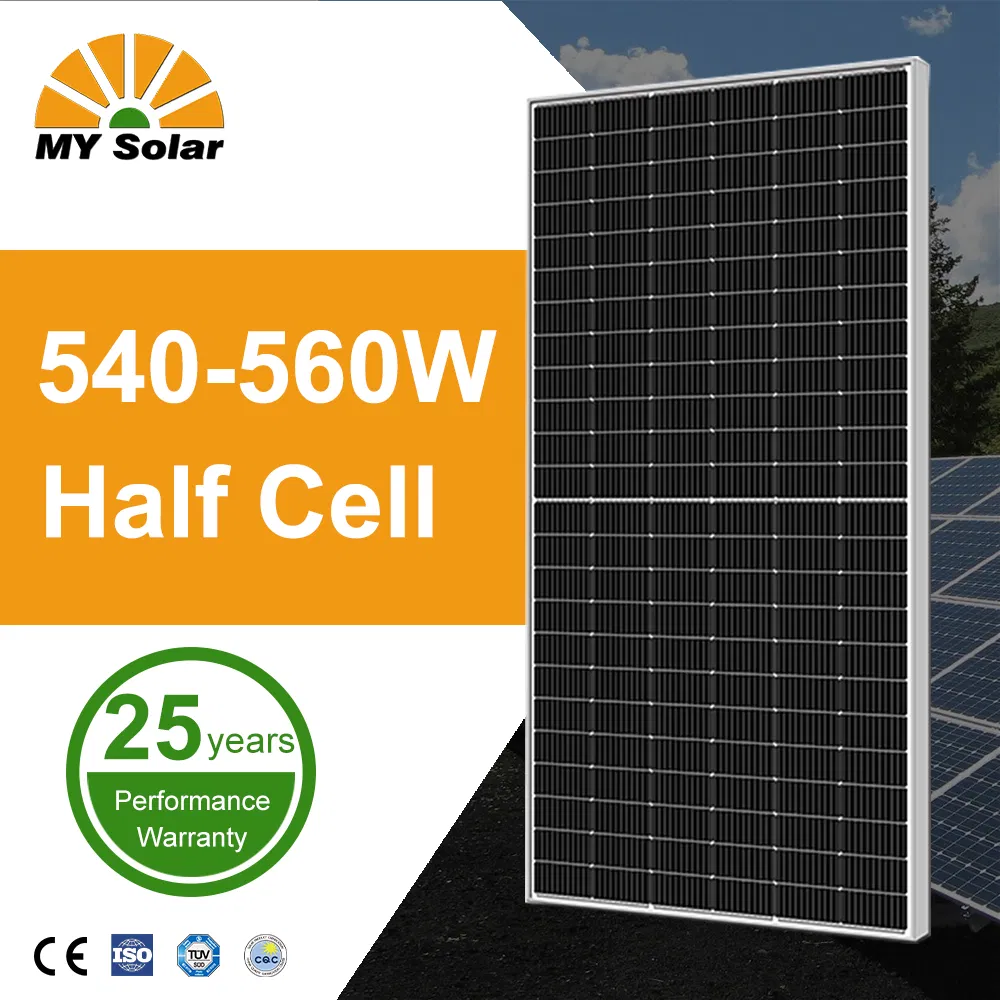

Solar Module Component
Hybrid Inverter System

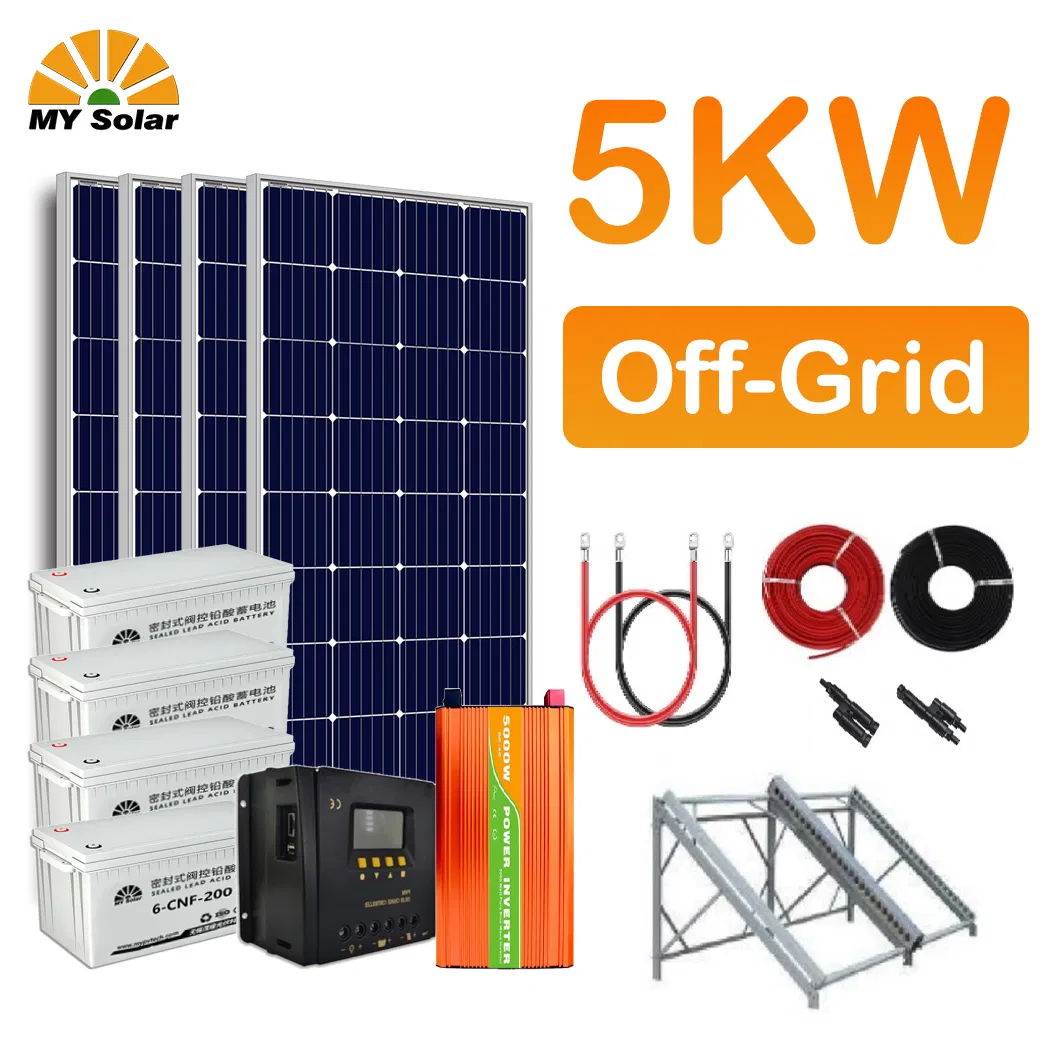

Off-Grid Energy Solution
Application Diagram

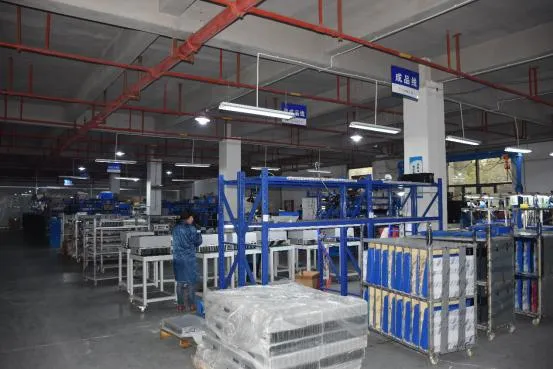

Production Line 1

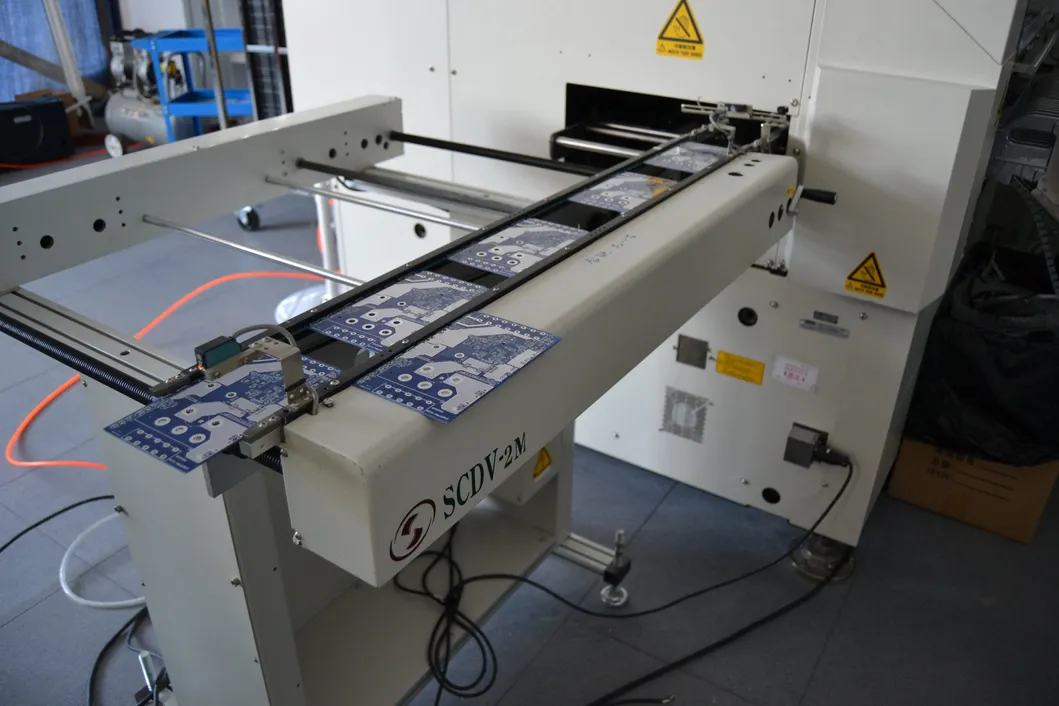

Production Line 2

Shipping & Delivery

1. Samples: FedEx/ DHL/ TNT/ UPS, door-to-door service.

2. Batch Goods: By air or by sea for bulk orders.

3. Logistics: Flexible freight forwarding or negotiable shipping methods.

4. Delivery Time: 7 days for samples; 10 to 25 days for batch goods.

Packaging: High-standard carton boxes, or wooden boxes for maximum sample protection.

Frequently Asked Questions

Are you a factory?
Yes, we are ISO9001:2015 certified manufacturing facility with TUV, CE, ROHS & CCC qualifications. Our main products include inverters, solar controllers, and energy system solutions.
Are your inverters pure sine wave output?
Yes, all of our inverters provide pure sine wave output, which is as good as or better than the public power grid.
What appliances can your inverters load?
Our inverters can handle household appliances and inductive loads such as refrigerators, air conditioners, and water pumps.
What's the difference between low and high frequency inverters?
Low frequency inverters offer various protections and strong environmental adaptability. They are generally more reliable and include voltage regulation features.
How do you solve technical problems?
We provide 24-hour after-service consultancy to ensure your technical issues are solved quickly and efficiently.
What is your product warranty/repair policy?
We use standard export packaging and insurance. If a product is faulty, send us a photo or video, and we will provide free spare PCB boards for after-sale service.
