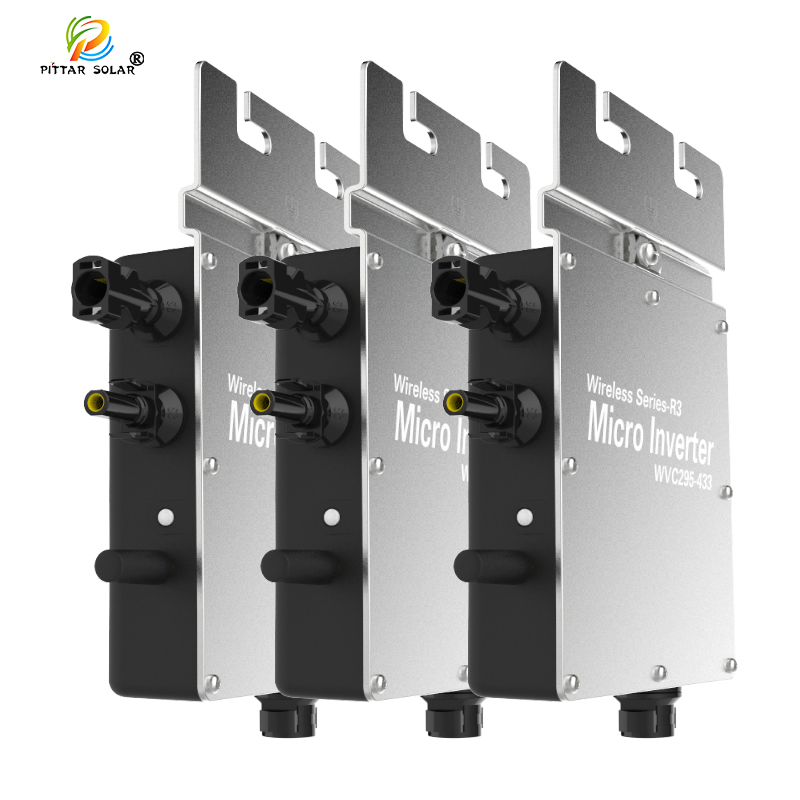

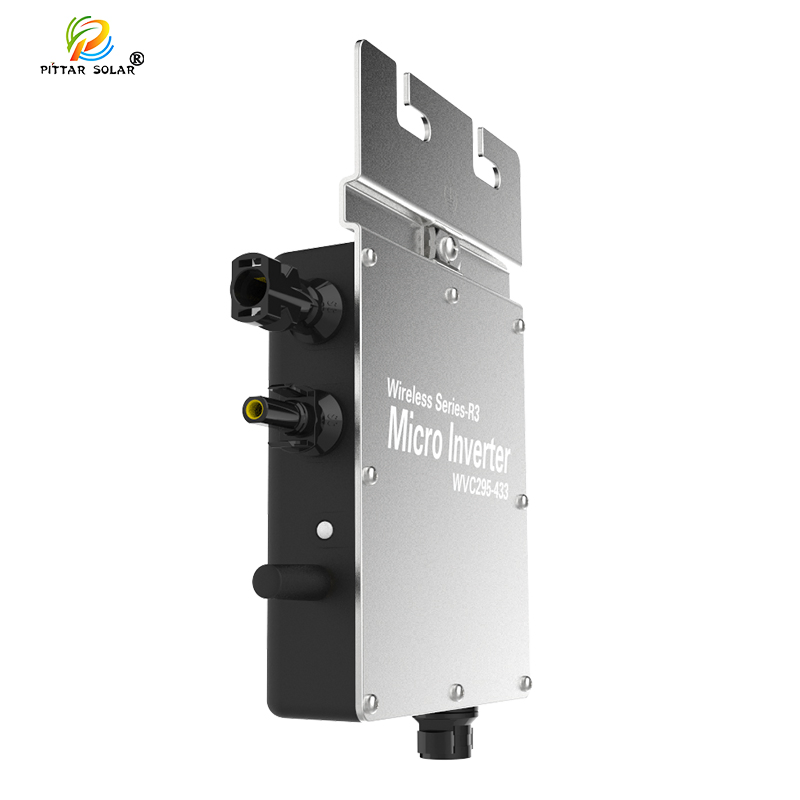

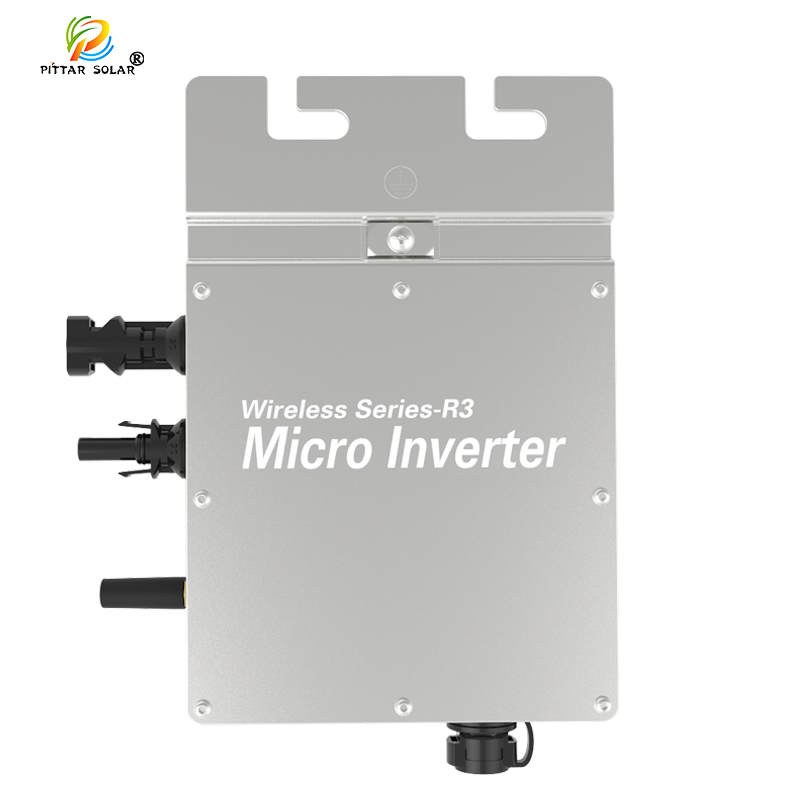

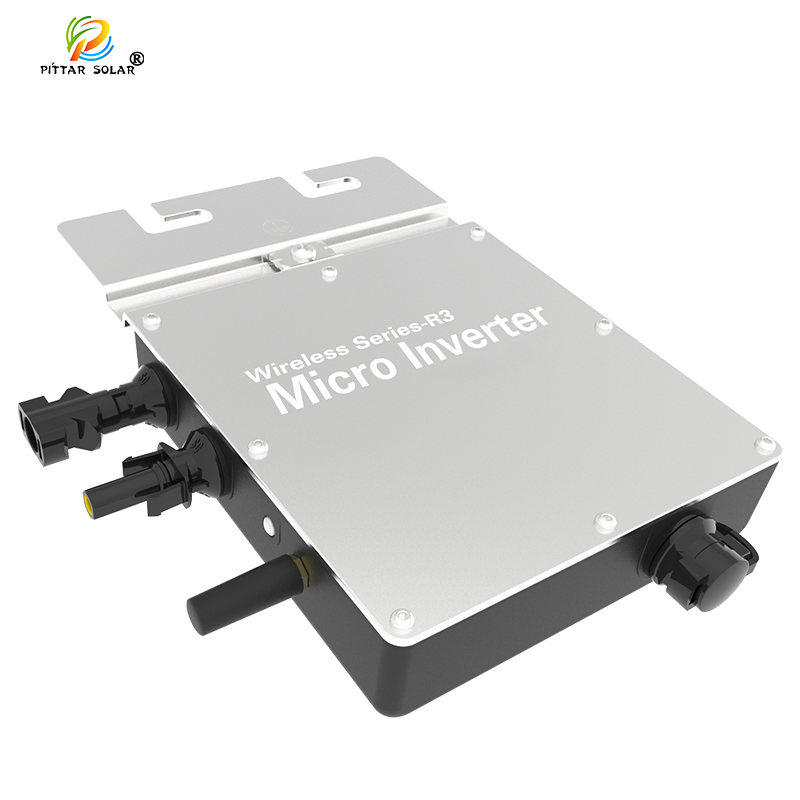

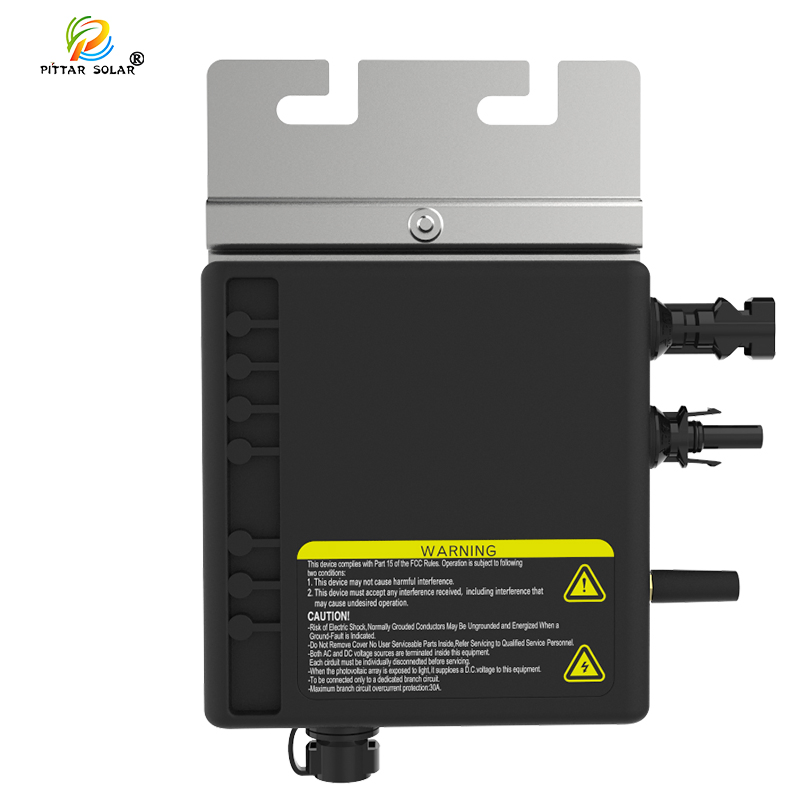

295W Solar Smart Micro Inverter on Gird Wireless Monitoring MPPT 95% Efficiency Plug and Play IP67 High Frequency
❮
❯
1
/
5
295W Solar Smart Micro Inverter on Gird Wireless Monitoring MPPT 95% Efficiency Plug and Play IP67 High Frequency
Still deciding? Get samples of $ !
US$ 80/Piece
Order Sample
Send Inquiry
Product Description
Basic Info.
Model NO.
295
Output Power
101 - 200W
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Wave String
Sine Wave Inverter
Transport Package
213*167*32mm
HS Code
9405100000
Package Size
43.00cm * 33.00cm * 12.00cm
Gross Weight
3.000kg
Product Technical Specifications
Maximum Input Power
1×330 Watt
Output Voltage Mode
120/230V Auto Switch
PV Open Circuit Voltage
30-60Voc
Operating Voltage Range
24-60V
Maximum Working Current
12.8A
Rated Output Power
280watt
Maximum Output Power
295watt
Static MPPT Efficiency
99.5%
Max Output Efficiency
95%
Waterproof Grade
IP67
Temperature Range
-40°C to +65°C
Heat Dissipation
Self-cooling
Communication Mode
433MHz
Power Factor
>95%
Frequently Asked Questions
What is the peak efficiency of this micro inverter?
The inverter features a Static MPPT efficiency of 99.5% and a maximum output efficiency of 95%.
Is the device suitable for outdoor installation?
Yes, it has an IP67 waterproof grade and can operate in temperatures ranging from -40°C to +65°C.
Does it support different AC voltage standards?
The system includes a 120/230V Auto Switch mode to adapt to different voltage requirements.
How is the heat managed during operation?
The unit utilizes a self-cooling heat dissipation mode, eliminating the need for external fans.

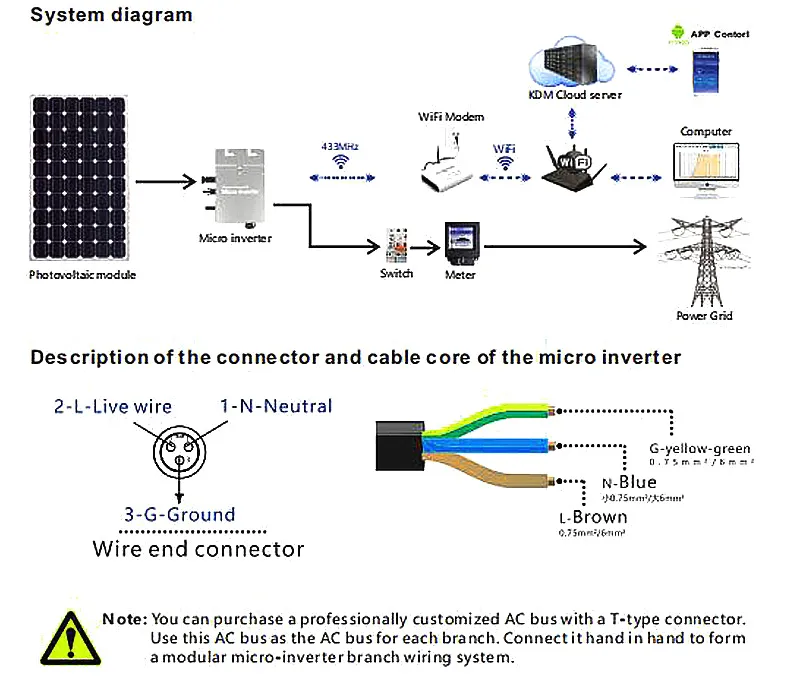

What communication protocol does the monitoring system use?

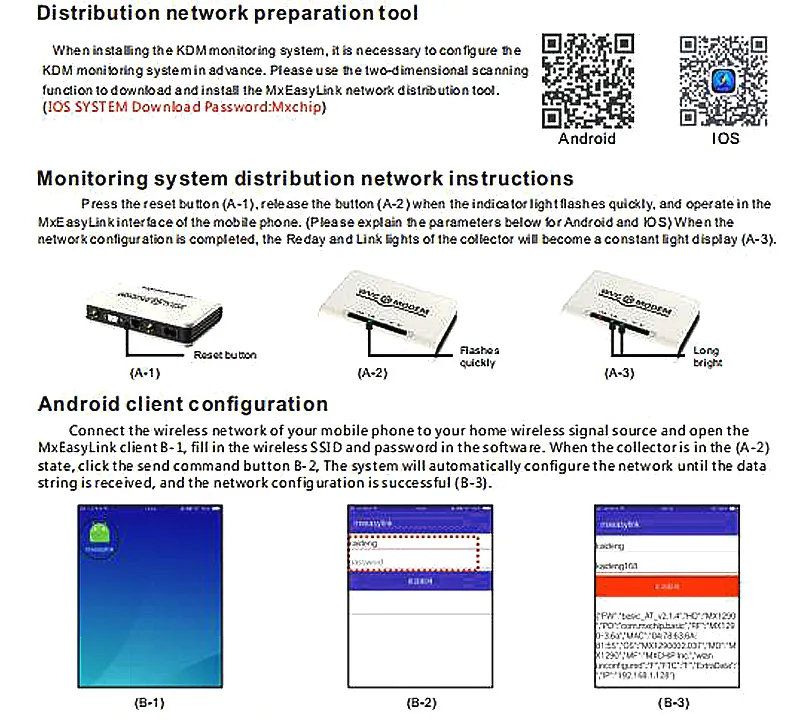

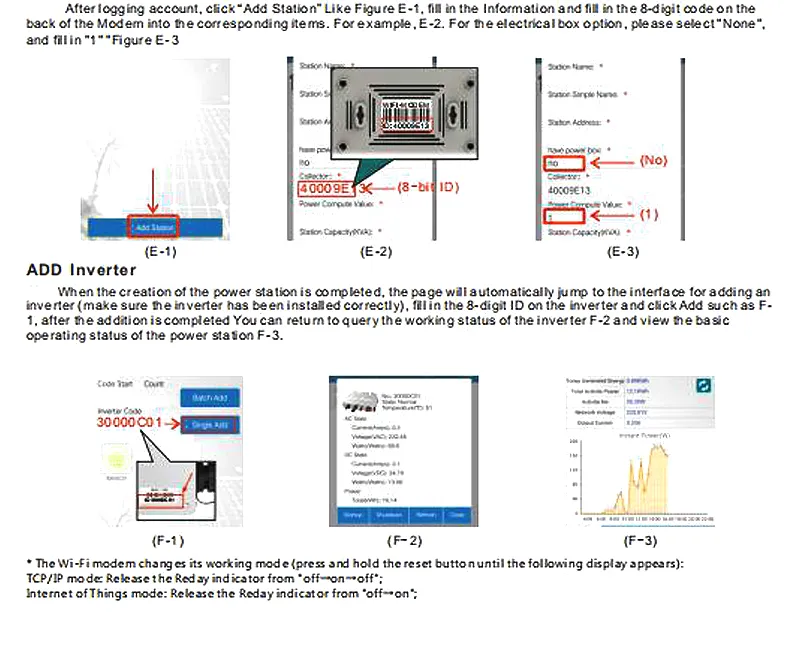

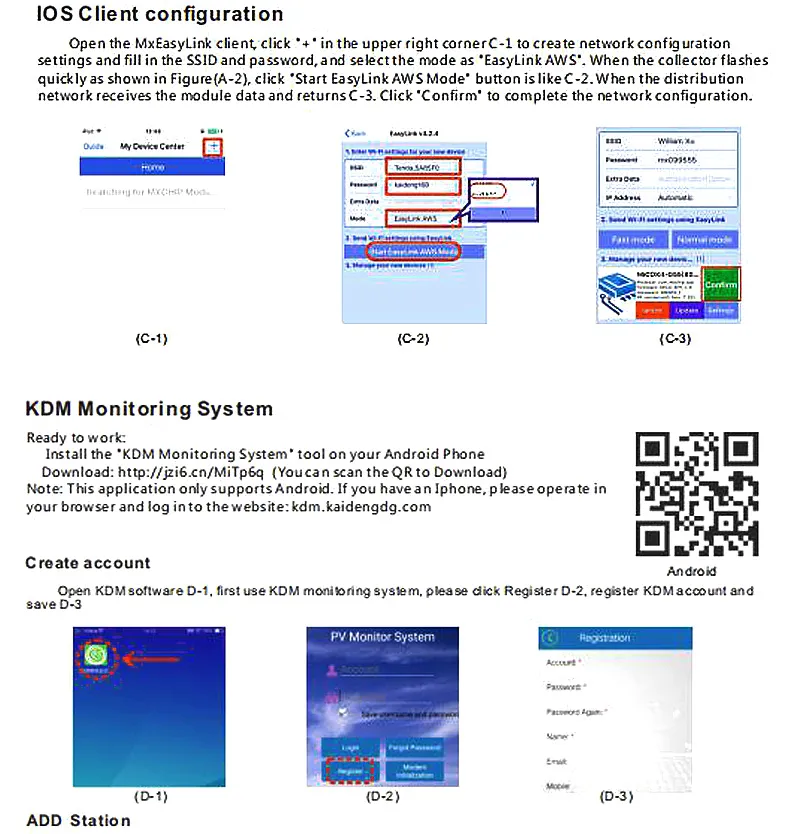

The device uses a 433MHz communication mode and can be controlled via browser or dedicated app systems.
What is the maximum PV input power supported?
The maximum input power supported is 1×330 Watt with a PV open circuit voltage of 30-60Voc.
