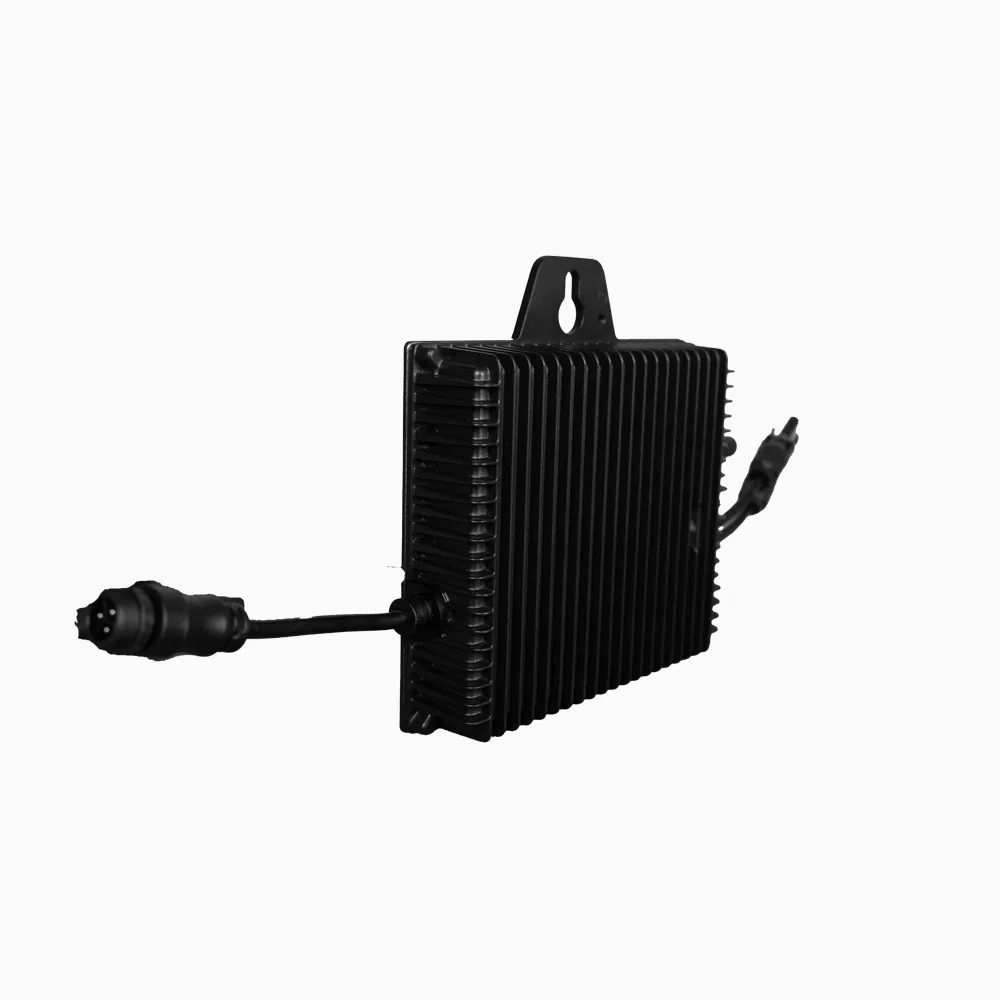

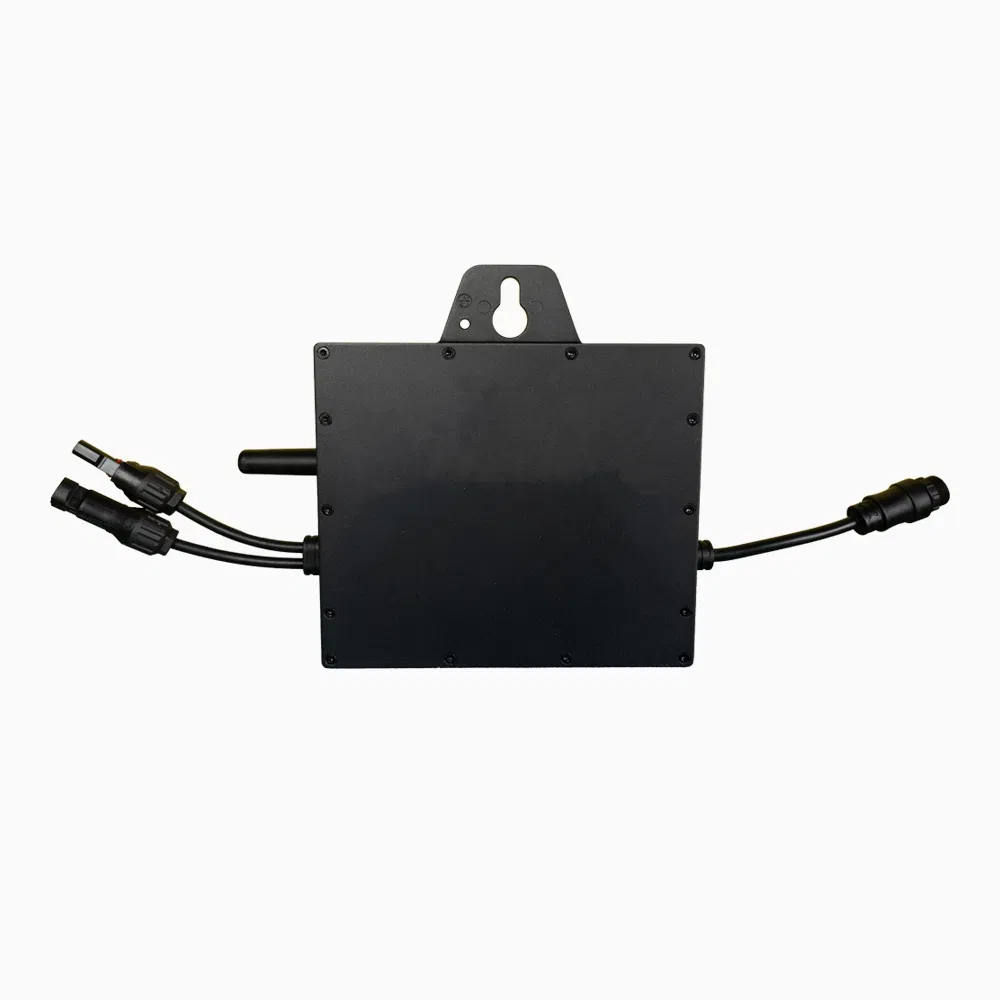

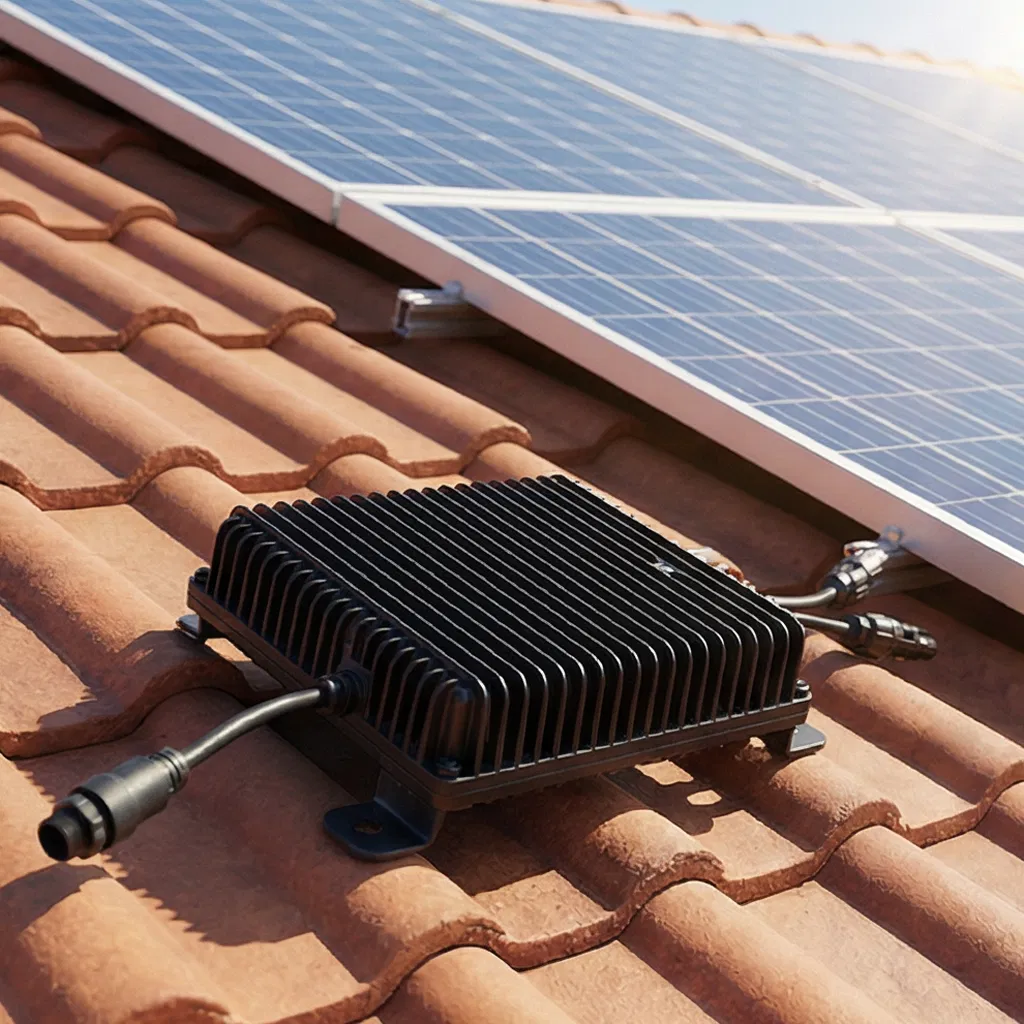

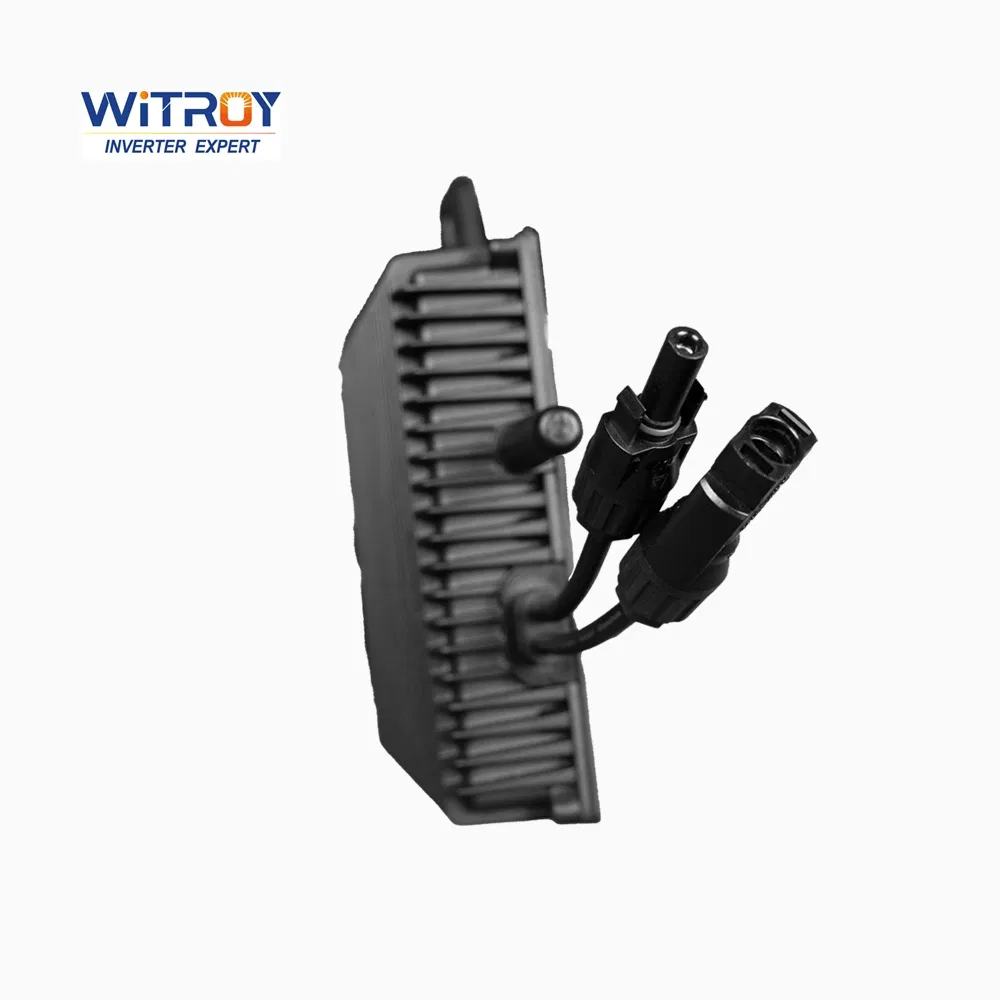

Boost your solar gains with the WBQ Series EU micro inverters (400-2000VA)! Flex 1/2 MPPTs for uneven light, lock in 96.5% peak efficiency, and rely on IP67 waterproofing + natural cooling for zero-fuss outdoor durability.
| Model NO. | WBQ600 |
| Output Power | 400W |
| Certification | CE, VDE/En50549/CE-LVD/CE-EMC/CE-Red |
| MPPT Voltage | 22-55V |
| Efficiency | 96.5% Peak |

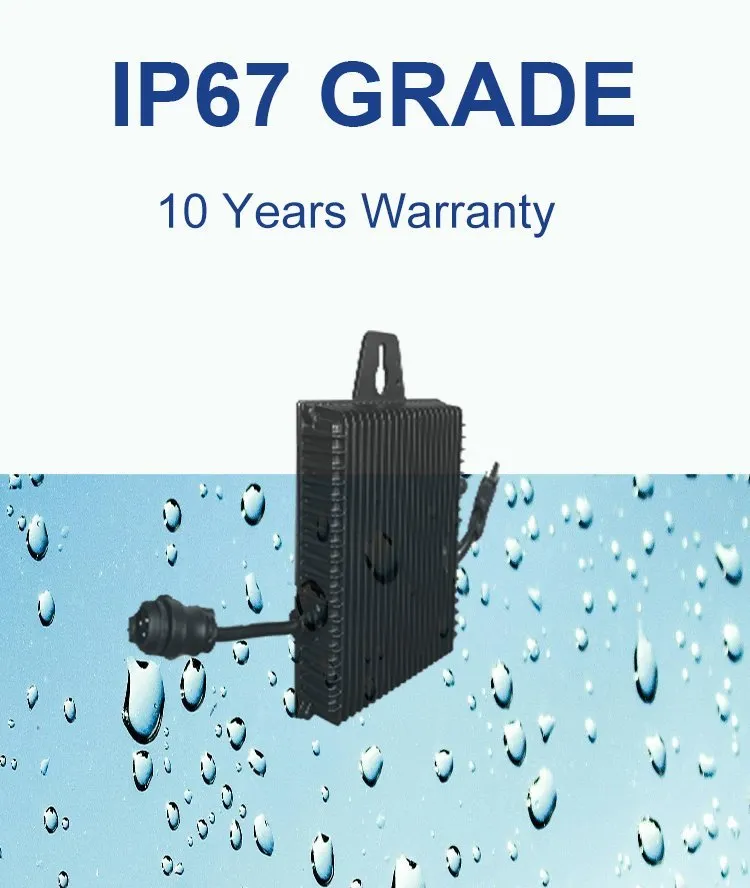

| Protection | IP67 Waterproof |

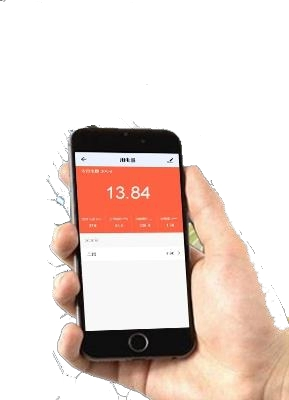

DOWNLOAD APP

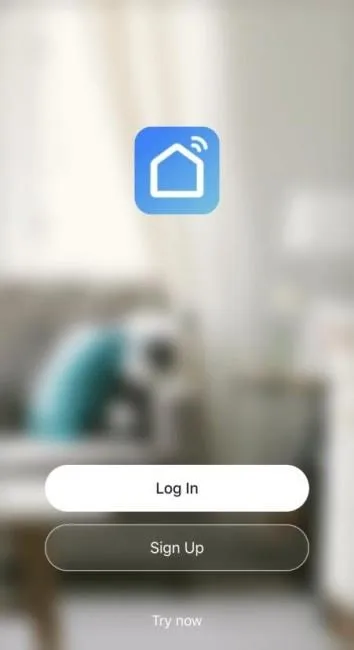

REGISTER & LOG IN

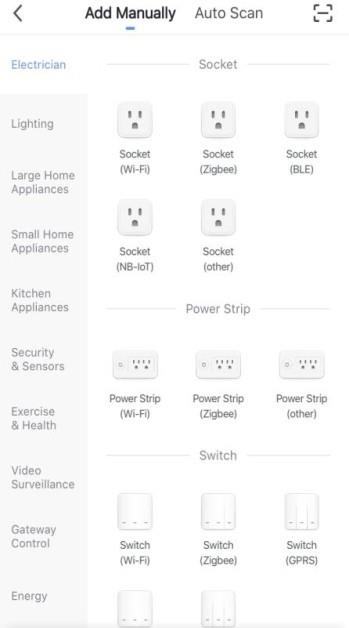

SELECT WIFI BUTTON

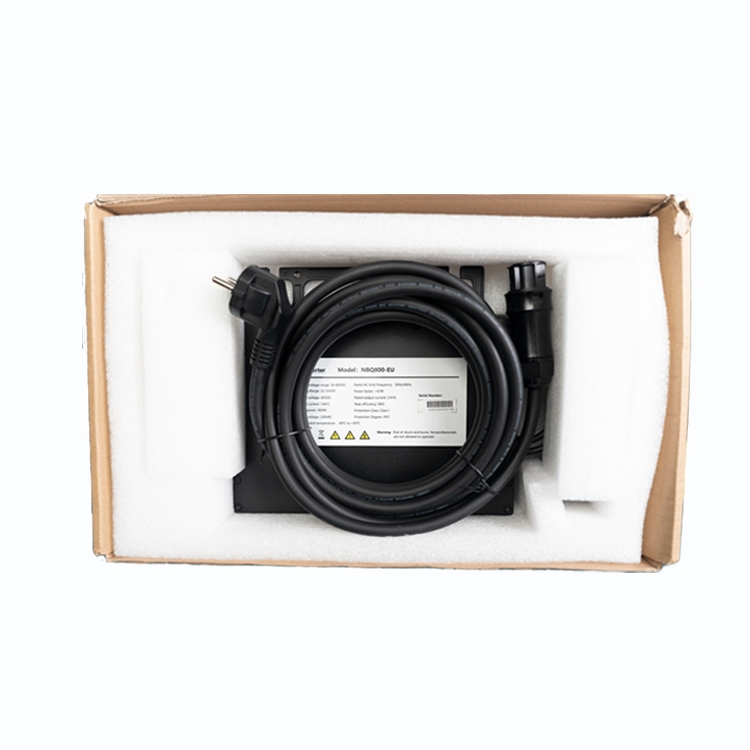

| Model: NBQ600-EU | |
|---|---|
| Input Data (DC) | |
| Recommended Module Power | 275~530W*1 |
| Max Input Voltage | 60V |
| MPPT Voltage Range | 22-55V |
| Number of MPPTs | 1 |
| Output Data (AC) | |
| Rated Output Power | 400VA |
| Nominal Output Voltage | 230V |
| Nominal Frequency | 50/60Hz |
| Efficiency & Mechanical | |
| Peak Efficiency | 96.5% |
| IP Grade | IP67 |
| Dimensions | 181*193*38.5mm |
| Weight | 2.54kg |
| Cooling | Natural Cooling |
