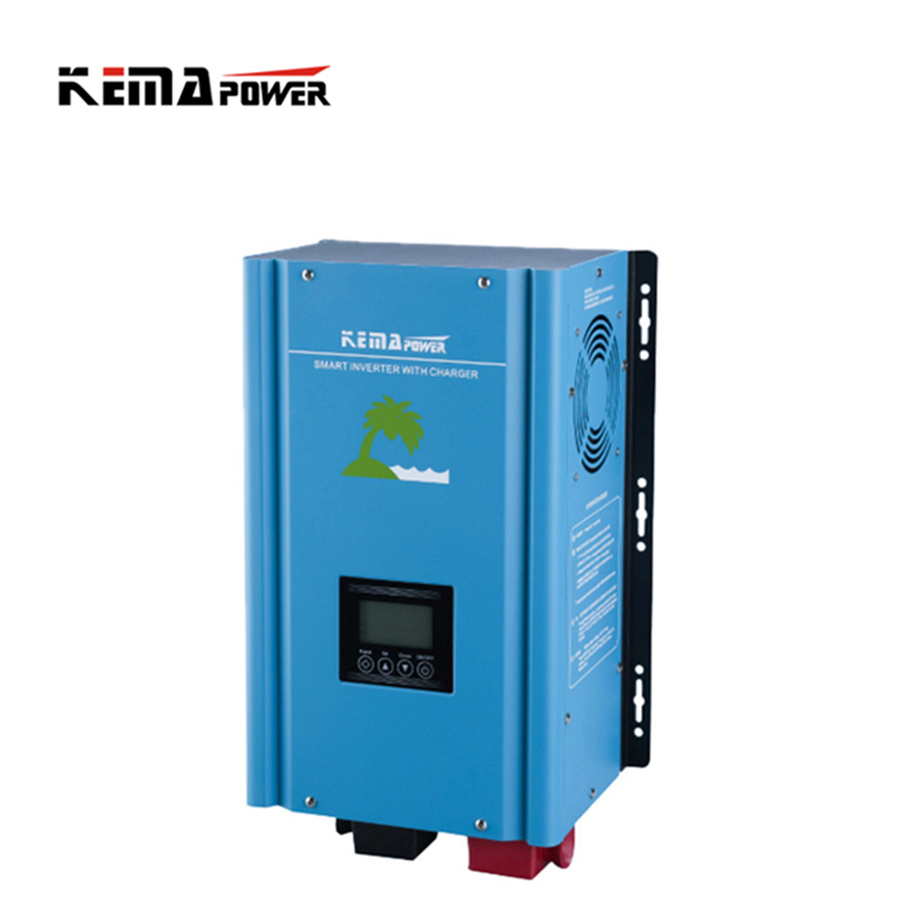

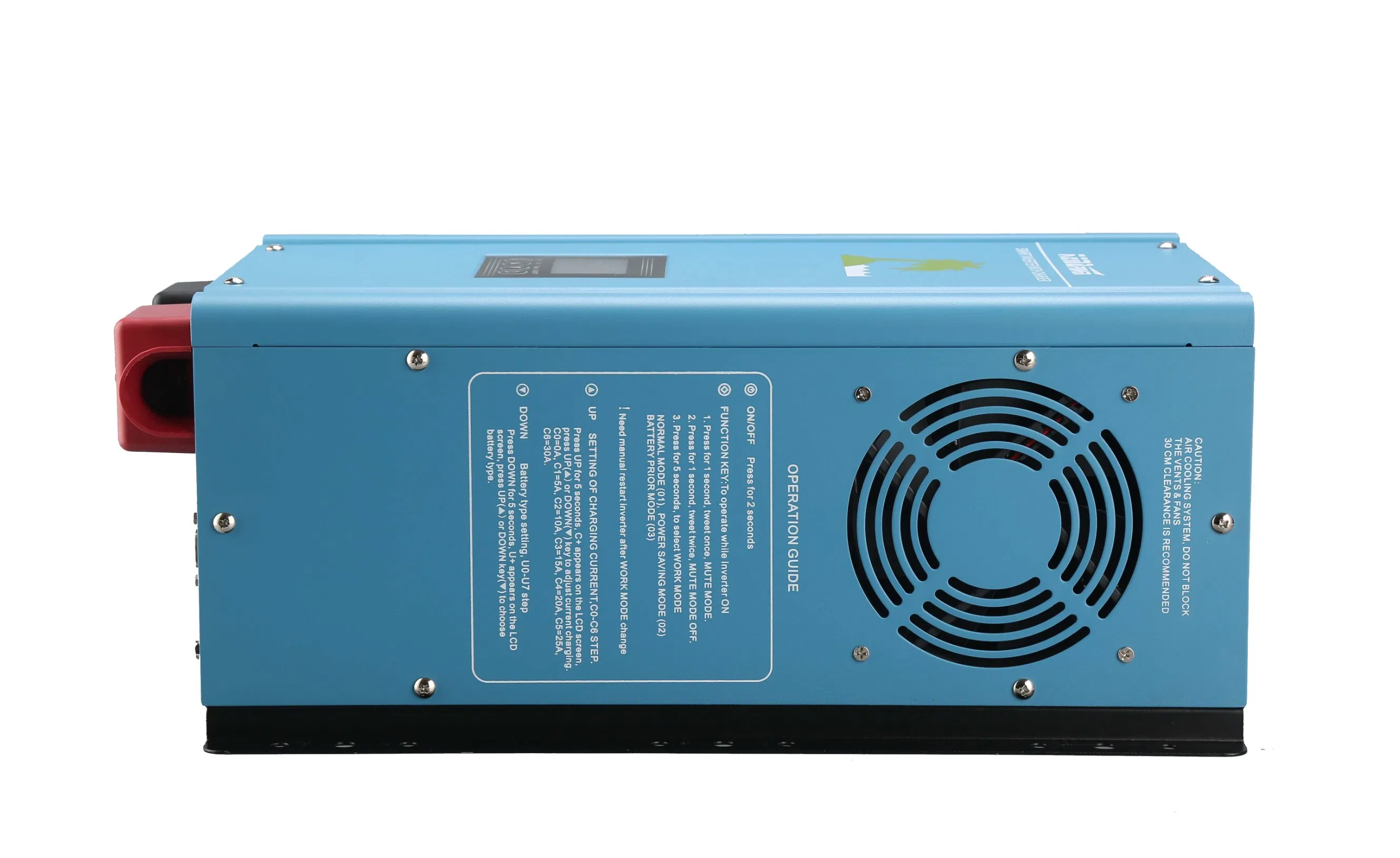

5000W Inch Wave Sine Power Pure Solar Micro Water Pump Wind Turbine Home UPS Power Inverter

1 / 5

5000W Inch Wave Sine Power Pure Solar Micro Water Pump Wind Turbine Home UPS Power Inverter

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Model NO.

GPSW-II

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Power

1-8kw

Efficiency

>95% (AC Mode), >88% (DC Mode)

HS Code

8504403090

Product Description

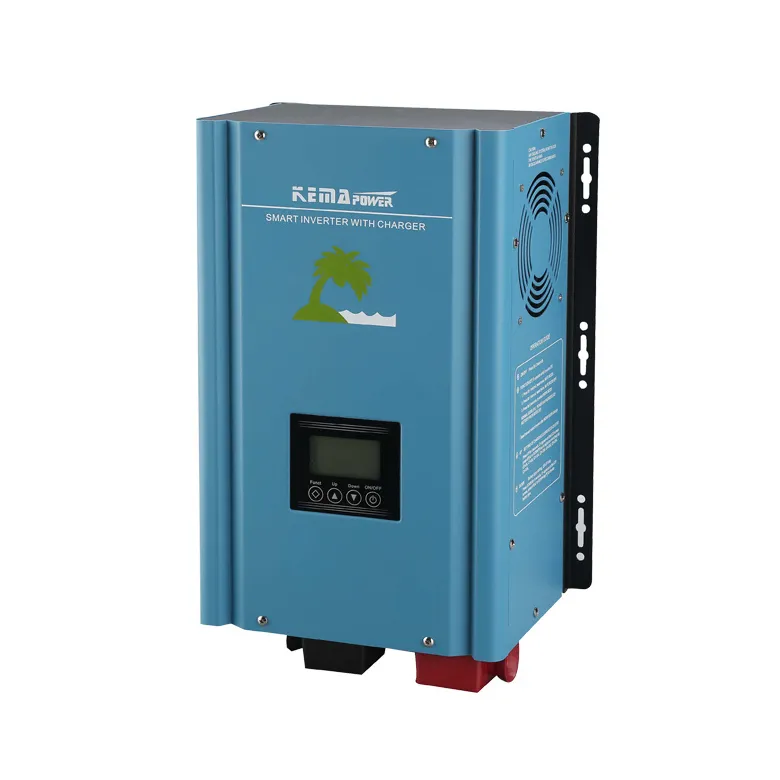

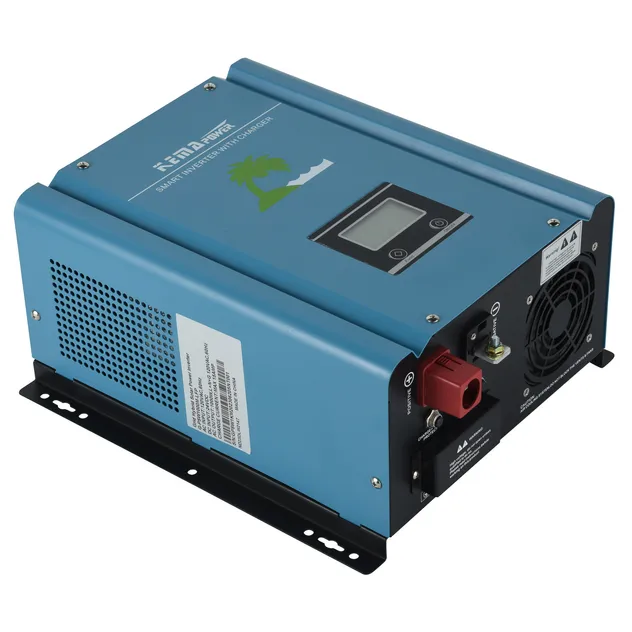

Sine Wave Power Inverter With Charger

GPSW-II 1-6KW Series

KEY FEATURES

01Low Frequency Power Inverter with charger GPSW-II 1-6KW

022 in 1 Off Grid hybrid design, Inverter + Power Charger

03Selectable Grid power priority, Solar Power priority or Power Saver Modes

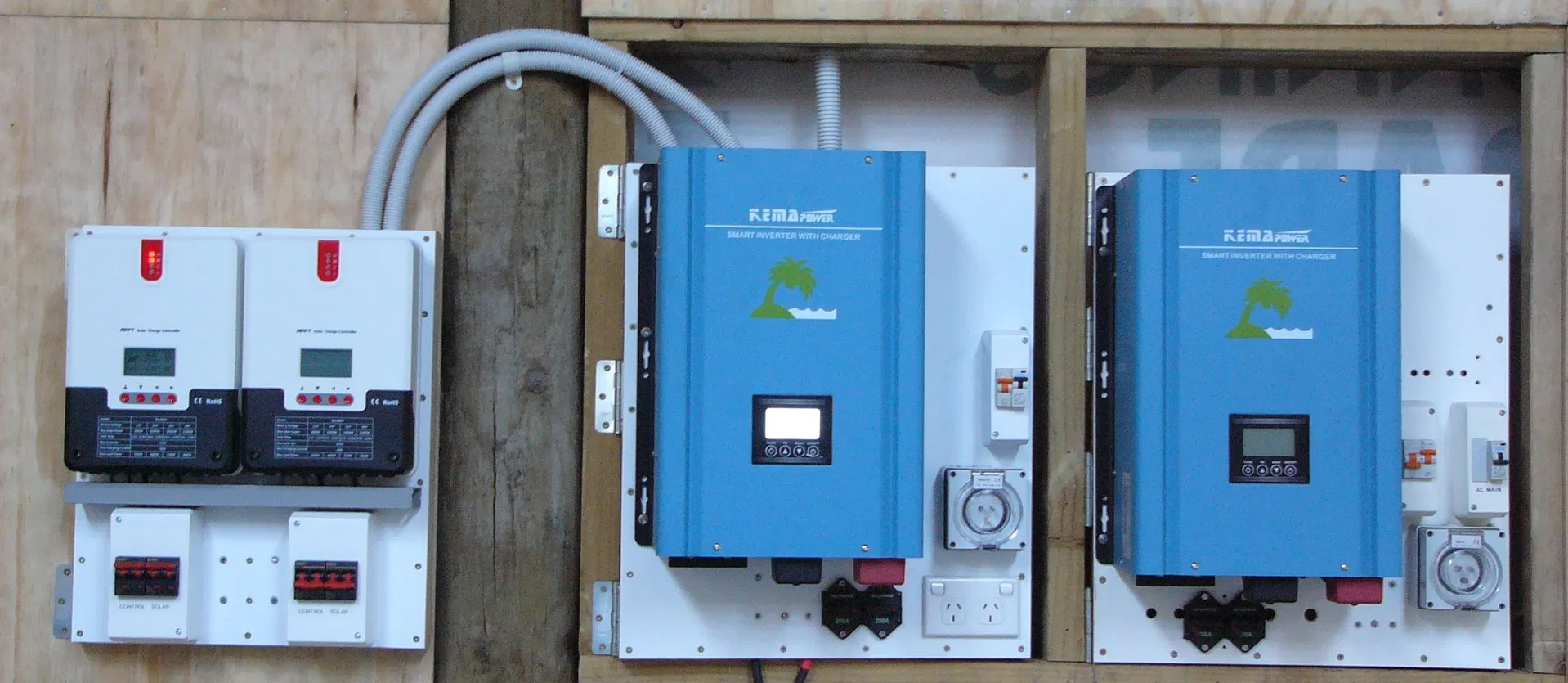

04Use as backup HOME UPS or Off grid solar inverter

05Low frequency toroidal transformer, Pure sine wave with AVR

06LCD display, Smart setup and simple operation

07Automatic Transfer Time less than 10ms

08Max 30A Adjustable Charge Current, selectable battery type

09Comprehensive protection for overload, short-circuit, Battery Low

10Smart fan cooling and Alarm system

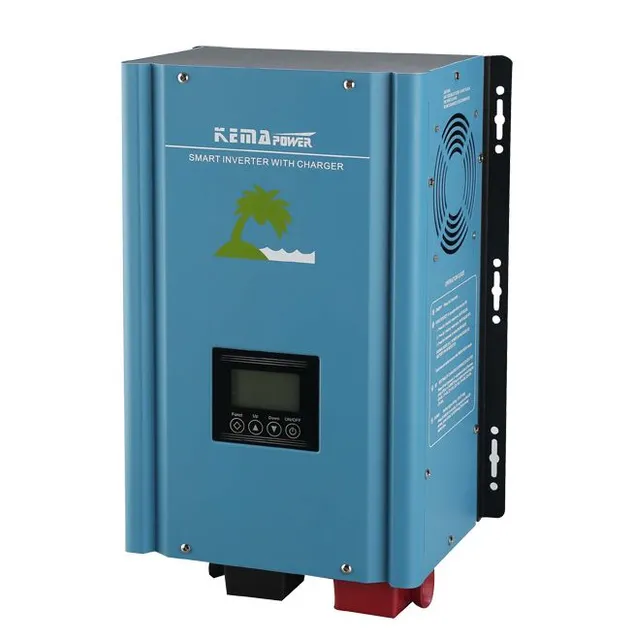

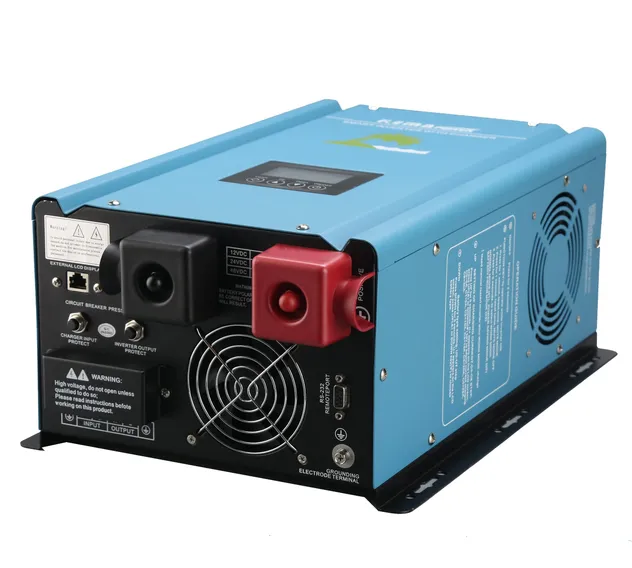

PRODUCT DISPLAY

Technical Specifications

ITEM	Model	1KW	2KW	3KW	4KW	5KW	6KW
Rated Power	Power Watts	1000W	2000W	3000W	4000W	5000W	6000W
Efficiency	>95% under AC mode, >88% under DC mode, Toroidal transformer
Battery	Rated Voltage	12/24/48V	12/24/48V	24/48V	24/48V	24/48V	48/96V
Charger	Current	30A (Default), adjustable by LCD
Input	Voltage Range	85-138VAC / 170-275VAC
Output	Wave Form	Pure Sine Wave
Transfer	Time	Less than 10ms (typical)
Protection	Battery over/low voltage, overload, short circuit, over temperature

ATTENTION: This inverter does not have a built-in solar charger controller.

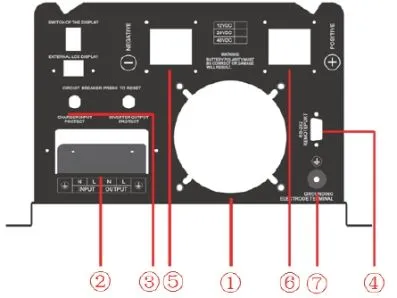

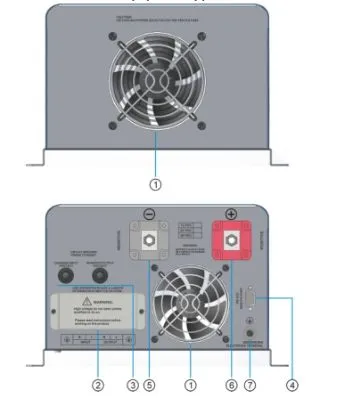

Interface Guide

1 -- Cooling Fan

2 -- AC input/output terminal

3 -- AC input/output fuse holder

4 -- RS232 communication interface (optional)

5 -- Battery terminal negative (-)

6 -- Battery terminal positive (+)

7 -- Earth terminal

Frequently Asked Questions

What is the advantage of a low-frequency toroidal transformer?

The low-frequency toroidal transformer provides a pure sine wave output with high efficiency (up to 95%), better voltage regulation (AVR), and superior reliability for heavy inductive loads compared to high-frequency inverters.

How fast is the transfer time between Grid and Battery mode?

The automatic transfer time is typically less than 10ms, making it suitable for use as a home UPS to protect sensitive electronics during power outages.

Can I adjust the charging current?

Yes, the charging current is adjustable up to 30A (Max) through the smart LCD setup, allowing you to optimize charging based on your specific battery capacity.

Does this inverter support different battery types?

Yes, the GPSW-II series features selectable battery type settings (U0-U7) via the LCD monitor to ensure compatibility with various battery chemistries.

What are the available working modes?

It supports three main modes: Grid Priority (UPS mode), Battery Priority (Solar inverter mode), and Power Saver Mode (load detection output).

Does this unit include a solar charge controller?

No, this specific model is a power inverter with an AC charger. It does not have a built-in solar charge controller; however, it is designed to work seamlessly in off-grid solar systems.
