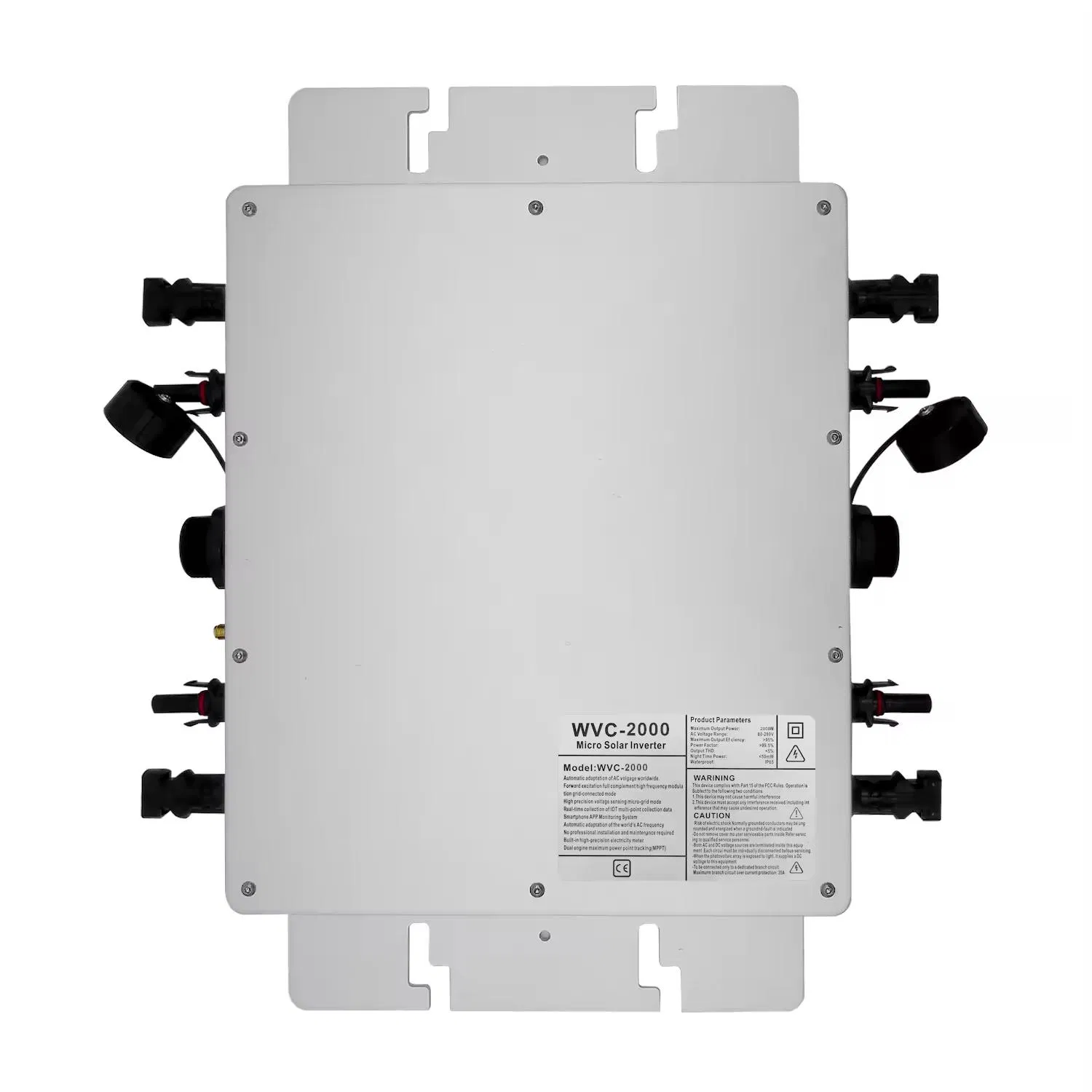

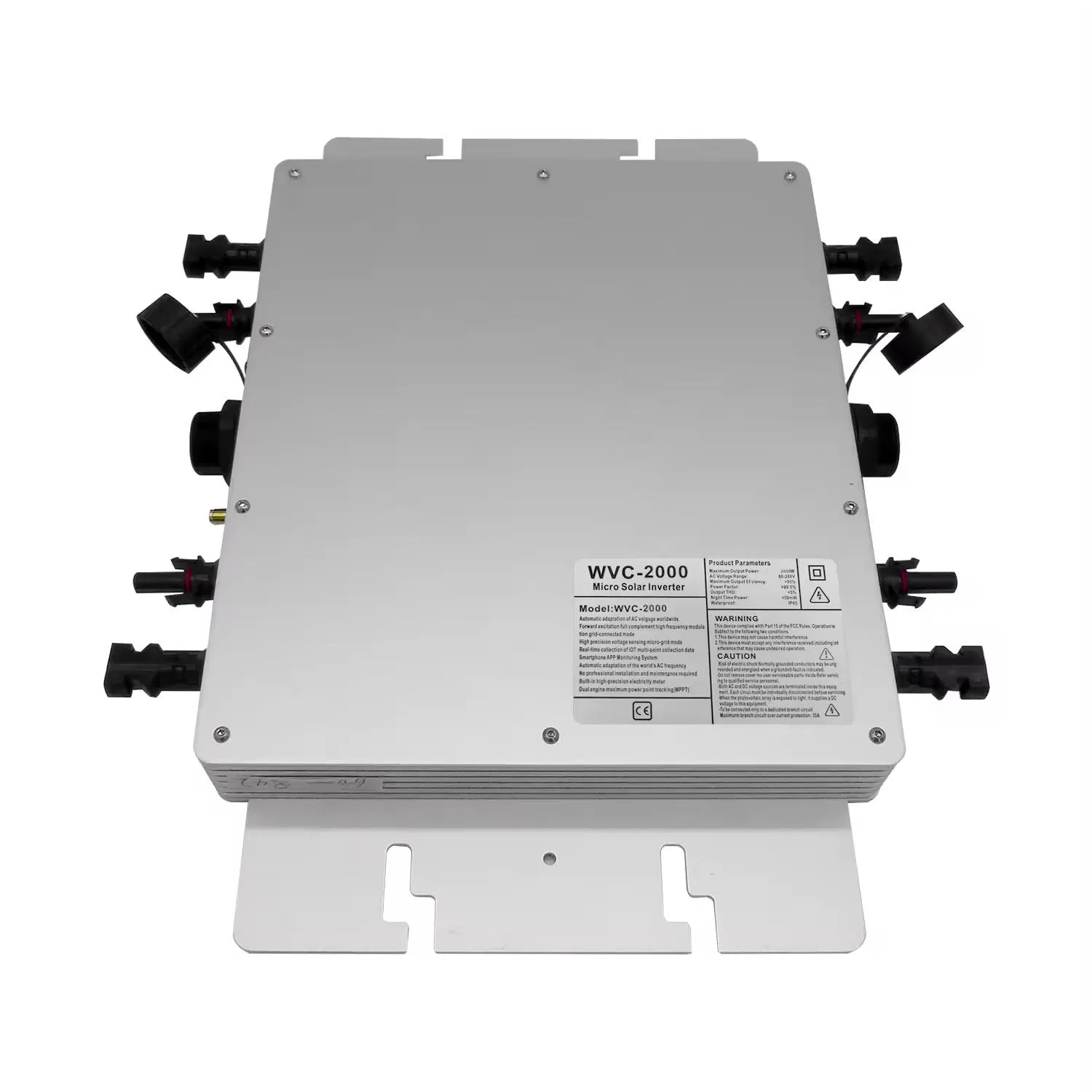

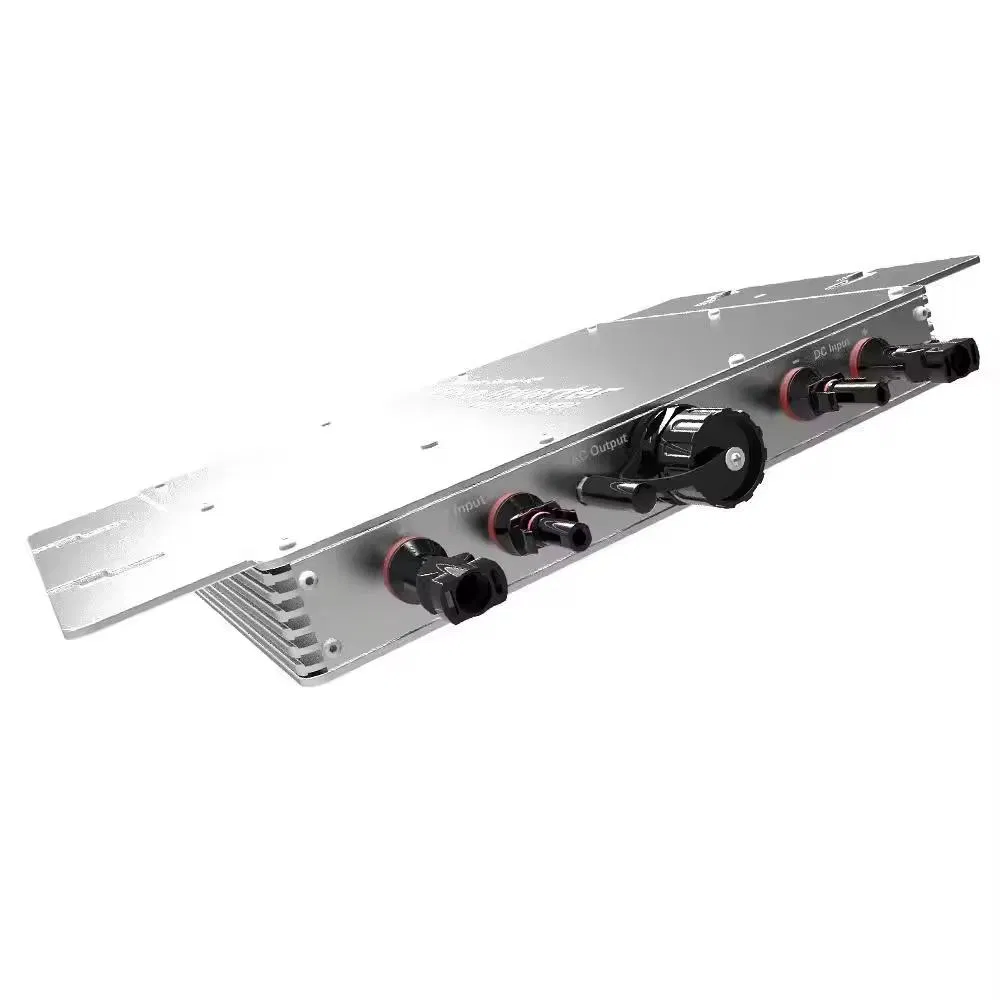

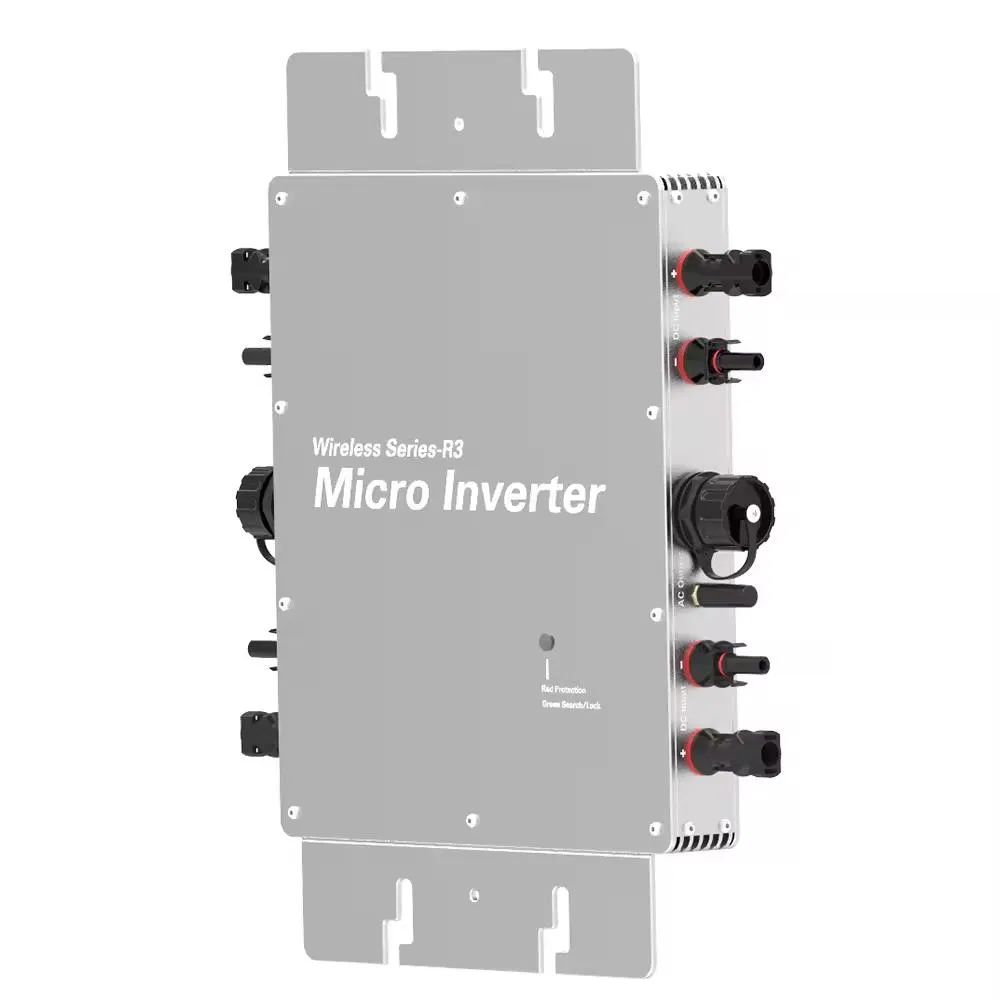

Cheap Golden Supplier Solar Micro Inverter System 2000W Deye Micro Inverter 2000W

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

i
Basic Information
Model NO.
WVC-2000
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, TUV
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Recommend Panels
4*875watt
Output Mode
120/230V Auto Switch
PV Open Circuit
30-54voc
Operating Range
22-60V
Short-Circuit Current
4*32A
Max Working Current
4*27A
Net Weight
3.0kg
Specification
370*300*41.6mm
HS Code
8504403090
P
Product Description

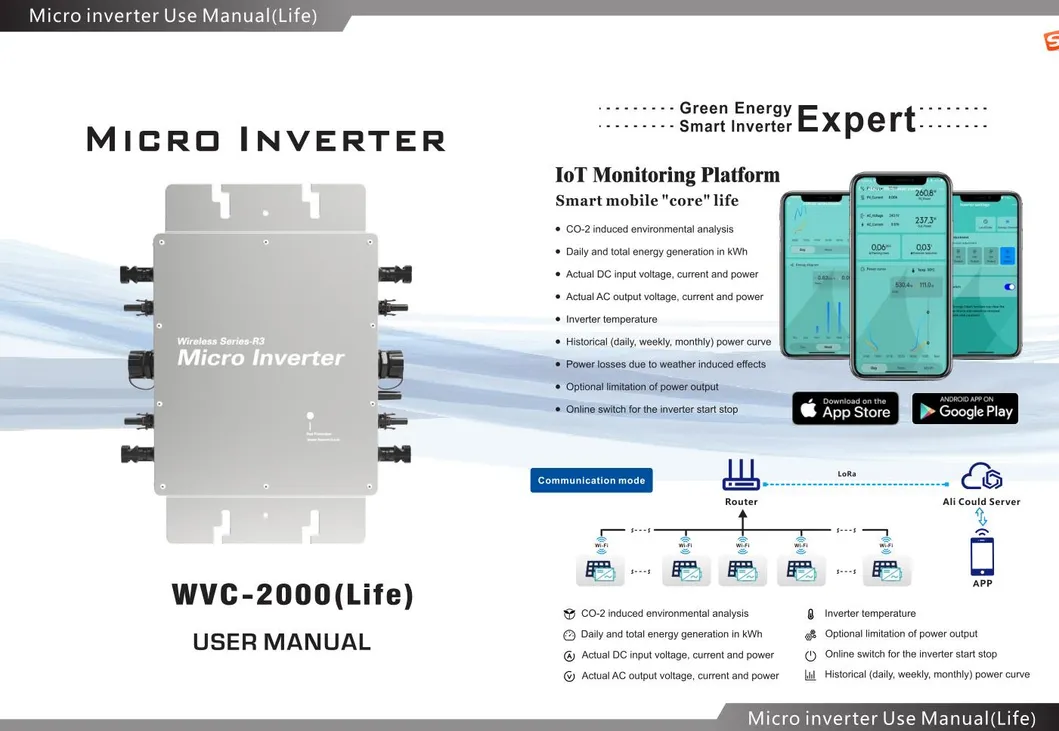

Solar Micro Inverter 2000W

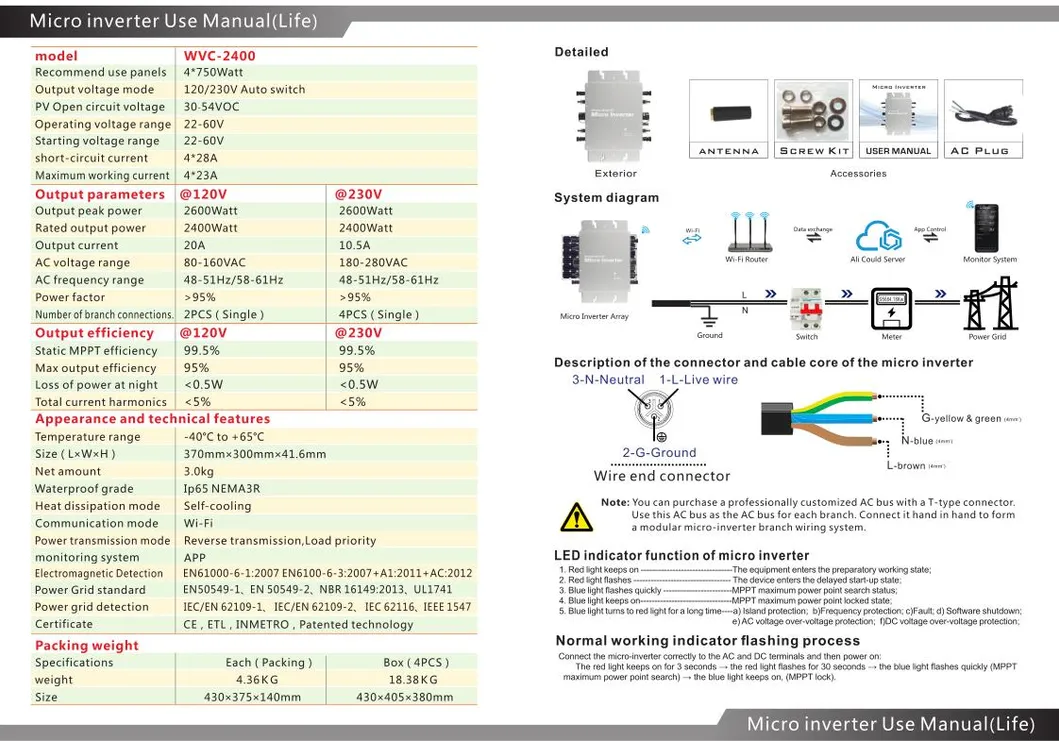

Solar Micro Inverter System

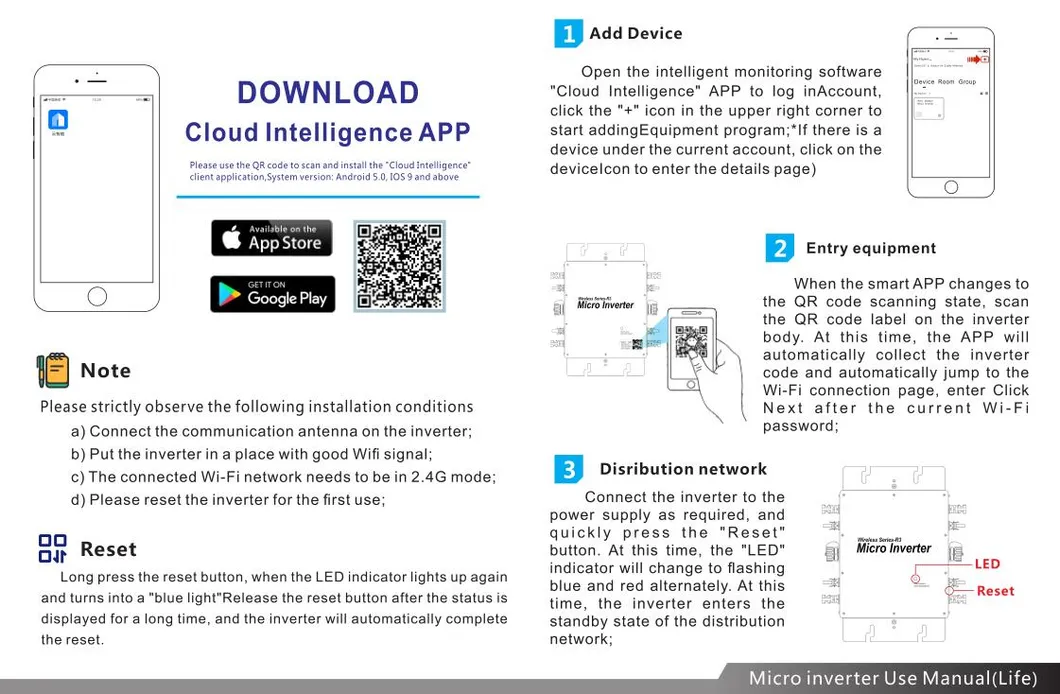

Micro Inverter 2000W Details

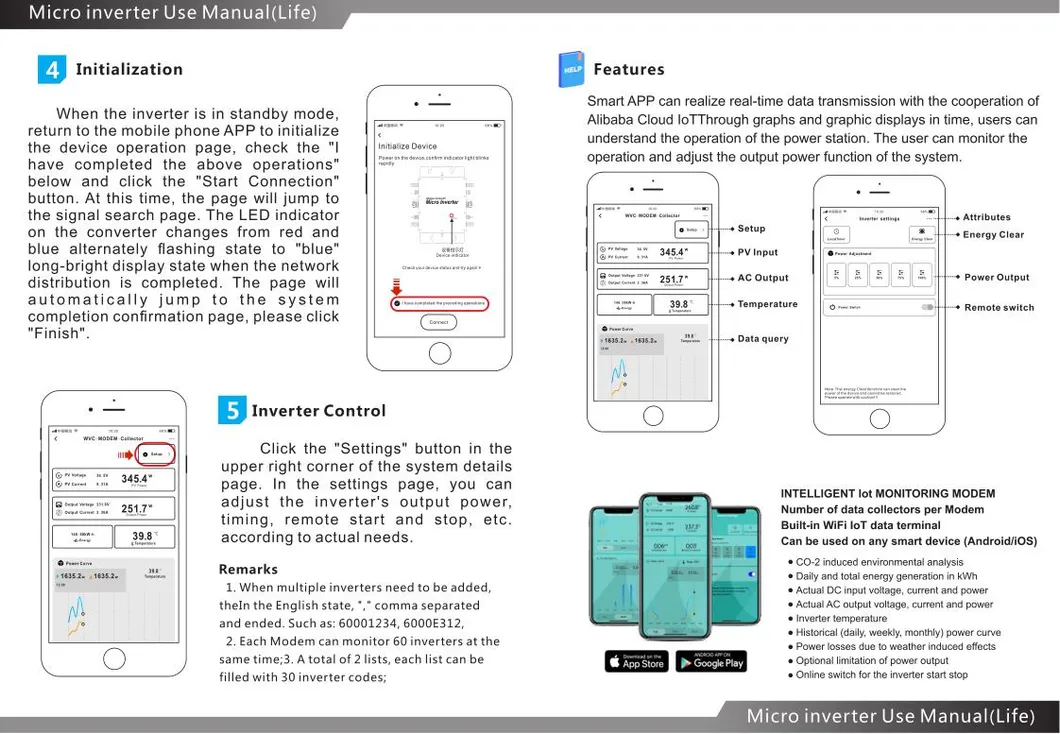

Solar Micro Inverter 2000W Unit
D
Detailed Photos

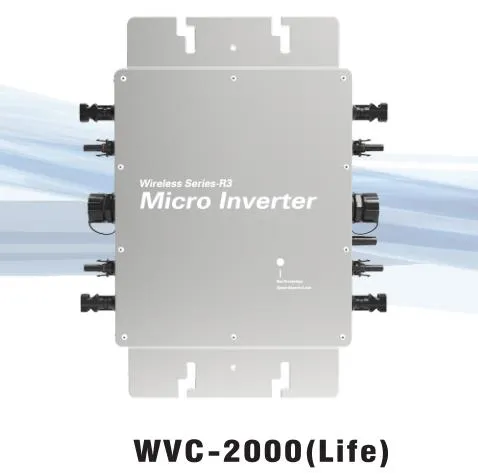

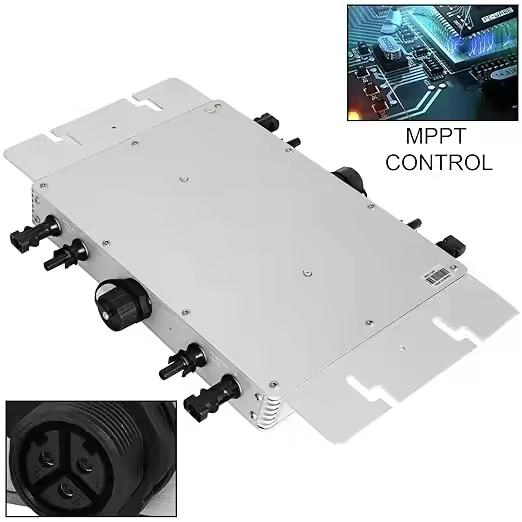

Detailed View 1

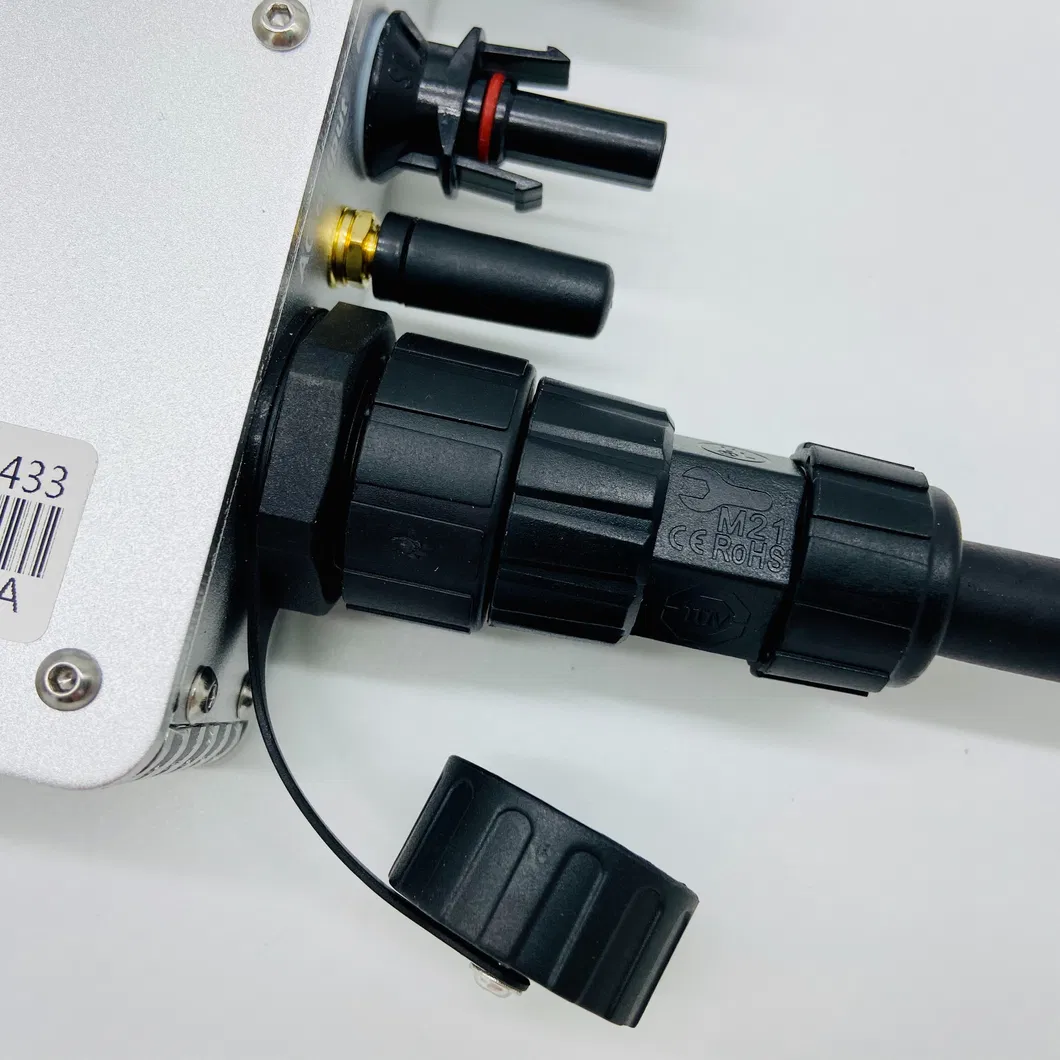

Detailed View 2

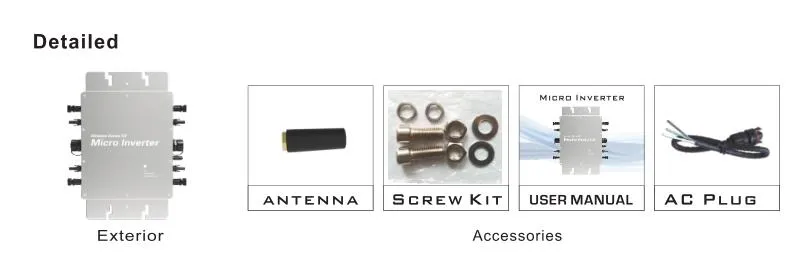

Technical Layout 1

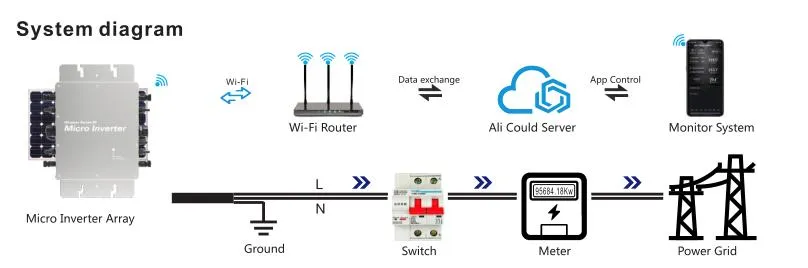

Technical Layout 2

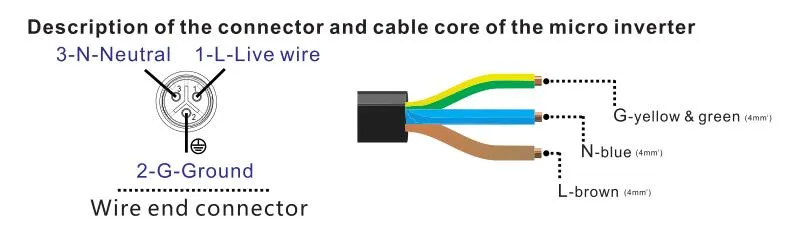

Technical Layout 3
S
Product Parameters
Output Parameters @120V @230V
Output Peak Power2200W2200W
Rated Output Power2000W2000W
Output Current16.6A8.7A
AC Voltage Range80-160VAC180-280VAC
AC Frequency Range48-51Hz/58-61Hz48-51Hz/58-61Hz
Power Factor>95%>95%
Branch Connections2PCS(Single)4PCS(Single)
Efficiency & Performance @120V @230V
Static MPPT Efficiency99.5%99.5%
Max Output Efficiency95%95%
Loss of Power at Night<0.5W<0.5W
Total Current Harmonics<5%<5%
L
Packaging & Shipping
Package Size
43.00cm * 37.50cm * 14.00cm
Gross Weight
4.360kg

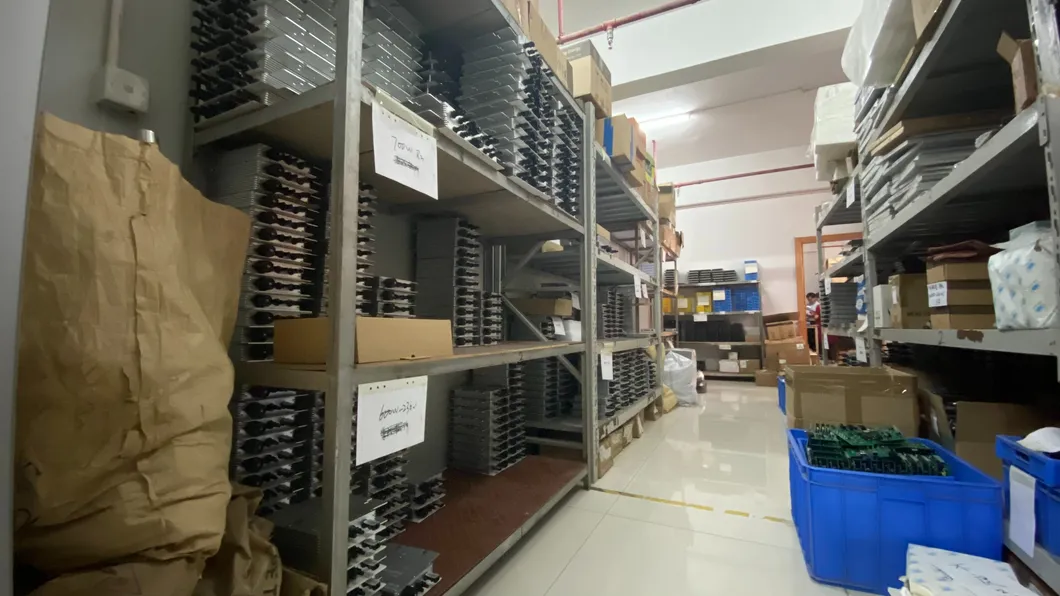

Packaging Box

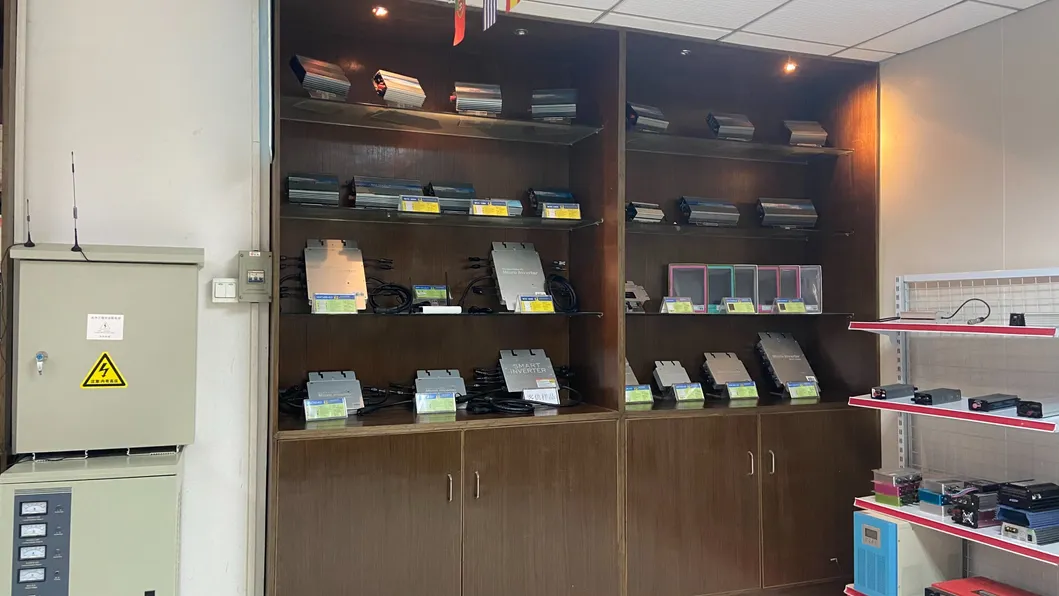

Shipping Protection
Internal Packaging
Final Package
?
Frequently Asked Questions
What is the cost of a photovoltaic power generation system?
The cost varies depending on factors such as scale, brand, and installation location. A specific quotation can be provided based on your requirements.
What is the lifespan of a photovoltaic power generation system?
The lifespan of panels is generally 25-30 years, while inverters last about 10-15 years, depending on usage and maintenance.
How much maintenance do these systems require?
Maintenance is simple: regularly clean the panels and check the system's operating status for optimal performance.
How much will I save on electricity bills after installation?
Savings depend on system scale, generation efficiency, and usage. Generally, these systems significantly reduce electricity expenses.
What types of buildings are suitable for solar installation?
Residential, commercial, and industrial structures are all suitable, provided the location has sufficient sunlight exposure.
How long does it take to install the system?
Residential installations typically take 1-3 days, while commercial or industrial systems may take several weeks depending on complexity.
