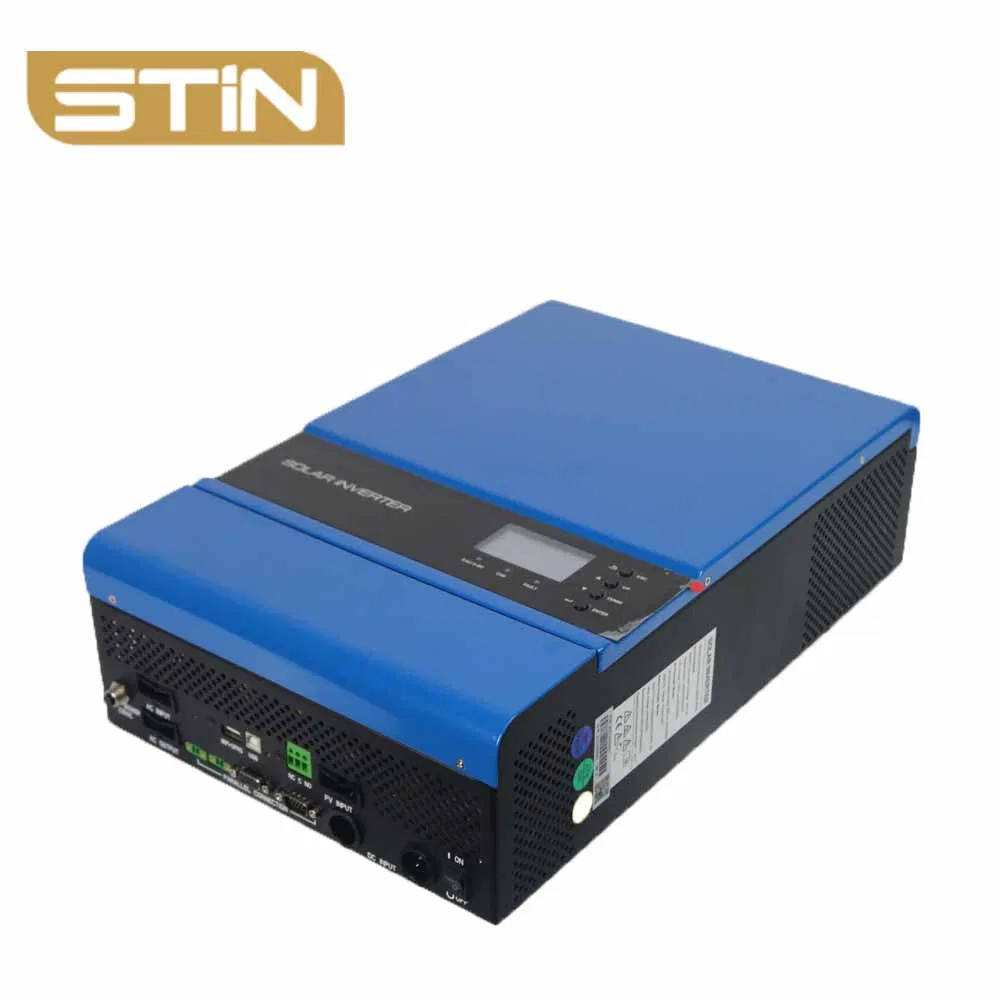

Stin DC/AC Inverters Deye off Grid Micro Power Supply Solar Inverter Factory

Customization: Available
Nature of Source Flow: Passive inverter
Phase: Single

Product Description

Overview
Description
Parameters
Profile
FAQ
Basic Information
Output Power
2kw 3kw 4kw 5kw
Certification
CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Transport Package
Wooden Box
HS Code
8504403090
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
60.00cm * 40.00cm * 20.00cm
Package Gross Weight
30.000kg
Product Description

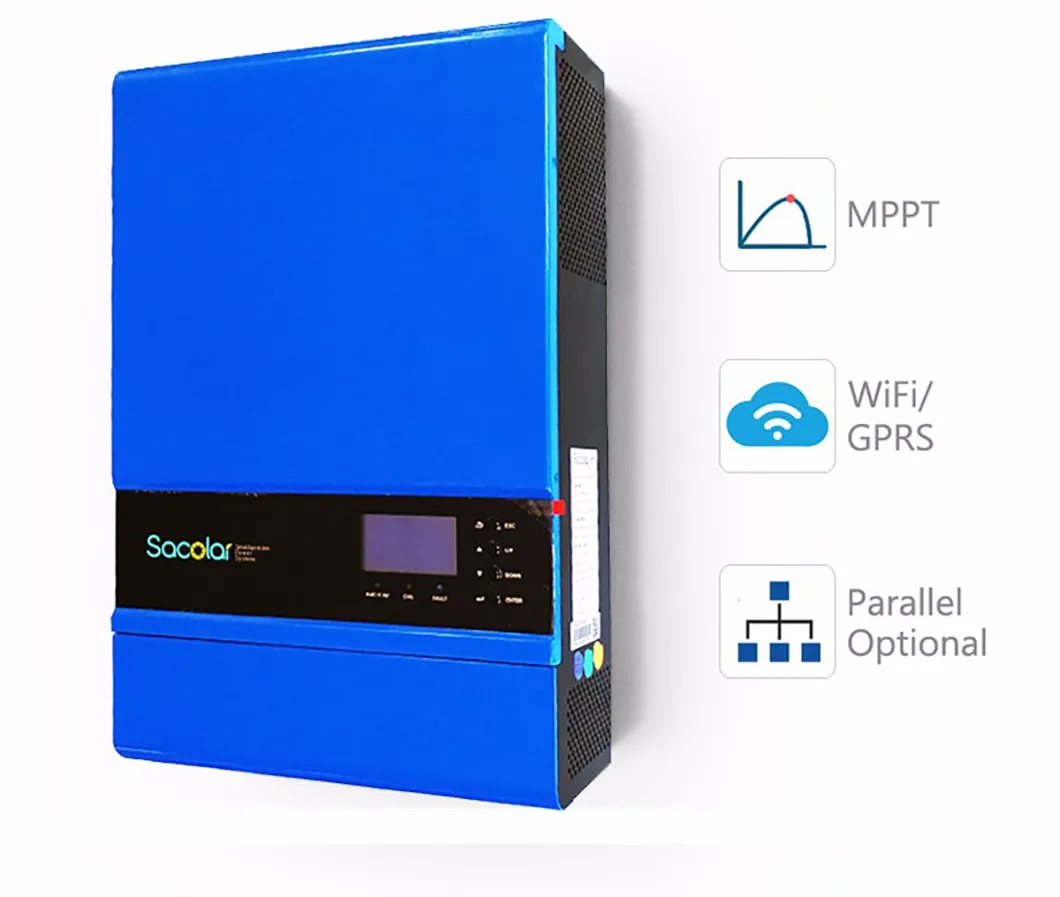

Rated power 2KW to 5KW
MPPT solar charge controller to maximize the solar output
High frequency inverter with small size and light weight
Pure sine wave AC output
Overload, short circuit and deep discharge protection
Configurable AC/ solar input priority via LCD setting
Compatible to mains voltage or generator power

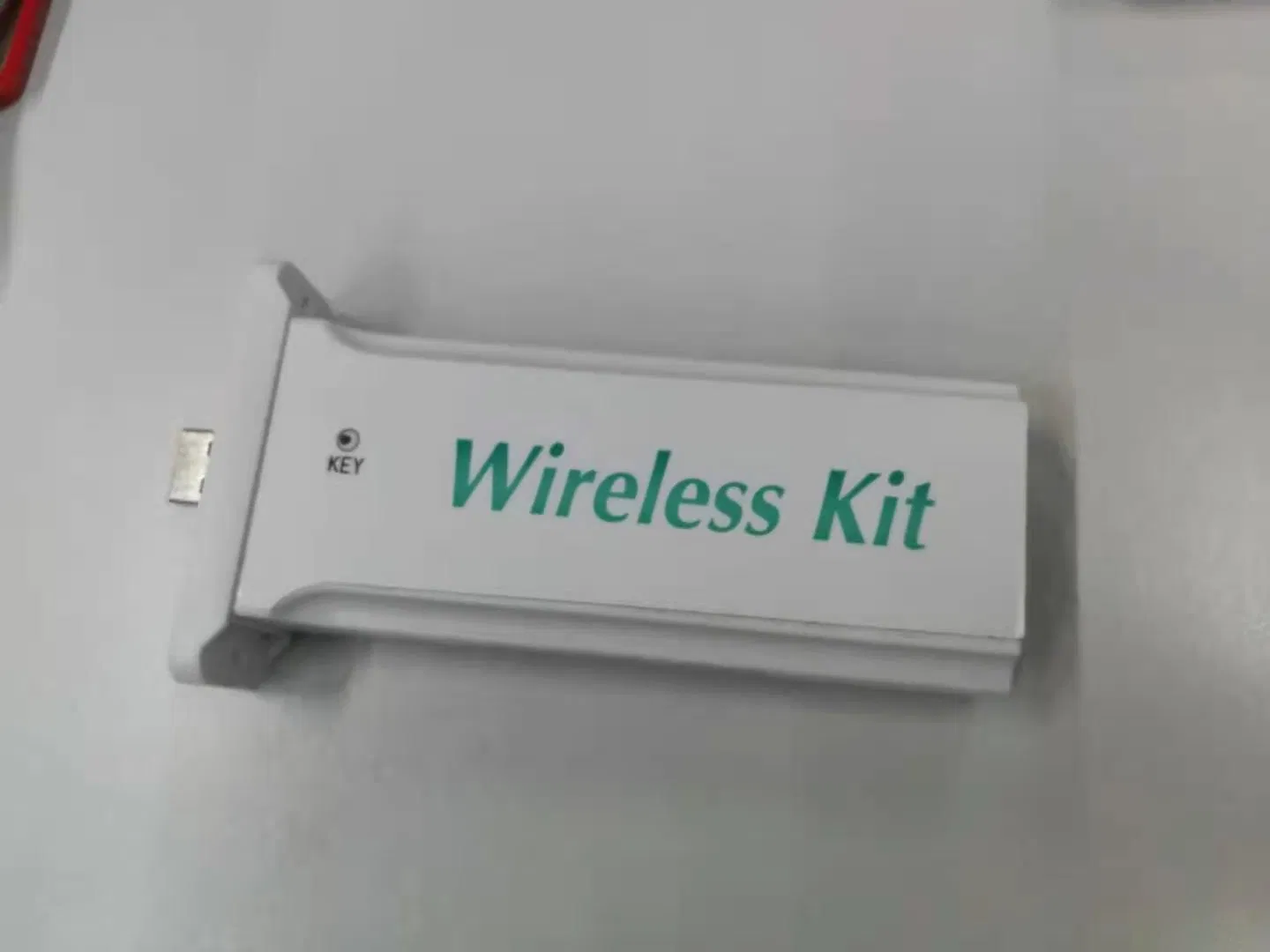

WIFI/ GPRS remote monitoring (optional)
Parallel operation for 4KW/5KW models

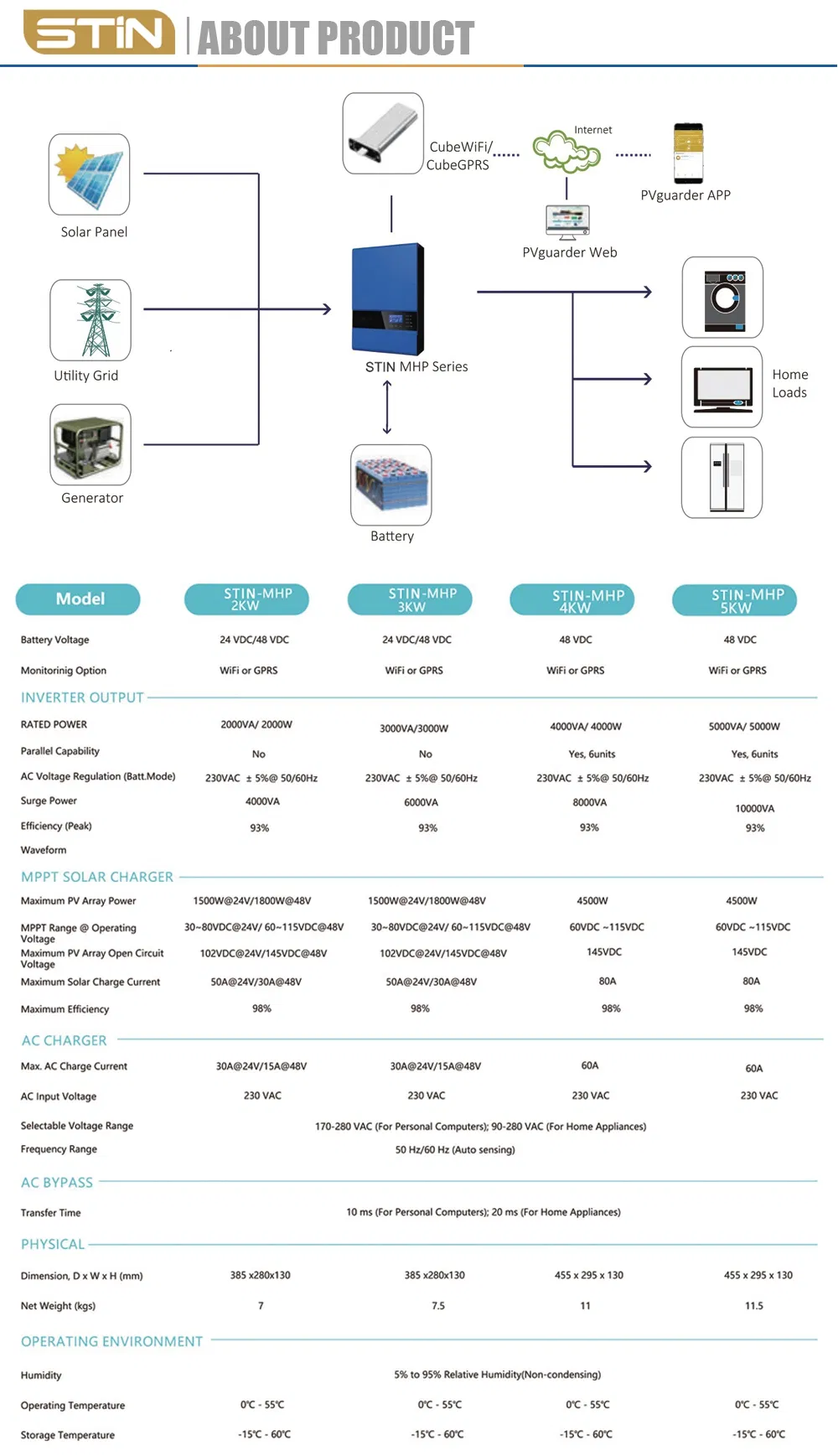

Product Parameters
MPPT Controller Series
Model 2KW 3KW 4KW 5KW
Max. PV Power 1000W 1000W 4000W 4000W
Max. PV Charge Current 40A 40A 80A 80A
AC Charge Current 30A 30A 60A 60A
PWM Controller Series
Input / Output Voltage DC 24V / AC 220V DC 24V / AC 220V DC 48V / AC 220V DC 48V / AC 220V
Max. PV Power 1200W 1200W 2400W 2400W
Max. PV Charge Current 50A 50A 50A 50A
AC Charge Current 30A 60A 60A 60A
About Our Mission
Nowadays, the world is faced with instability of nuclear power generation and environment problems. We are targeted on being a Total Solution provider based on clean sustainable solar energy. Our scope includes polysilicon, ingot, wafer, cell, and module production, as well as PV Equipment, EPC, and O&M services.
We are making an effort for the whole world's green energy independence. Starting with high-quality raw material supplies and providing residential solutions to various regions, we keep solving global environmental problems by recognizing the importance of green energy and protecting precious ecological values.

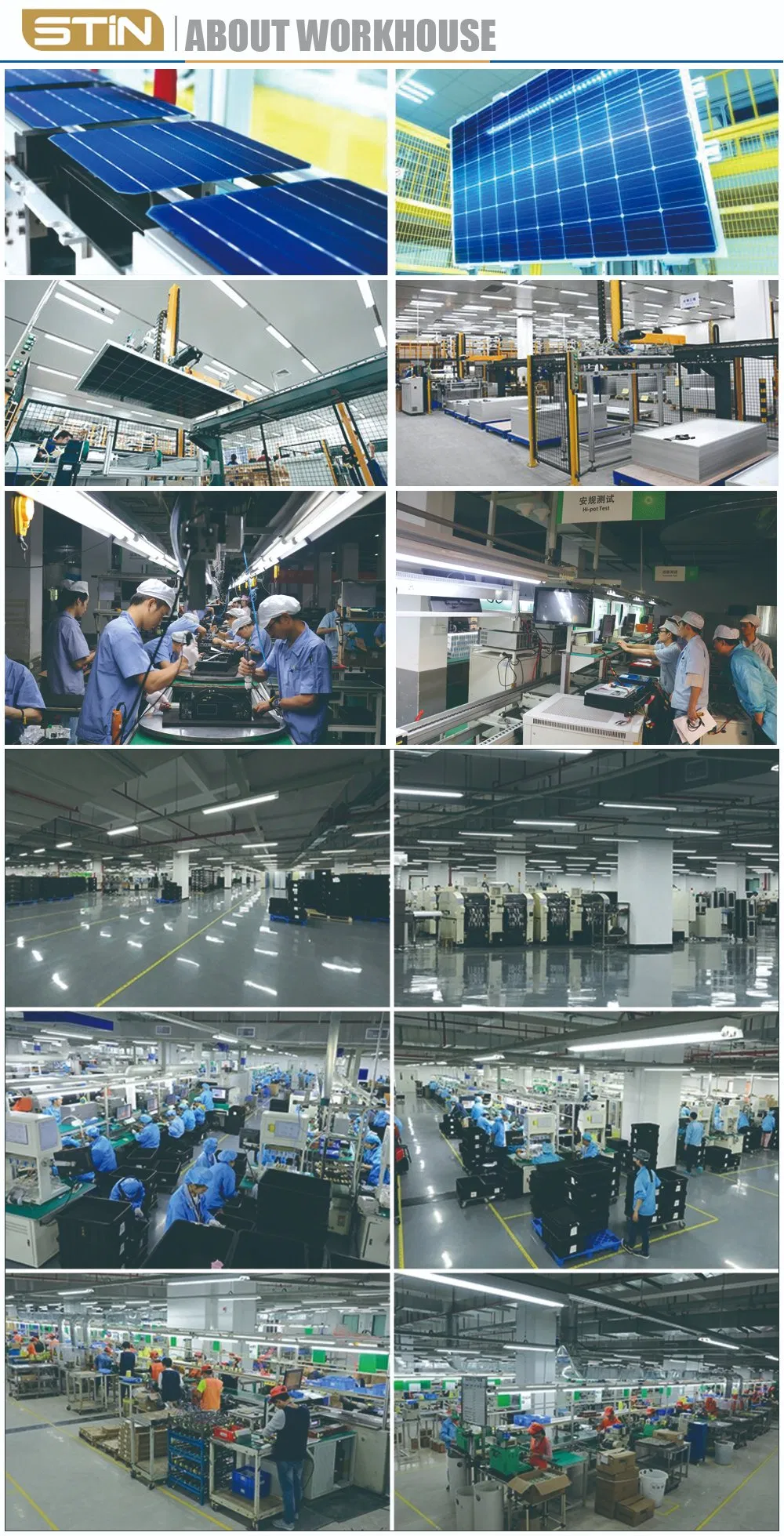

Company overview
Frequently Asked Questions
What are your main products?
Solar panel mono and poly, solar battery gel and lithium-ion, solar system on grid and off grid, solar inverter on grid and off grid, solar charge controller MPPT and PWM.
What is your advantage in solar products?
We have been in the solar industry for more than 10 years and accumulated rich experience. Full support can be supplied from design to installation.
Can you send samples?
It depends on the type of products. Normally the sample fee will be returned after you place a massive order.
What is the shipping cost?
After confirming the quantity and preferred mode of transportation (sea, air, or express), we will provide you with the specific shipping cost and estimated time.
What is your minimum order quantity?
Our minimum order quantity starts from 1 piece.
What payment methods are accepted?
We accept T/T, L/C, Paypal, and Western Union.
