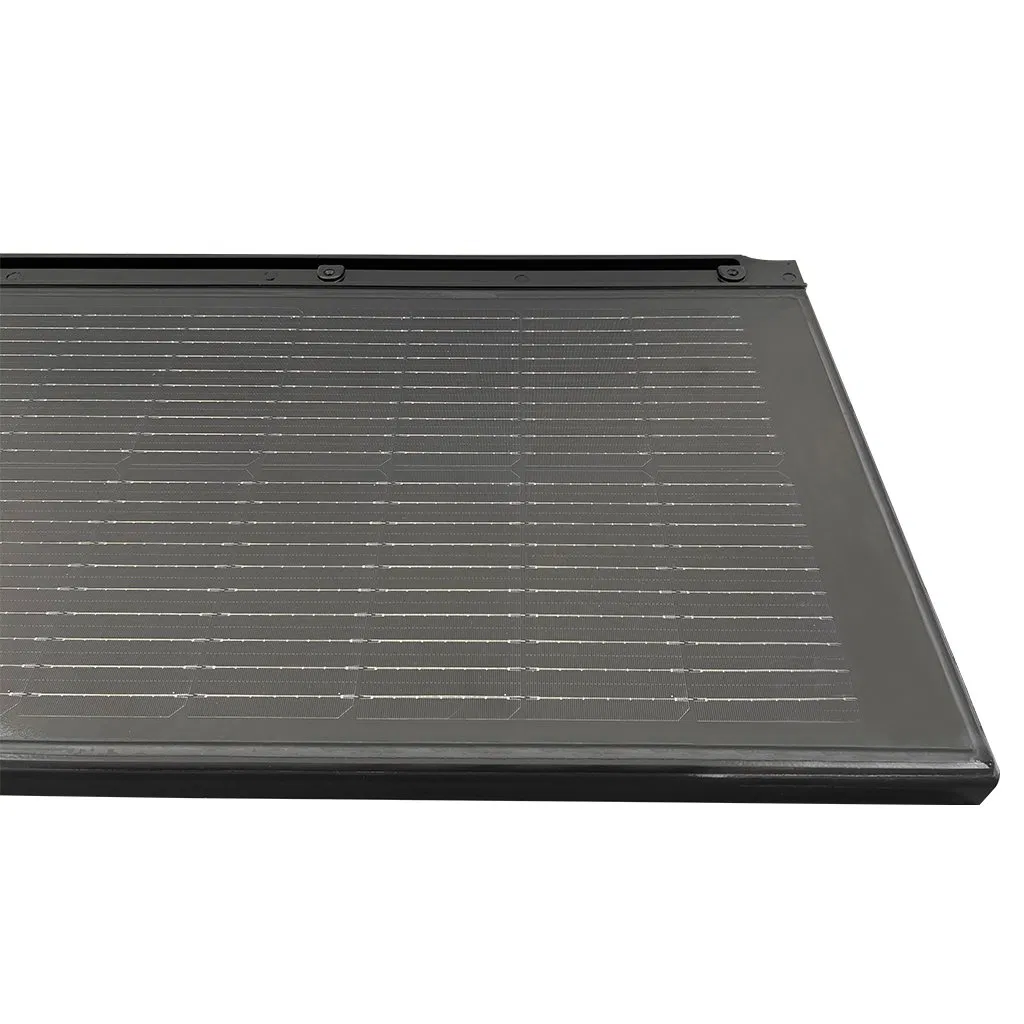

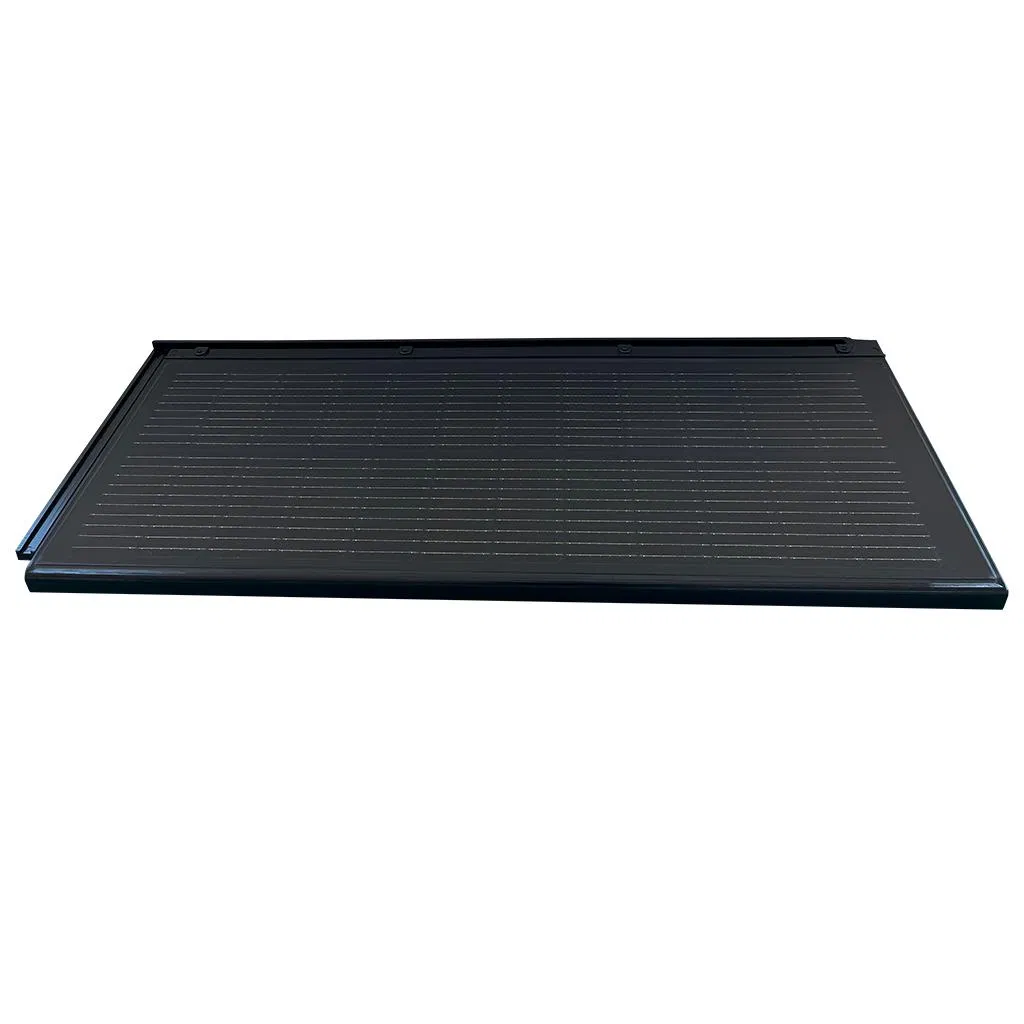

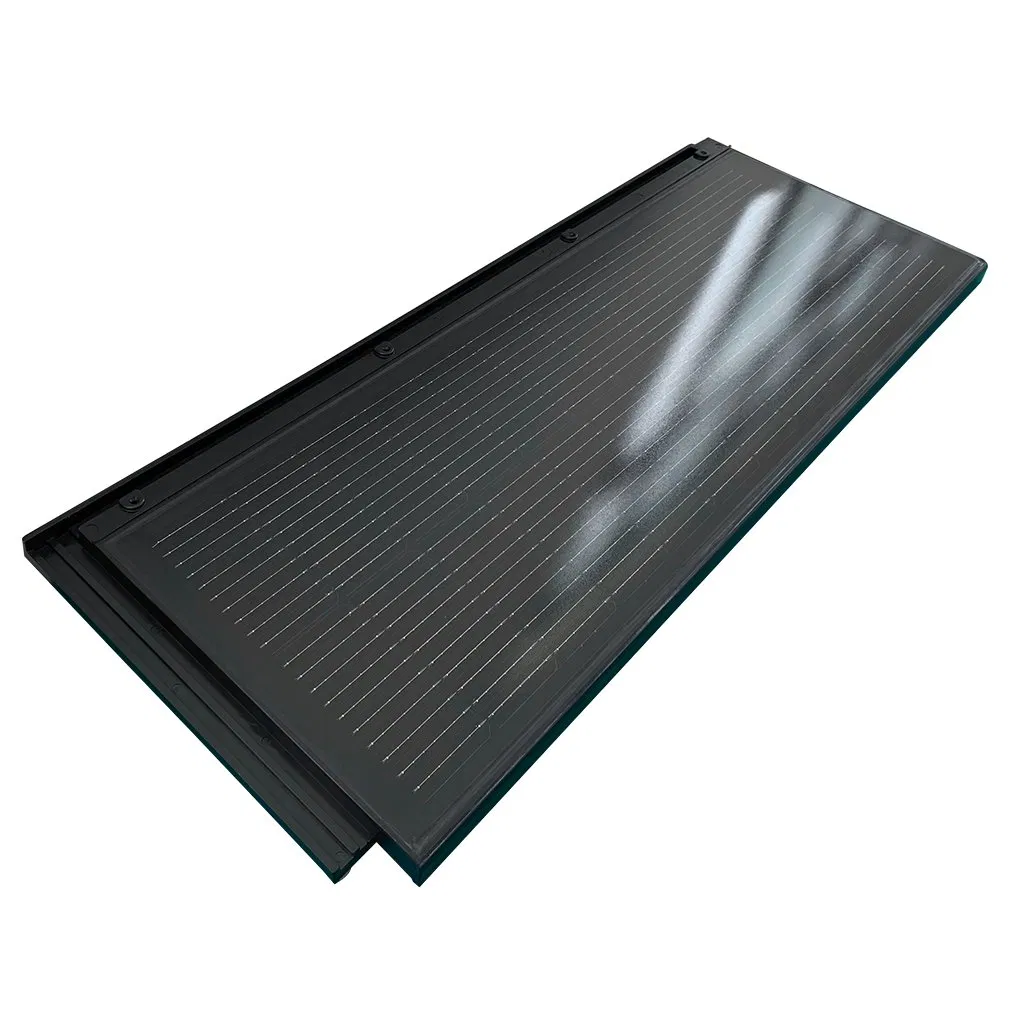

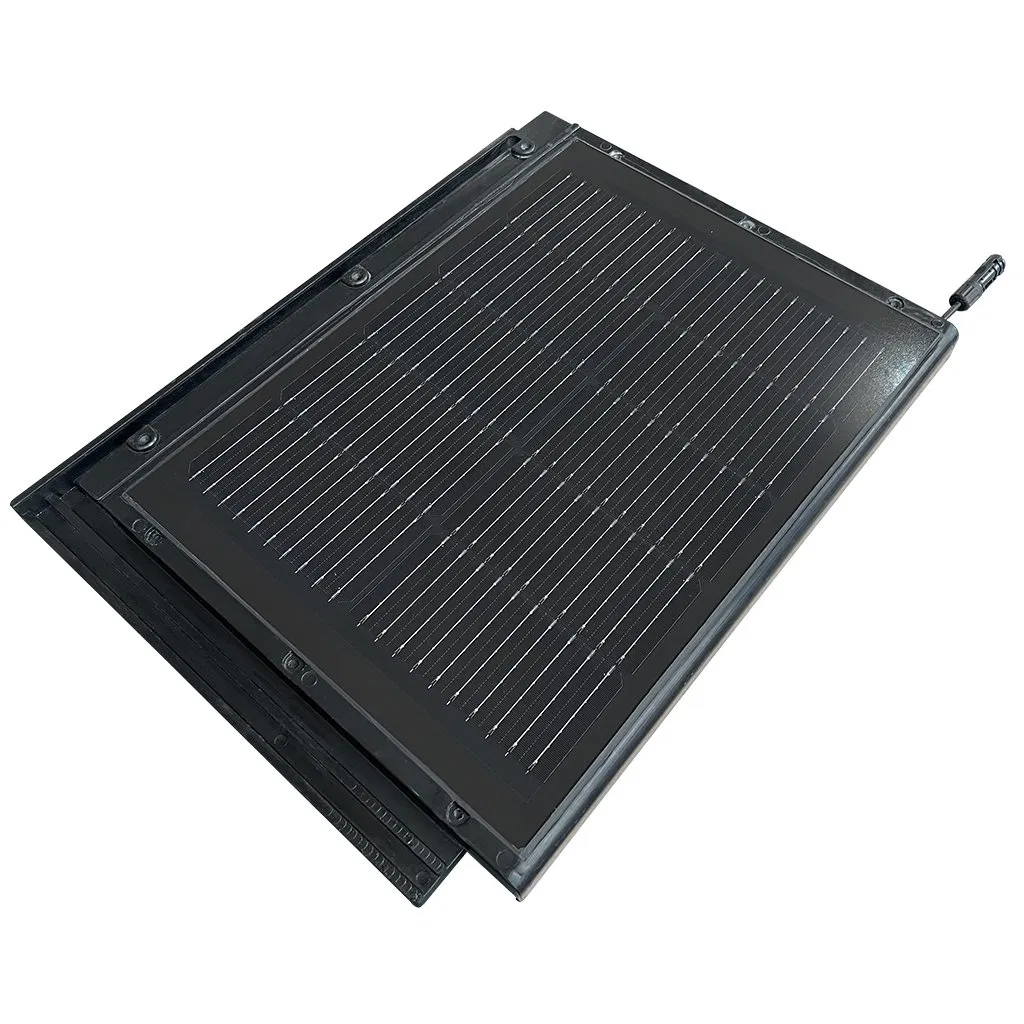

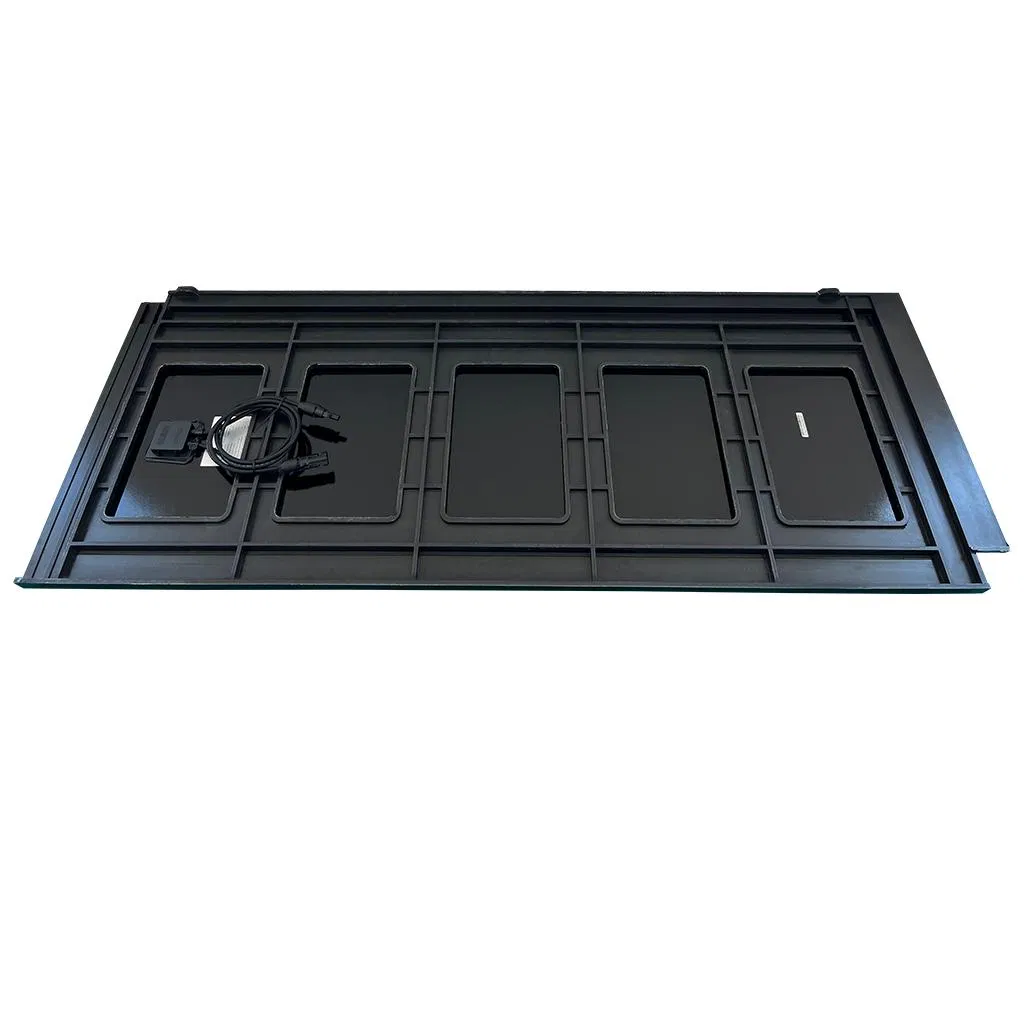

New Arrival Durable Glass 87W 35W Solar Roof Tiles Roofing Material

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Material
Glass Monocrystalline Silicon
Type
Plain Roof Tiles
Shape
Plain
Size
1000*1000mm
Color
Black
Customized
Non-Customized
Gross Weight
47.2kg
Carton Size
1340X1080X660mm
PCS/Carton
26PCS
Transport Package
Wooden Box
Specification
1260*480mm

Product Description

Solar Roof Tiles Banner
Solar Roof Tiles Detail

Technical Specifications

Dimensions630 * 480 mm1260 * 480 mm
Weight9 kg16.5 kg
Glass Thickness3.2 mm3.2 mm
Cell Layout182*91 (2*5)182*91 (5*12)
Protection Rating≥IP67≥IP67
Cable Length450/4²900/4²
ConnectorMC4MC4
Max Load>30>30
Power (W)35 W87 W
Operating Temp-40°C to +85°C-40°C to +85°C
Fire RatingClass AClass A

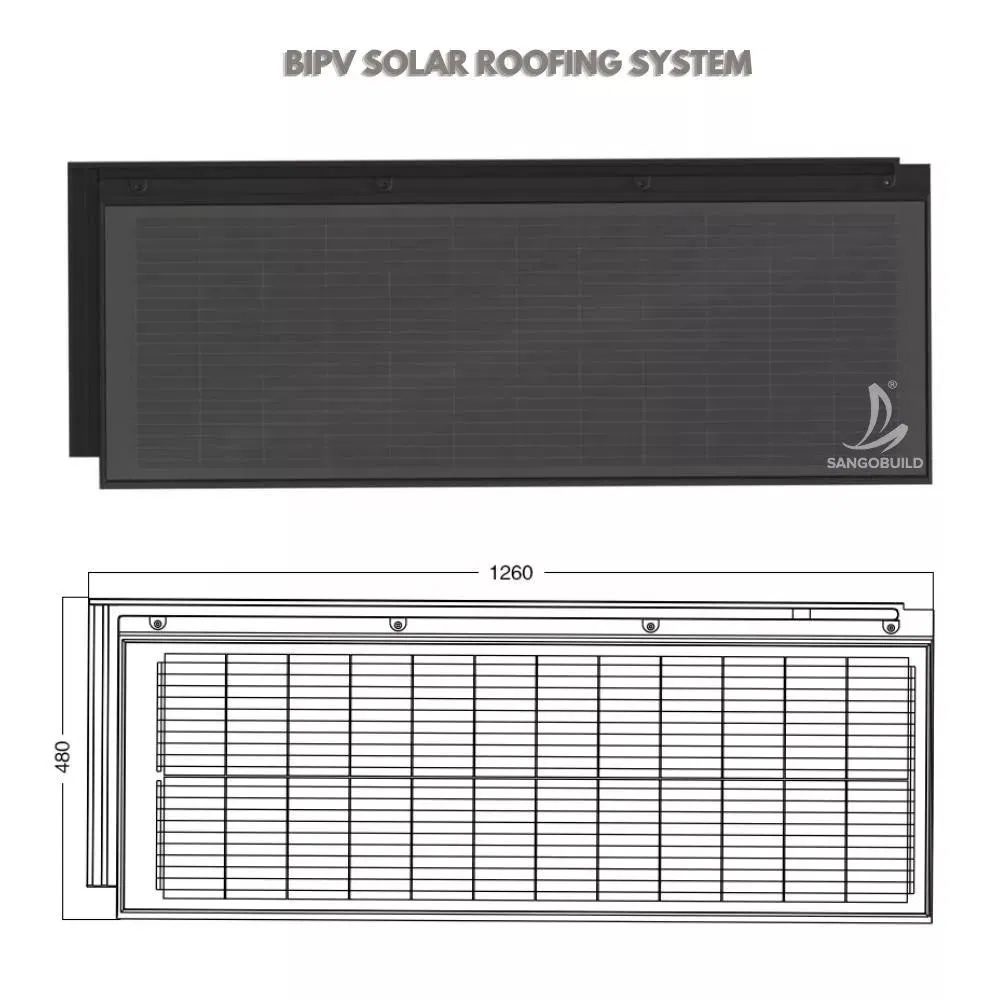

Solar Tile Showcase 1

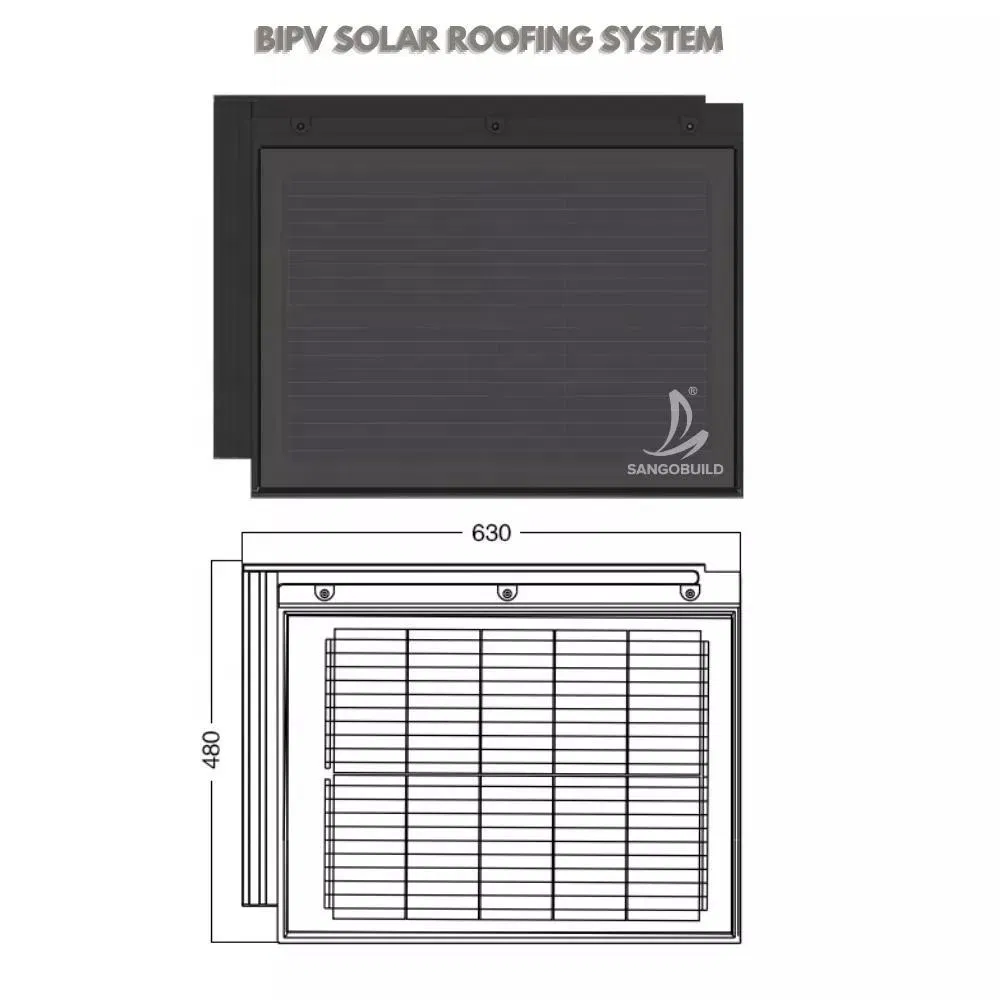

Solar Tile Showcase 2
🚀

Features & Advantages

Features 1

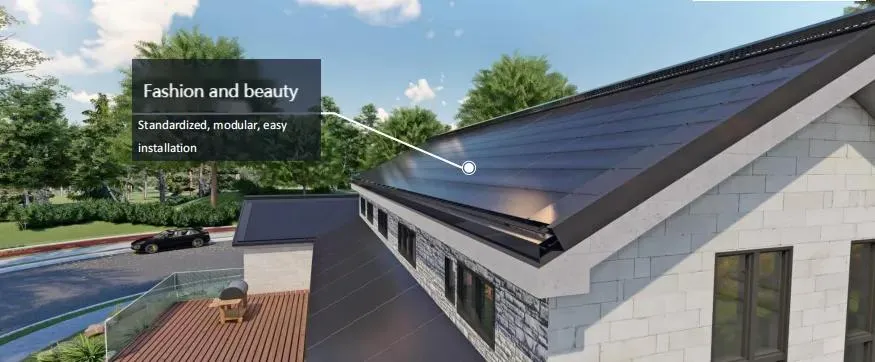

Features 2

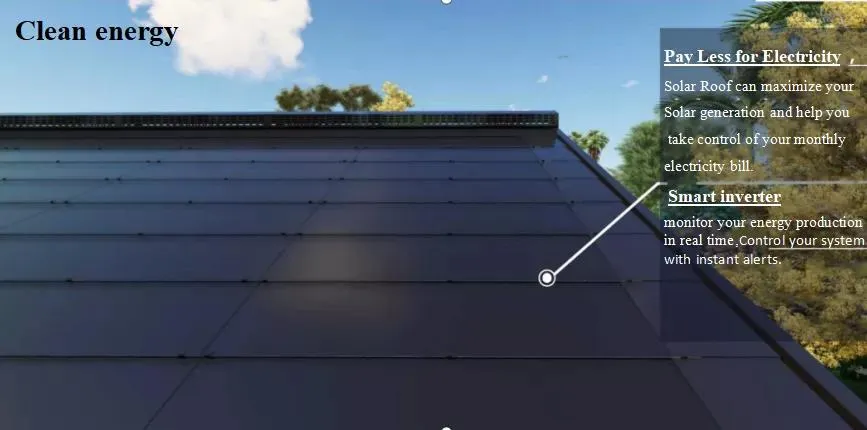

Features 3
Advantage Diagram
Beautiful Aesthetics: Seamlessly fits with BIPV high-quality micro concrete flat tiles, appearing virtually invisible.
Long Lifespan: Designed for at least 30 years of operation with high-quality tested materials.
High Efficiency: Optimized solar conversion for maximum power output.
Affordable: Quick assembly makes them ideal for both new construction and renovation.
Property Value: Increases home value through modern aesthetics and renewable energy generation.
Easy Fitting: Available in multiple widths to accommodate various roof designs.
🏠

Real-World Projects

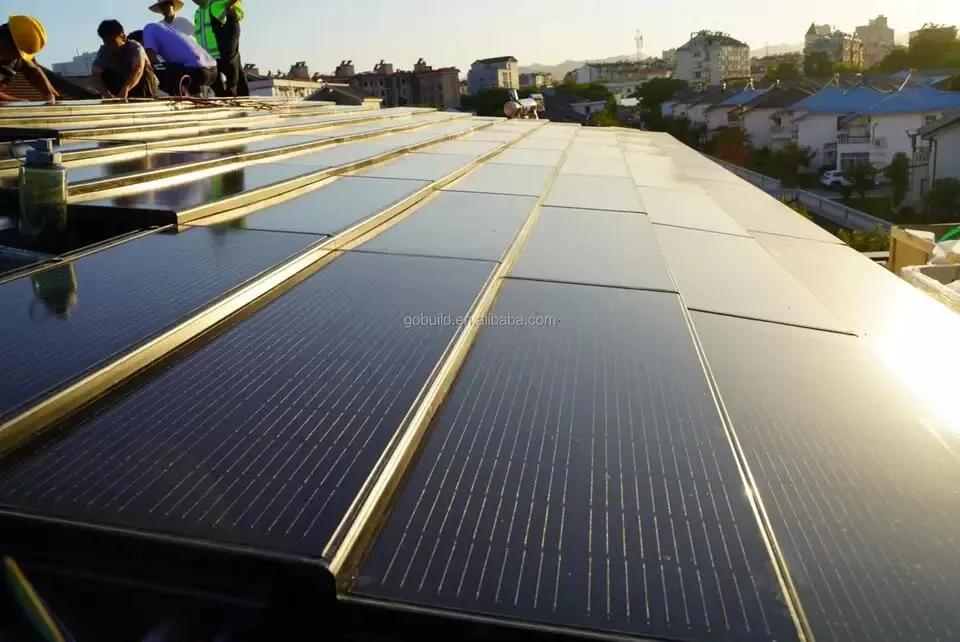

Project 1

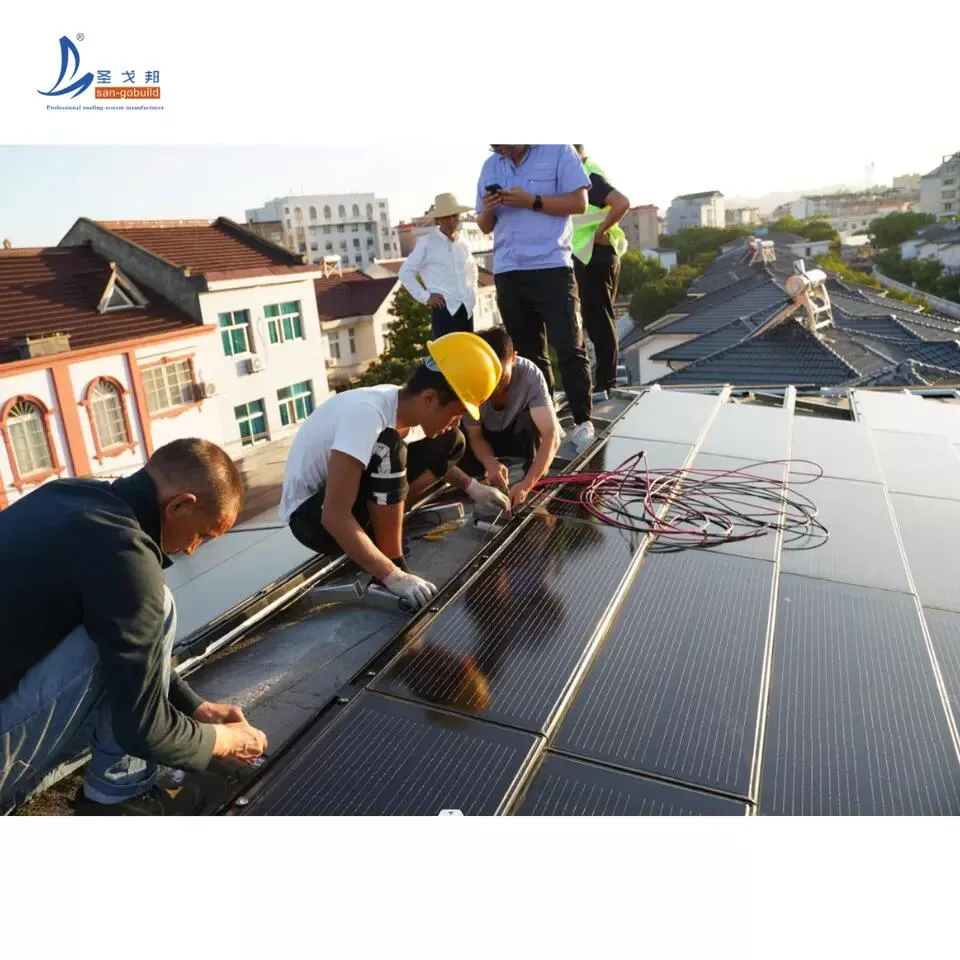

Project 2

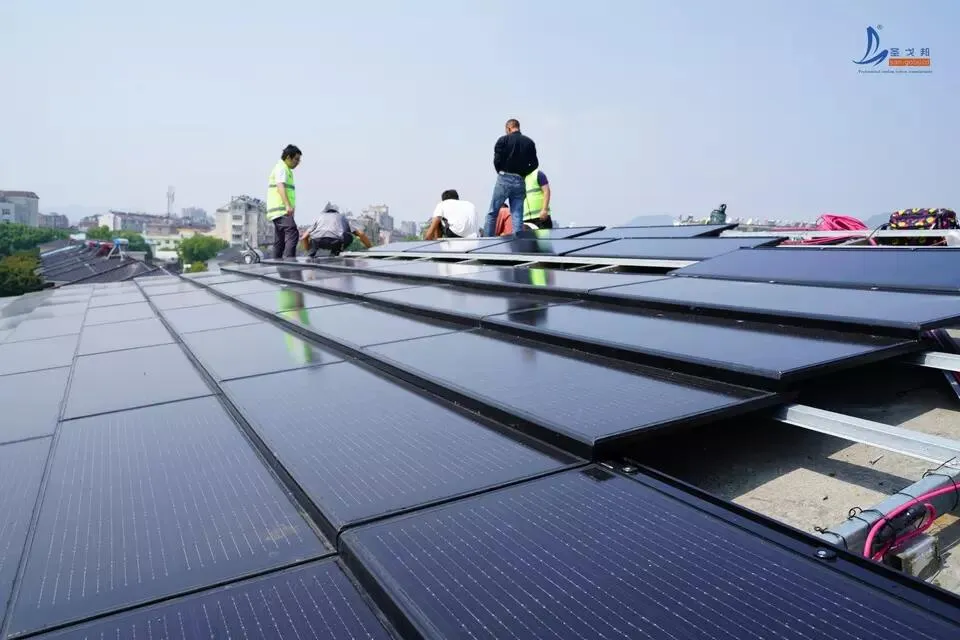

Project 3
📦

Product Packing

Product TypeSolar roof tile
Product Size1260*480mm / 630*480mm
Unit Weight17kg
PCS/Carton26pcs
Carton Size1340X1080X660mm
Net Weight442kg
Gross Weight472kg

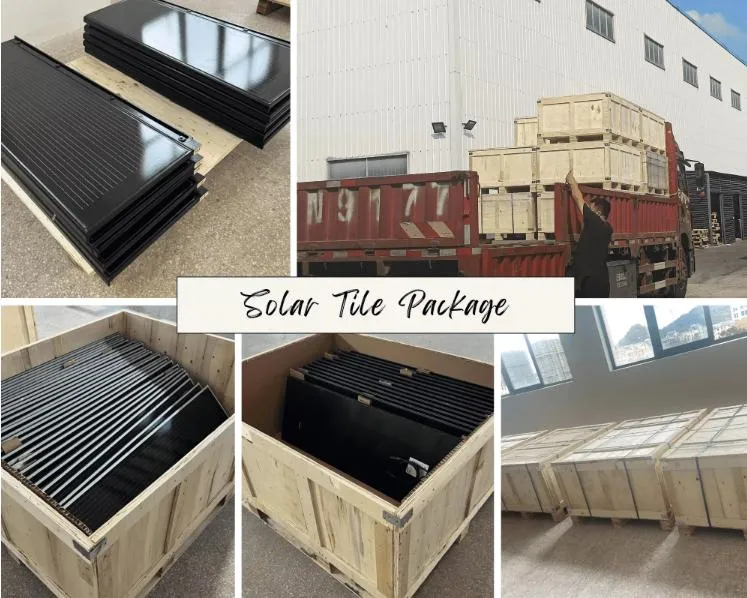

Packaging Detail

Frequently Asked Questions

Where can you install Building Integrated Photovoltaics (BIPV)?
Essentially anywhere sunlight directly hits the exterior of your home. BIPV products can be integrated into the building envelope seamlessly as part of façades, roofs, or windows.
What types of BIPV products are available for homeowners?
BIPV products include solar panels, tiles, or shingles that replace traditional roofing. They serve a dual purpose: acting as the building skin (providing weather protection and insulation) while converting solar energy into electricity.
How much energy can BIPV systems produce?
Production depends on environmental factors including local solar radiation (insolation), climate conditions, and shading from trees or nearby structures. High air pollution in urban areas may also affect maximum efficiency.
Are BIPV systems worth the investment?
Yes, because they serve a double function. By replacing traditional materials like asphalt shingles with solar shingles, homeowners can discount the cost of a new roof from their solar installation investment while increasing usable space for energy generation.
How long do BIPV solar roof tiles typically last?
Most solar tiles and shingles are designed to last 25-30 years. They are often more durable than traditional materials; for instance, while asphalt roofs may last 15 years, solar shingles maintain efficiency for over 25 years.
What is a solar shingle and how does it differ from panels?
Solar shingles are mini solar panels designed to resemble and function like conventional roofing materials (such as slate or asphalt). They offer a more traditional appearance for homeowners who prefer a less conspicuous solar installation.
