| Model NO. | JS35DG-5e 1/2 / JS87DG-12e 1/2 |
| Number of Cells | 60 Cell Standard |
| Application | Home |
| Condition | New |
| Certification | ISO, CE |
| Material | Monocrystalline Silicon |
| Product Name | BIPV Roofing Tiles Solar Roof System |
| Row Material | Tempered Glass, PVB/EVA/Pob, Solar Cell, Bottom Support |
| Weight | 9kg/16.5kg |
| Power Output | 35W/87W |
| Maximum System Voltage | 1500V |
| Maximum Load | 5400PA/2400PA |
| Main Market | Europe, Australia, The Middle East |

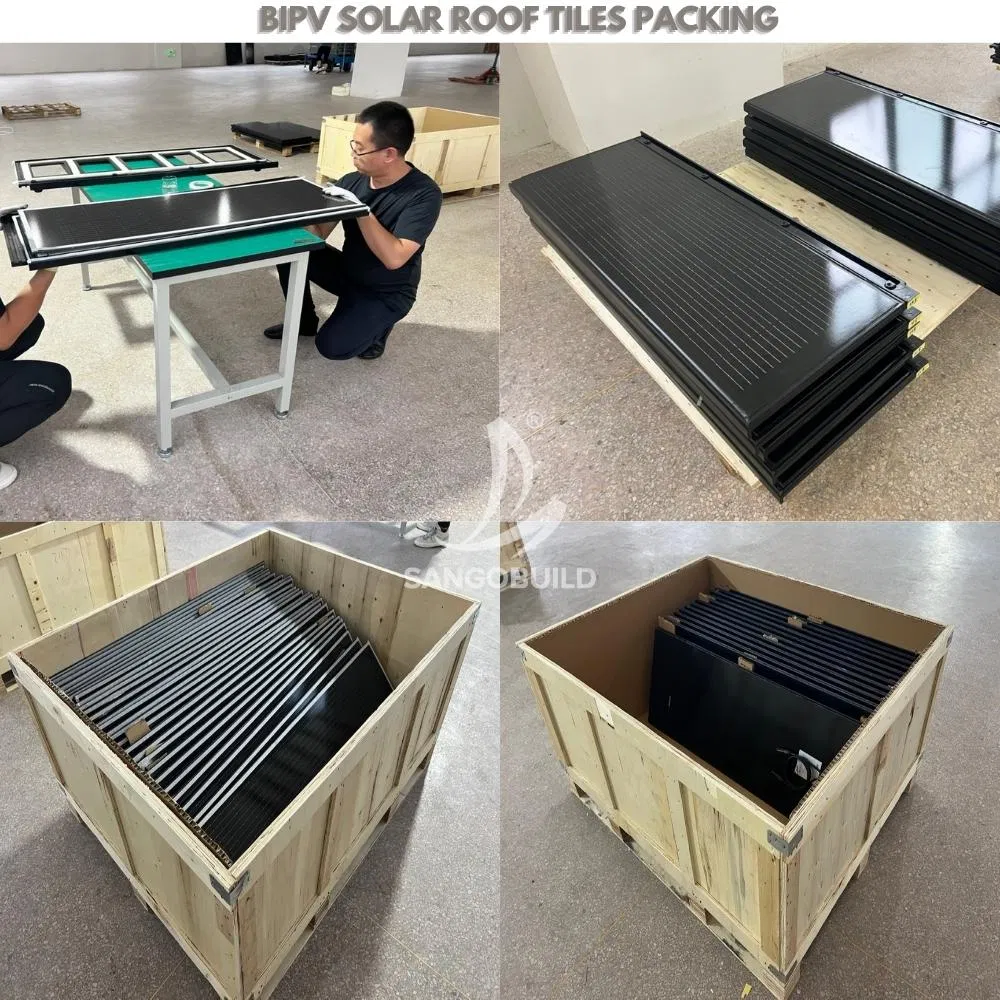

| Transport Package | Wooden Box Package |
| Specification | 630mm*480mm/1260mm*480mm |

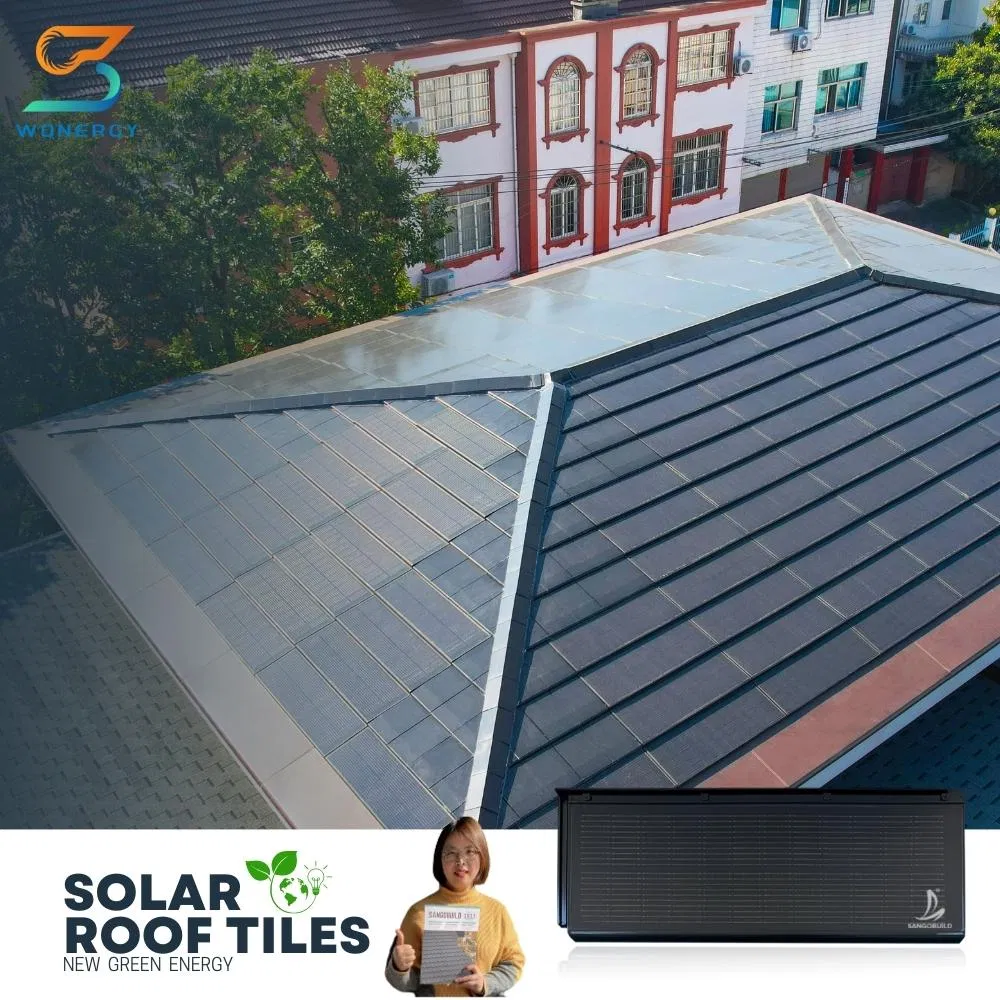

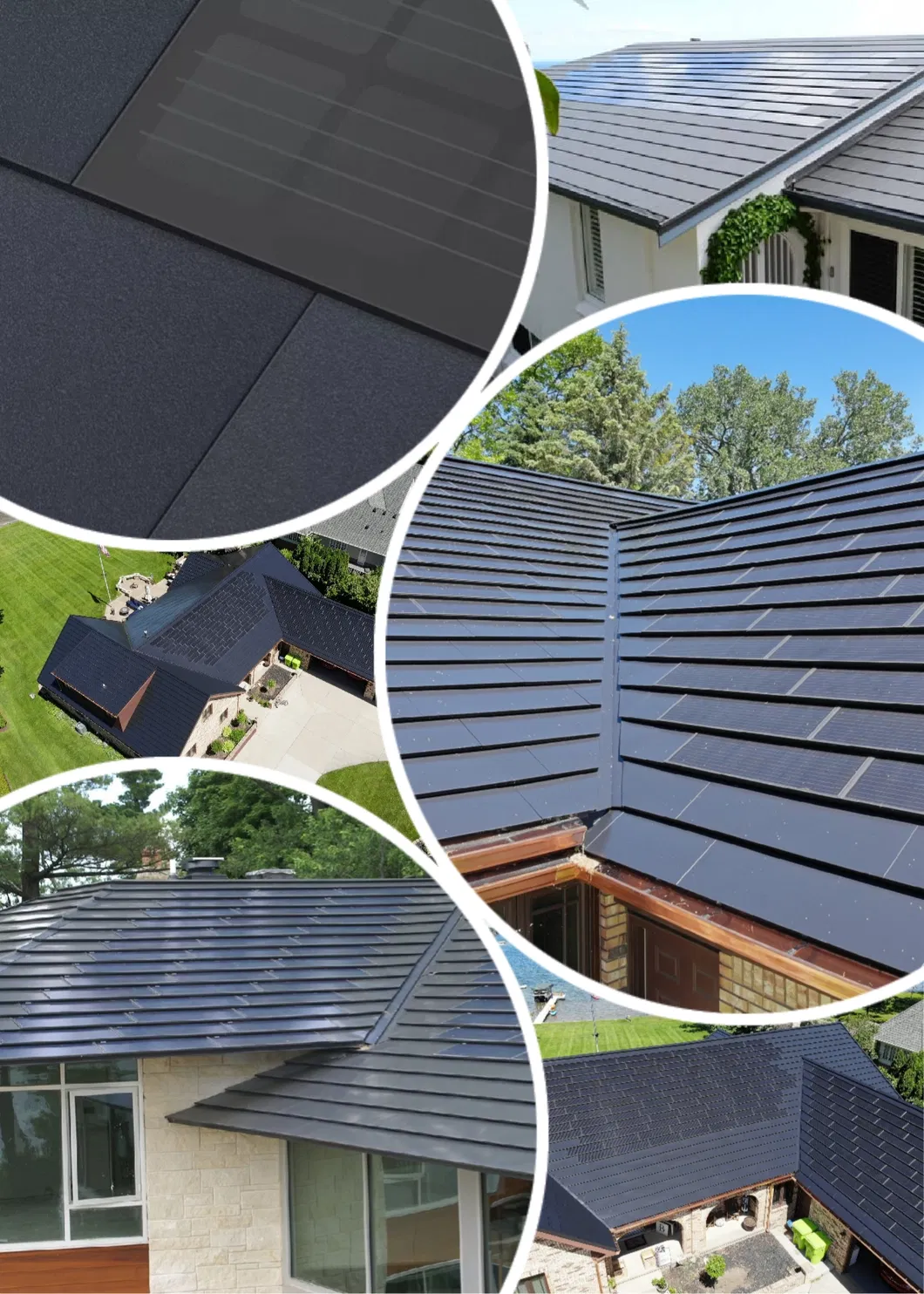

This system represents the innovative design of photovoltaic technology and green energy building materials. BIPV solar roof tiles function as a roof while also generating electricity from the sun without additional installations, looking like modern roof tiles.
These tiles create a small CO2 footprint, bringing buildings closer to climate neutrality. They offer a natural integrated roof appearance, more efficient power generation, and safer hardware designs.
| Parameters of Solar Tiles (STC) | |
|---|---|

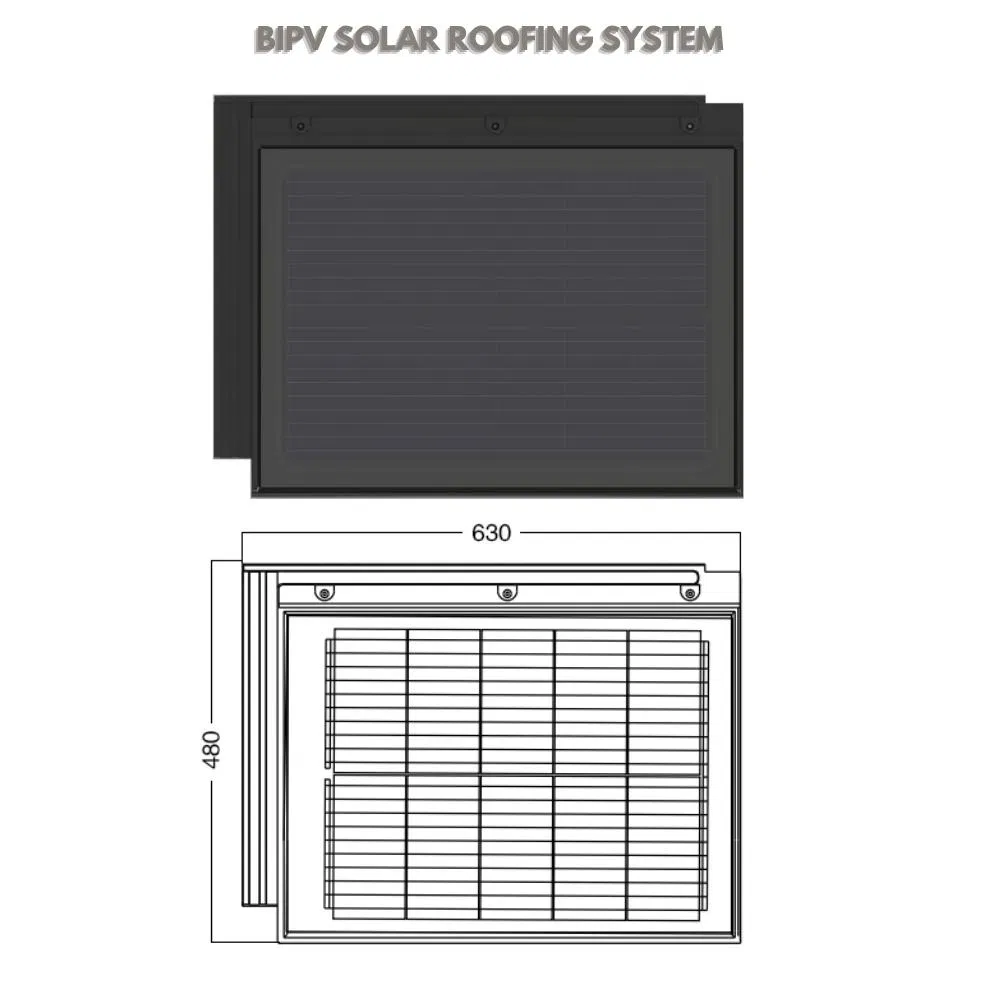

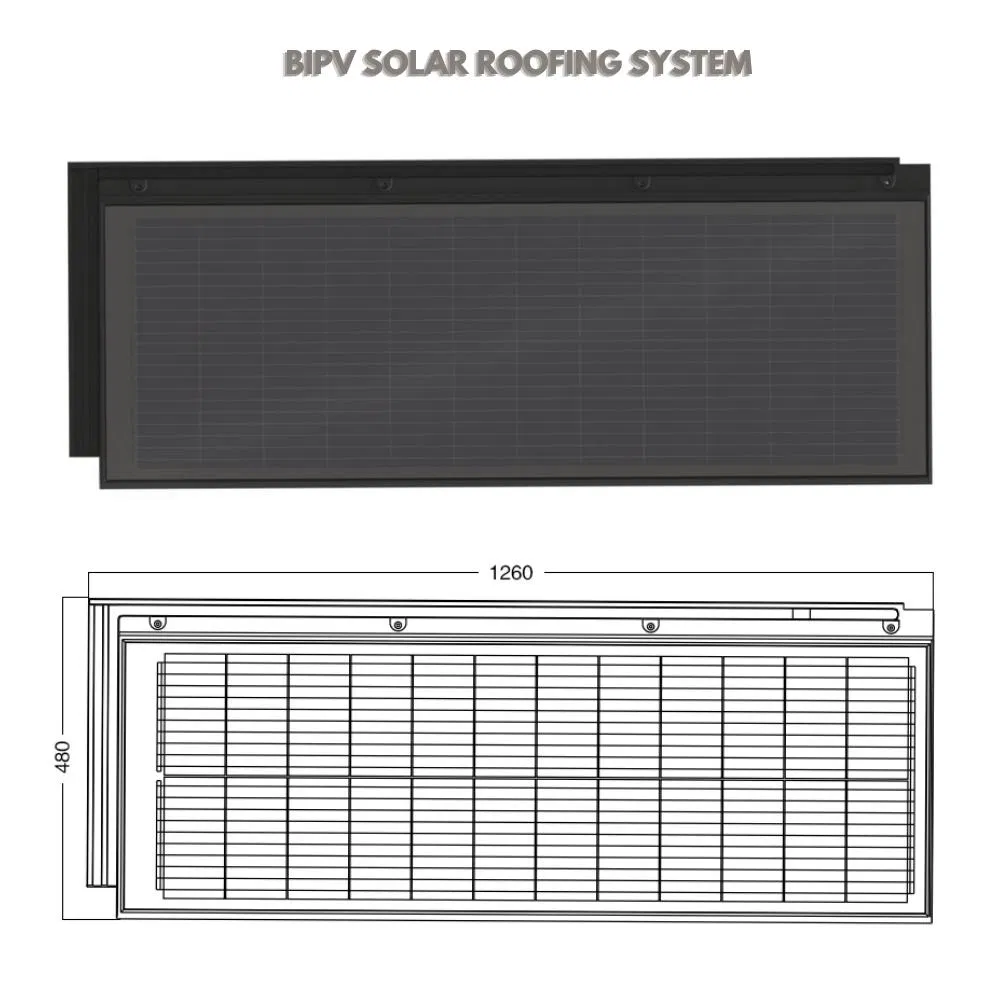

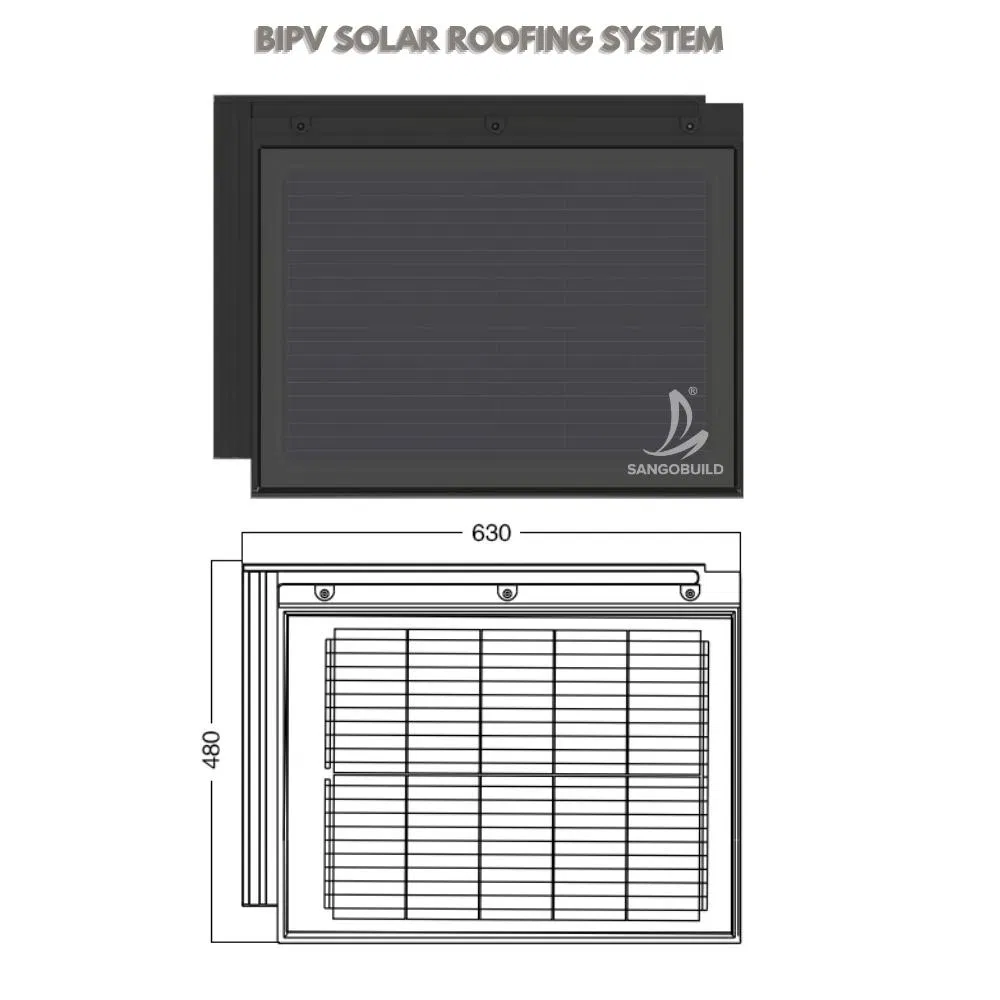

| Dimensions | 630mm*480mm / 1260mm*480mm |
| Weight | 9KG / 16.5KG |
| Efficiency | 15.9% / 18.4% |
| Power Output | 35W / 87W |
| Voltage at Pmax | 5.7V / 13.7V |
| Current at Pmax | 6.14A / 6.35A |
| Operating Conditions | |
| System Voltage | 1500V |
| Static Load | 5400Pa / 2400Pa |
| Temperature | -40°C to +85°C |
| Fire Rating | Class A |
| Warranty | 30 years |

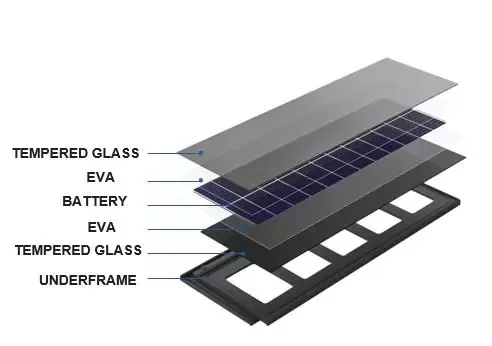

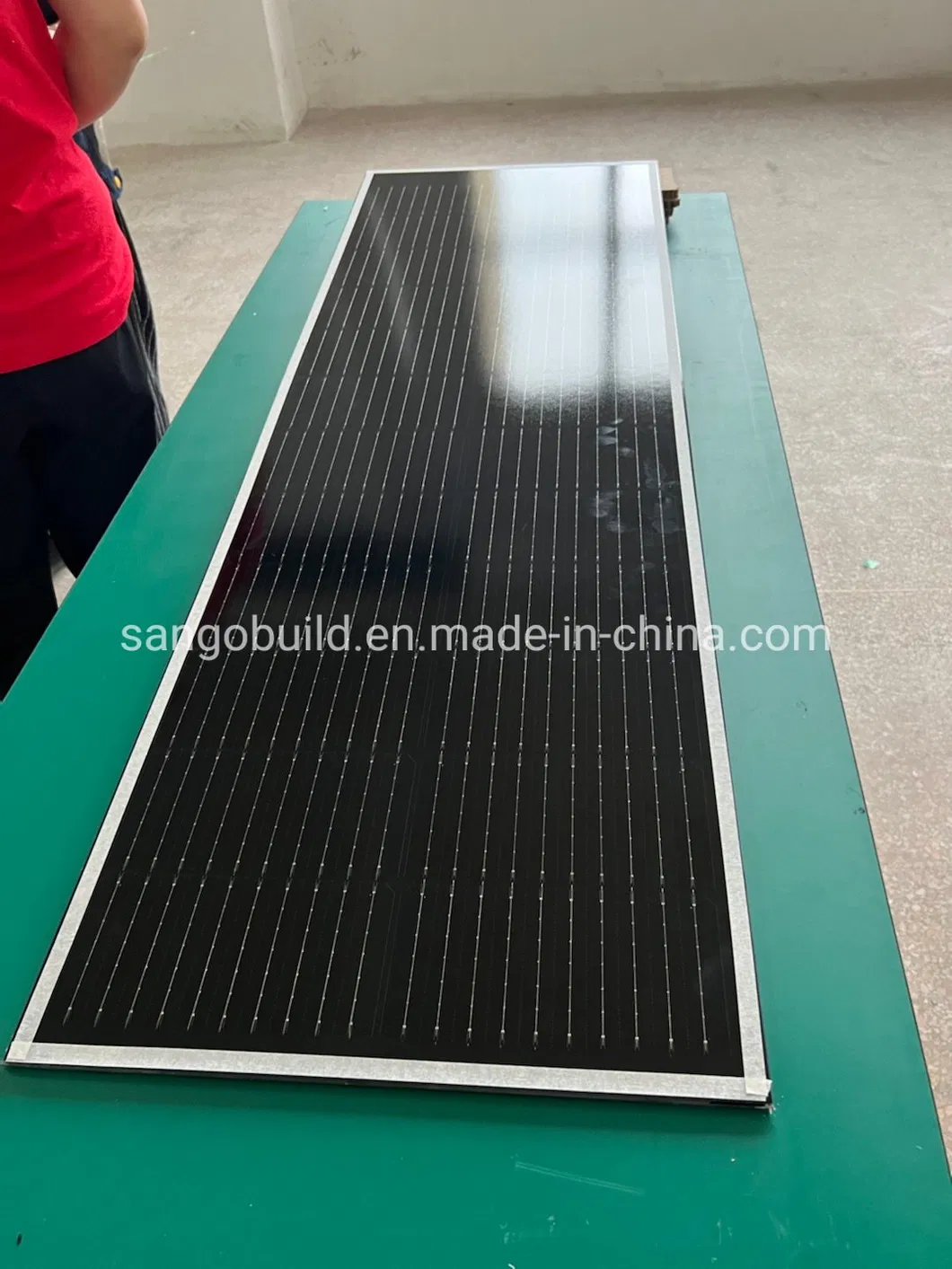

Glass/glass solar panels are the most commonly used technology in energy-generating buildings. This technology has the highest durability rate against harsh environmental conditions and a longer lifespan.
High-efficiency crystalline silicon cell technology with a unique packaging process.
Class A fire protection and Class 15 wind protection. Excellent waterproof and shock resistance.
Super strong structural strength, 3 times the strength of ordinary tiles.
Customizable texture and color with an integrated, coordinated roof design.

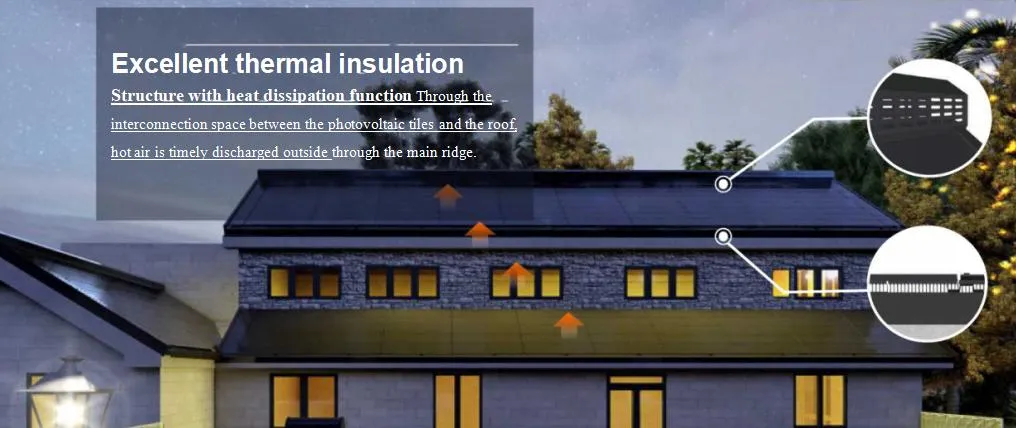

Unique heat dissipation structure can reduce roof temperature by 5°C.

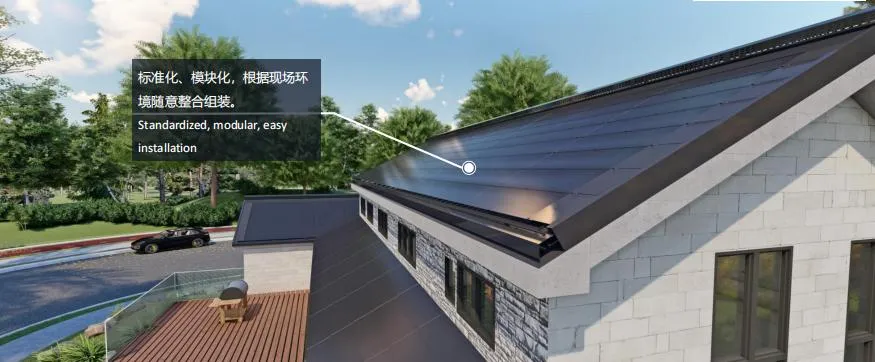

Standardized modular unit installation, saving time by more than 50%.

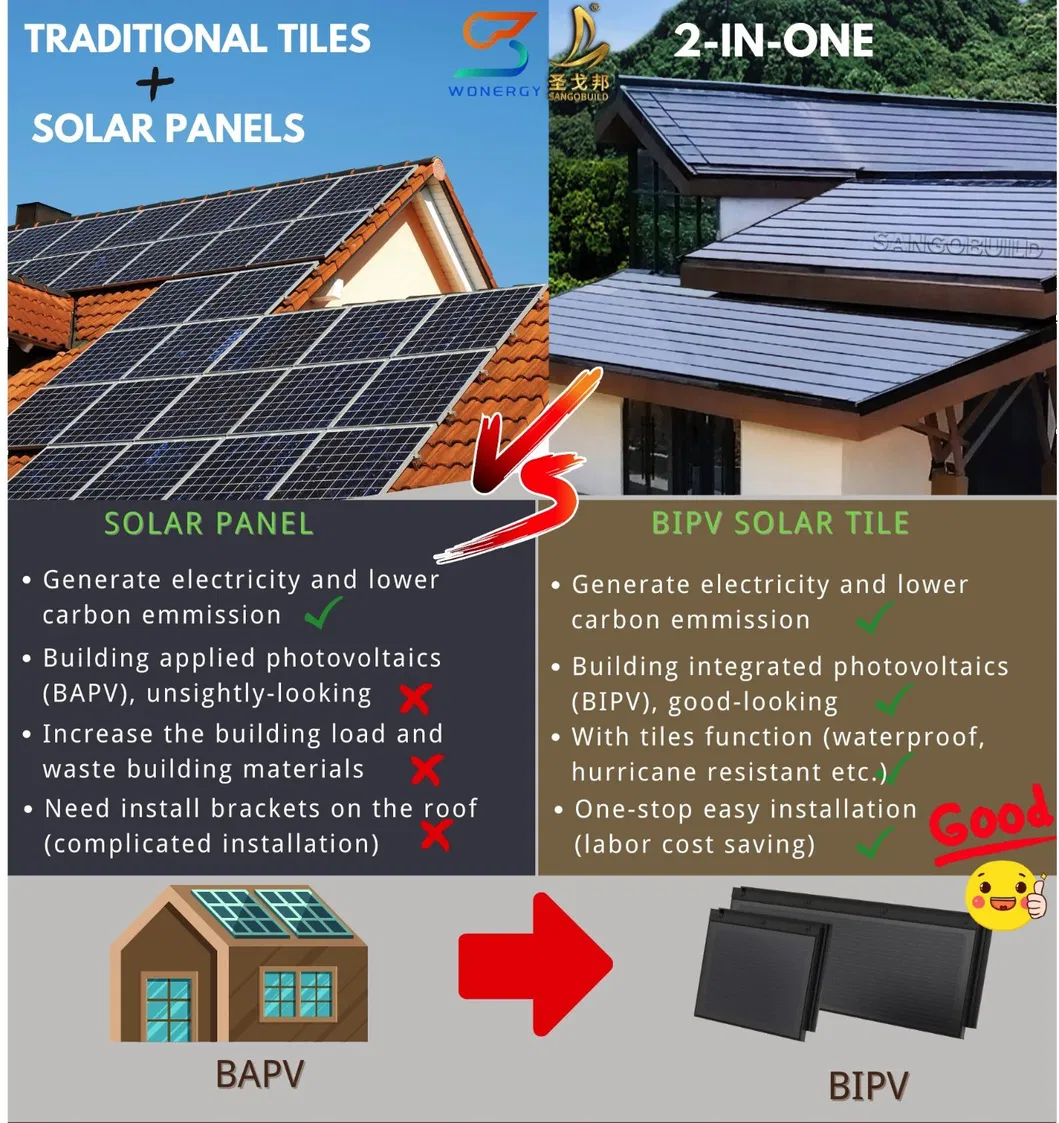

1. Function: Solar tiles serve as building skin (waterproof, wind-shielding) while generating energy. Panels only generate energy.
2. Aesthetics: Tiles offer an integrated natural appearance. Panels are added on top and can be unsightly.
3. Installation: Tiles are easier to install without bulky brackets, reducing building load and increasing safety.
