Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Technical Specifications

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

3-5kw

Certification

CE, ROHS, ISO9001, IEC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Application

Solar Power System Home

Communication

WiFi/ GPRS

Battery Voltage

48 VDC

Efficiency

93%-97% (High Efficiency)

MPPT Range

120-1000V

HS Code

8504403090

Product Description

Inverter Summary

Technical Layout

Datasheet	SPF 3500 ES	SPF 5000ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
Inverter Output
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
Efficiency (Peak)	93%
Waveform	Pure sine wave hybrid solar inverter
Solar Charger
Maximum PV Array Power	4500W	6000W
MPPT Range	120VDC ~ 430VDC
Max PV Open Voltage	450VDC
Charge Current	60A	80A

Product Series Range

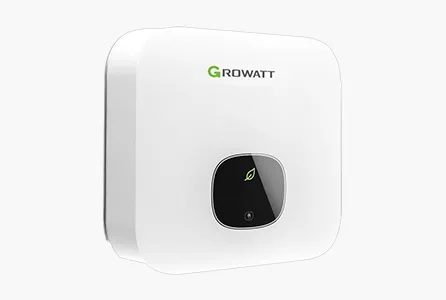

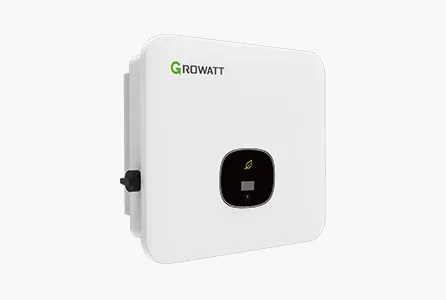

On Grid Residential

On Grid Residential Inverter

3-6KW 2 MPPTs
Single Phase 220-240V 50/60Hz

On Grid Residential

On Grid Residential Inverter

3-15KW 2 MPPTs
Three Phase 380-415V 50/60Hz

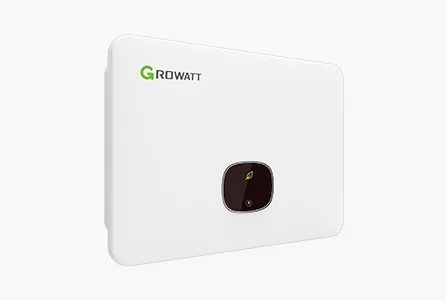

On Grid Commercial

On Grid Commercial Inverter

15-40KW 3/4 MPPTs
Three Phase 380-415V 50/60Hz

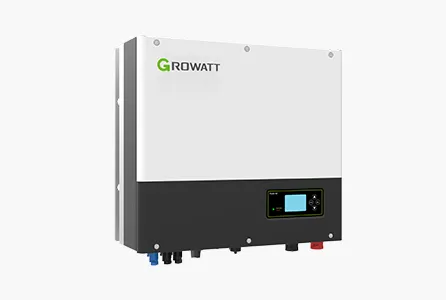

Hybrid Residential

Hybrid Residential Inverter

3-12KW
3-6KW Single Phase | 4-12KW Three Phase

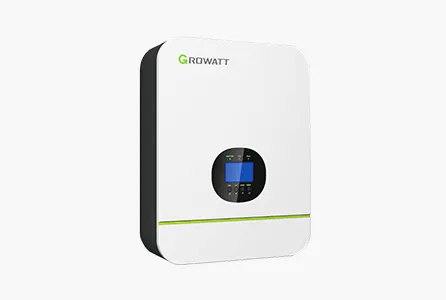

Off Grid Residential

Off Grid Residential Inverter

2-5KW Single Phase
220-240V 50/60Hz | Battery Voltage 24V/48V

System Application

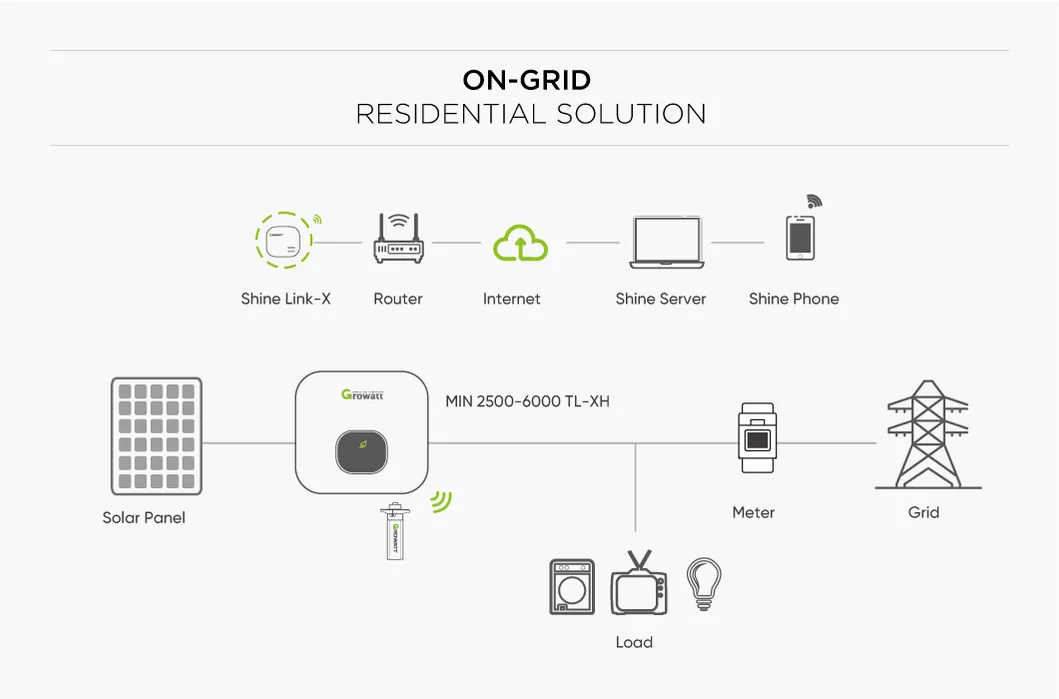

Application 1

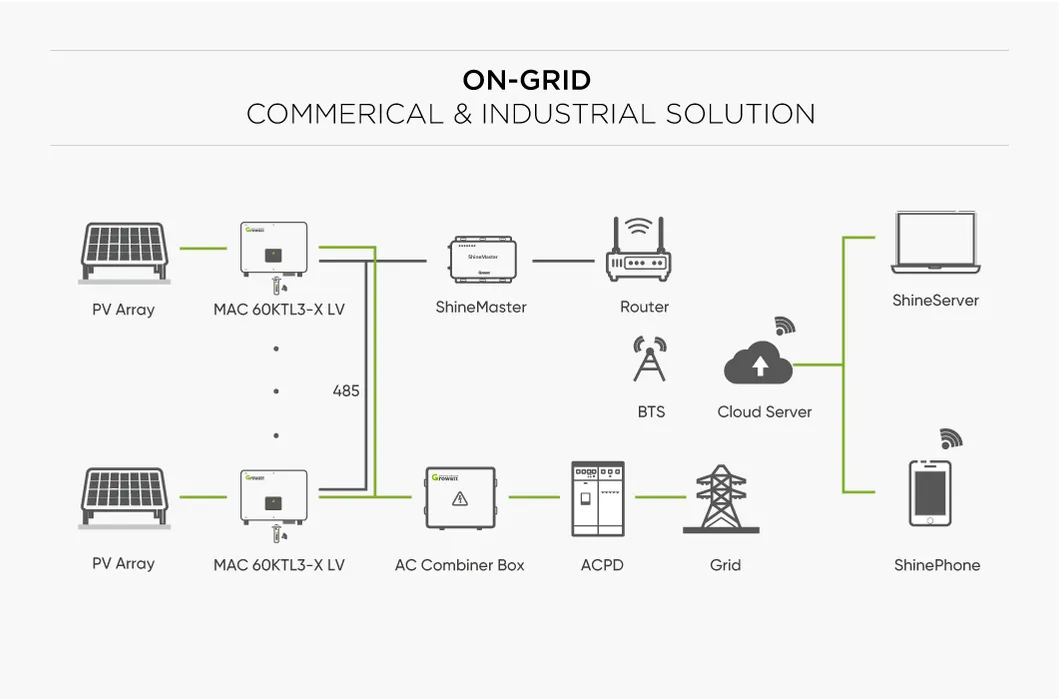

Application 2

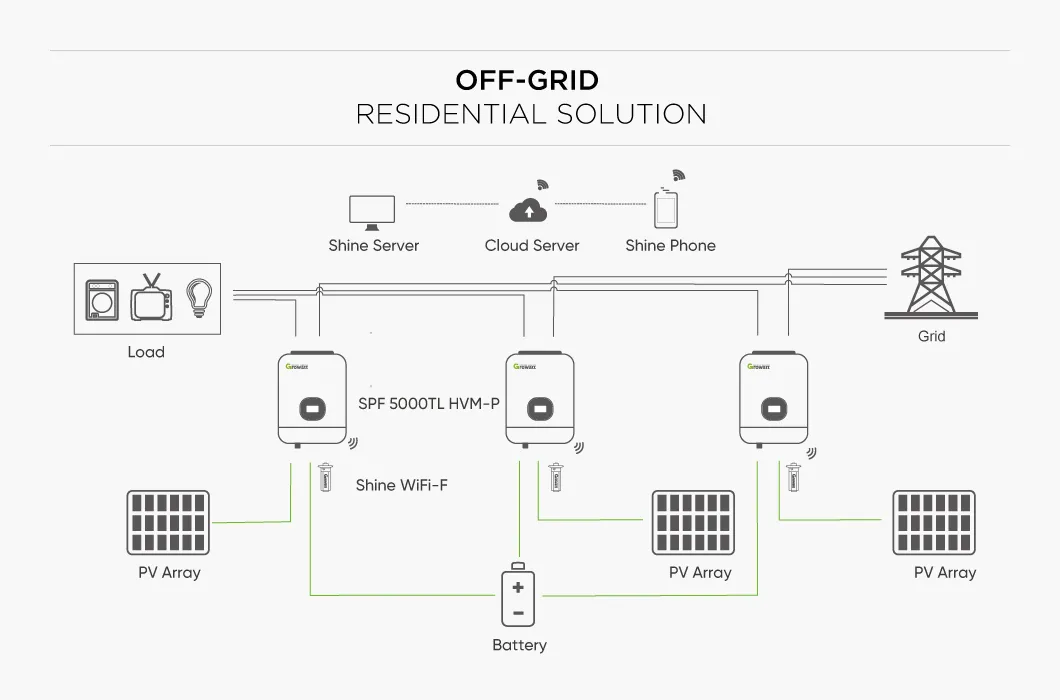

Application 3

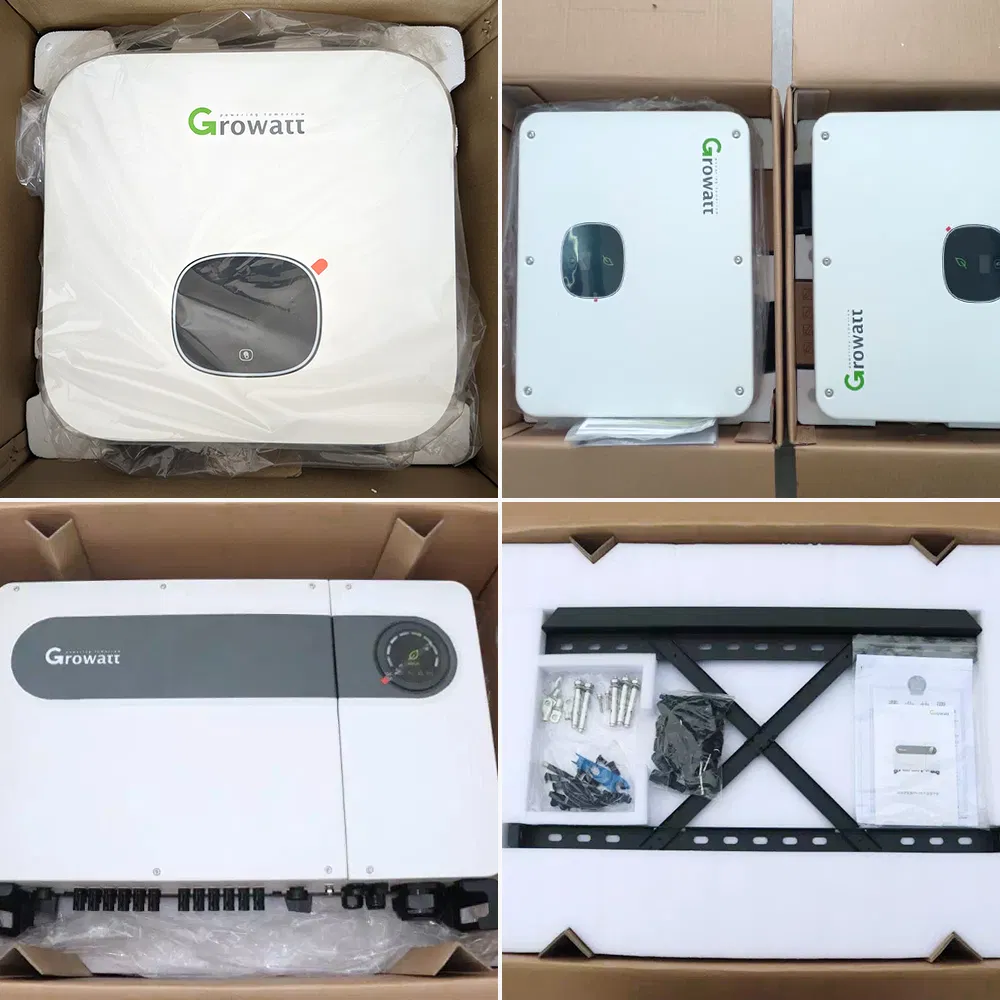

Details Images & Packing

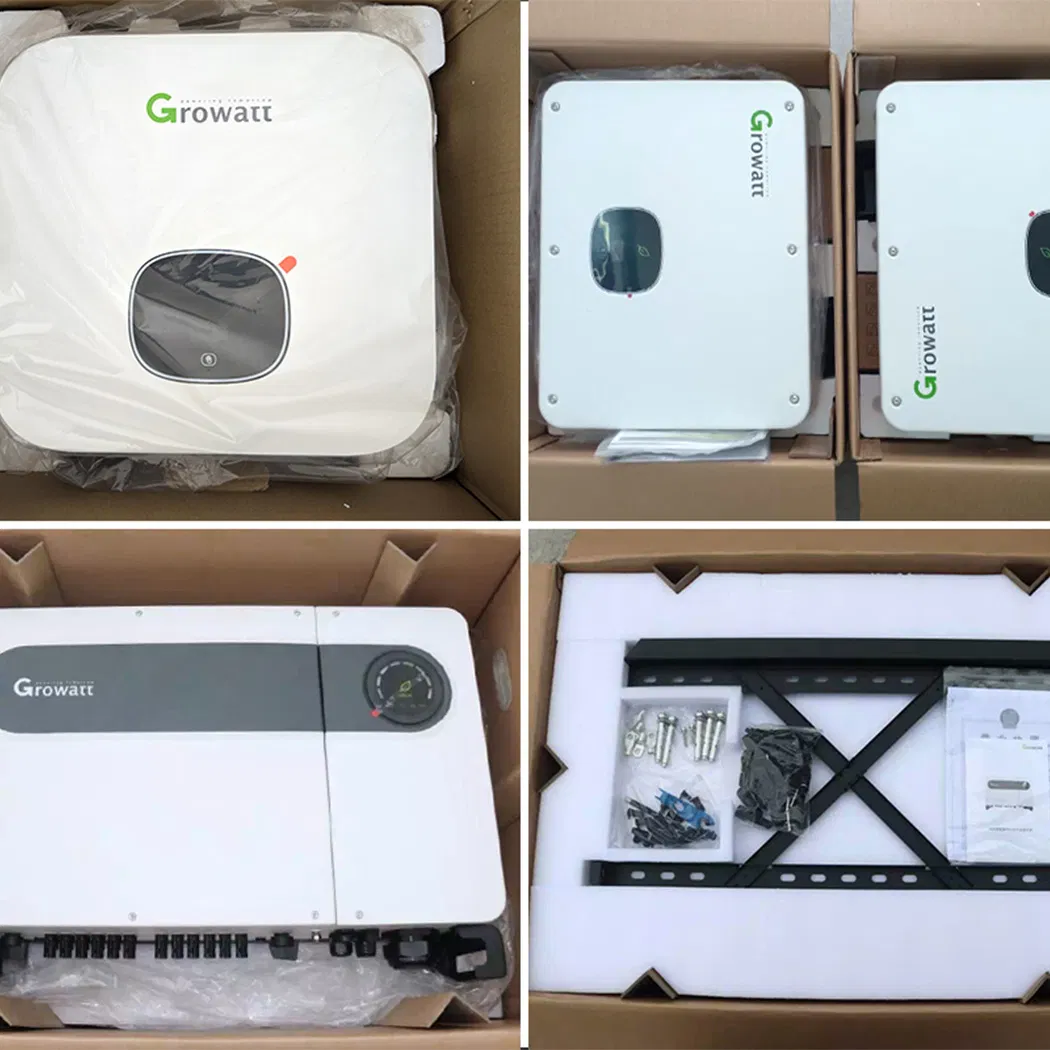

Packing 1

Packing 2

Project Cases

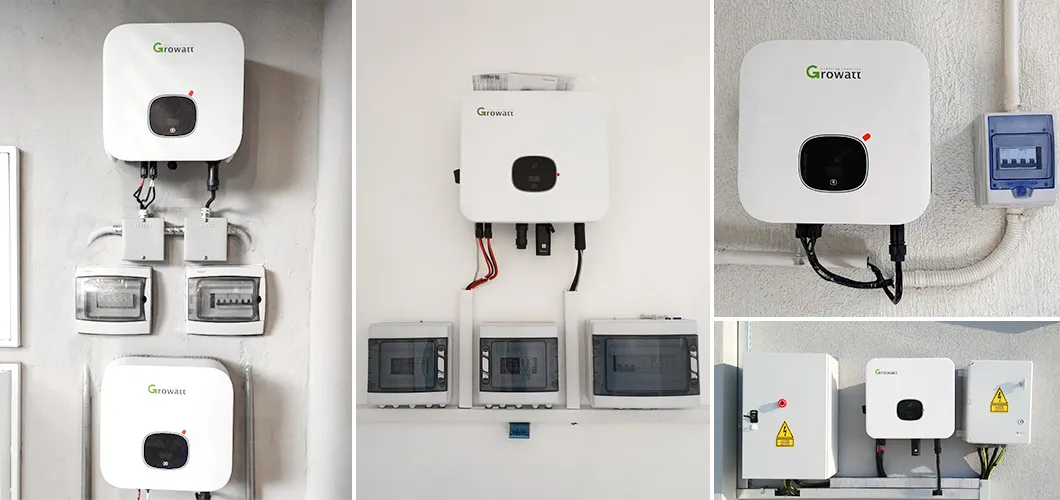

Project 1

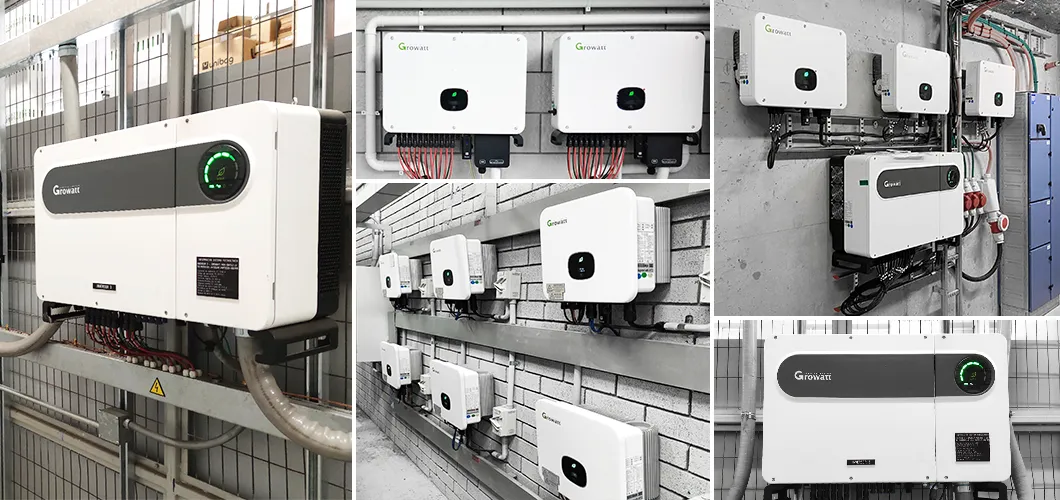

Project 2

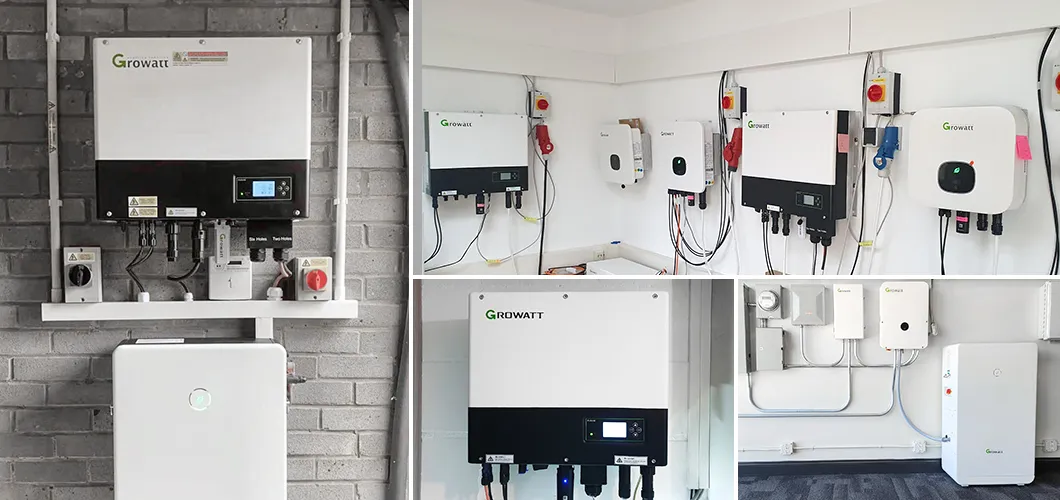

Project 3

Frequently Asked Questions

What battery voltage is required for the SPF series?

The SPF series utilizes a 48VDC battery voltage system.

Can these inverters be used in parallel for larger systems?

Yes, some models in this series support parallel capability of up to 6 units for increased power output.

Are these inverters compatible with Lithium batteries?

Absolutely. These inverters are designed to work with both Lithium and Lead-acid battery types.

What is the peak efficiency of the hybrid solar inverters?

The peak efficiency for these units is approximately 93%.

Does the inverter support remote monitoring?

Yes, the system supports WiFi and GPRS communication for remote monitoring and management.

What is the typical transfer time for the inverter?

The typical transfer time is 10ms, with a maximum limit of 20ms.
