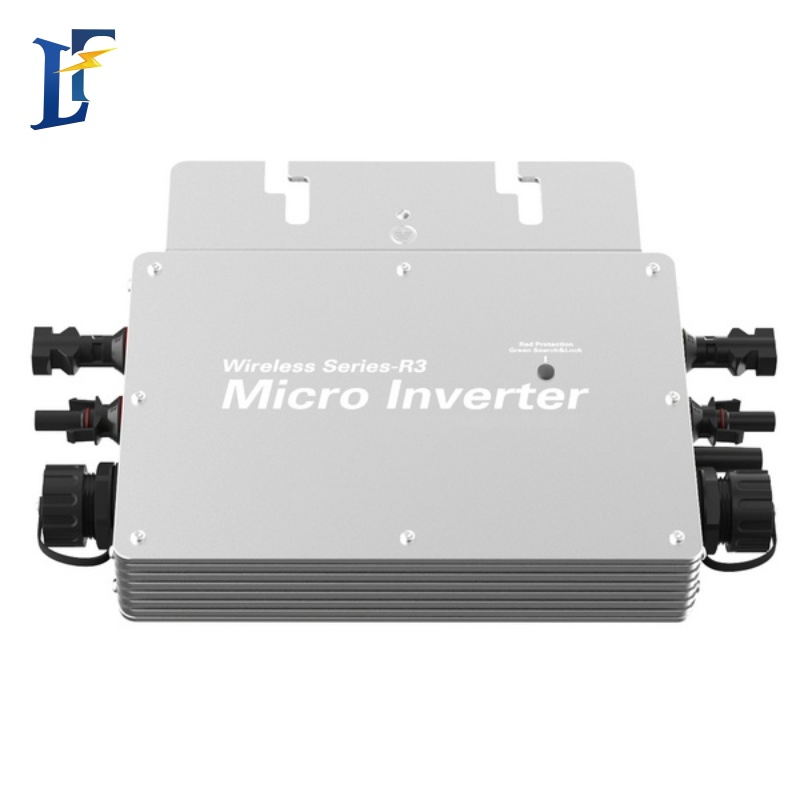

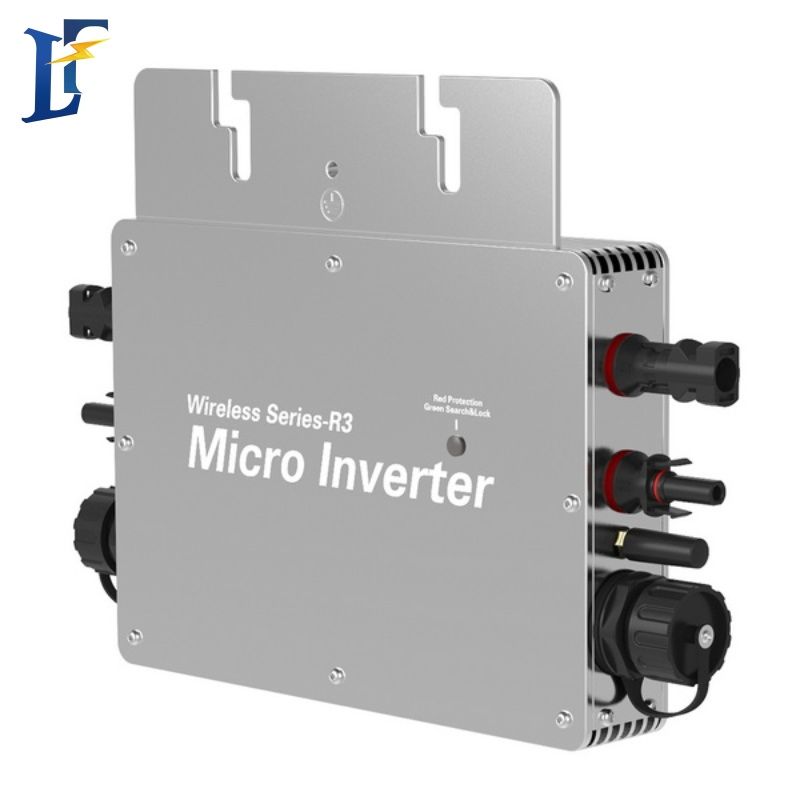

High-Efficiency 600W 700W 800W Micro Inverter Grid Tie with WiFi Control for Household Solar Storage System

1 / 5

High-Efficiency 600W 700W 800W Micro Inverter Grid Tie with WiFi Control for Household Solar Storage System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.:LF-MIW

Nature of Flow:Solar Inverter

Phase:Single

Output Power:800/700/600W

Certification:CE, ROHS, ISO9001

Circuit Topologies:Full-Bridge Type

Wave String:Sine Wave Inverter

Protection Level:IP67

MPPT Voltage:30-60V

Communication:WiFi & Bluetooth

Parallel Connections:6PCS / 12PCS

Weight:2.3kg

Solar Grid Tie Micro Inverter

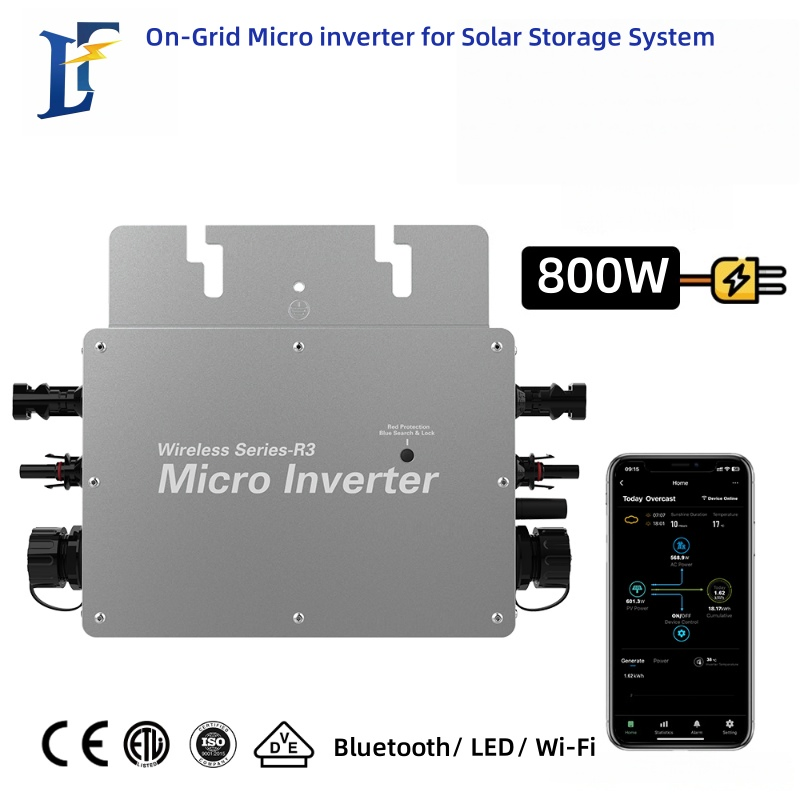

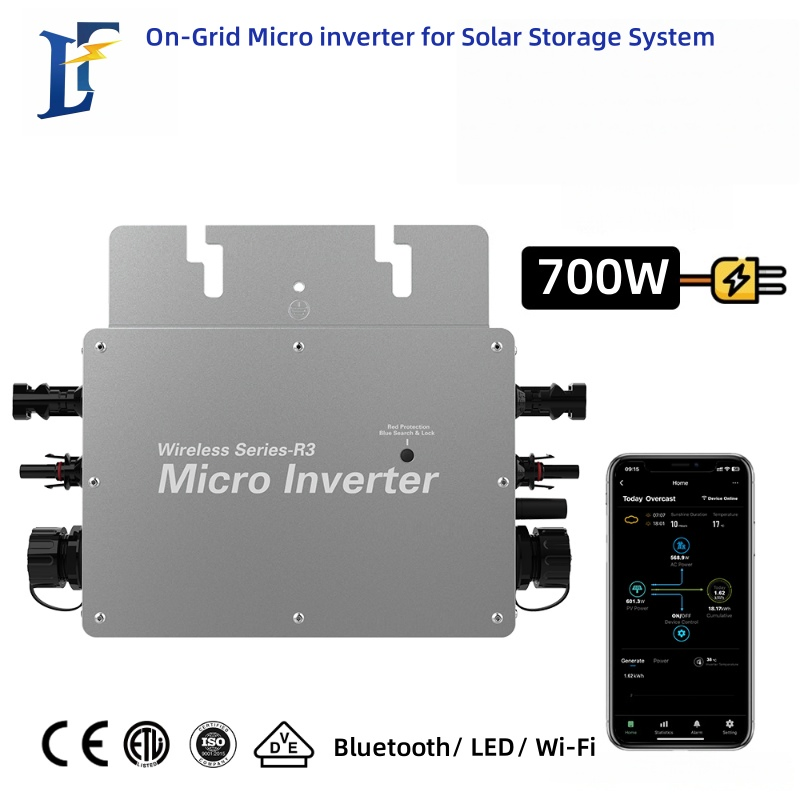

600W 700W 800W for Home PV Storage System. Supports 120V/230V power supply with WiFi/Bluetooth Real-time App Monitoring.

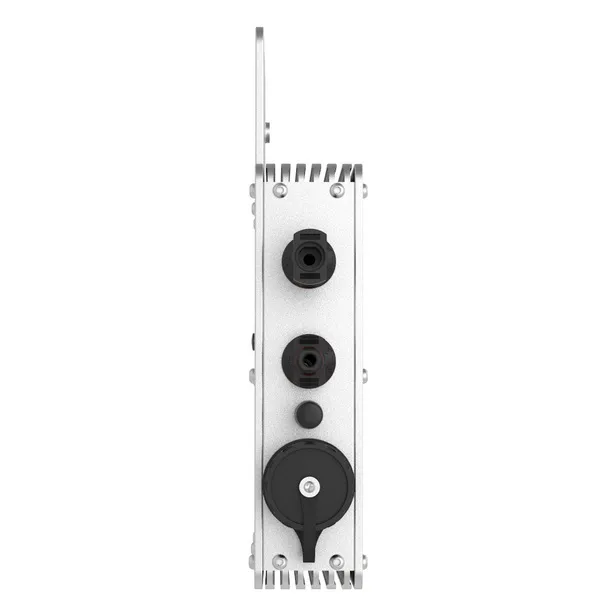

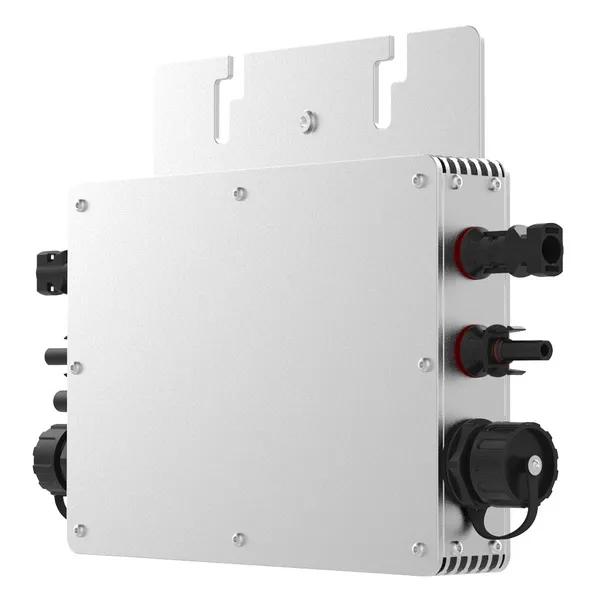

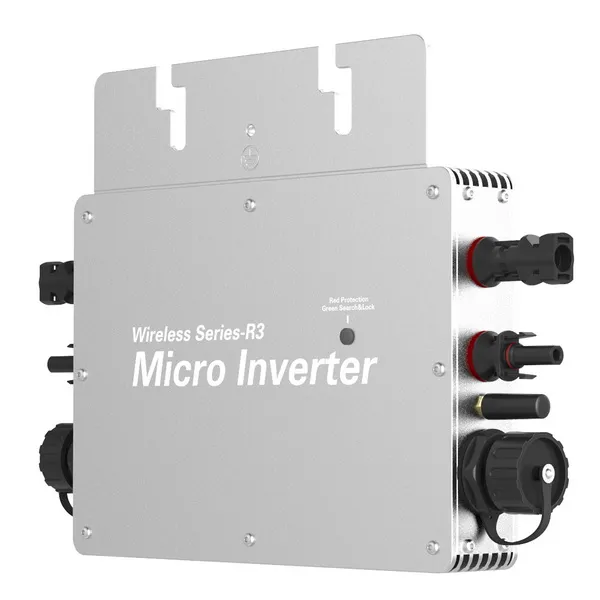

📷 Detailed Product Gallery

📝 Technical Specifications

Parameter	LF-MIW-600	LF-MIW-700	LF-MIW-800
DC Input Data
Max Input Power	2×375W	2×435W	2×500W
MPPT Voltage Range	30-60V
Working Voltage Range	22-60V d.c.
Max Input Current	2×14A	2×16A	2×18A
AC Output Data
Max Output Power	600VA	700VA	800VA
Nominal Output Voltage	120V a.c. / 230V a.c.
Peak Efficiency	92.70%
Nominal MPPT Efficiency	99.80%

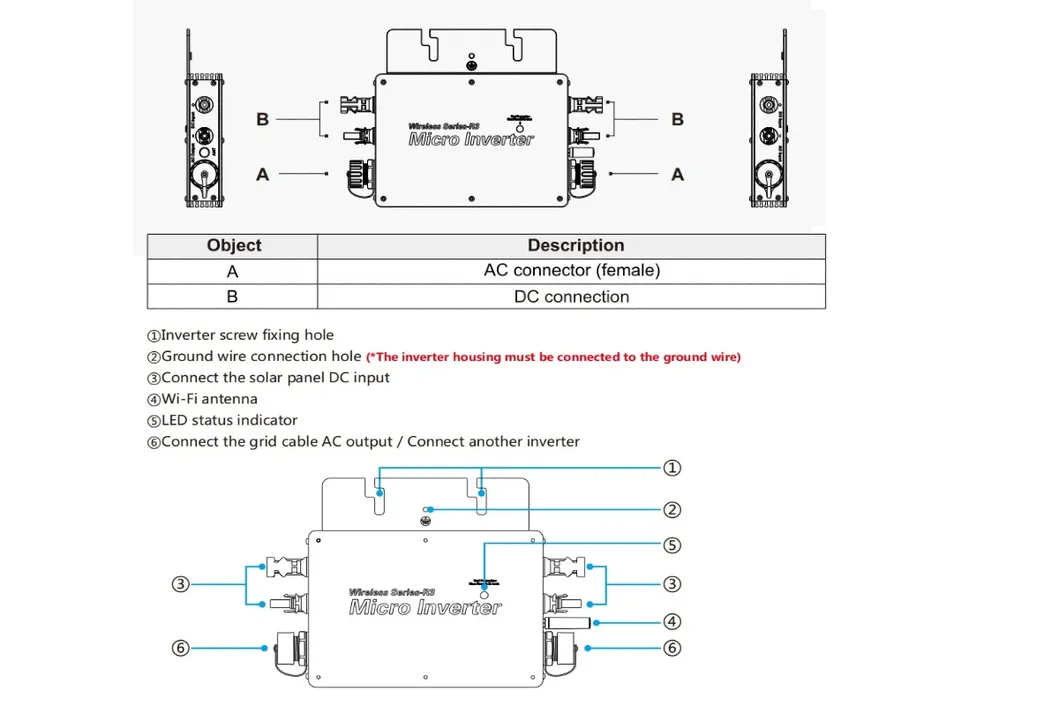

Mechanical Data

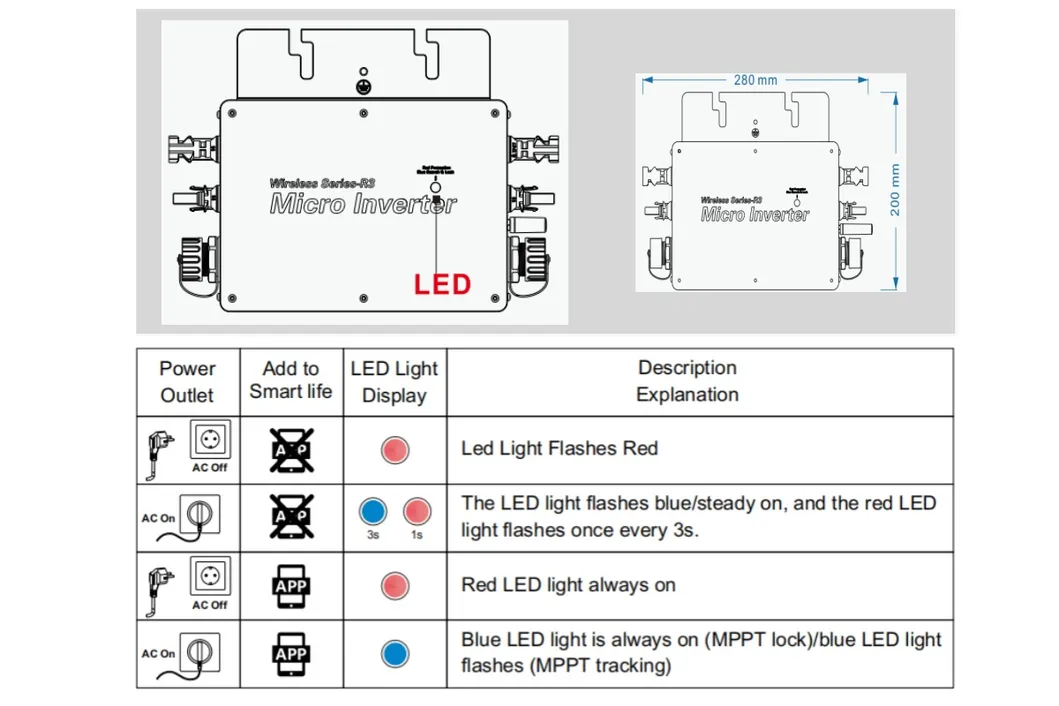

Dimensions (L×W×H)	280×200×41.6mm
Waterproof Level	IP65 (Nema 3r)
Cooling	Natural Cooling (Fanless)

🚀 Core Features & Technologies

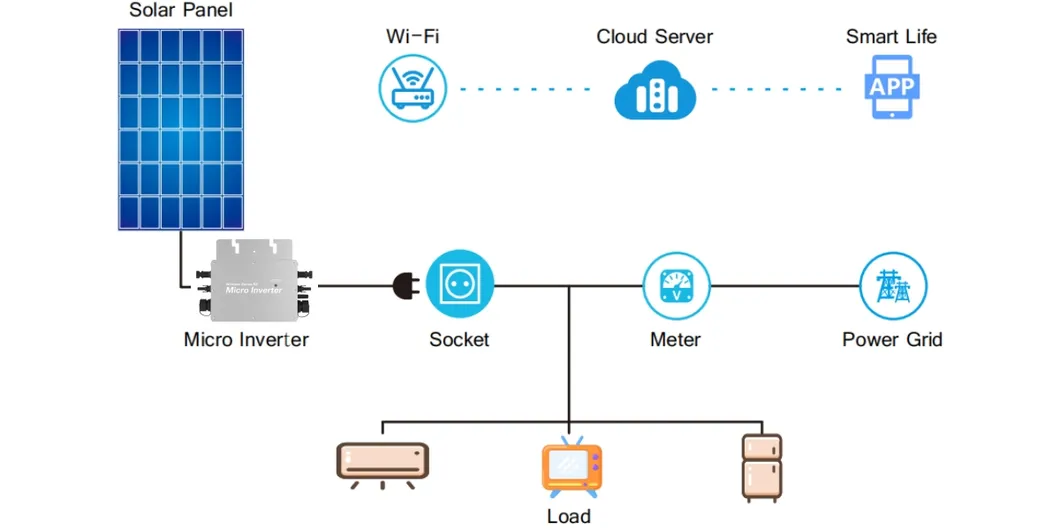

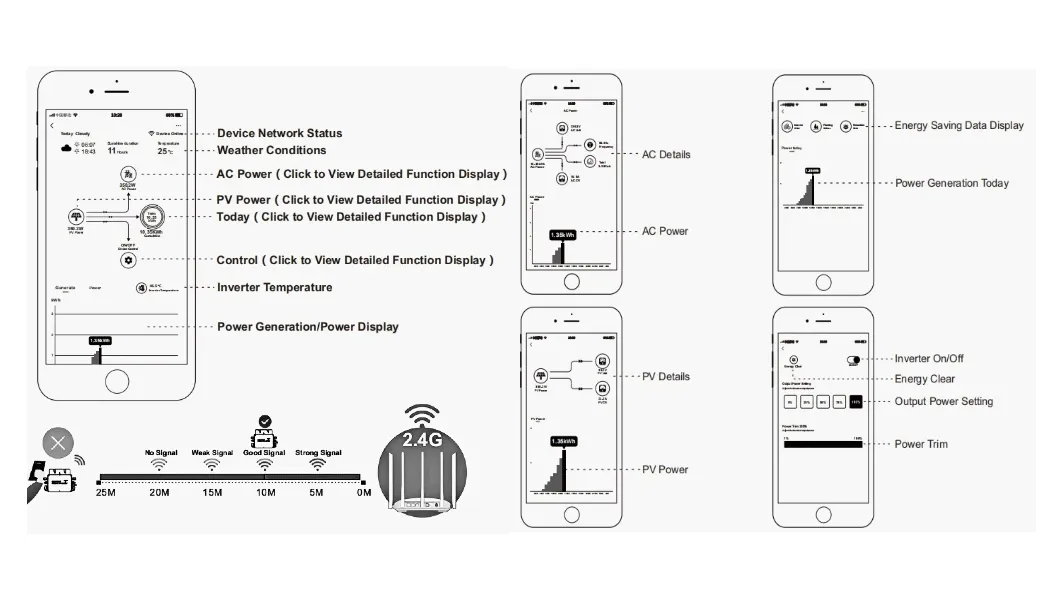

✔ Built-in Wi-Fi & Bluetooth Smart Life App Control

✔ Integrated NA Protection Switch for Safety

✔ Real-time Power Statistics & Cloud Data Storage

✔ Pure Sine Wave Output for Sensitive Appliances

✔ Reverse Transmission Technology & Load Priority

✔ Automatic Anti-Islanding Effect Protection

✔ Over-Temperature Load Reduction Function

✔ Mixed Stack Support for Multiple Machines

📜 Global Certifications

❓ Frequently Asked Questions

Q1: What are your main solar energy products?

Our flagship offerings encompass state-of-the-art solar energy systems, including advanced solar inverters, efficient energy storage batteries, and comprehensive energy management systems.

Q2: Do you provide OEM or ODM customized services?

Absolutely! We proudly provide both OEM and ODM services to meet your specific technical needs and branding requirements.

Q3: Can I install this micro inverter system by myself?

For optimum safety and efficiency, we highly advise engaging a professional installer or certified electrician to handle the grid connection.

Q4: What specific certifications do your inverters have?

Our products boast prestigious certifications including EN50549-1, IEC 62109, VDE4105, CEI 0-21, G98/G99, and more, ensuring global compliance and safety.

Q5: What is the typical delivery time for orders?

Sample orders take 1-3 days; stock orders take 3-7 days; and customized OEM orders typically take 12-30 days after deposit.

Q6: What is the warranty period for the solar inverters?

Our solar on/off-grid hybrid and micro inverters come with a robust 5-year warranty, ensuring long-term reliability and peace of mind.
