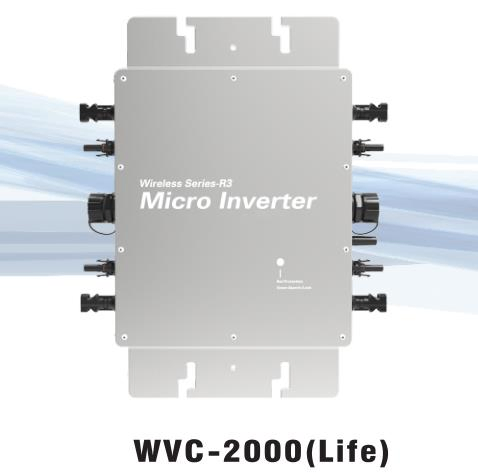

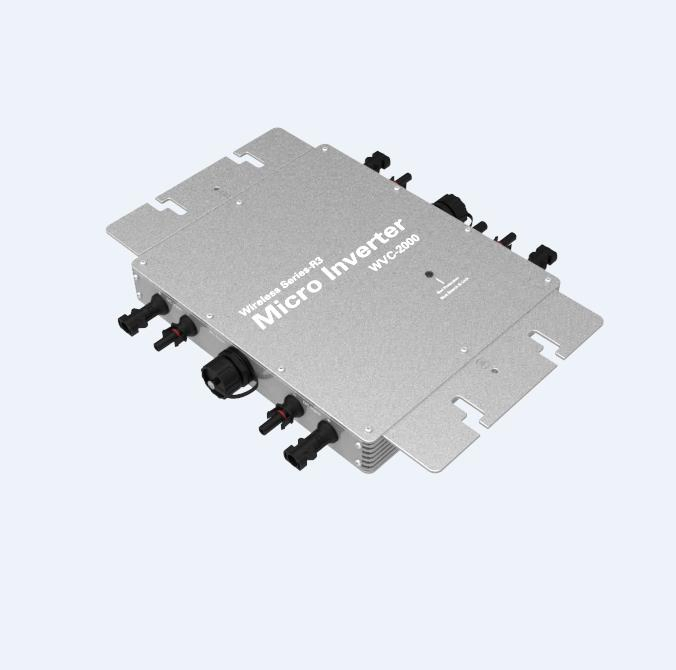

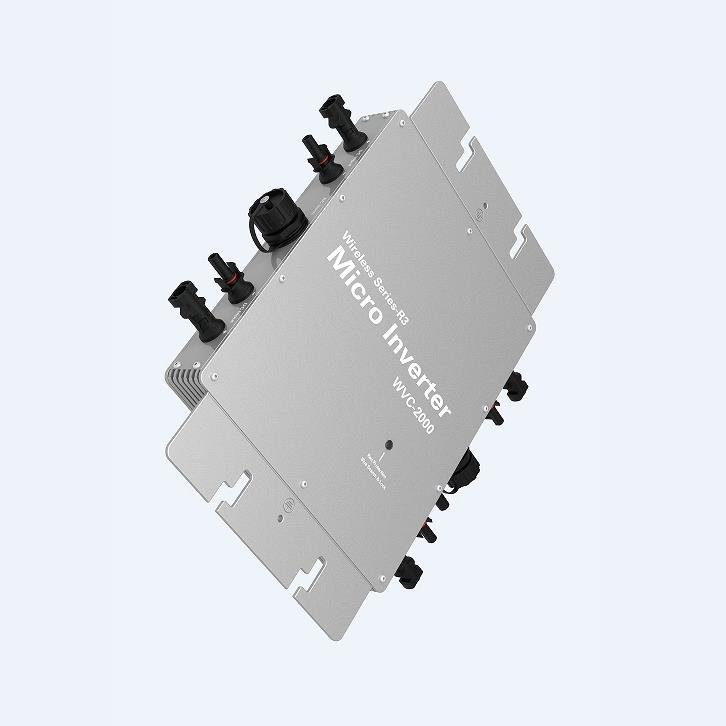

IP65 Waterproof Solar Grid Tie Micro Inverter Wvc 2000W 2400W 2800W Wireless Communication Monitoring System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

📊

Basic Information

Model NO.
WVC-2000
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, TUV
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Recommend Panels
4*875watt
Output Voltage
120/230V Auto Switch
PV Open Circuit
30-54voc
Operating Range
22-60V
Starting Voltage
22-60V
Short-Circuit Current
4*32A
Max Working Current
4*27A
Net Weight
3.0kg
Specification
370*300*41.6mm
🔍

Product Description

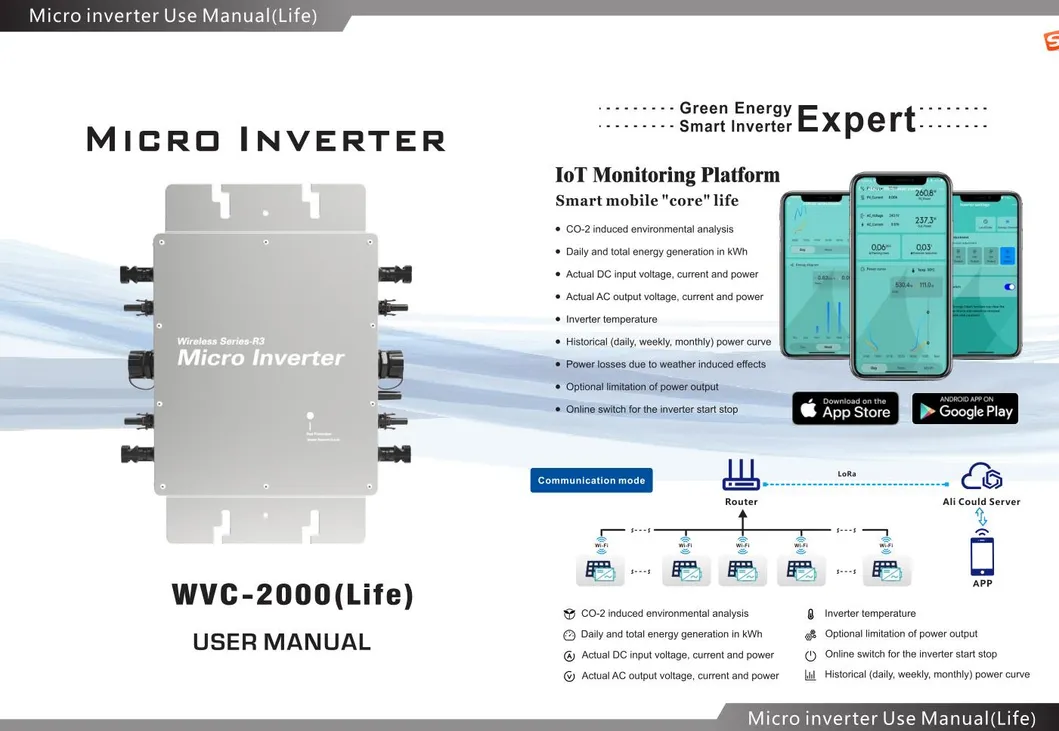

Solar Micro Inverter Overview

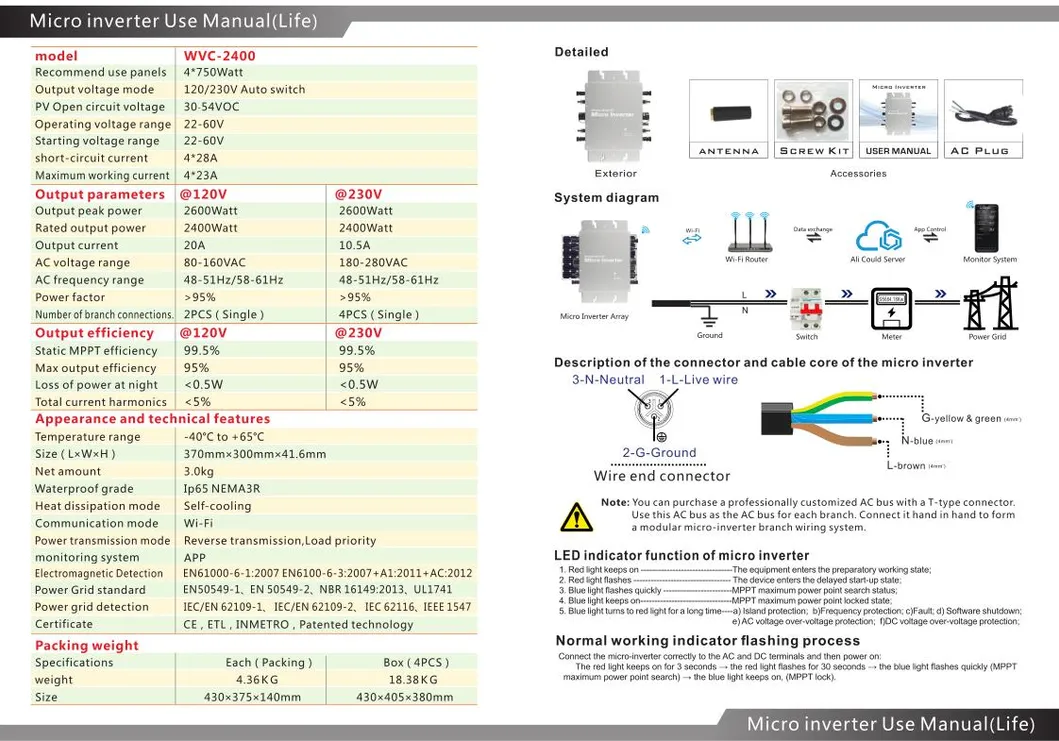

Solar Micro Inverter Details

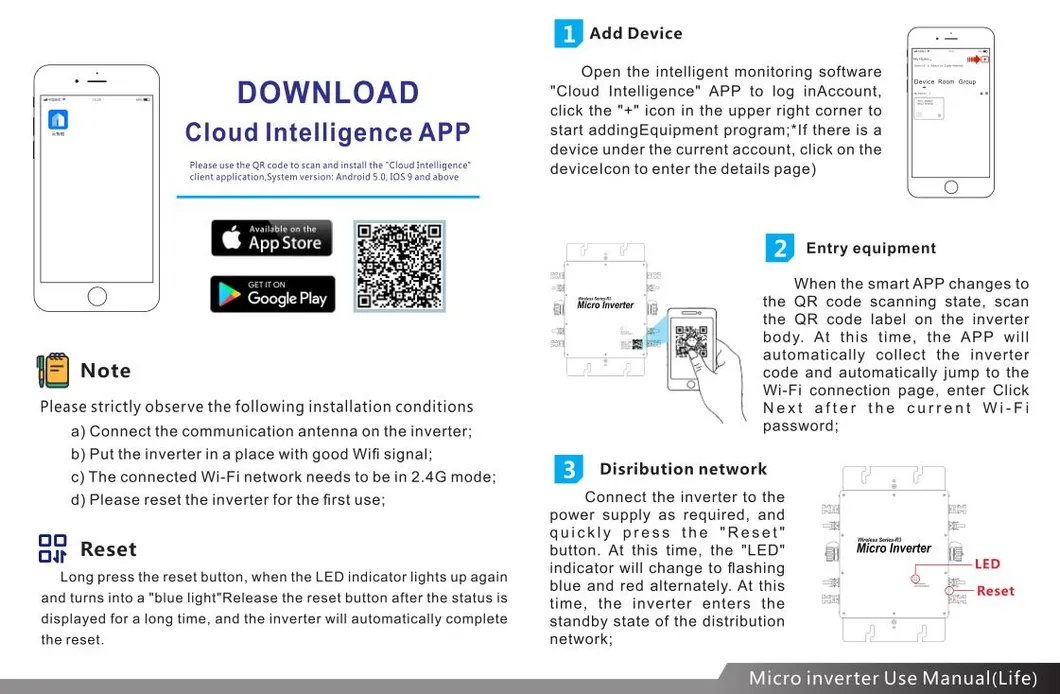

Grid Tie System

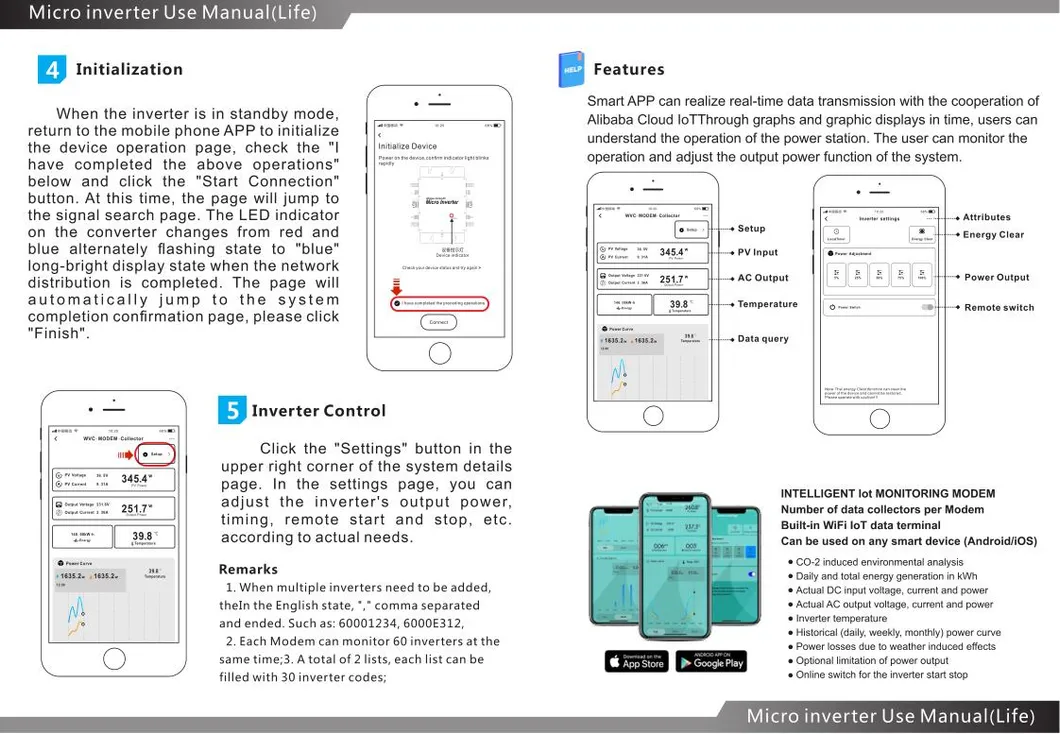

Communication System
📷

Detailed Photos

Close up view

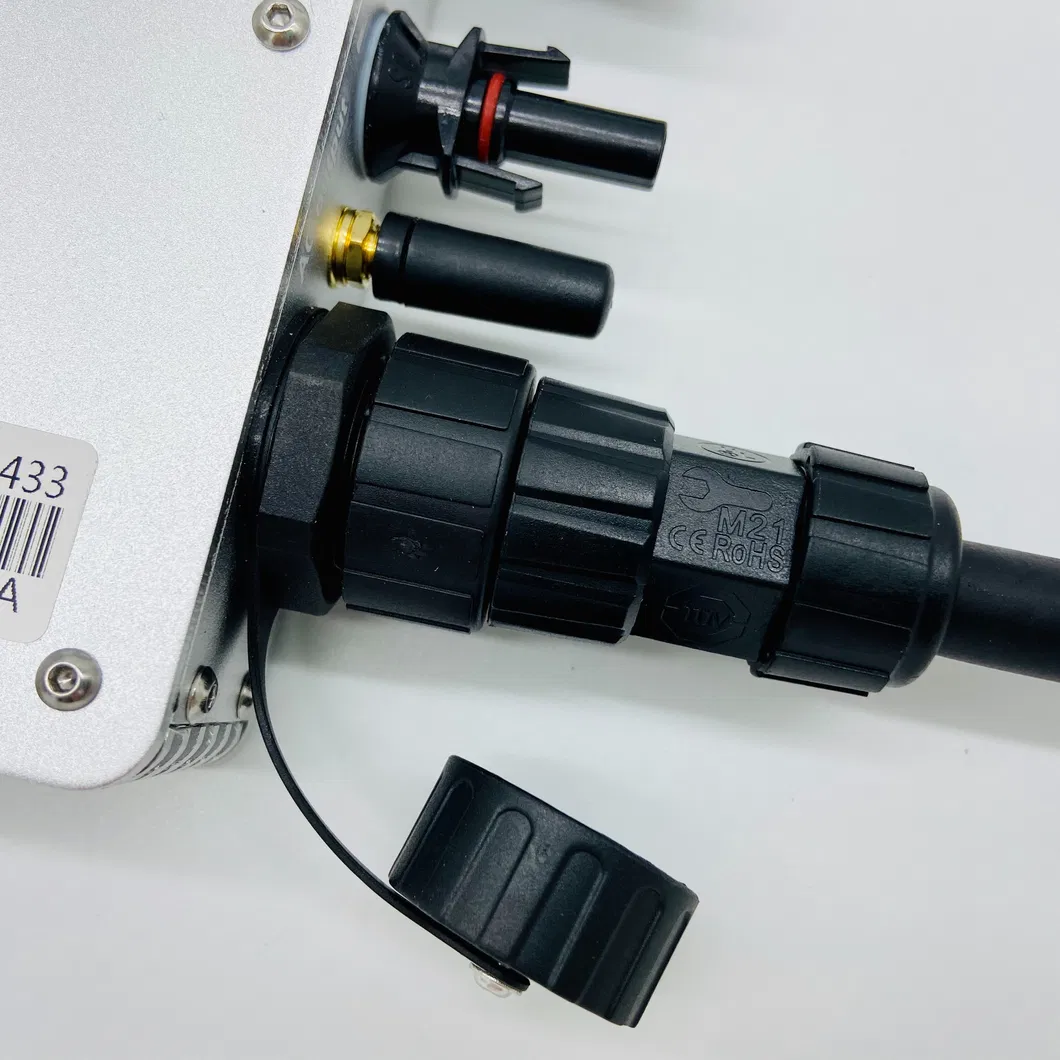

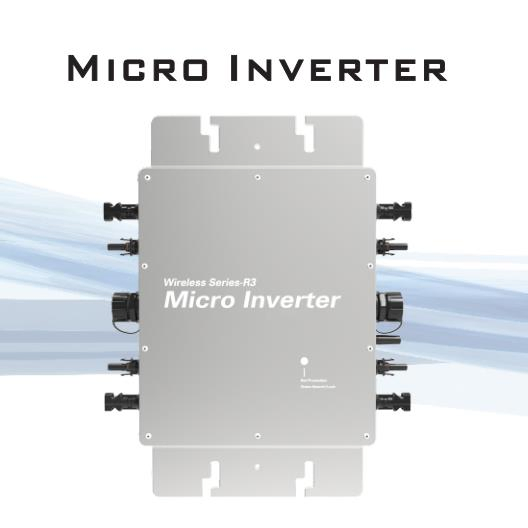

Main Unit

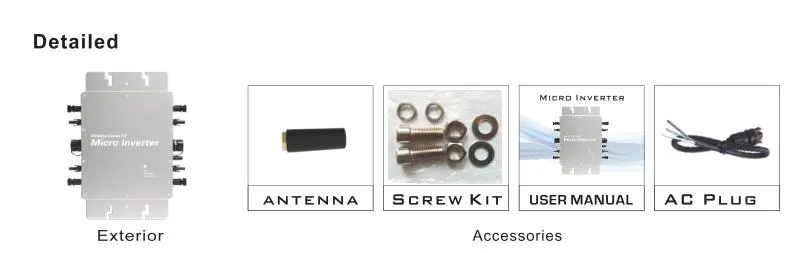

Dimension 1

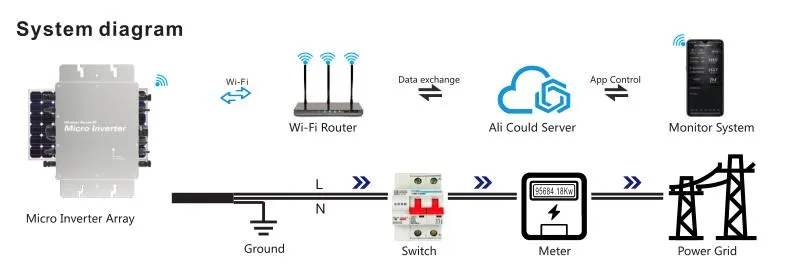

Dimension 2

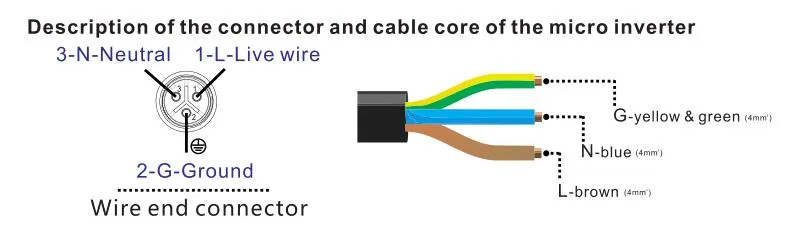

Dimension 3
📝

Product Parameters

Output Parameters @120V @230V
Output Peak Power2200W2200W
Rated Output Power2000W2000W
Output Current16.6A8.7A
AC Voltage Range80-160VAC180-280VAC
AC Frequency Range48-51Hz/58-61Hz48-51Hz/58-61Hz
Power Factor>95%>95%
Output Efficiency @120V @230V
Static MPPT Efficiency99.5%99.5%
Max Output Efficiency95%95%
Loss of Power at Night<0.5W<0.5W
Total Current Harmonics<5%<5%
📦

Packaging & Shipping

Package Size
43.00cm * 37.50cm * 14.00cm
Gross Weight
4.360kg
Packaging 1

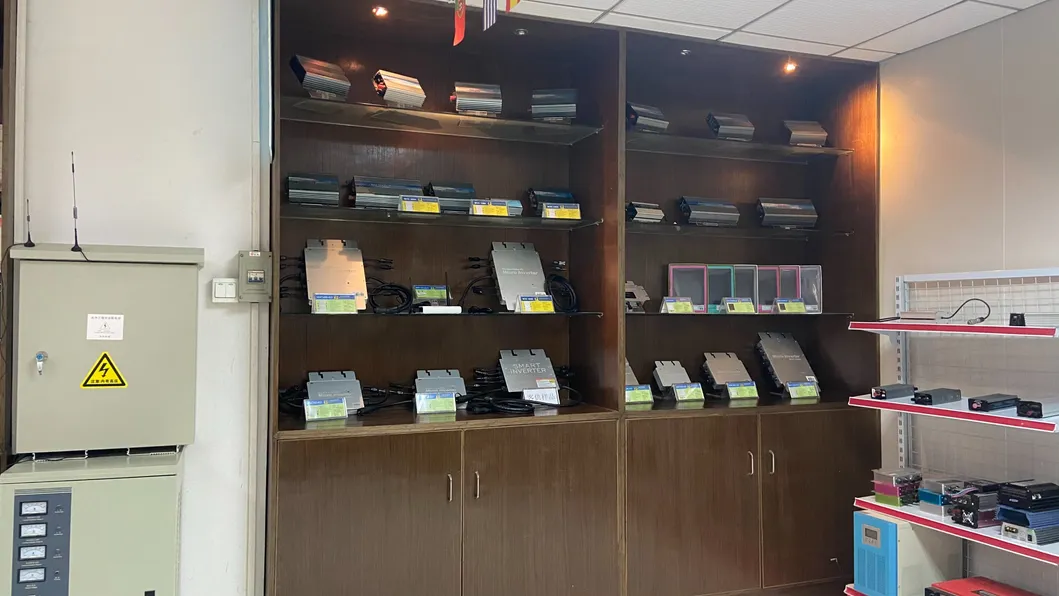

Packaging 2
Shipping 1
Shipping 2

Frequently Asked Questions

What is the lifespan of a photovoltaic power generation system?
The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. However, the actual lifespan depends on usage and maintenance conditions.
How much maintenance do photovoltaic power generation systems require?
Maintenance is relatively simple. Regularly clean the photovoltaic panels and check the system's operating status. Professional maintenance services are also available for comprehensive checks.
What types of buildings are suitable for photovoltaic power generation systems?
Photovoltaic systems are suitable for various structures, including residential, commercial, and industrial buildings. The key requirement is a location with sufficient sunlight exposure.
How long does it take to install a photovoltaic power generation system?
Installation time depends on the system size. Residential installations typically take 1-3 days, while larger commercial or industrial systems may take several weeks.
Can these systems be combined with energy storage like batteries?
Yes, photovoltaic systems can be integrated with energy storage solutions to improve energy utilization and ensure a more stable, continuous power supply.
Are photovoltaic power generation systems environmentally friendly?
Absolutely. These systems use clean, renewable solar energy, which significantly helps reduce greenhouse gas emissions and environmental impact.
