| Parameters of Solar Tiles (STC Condition) | |

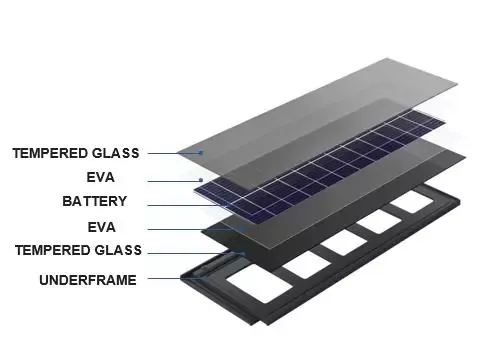

| Material | Tempered glass, PVB/EVA/POB, Solar Cell, Bottom Support |
| Photoelectric Conversion Efficiency | 15.9% / 18.4% |
| Voltage at Pmax | 5.7V / 13.7V |
| Current at Pmax | 6.14A / 6.35A |
| Open-circuit Current | 6.74V / 16.2V |
| Short-circuit Current | 6.53A / 6.75A |
| Operating Condition | |
| Operating Temperature | -40°C to +85°C |
| Fire Rating | Class A |
| Warranty | 30 years |

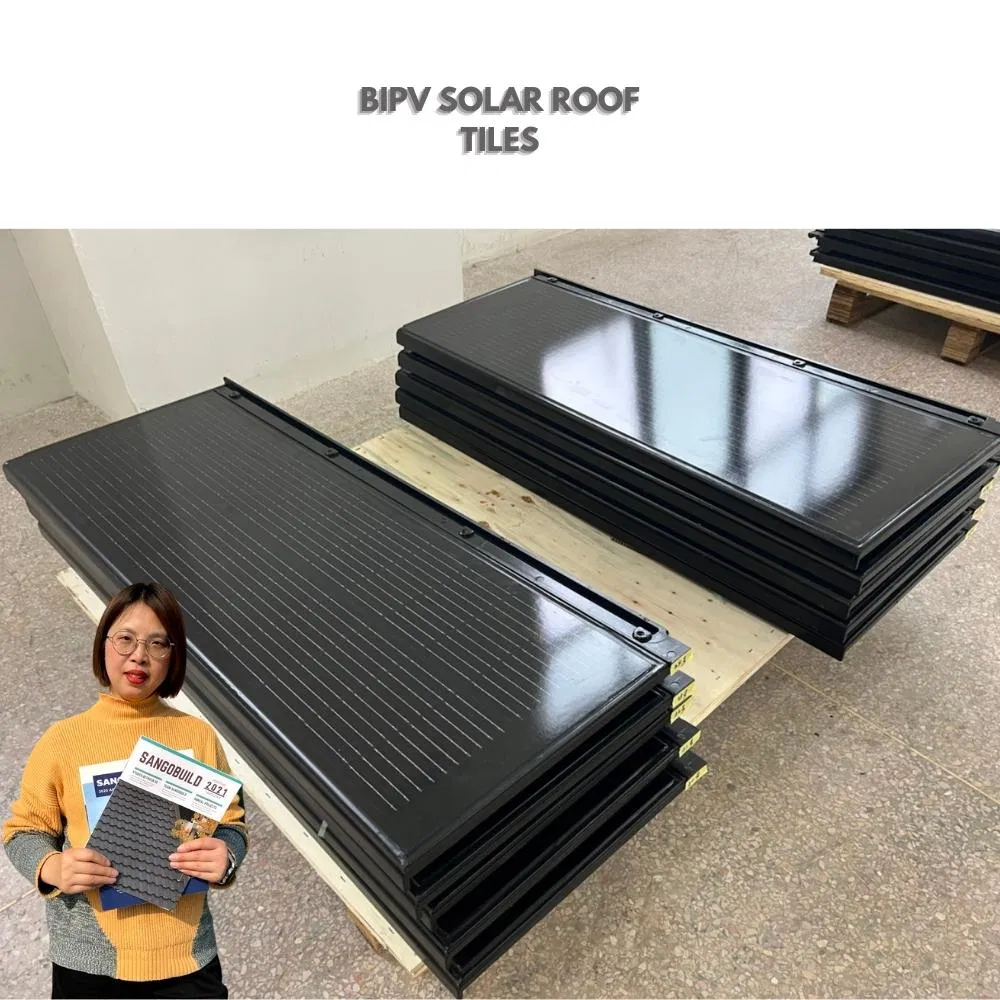

High-efficiency crystalline silicon cell technology and unique packaging for higher output.

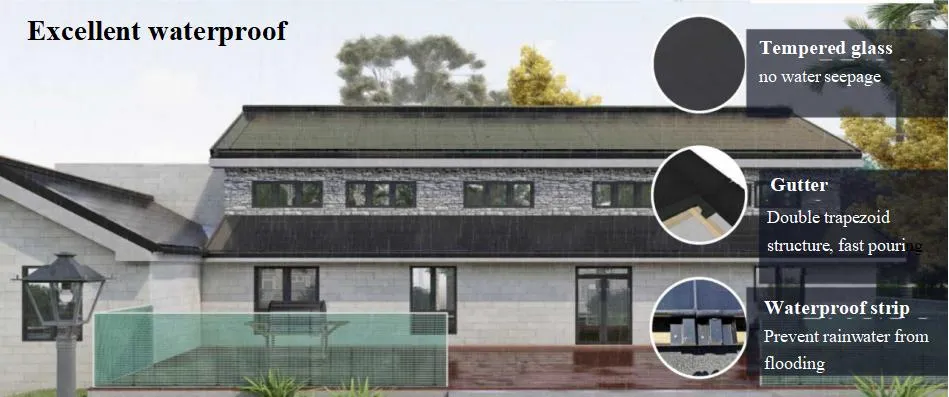

Class A fire protection, wind resistance, and waterproof design matching building lifespan.
Super strong structural strength, 3 times the strength of ordinary tiles.

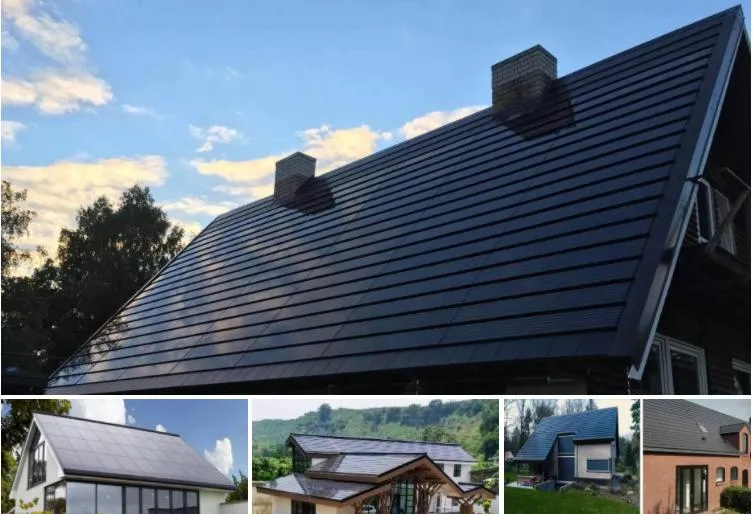

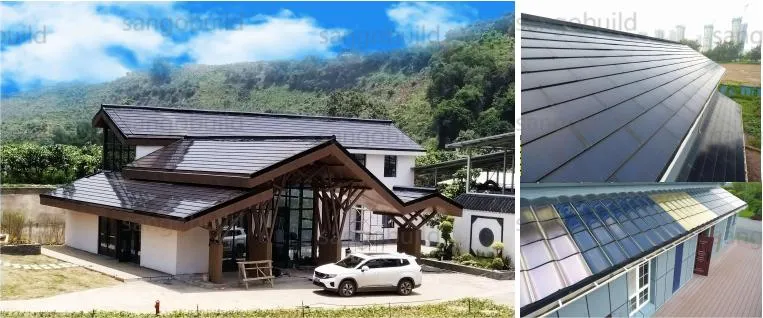

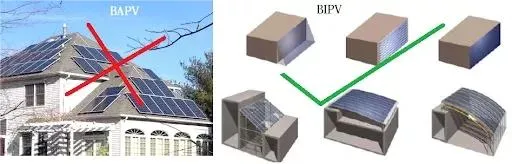

Customizable texture colors and integrated roof design for architectural coordination.

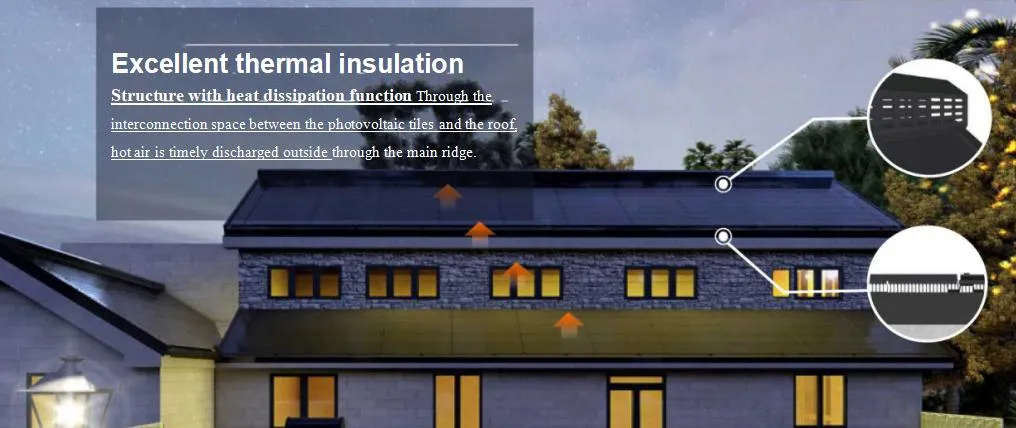

Unique heat dissipation structure reduces roof temperature by up to 5°C.

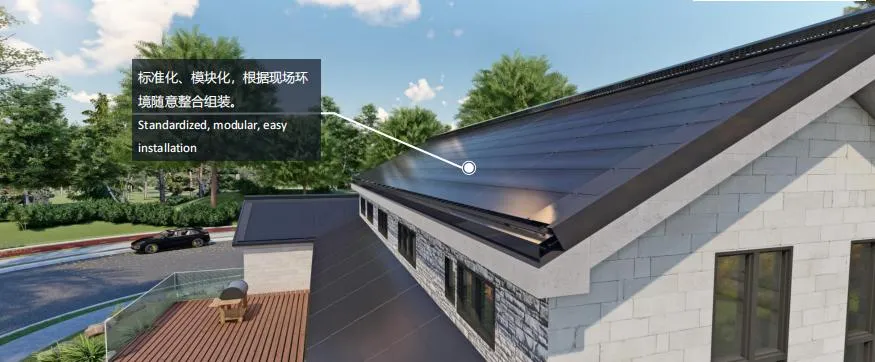

Standardized modular unit installation, saving installation time by more than 50%.
