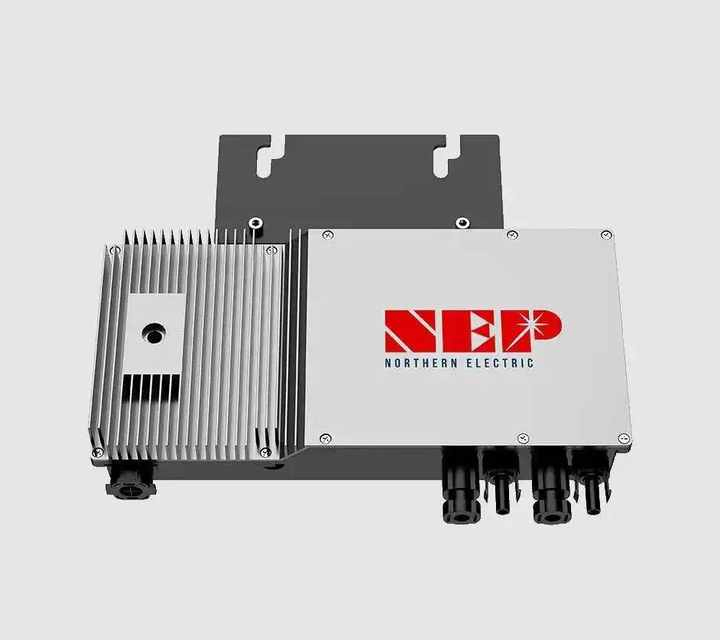

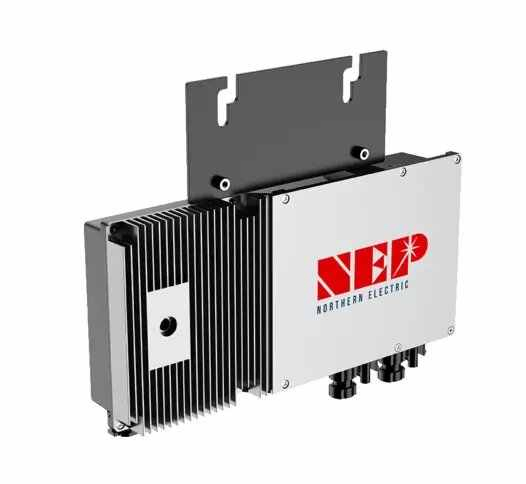

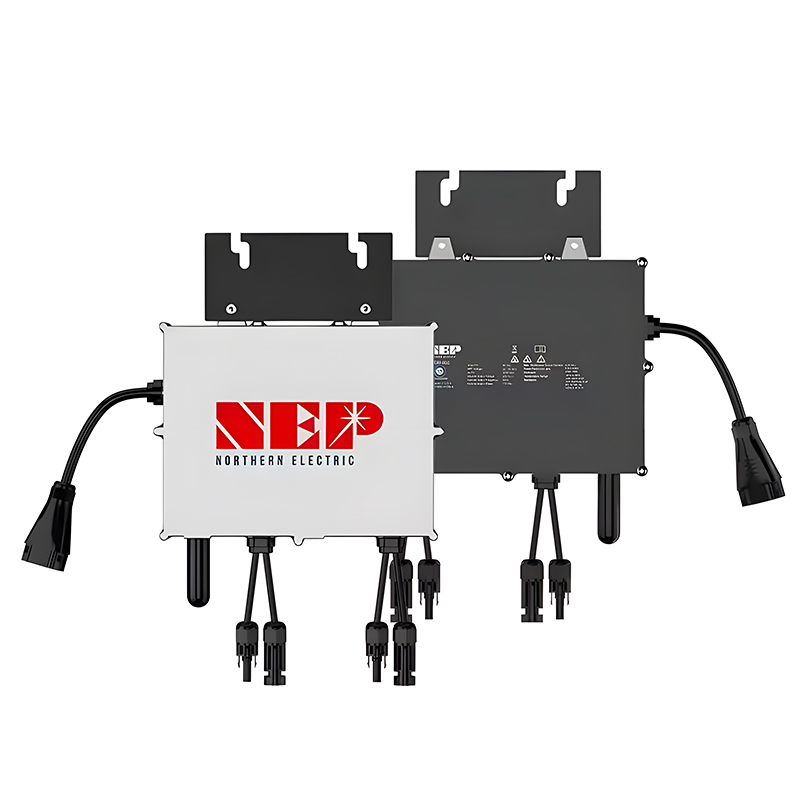

Nep Micro Inverter Bdm Single Phase 300W 400W 2000W WiFi High Quality Solar Micro Inverter for Home and Commercial PV Systems

Customization:	Available
After-sales Service:	Yes
Warranty:	10years

📊 Basic Information

Model NO.

NEP Inverter

Nature of Source Flow

Passive inverter

Phase

Single

Output Power

400W-600W

Certification

CE, TUV

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave String

Sine Wave Inverter

MPPT Voltage Range

22-55VDC

MPPT Efficiency

>99.5%

Rated Output Voltage

230VAC

Protection Category

II

🔍 Product Description

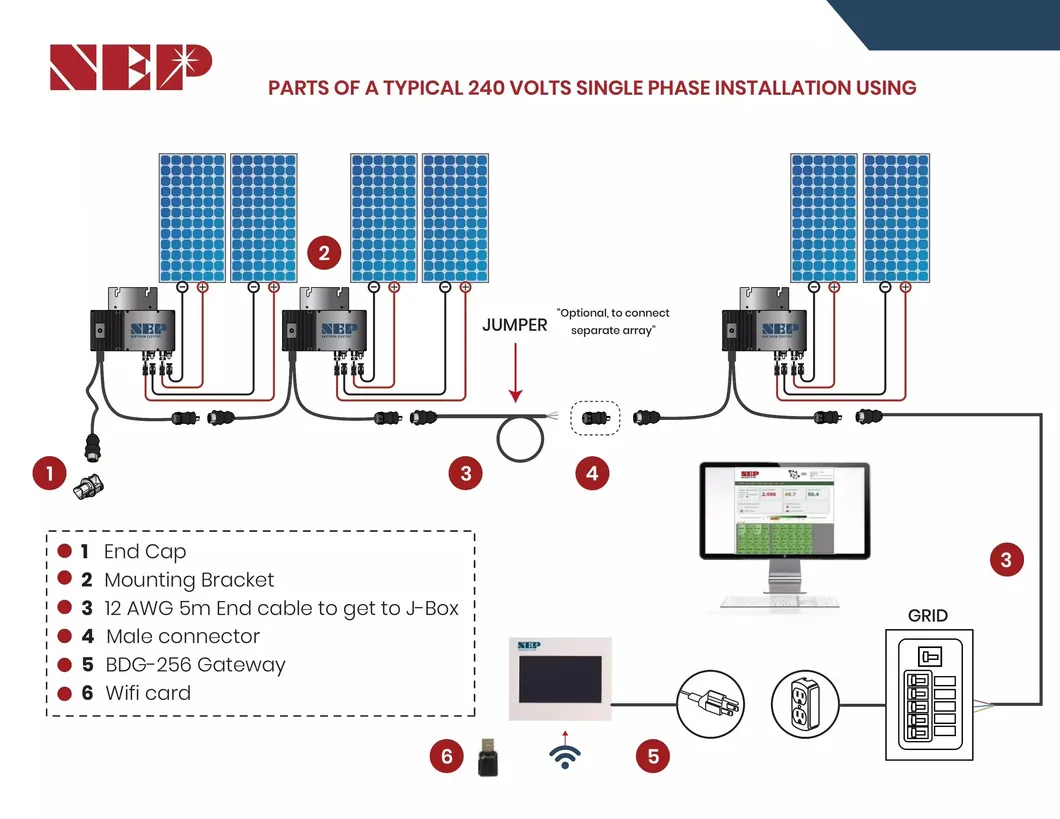

⚙️ Working Principle

📋 Technical Parameters

Model	BDM300	BDM500	BDM600	BDM800
Recommended Max PV Power	450W	750W	450W*2	600W*2
Max DC Input Current	14A	15.5A	14A*2	17A*2
MPPT Tracking Accuracy	>99.5%
MPPT Tracking Range	22-55V	35-55V	22-55V	22-55V
Rated AC Output Power	300W	500W	500W	800W
Nominal Power Grid Voltage	240V/208V/230V
Protection Degree	NEMA-6 / IP-66 / IP-67
Weight (incl. cable)	1.5kg	4.0kg	2.9kg	2.9kg

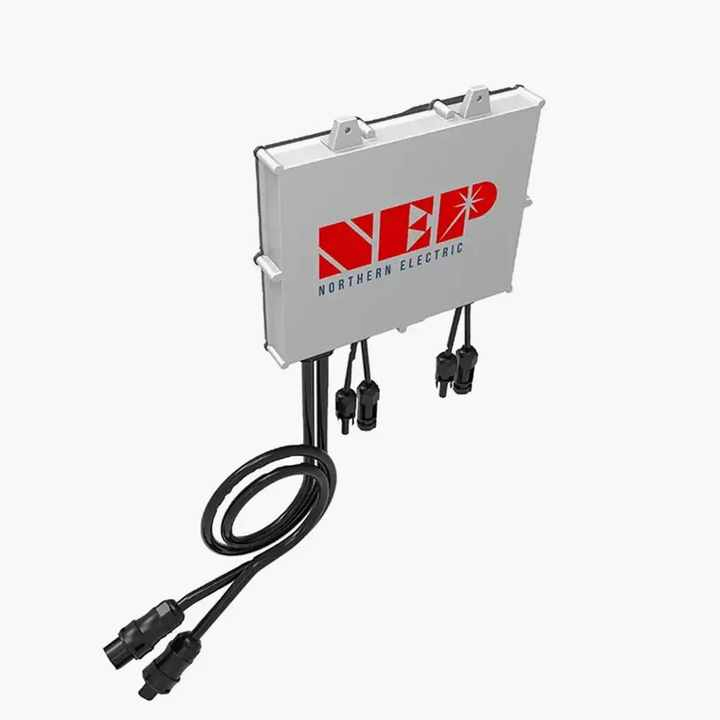

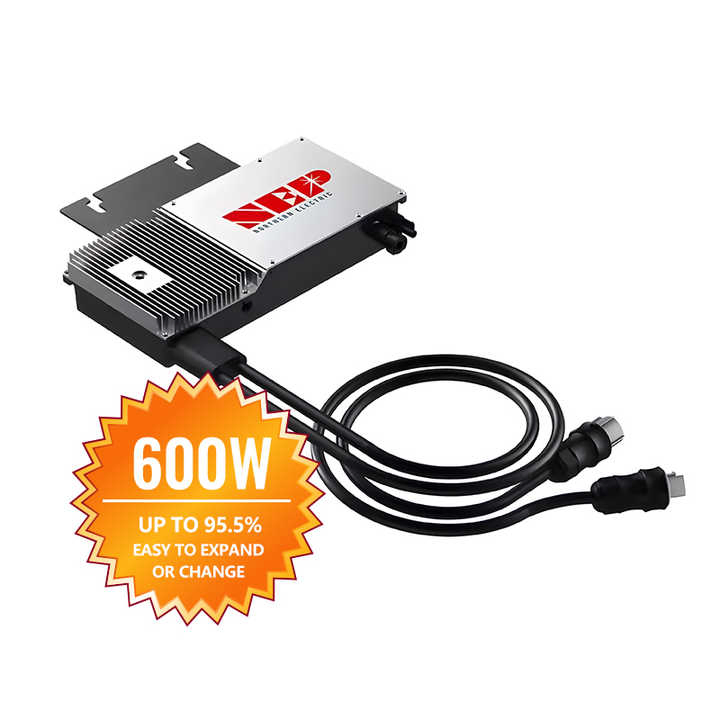

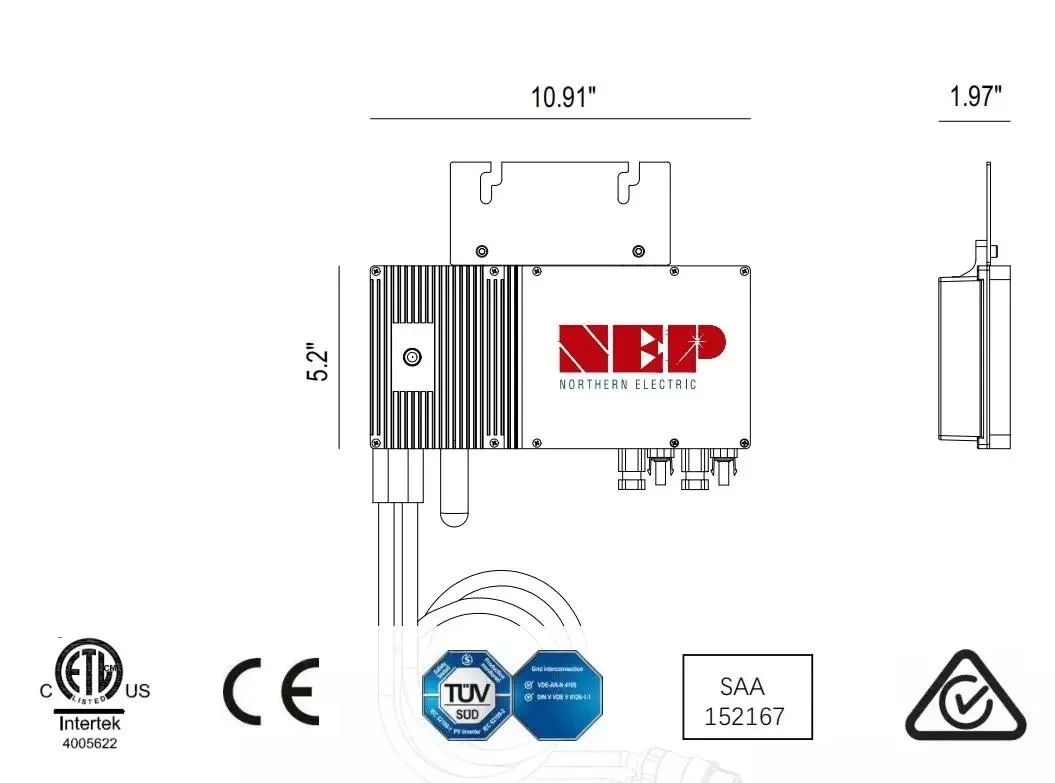

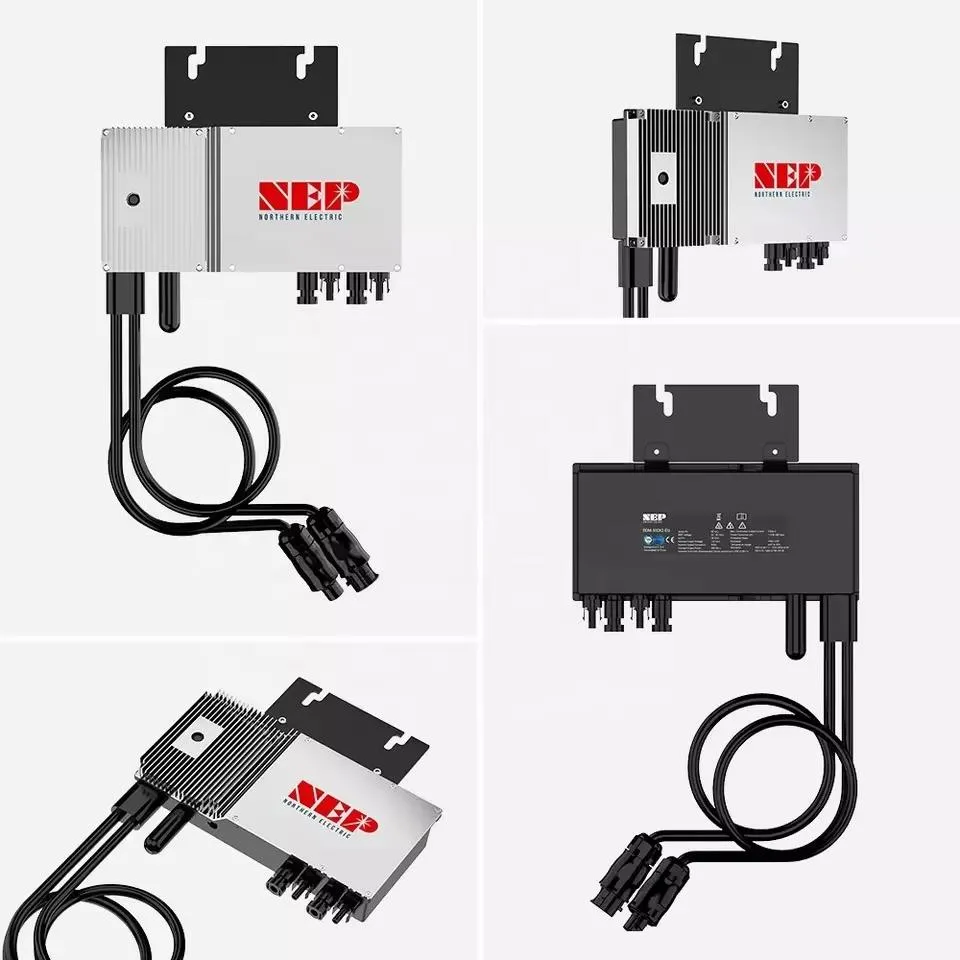

📸 Detailed Photos

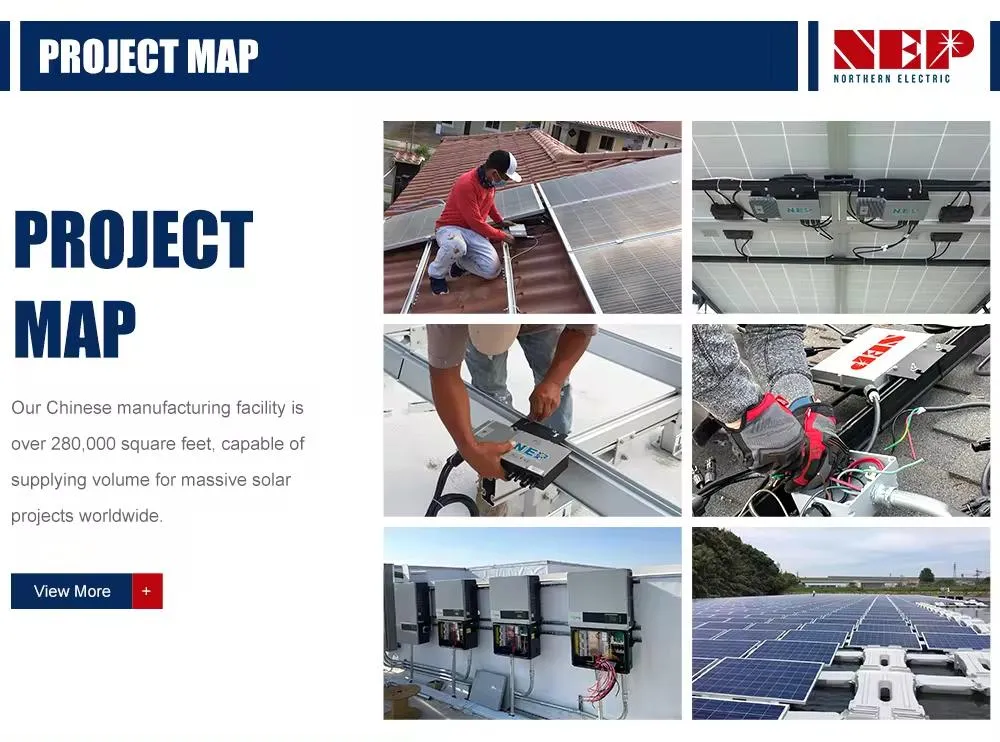

📦 Packaging & Project Case

❓ Frequently Asked Questions

How to choose the right system?

Please inform us about your energy storage system requirements, the capacity of the PV project installation, the installation scenario, and the arrangement of the components.

What is the delivery time for orders?

The delivery time typically ranges from 7 to 20 days for bulk orders, depending on the specific requirements and destination.

What is the warranty period for the solar system?

Generally, the solar panel has a 25-year warranty, on-grid and hybrid inverters have a 5-year warranty, and off-grid inverters typically come with a 2-year warranty.

What is the MPPT efficiency of these micro inverters?

Our micro inverters feature advanced MPPT technology with a tracking accuracy of greater than 99.5%, ensuring maximum energy harvest from your solar panels.

Are these inverters suitable for harsh environments?

Yes, the products are designed with high protection degrees, including IP-66 and IP-67 ratings, making them resistant to dust and water for outdoor installations.

How can I receive technical support?

We have a professional engineering team that provides support based on your requirements. We offer 24-hour online service to address any issues within 1 hour.
