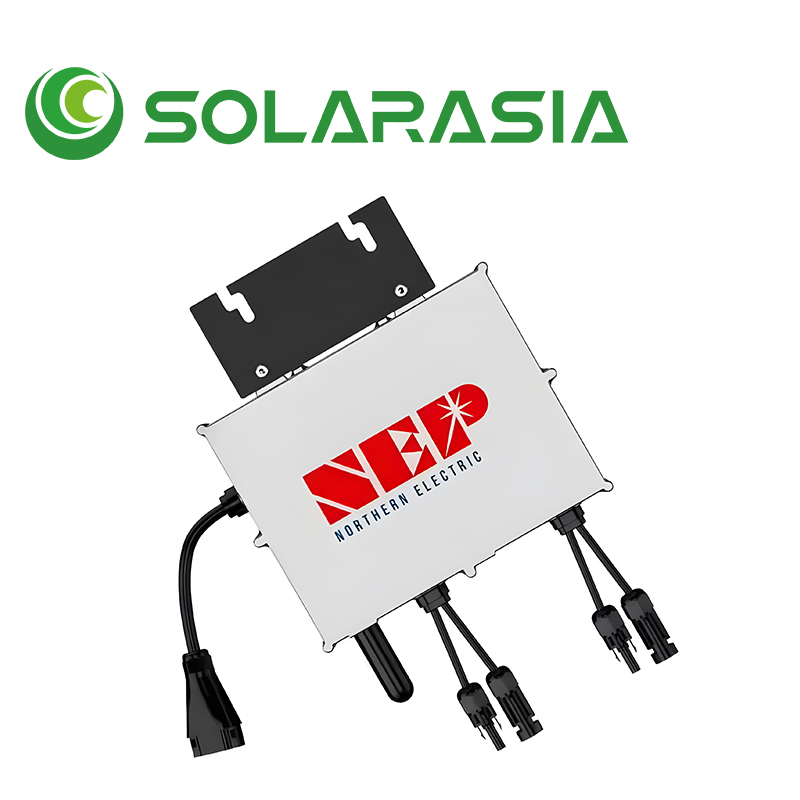

Basic Information
Model NO.BDM 300/500/600/800
Nature of SourcePassive inverter
PhaseSingle
Output Power501 - 1000W
CertificationCE
TypeDC/AC Inverters
Power SourceSolar Power
Nature of WaveSine Wave Inverter
Input Voltage60V
Rated Output230VAC
Efficiency97%
HS Code8541402000

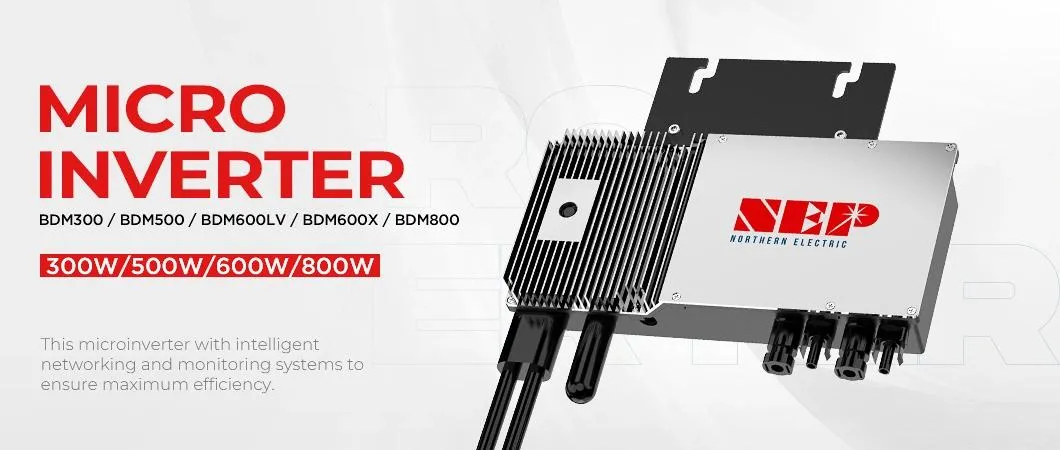

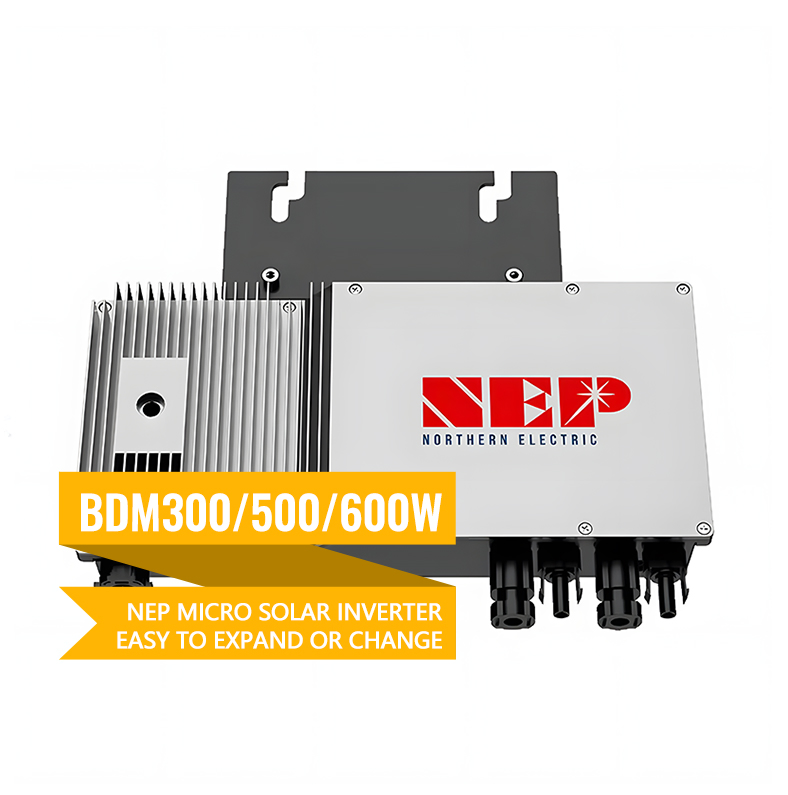

Product Overview

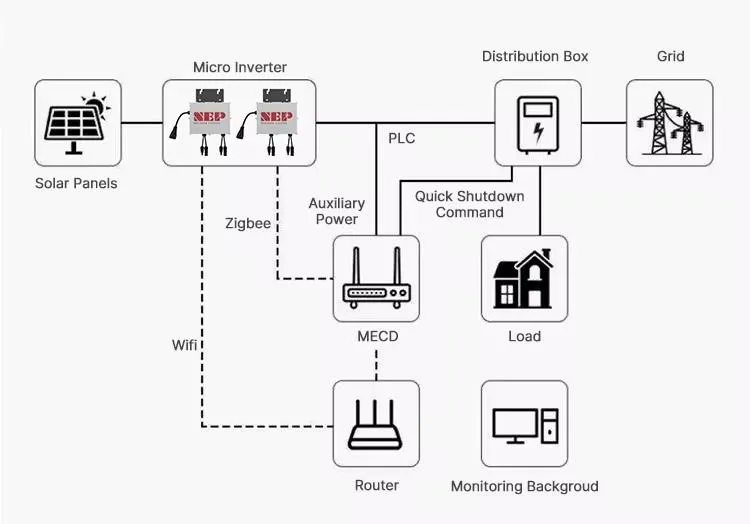

System Connection

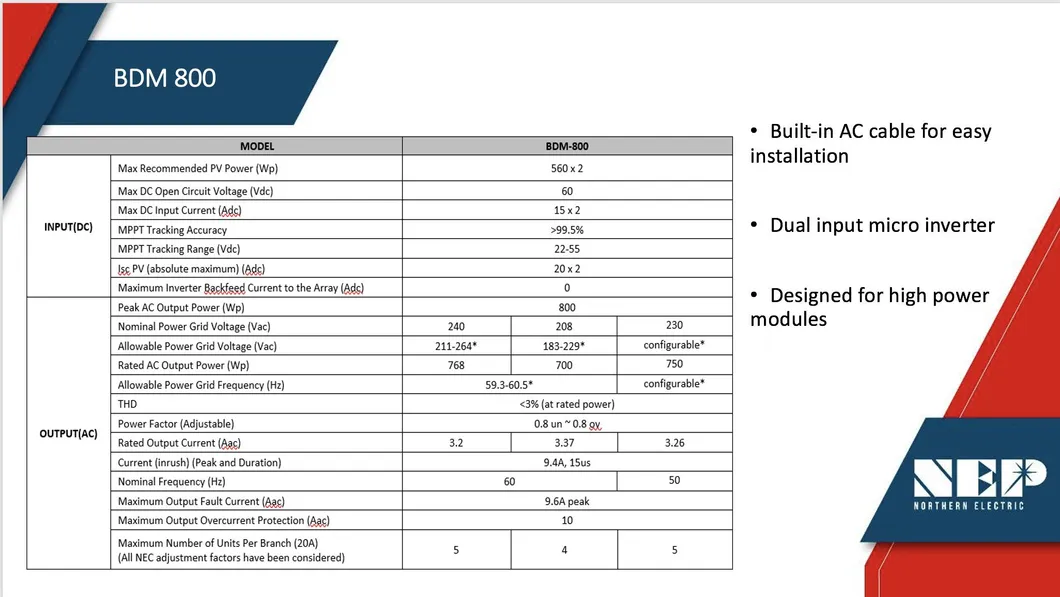

Technical Specifications
| Model |
BDM300 |
BDM500 |
BDM600 |
BDM800 |
| Recommended Max PV Power |
450W |
750W |
450W*2 |
600W*2 |
| Max DC Input Current |
14A |
15.5A |
14A*2 |
17A*2 |
| MPPT Tracking Accuracy |
>99.5% |
| MPPT Tracking Range |
22-55V |
35-55V |
22-55V |
22-55V |
| Rated AC Output Power |
300W |
500W |
500W |
800W |
| Nominal Grid Voltage |
240V/208V/230V |
| Protection Degree |
NEMA-6/IP-66/IP-67 |

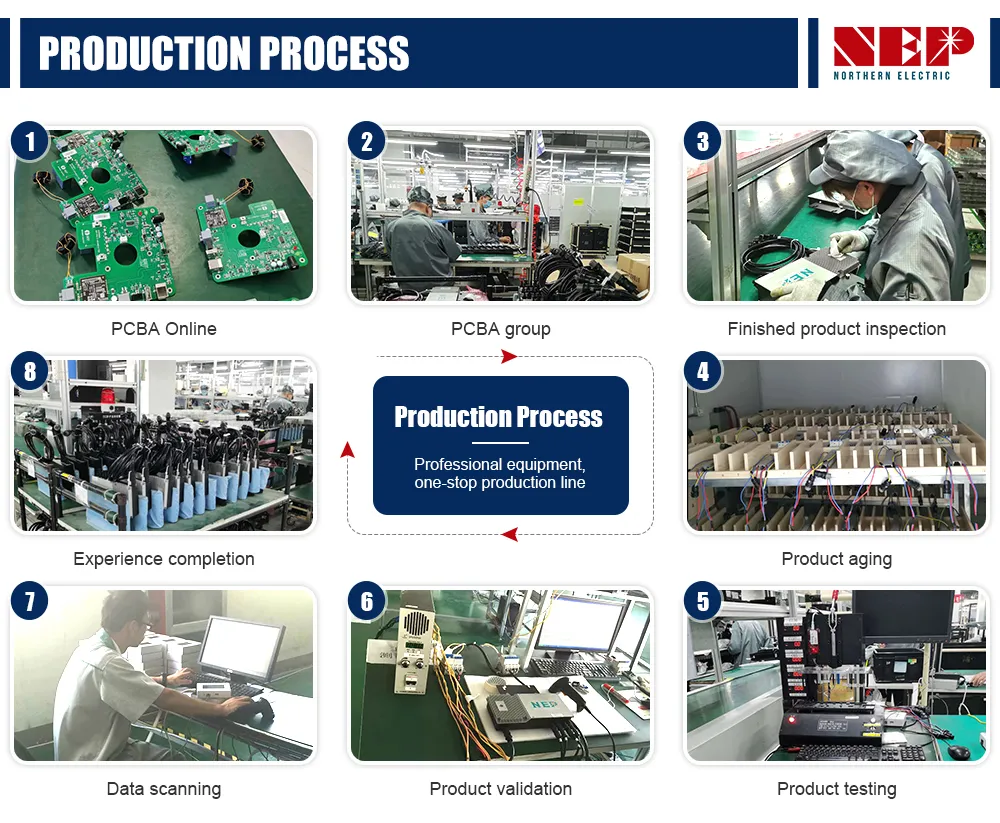

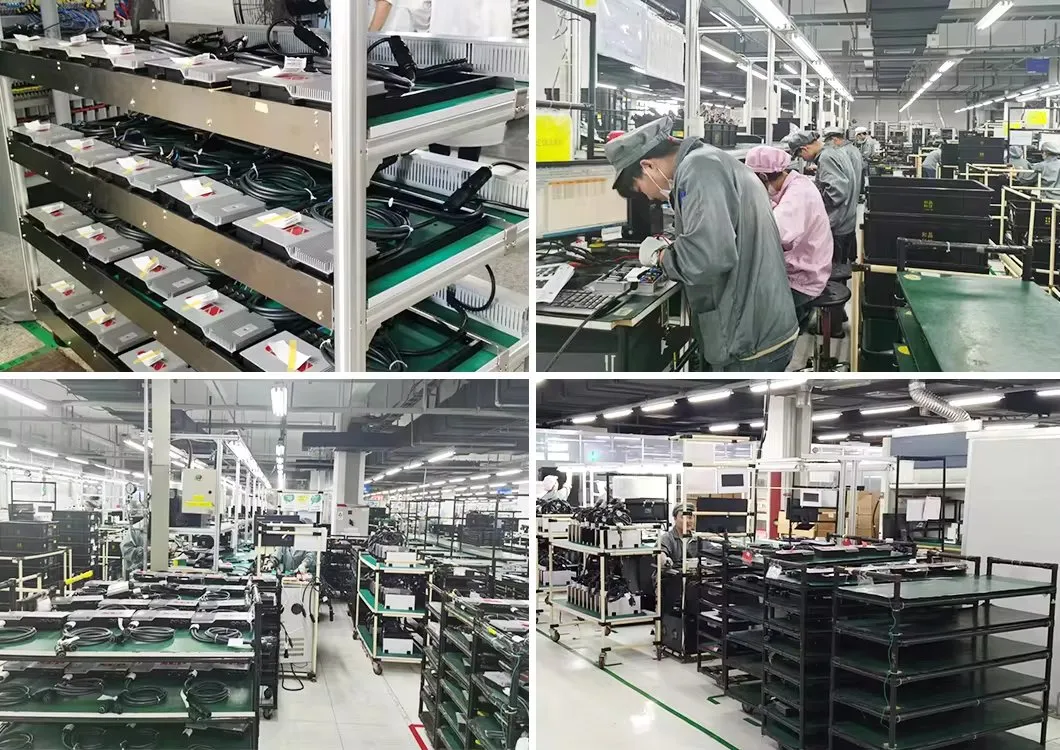

Production Process & Packaging
Frequently Asked Questions
How to choose the right system?
Please inform us about the type of energy storage system required, the capacity of the PV project installation, the installation scenario, and the arrangement of components.
How about the delivery time?
The delivery time generally ranges from 7 to 20 days for bulk orders.
What is the warranty for the solar system?
Solar panels come with a 25-year warranty. On-grid and hybrid inverters typically have a 5-year warranty, while specific off-grid inverters carry a 2-year warranty.
How can I get better technical support?
Our professional engineer team provides support based on your requirements. We offer 24-hour online service to address any operational issues.
What is the protection rating of these inverters?
The inverters are designed with high-standard protection ratings including NEMA-6, IP-66, and IP-67, making them suitable for various environments.
What is the maximum efficiency and MPPT accuracy?
These units feature an inverter efficiency of 97% and an MPPT tracking accuracy of greater than 99.5% for optimal energy harvesting.
